Wall mount, Splicing and Patching up to 192 Fibers

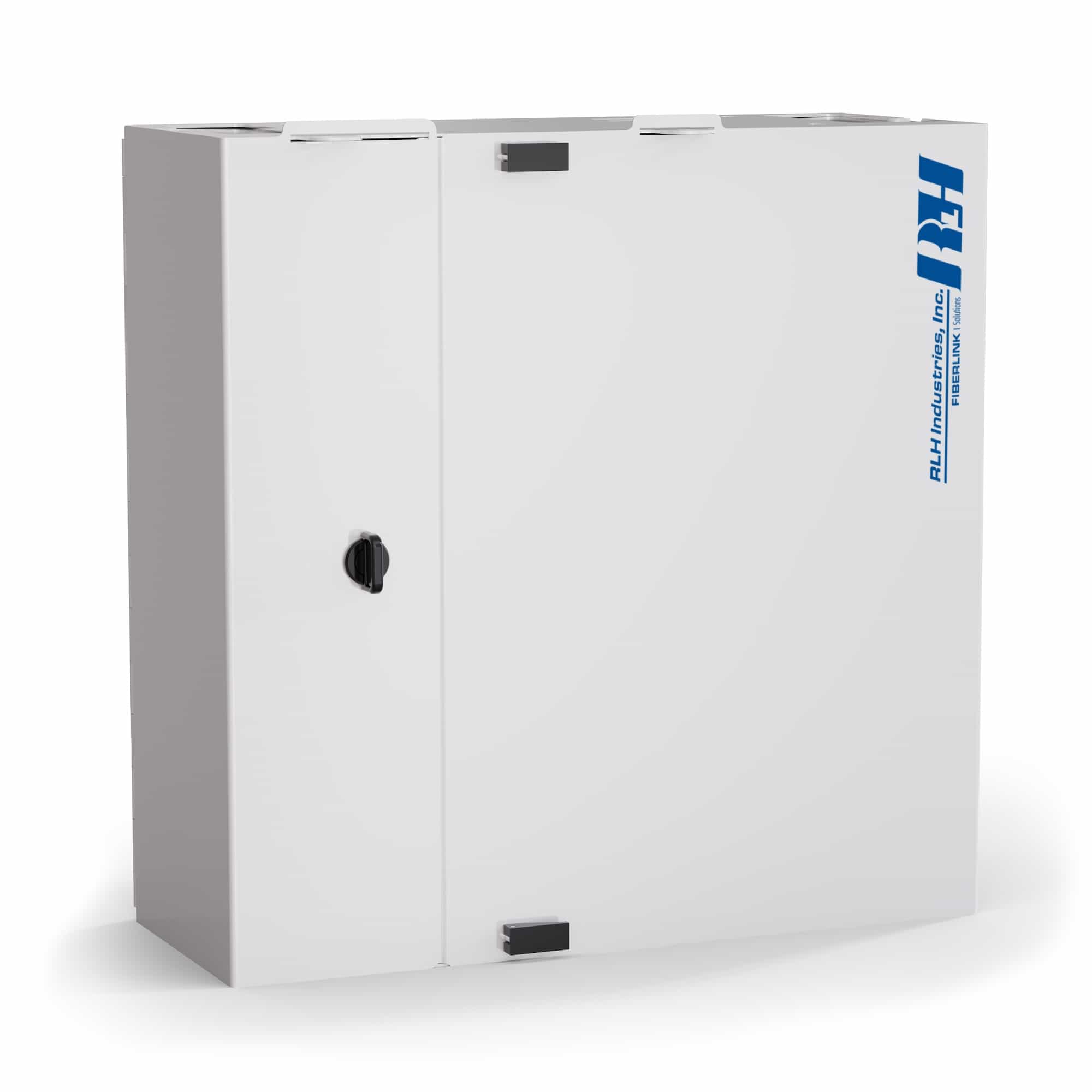

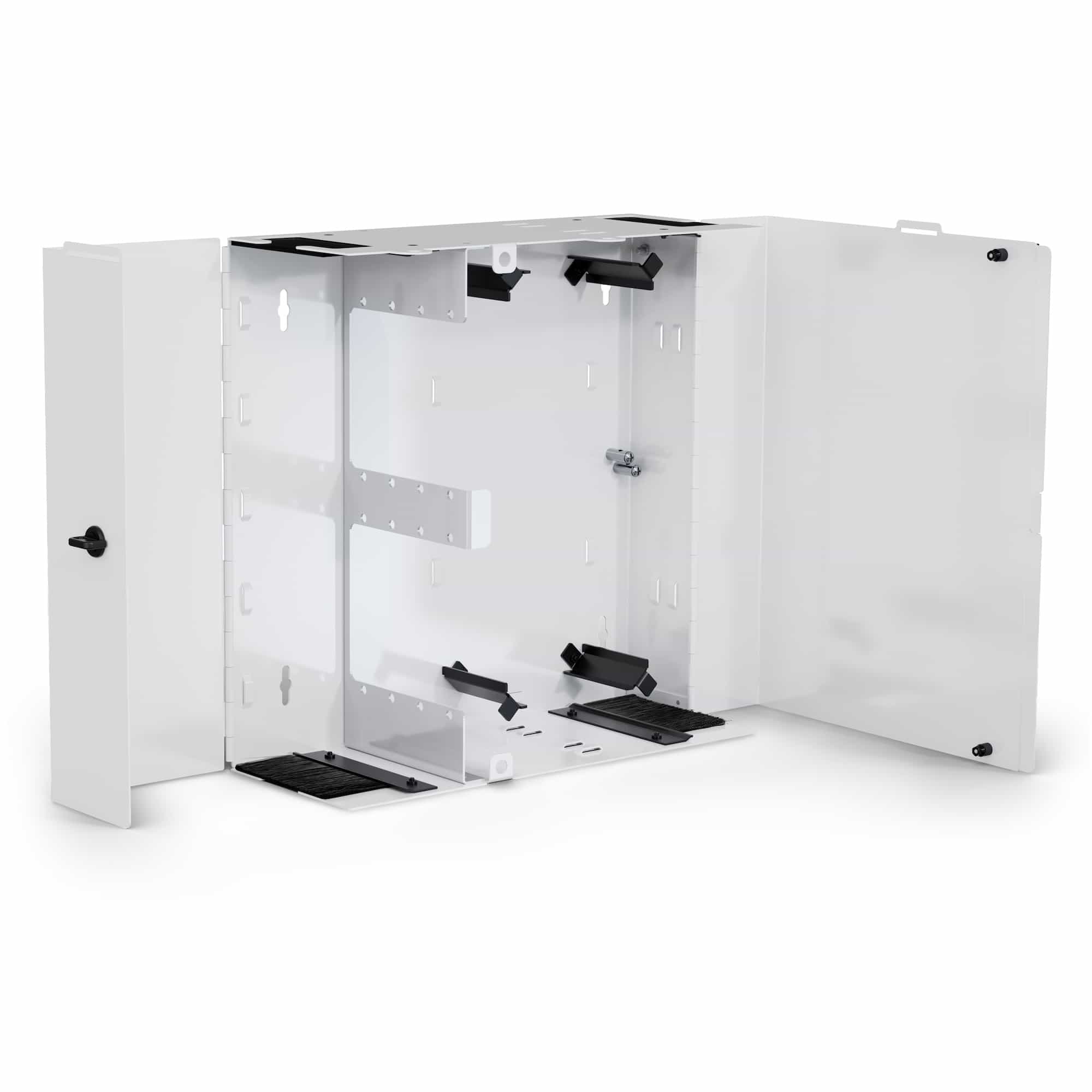

The RLH WMP8 8 Plate Fiber Patch Panel is designed for fiber optic patching and splicing applications where where high fiber count and easy access is required. It is designed to mount on a backboard panel or wall, and the doors open wide to provide complete access to the interior.
The fiber management and splice tray door is secured with flip latches, and the patching side door has a twist latch. Each door may be secured with a padlock, and access to the splicing side is restricted unless the the front door is opened first. Brush type dust protectors are at each cable entry/exit opening, allowing for easy routing of fiber optic cable. Internal cable guides and wall mounting hardware is included.

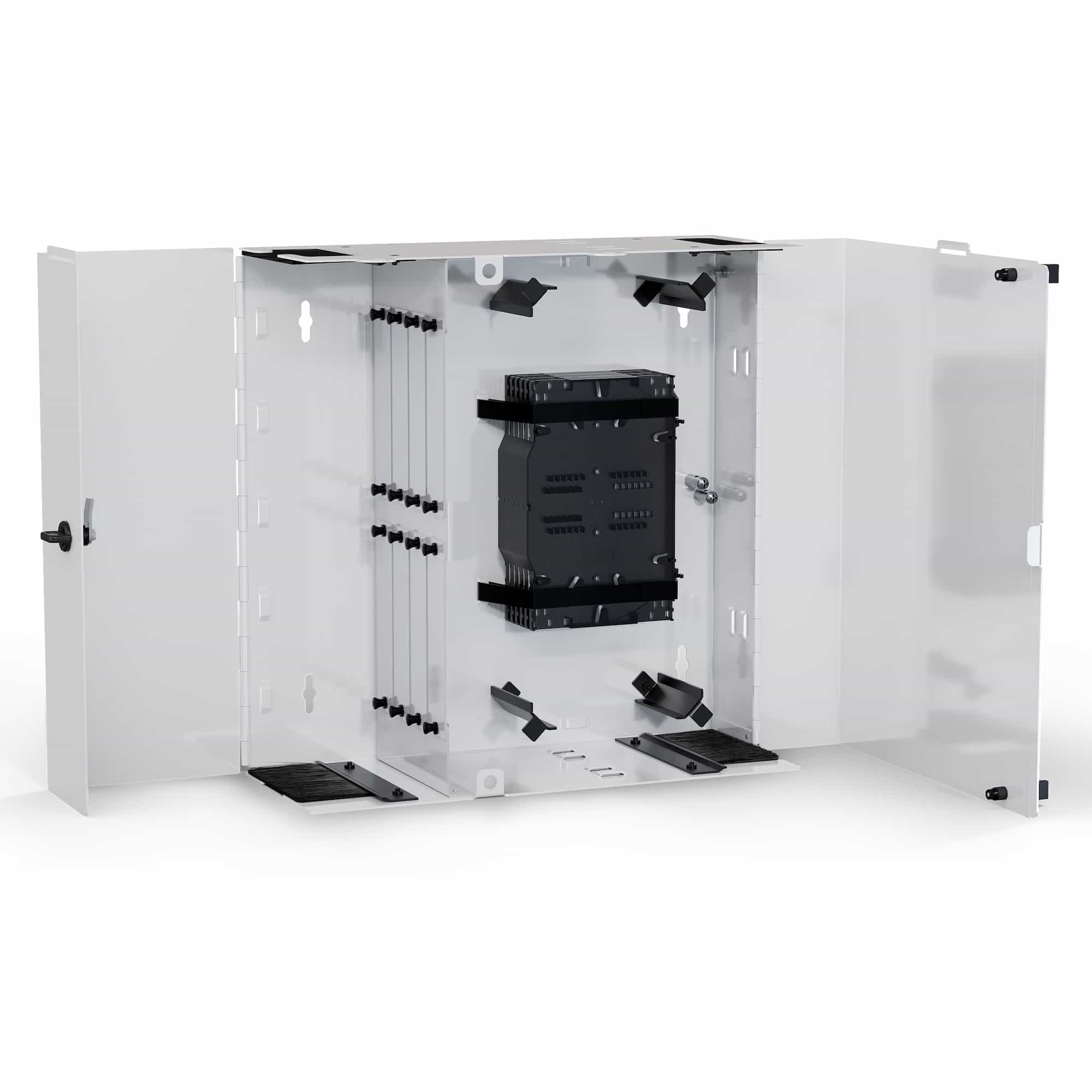

Adapter plates may be ordered separately or preinstalled and are available with ST, SC, FC, LC, MTRJ, UPC and APC style adapters. When ordered using our configuration matrix, the Adapter Plates are preinstalled, and the Splice on Fiber Pigtails are bundled with the patch panel for convenience.
This patch panel was designed and is made in the USA.
Features
- Holds 8 LGX® adapter plates, blank adapter plates included
- Large access doors fully enclose distribution fiber
- Each door may be individually padlocked for total access control
- Hinged doors with quarter turn latch and flip latches
- Includes 2 strength member clamps for securing entry cable
- Adapter plates may be removed with fibers attached
- Includes hook and loop straps for easy fiber management
- Durable powder coated steel construction
- Multiple built in anchor points to secure fiber cable inside
- Splice trays and sleeves ordered separately
- Holds ST, SC, FC, LC, MTRJ, UPC, APC style adapters
- Wall mounting hardware, cable ties, & distribution charts included
- Made in USA
Please see the product documentation for the complete list of specifications
Ports:
Holds 8 LGX® plates
Up to 24 Fibers each plate (Ordered separately)
*Includes 8 blank adapter plates when not ordered with accompanying adapter plates
Mounting Style:
Wall or panel mount
Environmental:
Indoor or inside weatherproof enclosure
Construction:
Powder coated steel, two hinged doors with padlock hasp, secured with quarter turn latch and flip latches
Accessory Kit:
Qty. 4 – 5” x 1/2” Velcro® straps for securing fiber
Qty. 2 – 12” x 1/2” Velcro® straps for securing Splice Trays
Qty. 10 – 4″ Cable ties for securing entry cable
Qty. 2 – Distribution chart labels
Qty. 4 – #10 x 3/4” Mounting screws and washers

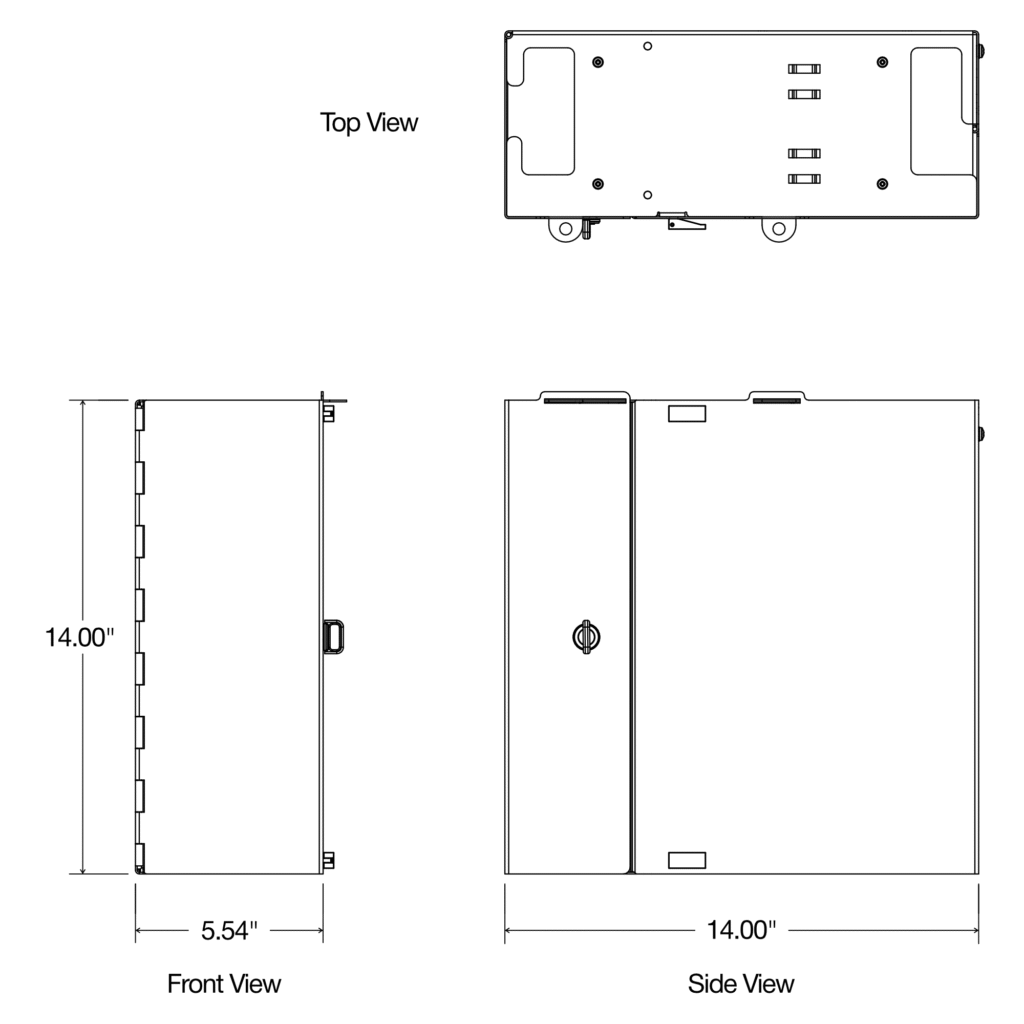

Dimensions:
14” (W) x 5.54” (D) x 14” (H), (355.6mm x 140.7mm x 355.6mm)
Product Information
CAD Files
Guide
WMP8-A-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
8 Plate Wall Mount Fiber Patch Panel
| Short description | Part number | Price | |
|---|---|---|---|
| 8 Plate Patch Panel, Wall Mount, Splicing and Patching up to 192 Fibers | WMP8-A-1 | $295.00 |
- Fiber Adapter Plates (grey) and Splice on Fiber Pigtails are also available
Fusion Splice Protection Sleeves
| Short description | Part number | Price | |
|---|---|---|---|
| 40 mm Fusion Splice Protection Sleeves - Qty 15 | FUSIONSS-40MM-015 | $5.00 | |
| 40 mm Fusion Splice Protection Sleeves - Qty 30 | FUSIONSS-40MM-030 | $9.00 | |
| 40 mm Fusion Splice Protection Sleeves - Qty 100 | FUSIONSS-40MM-100 | $25.00 | |
| 60 mm Fusion Splice Protection Sleeves - Qty 30 | FUSIONSS-60MM-030 | $9.00 | |
| 60 mm Fusion Splice Protection Sleeves - Qty 100 | FUSIONSS-60MM-100 | $25.00 |
- View the Fusion Splice Protection Sleeves page for detailed information
Fiber Splice Tray
| Short description | Part number | Price | |
|---|---|---|---|
| Fiber Splice Tray, 12/24 Position, Self Stacking | RLH-FST-06 | $12.50 |
