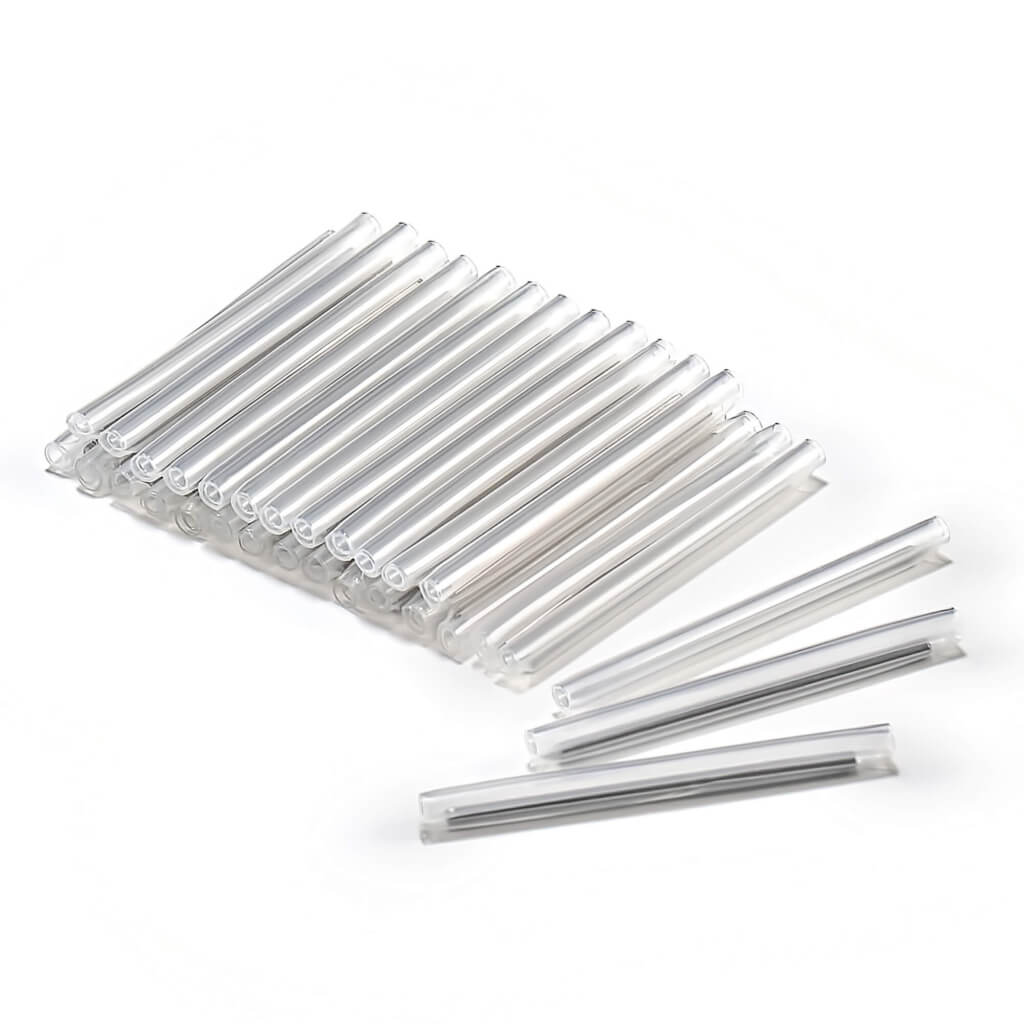

Fusion Splice Protection Sleeves

40mm & 60mm Lengths

RLH Fusion Splice protection sleeves offer durable and long lasting protection for single fiber splices. A stainless steel rod is included to help provide rigidity and stability to your fusion splice. A fiber splice sleeve is added prior to splicing a fiber. Once spliced a heater will shrink the diameter down to 2.6mm over the splice for long lasting protection.

40 Sleeve Compatibility:

RLH-FST-03
RLH-FSH-01
RLH-FSH-03

60 Sleeve Compatibility:

RLH-FST-01
RLH-FST-02
RLH-FST-05

FUSIONSS-40MM-015 FUSIONSS-40MM-030 FUSIONSS-40MM-080 FUSIONSS-40MM-100 FUSIONSS-60MM-030 FUSIONSS-60MM-050 FUSIONSS-60MM-100

Slim diameter, 2.6mm
Stainless steel rod for increased protection
Fits RLH splice trays and holders
Available in 40 & 60mm sizes

Sleeve Diameter After Shrink:
2.6mm

Strength Member:
Stainless Steel

Lengths:
40mm or 60mm (varies by part number)

For Fiber Strands Sized:
250 to 900μm

General Information

Data Sheet

$4.00 – $15.00

Lead Time: 1 to 3 Days*

For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

Data Sheet

Ordering

Fusion Splice Protection Sleeves

Short description	Part number	Price
40mm Fusion Splice Protection Sleeves – Qty 15	FUSIONSS-40MM-015	$4.00	Fusion Splice Protection Sleeves quantity
40mm Fusion Splice Protection Sleeves – Qty 30	FUSIONSS-40MM-030	$6.00	Fusion Splice Protection Sleeves quantity
40mm Fusion Splice Protection Sleeves – Qty 80	FUSIONSS-40MM-080	$12.00	Fusion Splice Protection Sleeves quantity
40mm Fusion Splice Protection Sleeves – Qty 100	FUSIONSS-40MM-100	$15.00	Fusion Splice Protection Sleeves quantity
60mm Fusion Splice Protection Sleeves – Qty 30	FUSIONSS-60MM-030	$6.00	Fusion Splice Protection Sleeves quantity
60mm Fusion Splice Protection Sleeves – Qty 50	FUSIONSS-60MM-050	$10.00	Fusion Splice Protection Sleeves quantity
60mm Fusion Splice Protection Sleeves – Qty 100	FUSIONSS-60MM-100	$15.00	Fusion Splice Protection Sleeves quantity
