Compact Industrial MTP Breakout Module for Rapid Fiber Deployments​

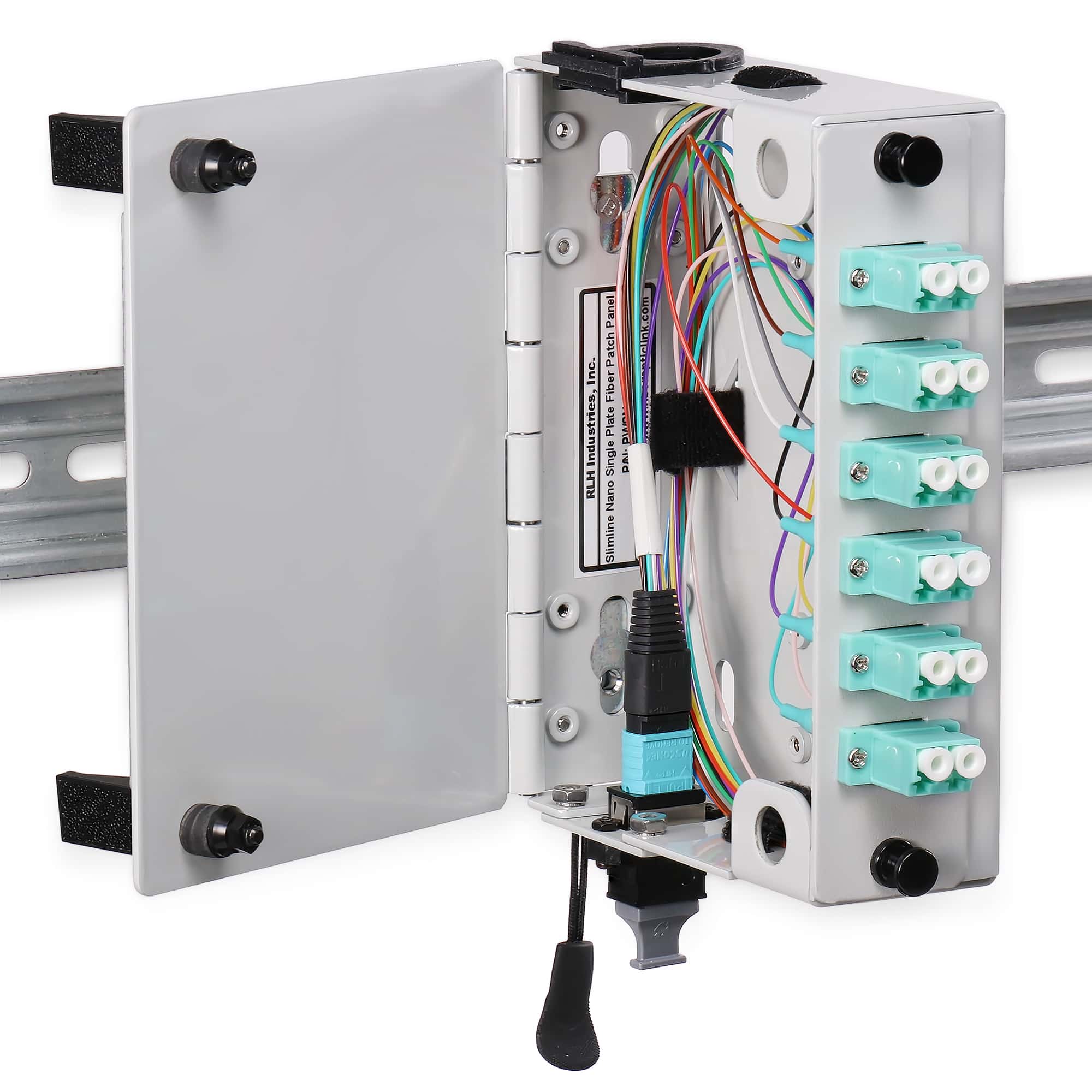

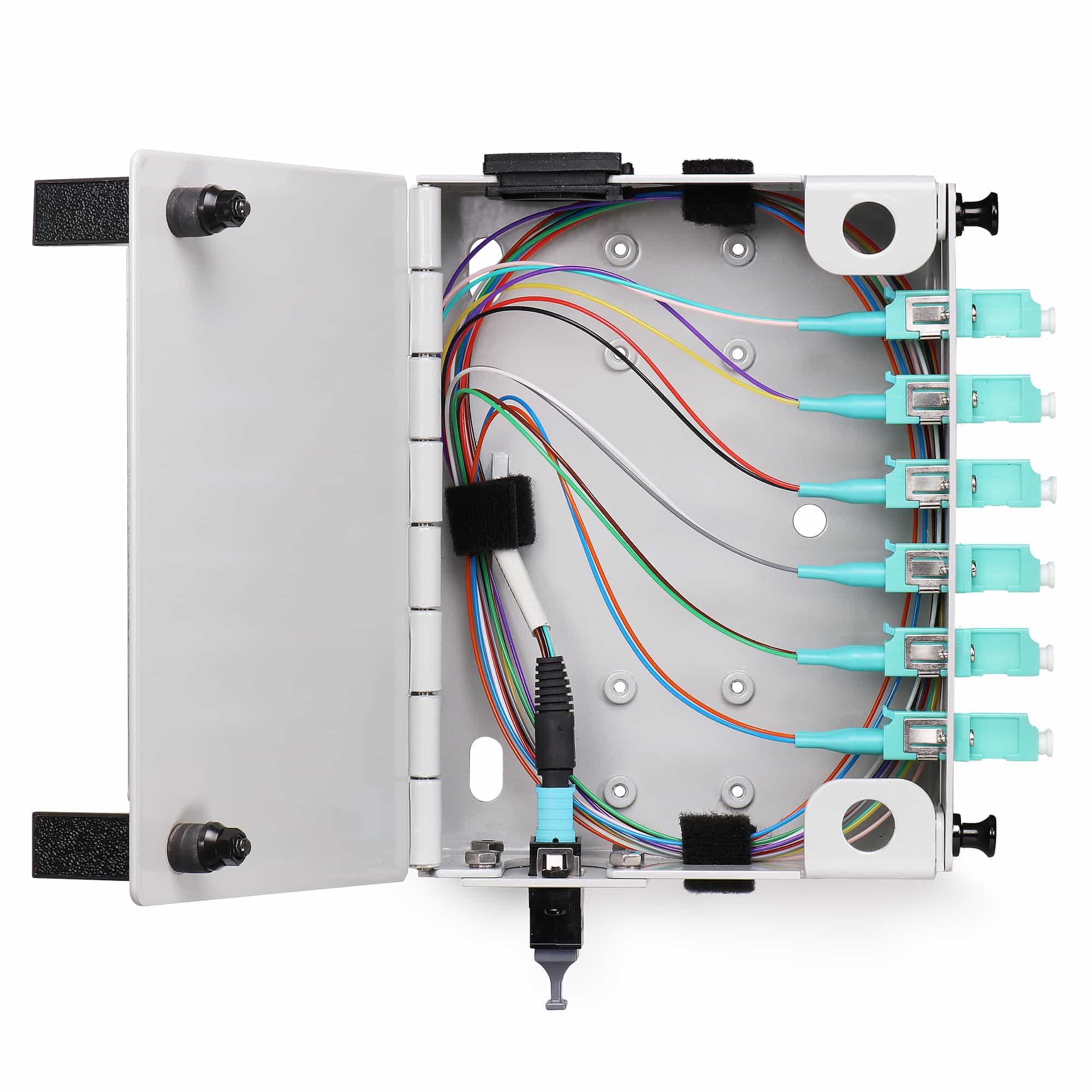

The RLH Industrial MTP DIN Fiber Module is designed to offer a quick and reliable solution for deploying fiber throughout industrial and commercial networks. These modules come preloaded with an MTP breakout cable and are terminated to ST, SC, or LC adapters.

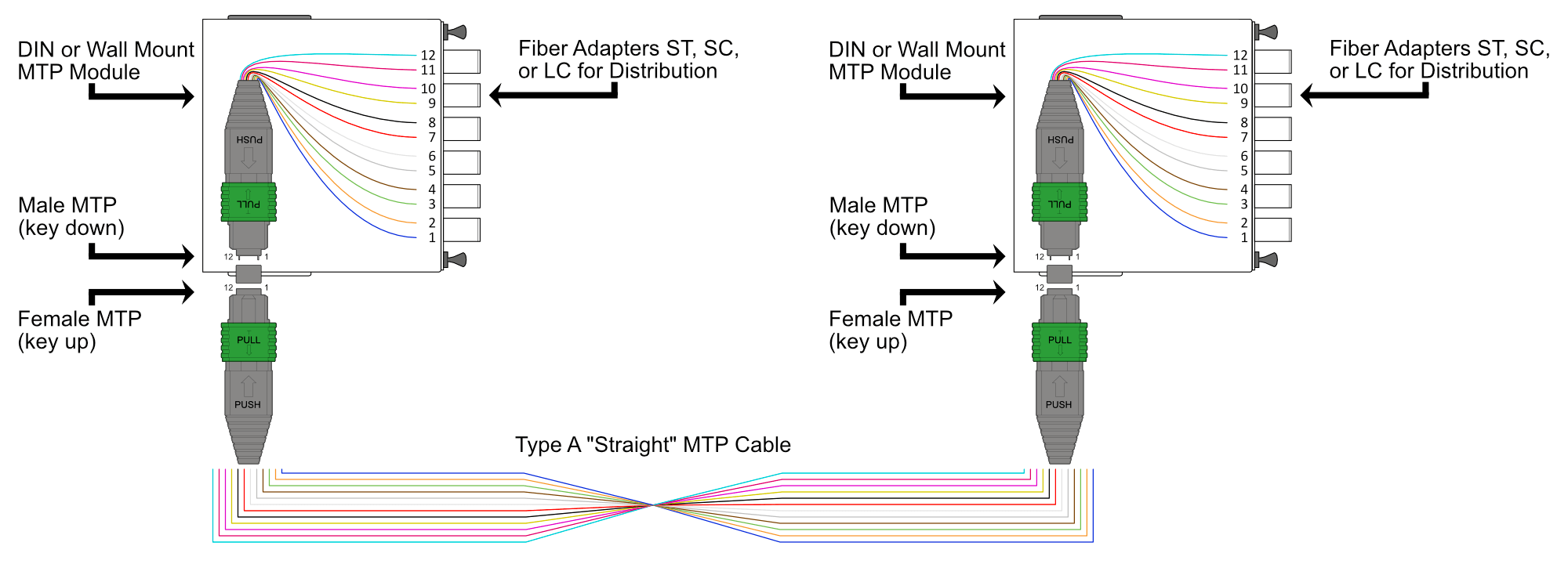

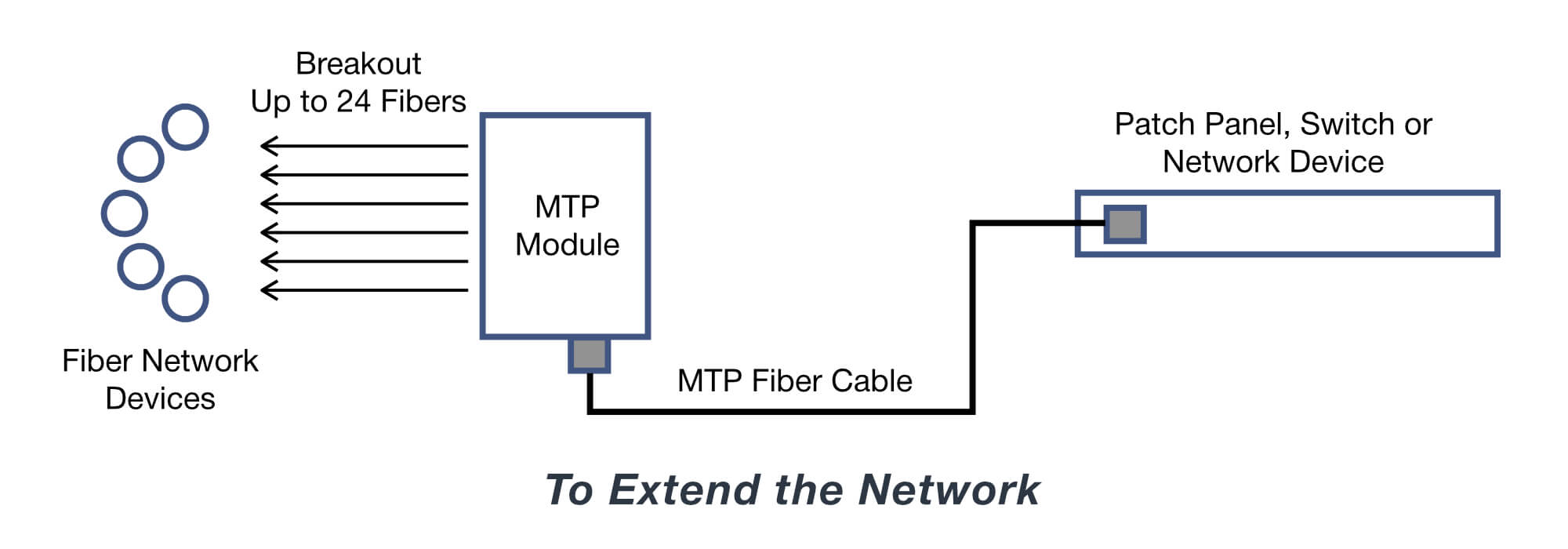

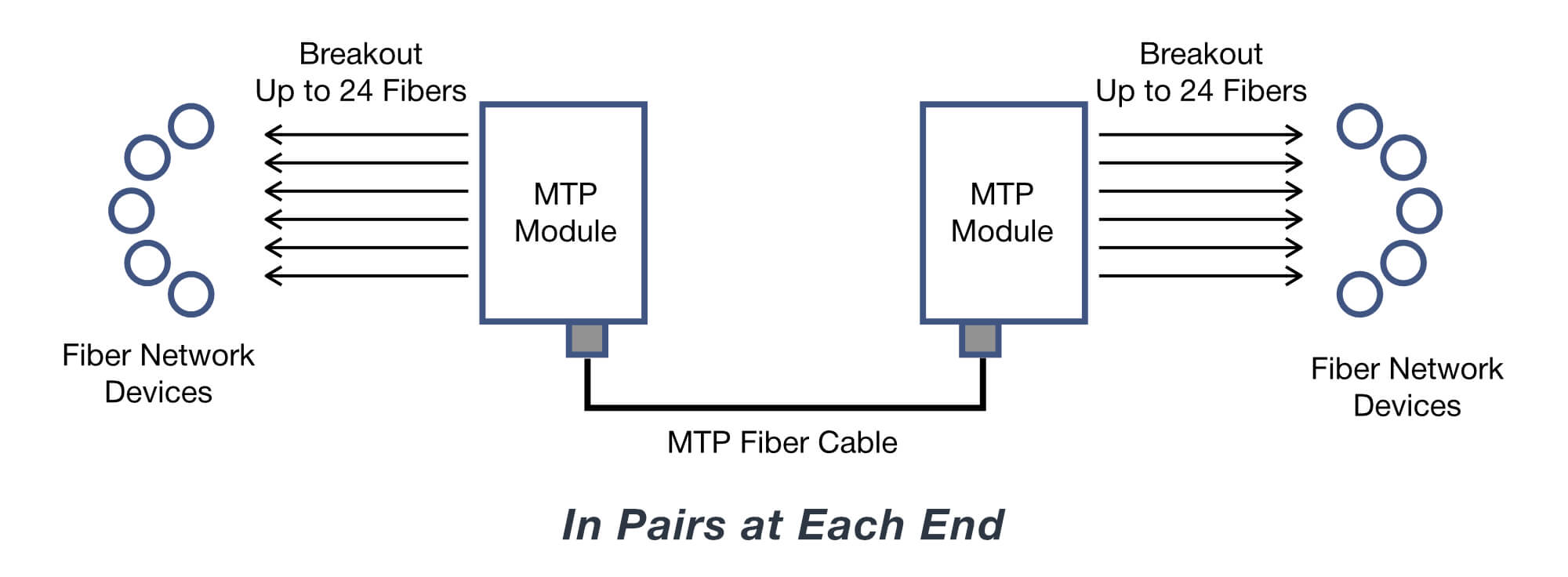

When ordered with the optional MTP interconnect cable, these modules combine to make a complete fiber extension system, allowing field devices to quickly connect and begin communicating.
These modules are designed and assembled in the USA and are readily customizable to specialized applications when desired.
MTP-NANO-LC-LDMM
MTP-NANO-LC-LDMX
MTP-NANO-LC-LDMC
MTP-NANO-LC-LDSM
MTP-NANO-SC-LDMM
MTP-NANO-SC-LDMX
MTP-NANO-SC-LDMC
MTP-NANO-SC-LDSM
MTP-NANO-ST-LSMM
MTP-NANO-ST-LSSM
- MTP to 12 fiber break out

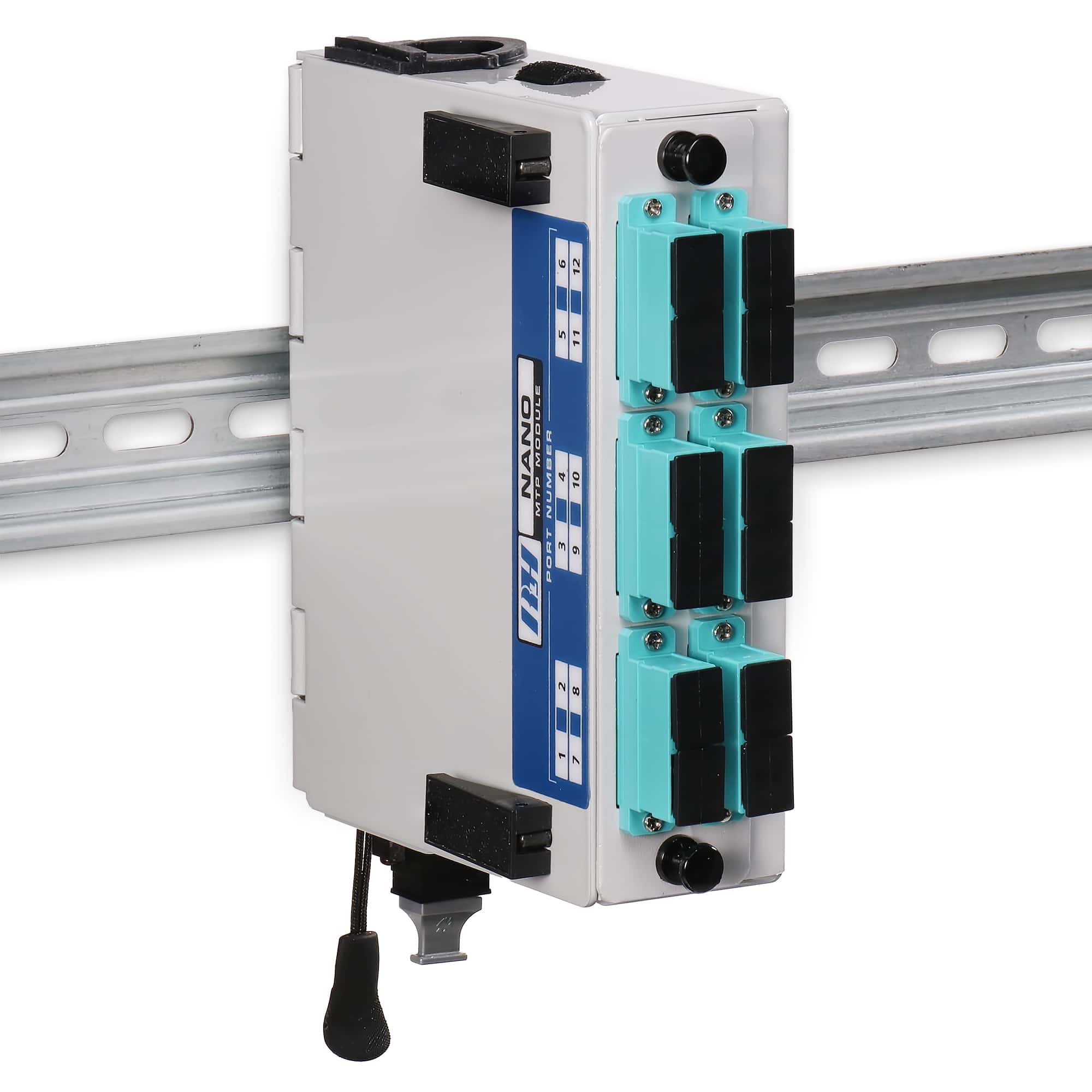

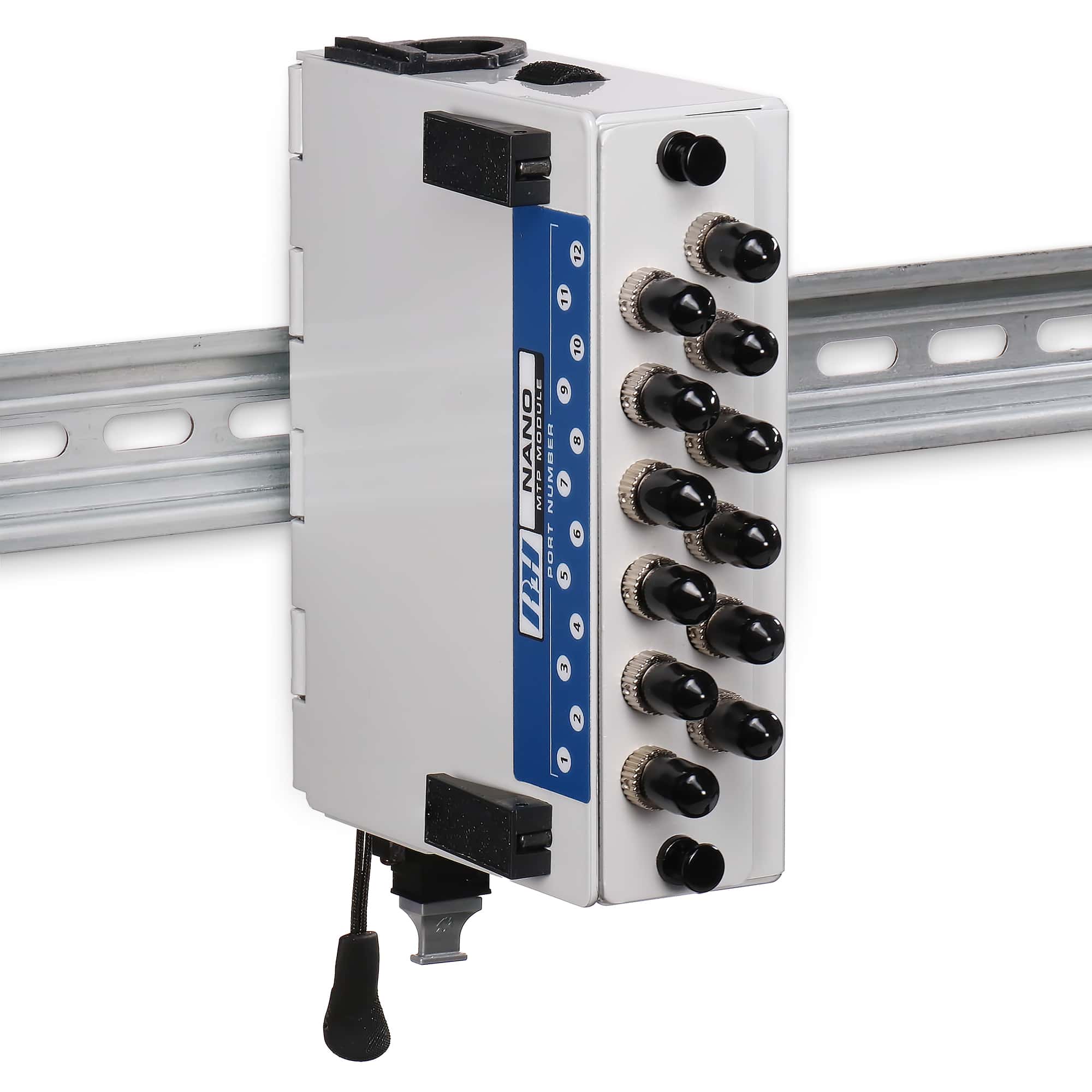

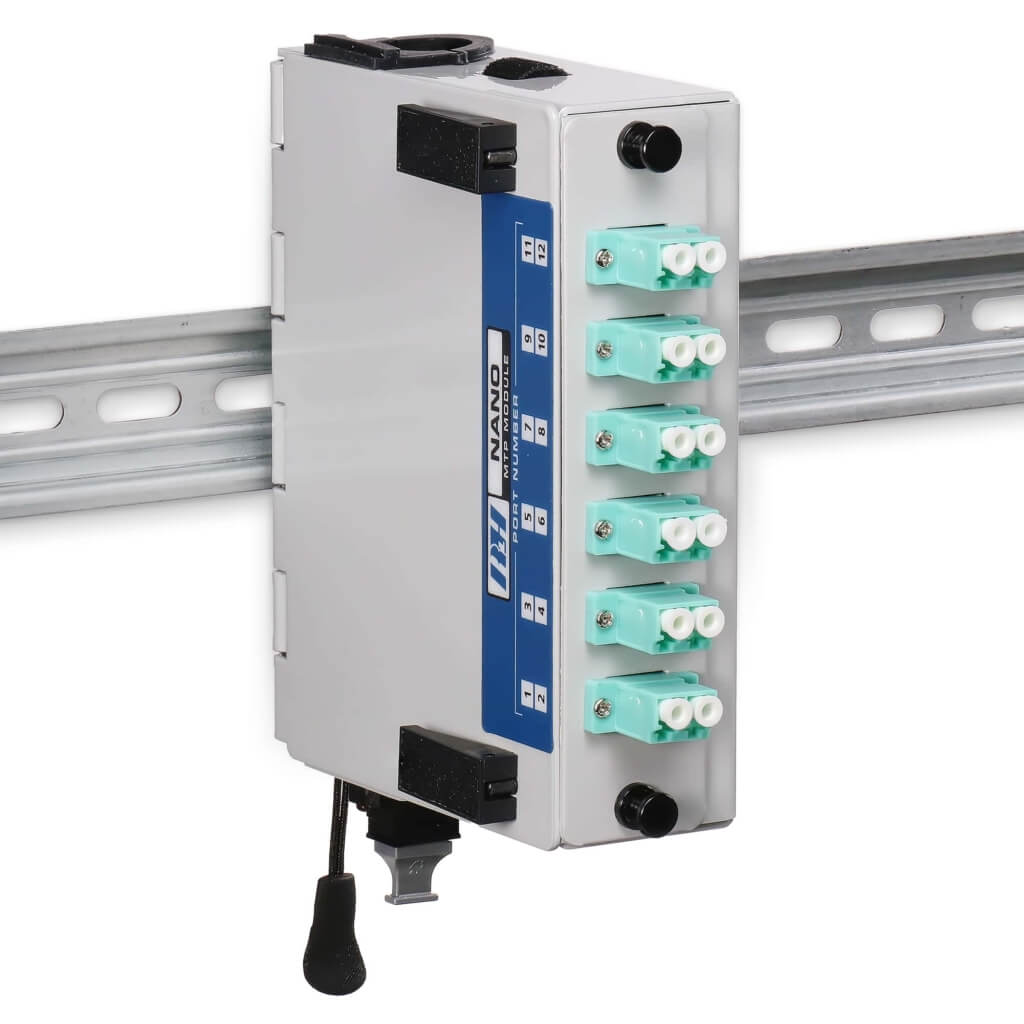

- ST, SC, and LC modules available
- Supports singlemode and multimode fiber
- Compatible with both MTP & MPO connectors
- Optional interconnect cable available for end to end solution
- Compact foot print
- Factory polished and tested for a fast reliable installation
- Designed and assembled in USA
Mounting Style:

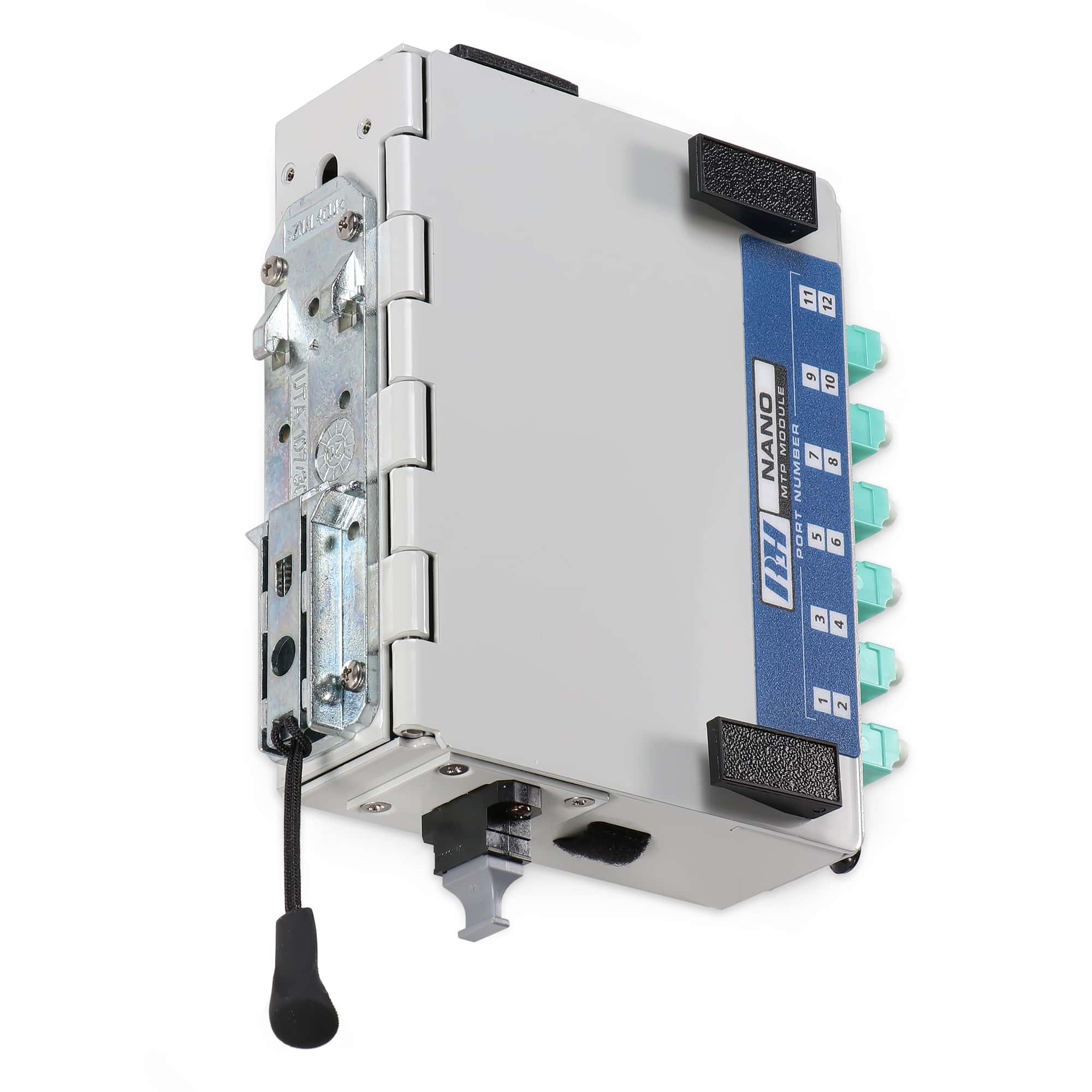

Wall and DIN rail
Environmental:
Suitable for use indoors or within a weatherproof enclosure
Construction:
Powder-coated steel, hinged door, and plunger latches

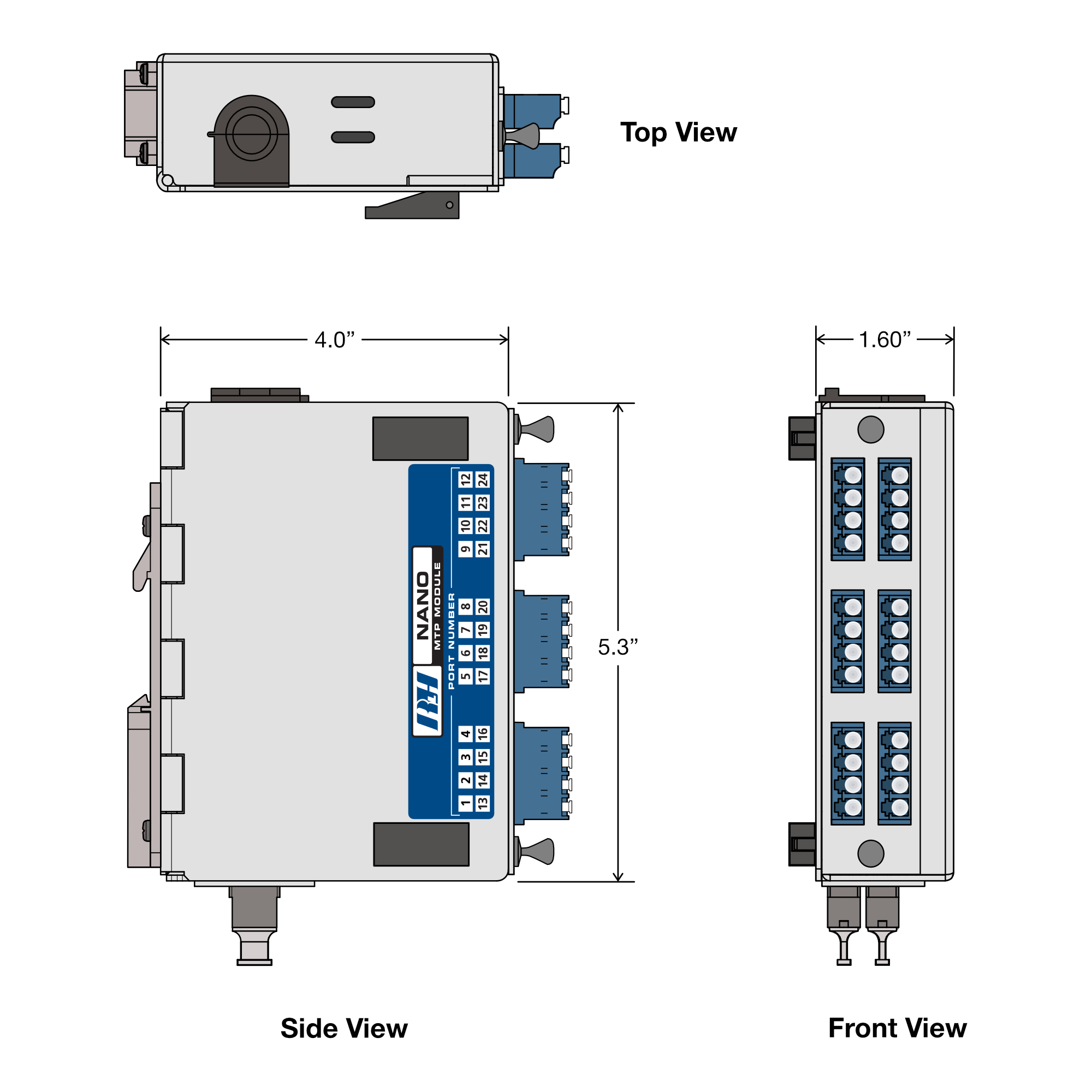

Dimensions:
W 4.0″ x H 5.3″ x D 1.6″ (102mm x 135mm x 41mm)*
*Not including latches or MTP Adapter
MTP Interface:
MTP Female
Fiber Adapter Types:
LC Duplex, SC Duplex, or ST Simplex
Fiber Modes:
Singlemode, Multimode (OM1), Multimode (OM3)
Fiber Count:
12 Fibers
Compatible Interconnect Cables:
Singlemode Modules – RLH-12CRSM2-MSMS-B12-F-1
Multimode (OM1) Modules – RLH-12CRMM2-MLML-B12-F-1
Multimode (OM3) Modules – RLH-12CRMX2-MLML-B12-F-1
Multimode (OM4) Modules – RLH-12CRMC2-MLML-B12-F-1
General Information
Miscellaneous
Ordering
Industrial MTP DIN Fiber Module
| Short description | Part number | Price | |
|---|---|---|---|
| Nano Industrial MTP/MPO DIN Fiber Module, Multimode (OM1), LC Duplex | MTP-NANO-LC-LDMM | $190.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Multimode (OM3), LC Duplex | MTP-NANO-LC-LDMX | $195.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Multimode (OM4), LC Duplex | MTP-NANO-LC-LDMC | $200.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Singlemode, LC Duplex | MTP-NANO-LC-LDSM | $210.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Multimode (OM1), SC Duplex | MTP-NANO-SC-LDMM | $185.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Multimode (OM3), SC Duplex | MTP-NANO-SC-LDMX | $190.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Multimode (OM4), SC Duplex | MTP-NANO-SC-LDMC | $195.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Singlemode, SC Duplex | MTP-NANO-SC-LDSM | $205.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Multimode (OM1), ST Simplex | MTP-NANO-ST-LSMM | $185.00 | |
| Nano Industrial MTP/MPO DIN Fiber Module, Singlemode, ST Simplex | MTP-NANO-ST-LSSM | $205.00 |
