Slide Out Tray Holds 3 LGX Compatible Fiber Adapter Plates

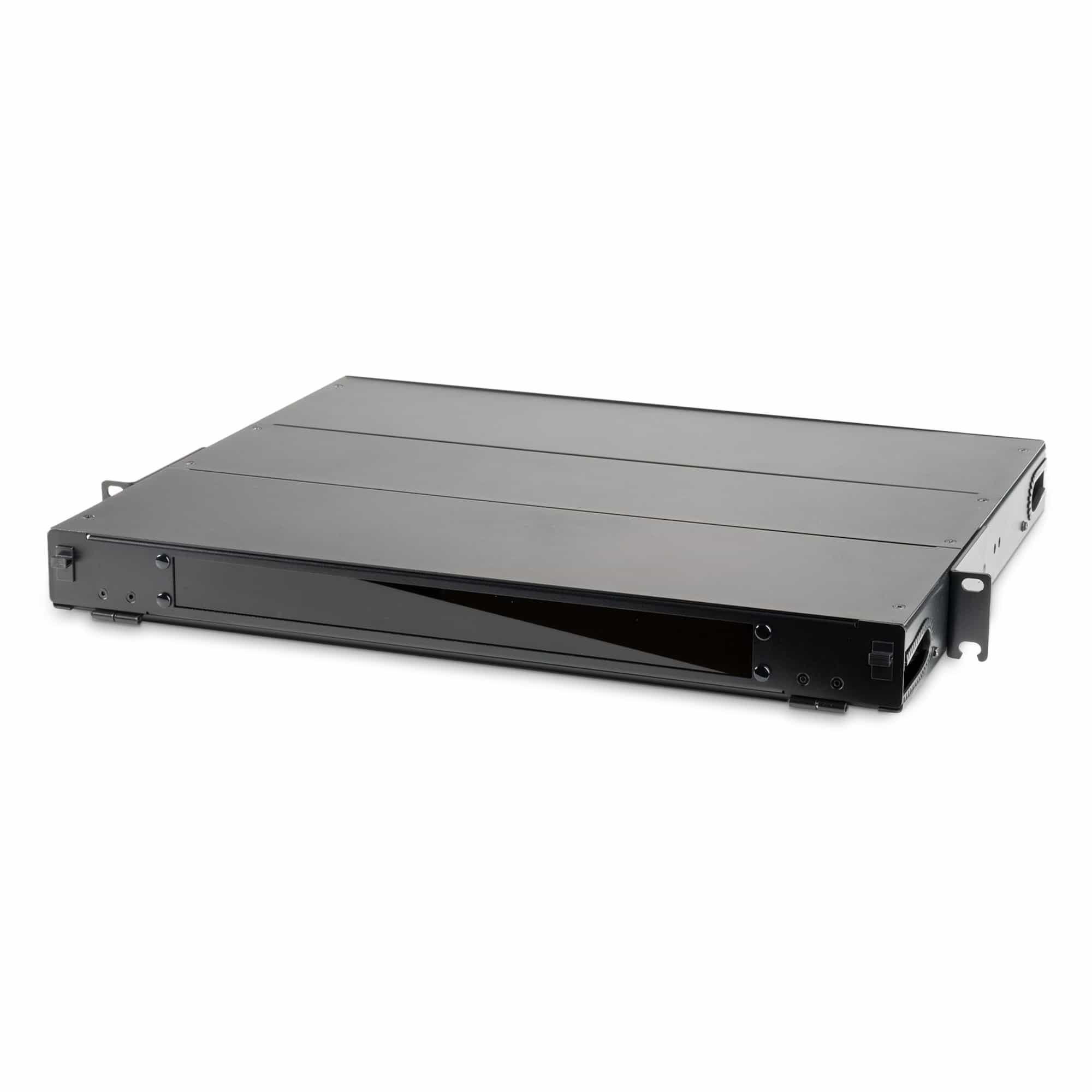

The RLH FiberLink 1RU FiberLink patch panel is is designed to provide a user friendly solution for fiber optic patching in a 19” equipment rack. Occupying just 1RU of rack space, It holds up to 3 LGX compatible fiber adapter plates and 3 fiber splice trays for a complete patching/splicing solution. It is ideal for use in a wide variety of environments including substations, equipment rooms, central offices, and outdoor enclosures.

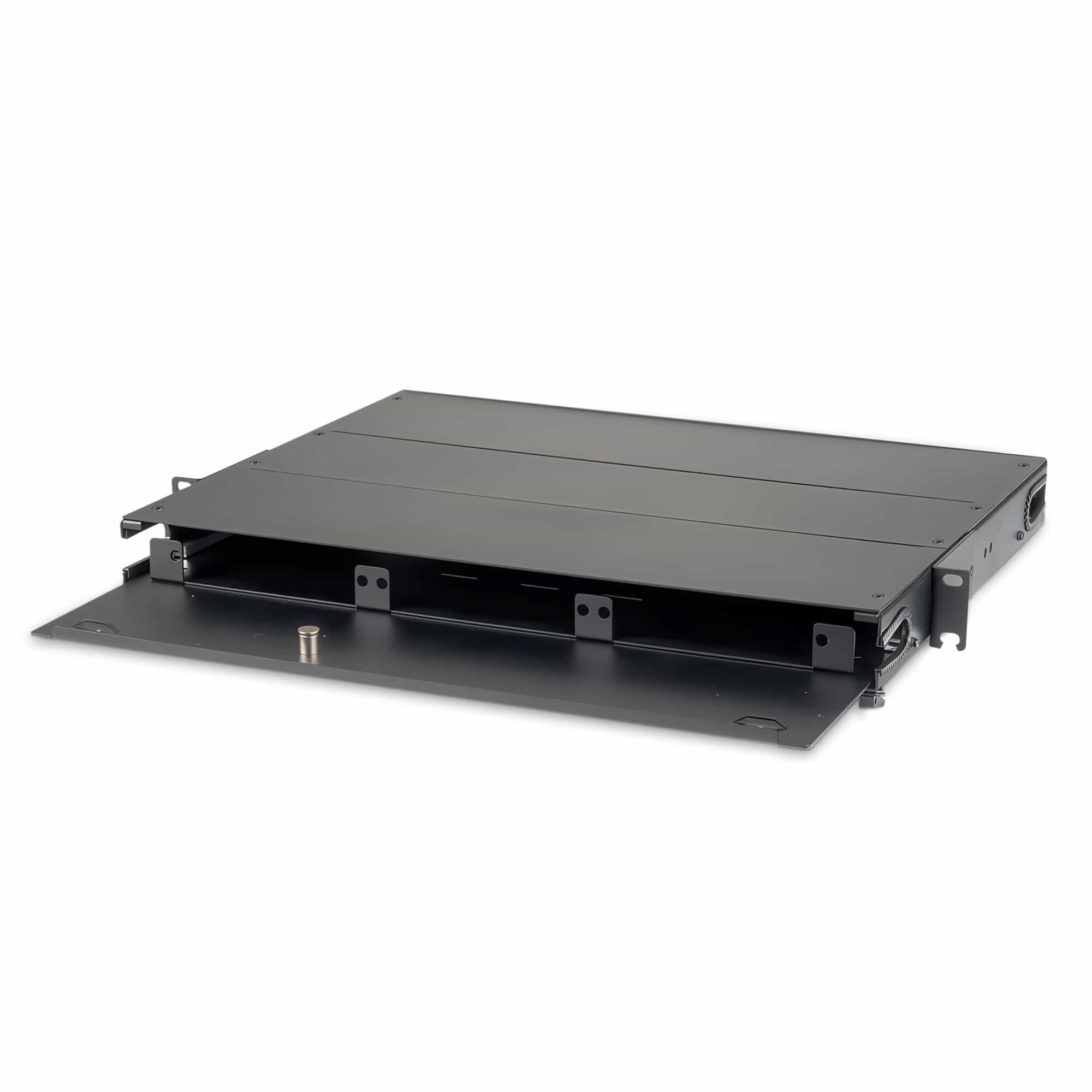

FiberLink patch panels are constructed from powder coated steel, and feature a hinged door with large window, and generous rear access with a steel cover. The sliding tray has multiple stops for securing it in various positions, and cable access ports guide fiber in and out of the enclosure.
Fiber assemblies or pigtails can be custom ordered and pre-terminated into the patch panel for a complete turn-key solution. Adapter plates may be ordered separately.
Features
- Hinged door with viewing window
- Large rear cover allows full access to cable storage area
- 16 gauge powder coated steel housing
- Removable sliding tray with multiple stops
- Installer-friendly built-in cable management & splice tray storage
- Holds 3 adapter plates
- Holds 3 fiber splice trays
- Adjustable 19″ rack ears, for front or center mounting
- Fiber identification labels included
- Includes accessory kit with mounting hardware
- Compatible with most LGX style adapter plates
- Available unloaded, or pre-loaded with splice trays, adapter plates, and fiber pigtails
Please see the product documentation for the complete list of specifications
Adapter Plates
LGX® compatible adapter plates*, up to 24 fibers each plate
Accommodates up to 3 adapter plates
*ordered separately
Splice Trays
24 Fiber Splice Tray (RLH-FST-02)
Accommodates up to 3 trays
Mounting Style
EIA 19” Equipment Rack, 2 position rack ears for front or center mount
Construction
– Powder Coated 16 gauge steel housing
– Removable sliding tray with multiple stops
– Hinged front door with finger latches and polycarbonate window
– Hinged rear door with finger latches
– Removable top access panels
Accessory Kit
Qty. 4: Cage nut mounting hardware sets
Qty. 4: Laser warning label
Qty. 4: Hook and loop cable ties
Qty. 10: 6″ white zip ties
Qty. 1: Location label
Dimensions

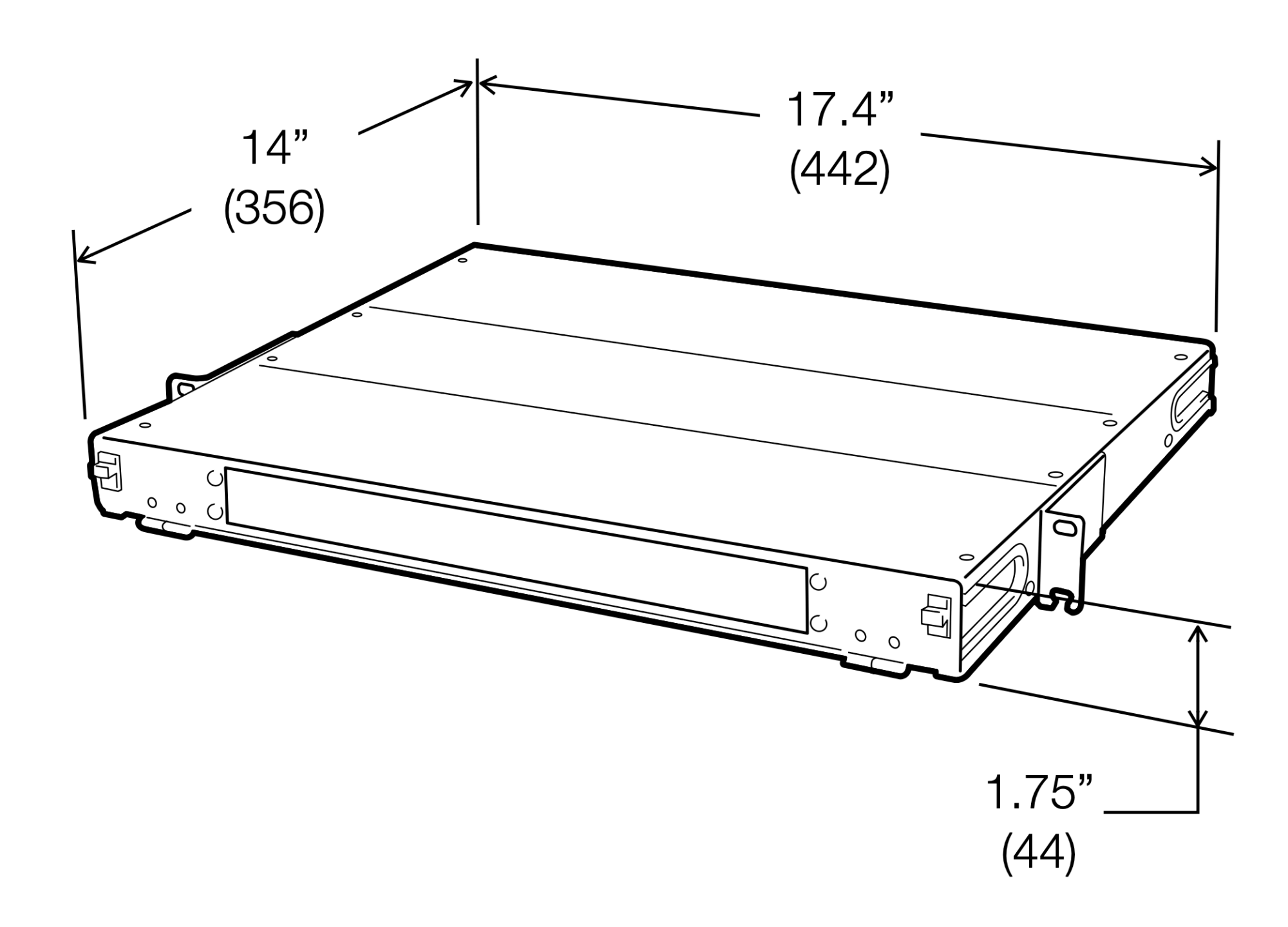

17.4” (W) x 14” (D) x 1.75” (H), (442mm x 356mm x 44mm)
*not including rack ears
Product Information
Guide
PRFL1-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
FiberLink 1RU Rack Mount Fiber Patch Panel
| Short description | Part number | Price | |
|---|---|---|---|
| FiberLink 1RU Fiber Patch Panel, Rack Mount, 3 LGX Adapter Plate Capacity | PRFL1-1 | $165.00 |
- Fiber Adapter Plates (black) and Splice on Fiber Pigtails are ordered separately and may be preinstalled prior to shipping
