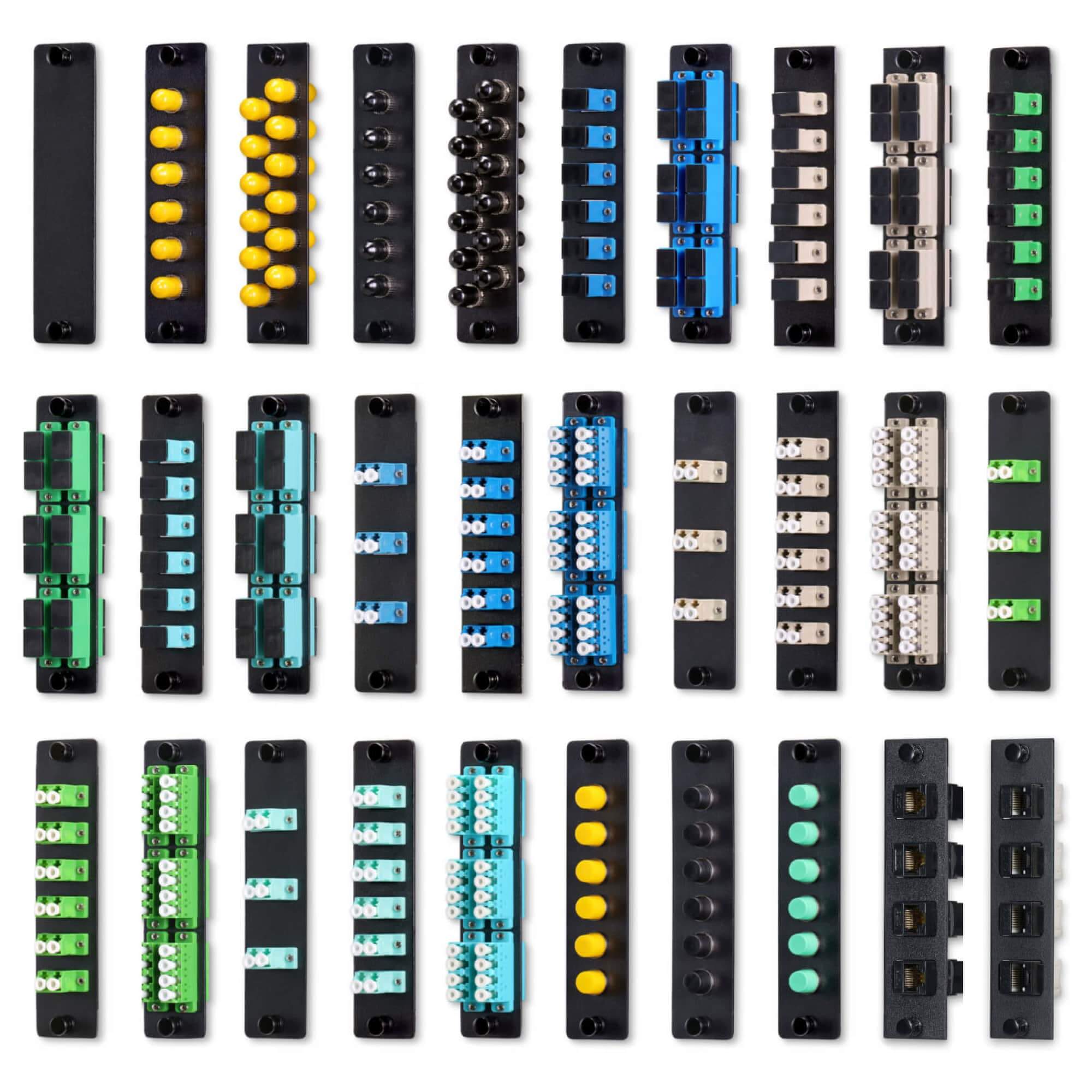

Wide Range of Fiber Adapter Plates to Complete Your Fiber Solution
Our black Fiber Adapter Plates can be ordered individually or preinstalled into select RLH fiber optic patch panels.
RLH black Adapter plates utilize a common installation mounting format, typically referred to as a LGX foot print, so they may be mixed and matched as needed in compatible wall or rack mount patch panels. This provides maximum flexibility when populating a patch panel with fiber adapters.
Our black Fiber adapter plates are compatible with all RLH fiber patch panels (see note below) except for the Optimum Series. Since our adapter plates utilize a common format we are also compatible with many other vendor patch panels who support the common LGX Foot print type adapter plates.
*RLH patch panels will take either our black series or grey series Fiber Adapter Plates. Please check the individual product page to verify which series of plates is compatible.
*Not compatible with our RLH Optimum Series patch panels.
- Available with ST, SC, LC, and FC adapters
- Constructed out of lightweight aluminum

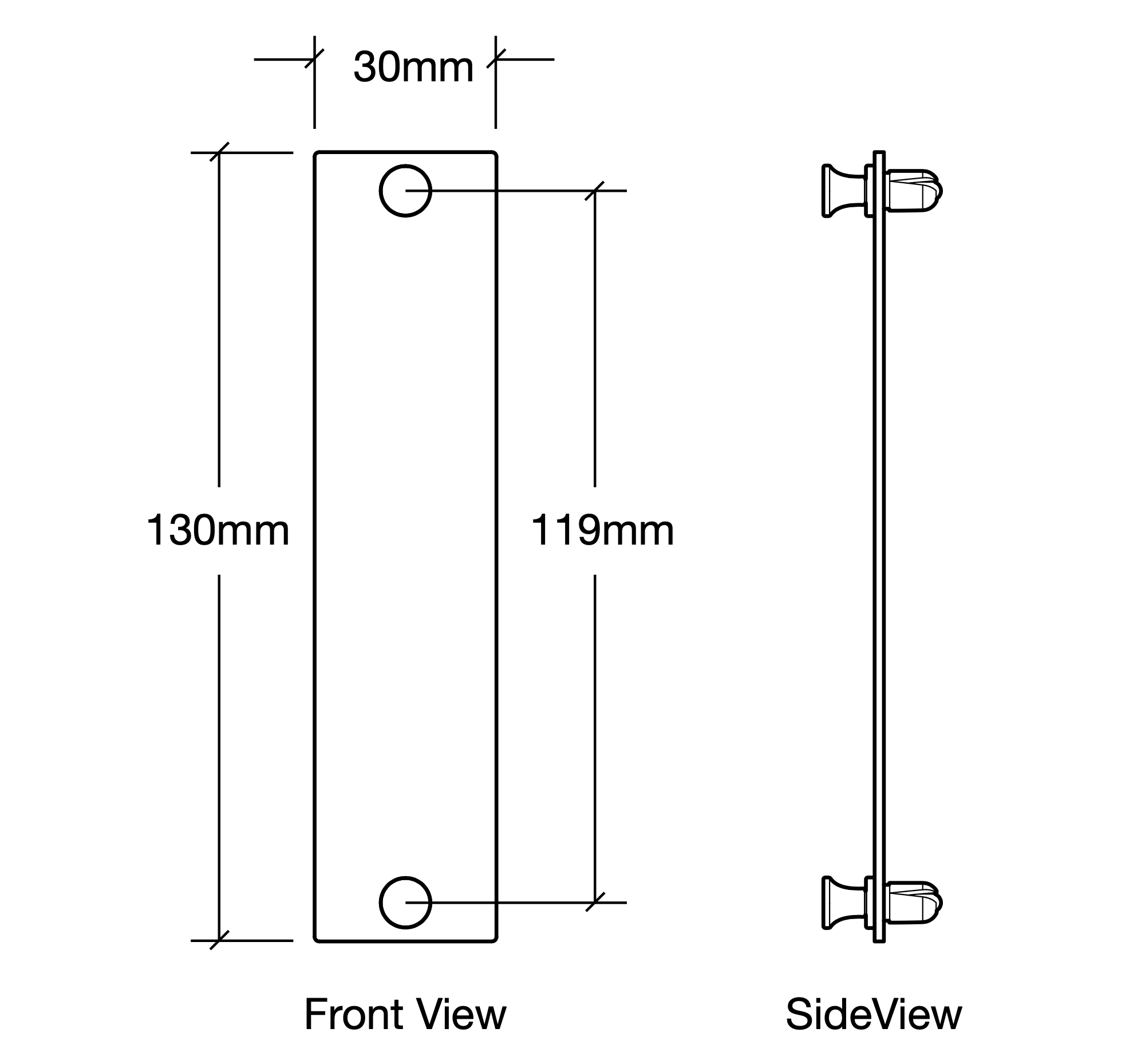

- Plate features common LGX foot print size
- Compatible with many fiber patch panels that support LGX Foot Print Adapter Plates
General Information
AP-BLANK-B
AP-ST6-LSSM-B
AP-ST12-LSSM-B
AP-ST6-LSMM-B
AP-ST12-LSMM-B
AP-SC6-LSSM-B
AP-SC6-LDSM-B
AP-SC6-LSMM-B
AP-SC6-LDMM-B
AP-SA6-LSSM-B
AP-SA6-LDSM-B
AP-SC6-LSMX-B
AP-SC6-LDMX-B
AP-LC3-LDSM-B
AP-LC6-LDSM-B
AP-LC6-LQSM-B
AP-LC3-LDMM-B
AP-LC6-LDMM-B
AP-LC6-LQMM-B
AP-LA3-LDSM-B
AP-LA6-LDSM-B
AP-LA6-LQSM-B
AP-LC3-LDMX-B
AP-LC6-LDMX-B
AP-LC6-LQMX-B
AP-FC6-LSSM-B
AP-FC6-LSMM-B
AP-FA6-LSSM-B
$5.00 – $70.00
Lead Time: 1 to 5 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Fiber Adapter Plates (black)
Product configuration | Fibers | Adapter | Mode | Fiber Type | Adapter Color | Plex | Part number | Price | hf:att:pa_fibers | hf:att:pa_adapter | hf:att:pa_mode | hf:att:pa_fiber-type | hf:att:pa_adapter-color | hf:att:pa_plex | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

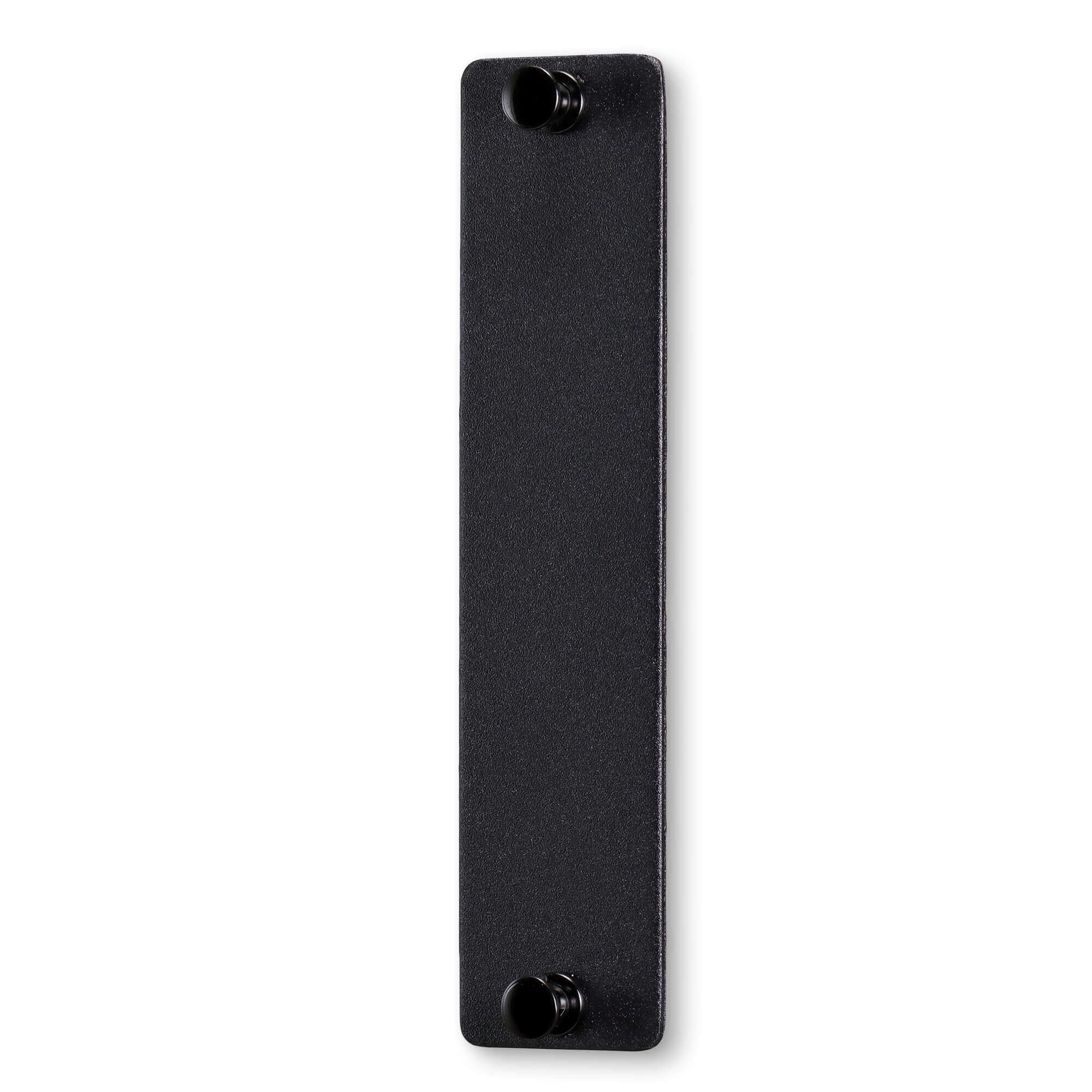

Blank Adapter Plate, Black | Zero | None | None | None | None | None | AP-BLANK-B | $5.00 | zero | none | none | none | none | none | ||

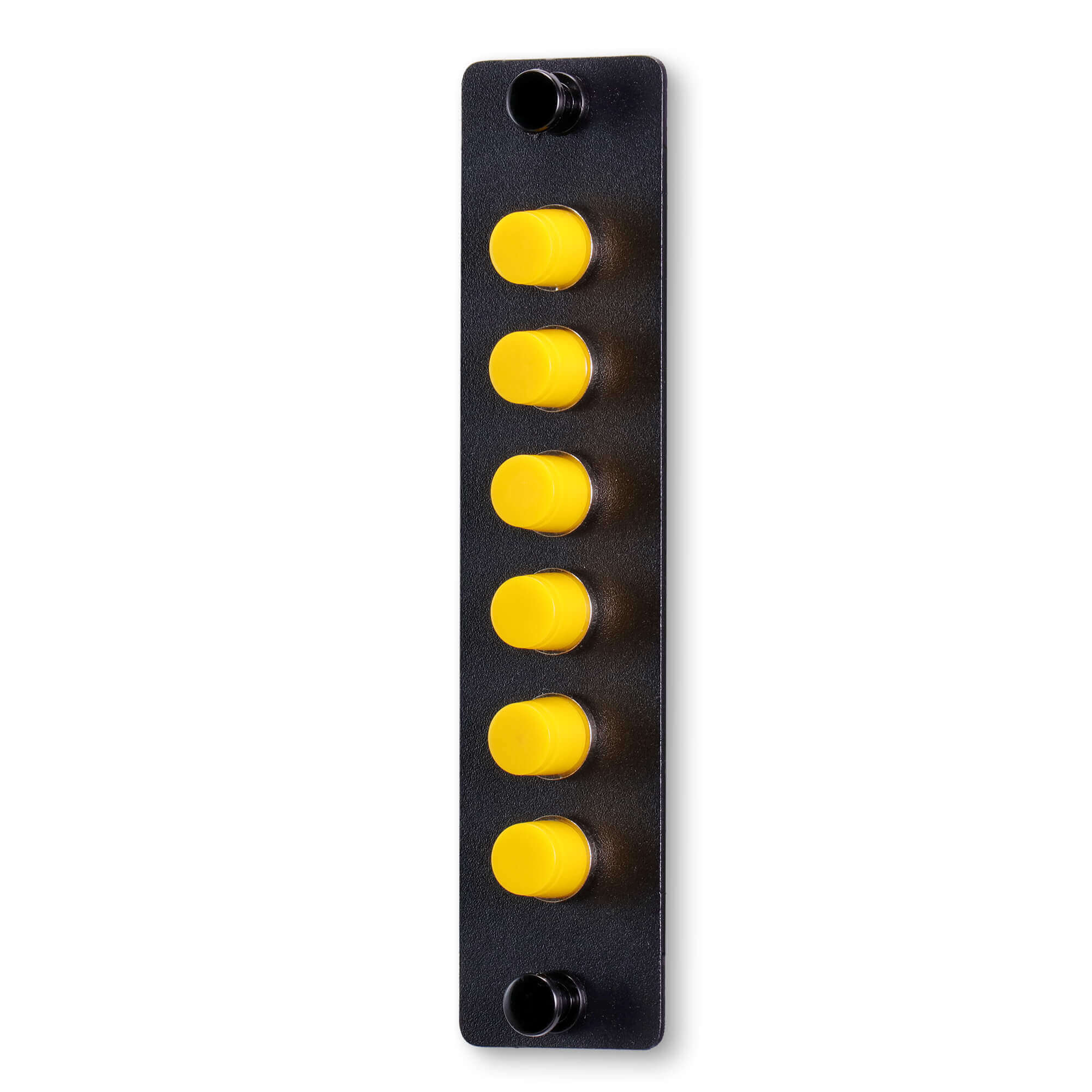

ST 6 Fiber 6 Position Loaded with Simplex Singlemode Adapters (Yellow Caps), Black | 6 | ST | Singlemode | OS1/OS2 | Metal - Yellow Cap | Simplex | AP-ST6-LSSM-B | $25.00 | 6 | st | singlemode | os1-os2 | metal-yellow-cap | simplex | ||

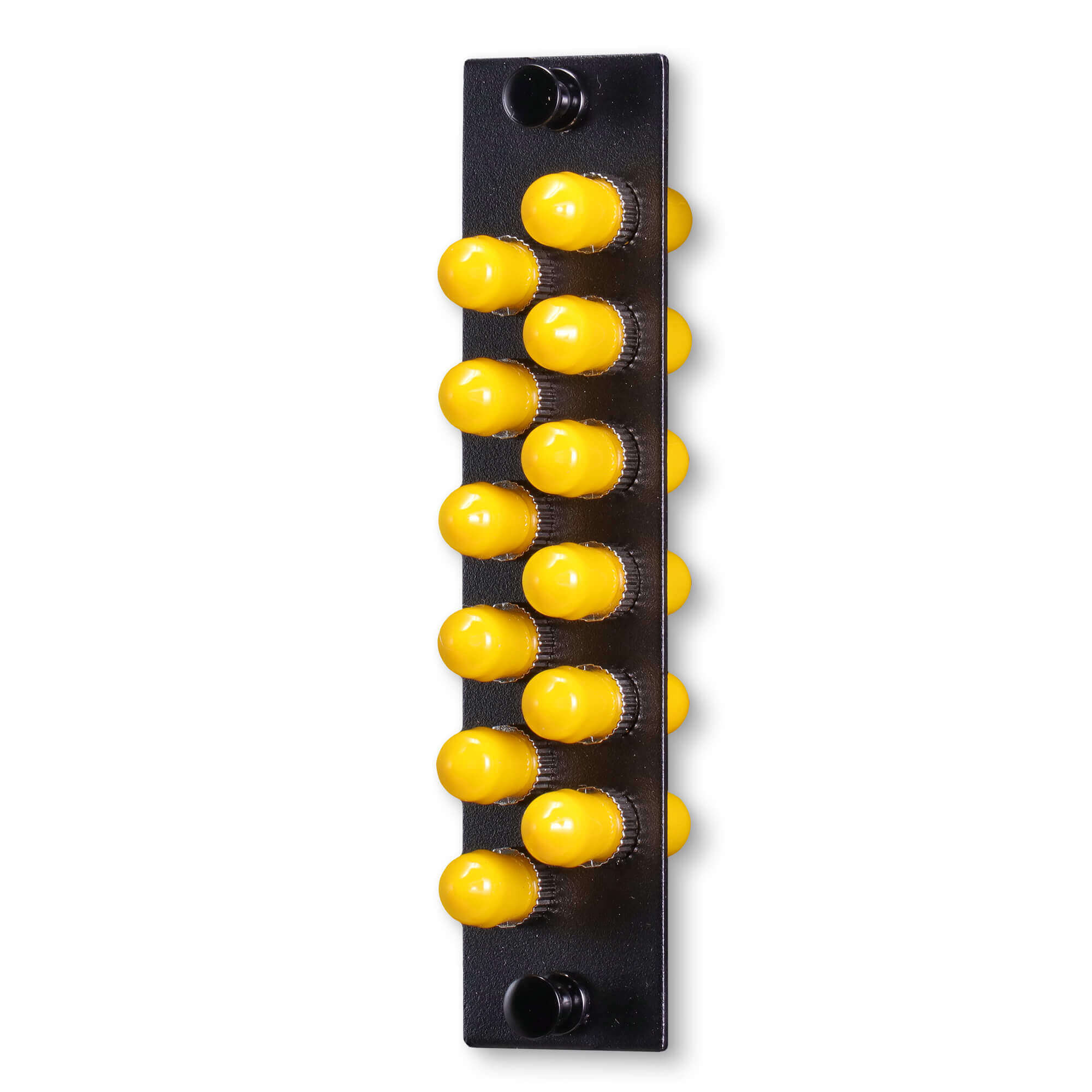

ST 12 Fiber 12-Position Loaded with Simplex Singlemode Adapters (Yellow Caps), Black | 12 | ST | Singlemode | OS1/OS2 | Metal - Yellow Cap | Simplex | AP-ST12-LSSM-B | $40.00 | 12 | st | singlemode | os1-os2 | metal-yellow-cap | simplex | ||
ST 6 Fiber 6 Position Loaded with Simplex Multimode Adapters (Black Caps), Black | 6 | ST | Multimode | OM1-OM4 | Metal - Black Cap | Simplex | AP-ST6-LSMM-B | $25.00 | 6 | st | multimode | om1-om4 | metal-black-cap | simplex | ||
ST 12 Fiber 12-Position Loaded with Simplex Multimode Adapters (Black Caps), Black | 12 | ST | Multimode | OM1-OM4 | Metal - Black Cap | Simplex | AP-ST12-LSMM-B | $40.00 | 12 | st | multimode | om1-om4 | metal-black-cap | simplex | ||
SC 6 Fiber 6 Position Loaded with Simplex Singlemode Adapters (Blue), Black | 6 | SC | Singlemode | OS1/OS2 | Blue | Simplex | AP-SC6-LSSM-B | $30.00 | 6 | sc | singlemode | os1-os2 | blue | simplex | ||

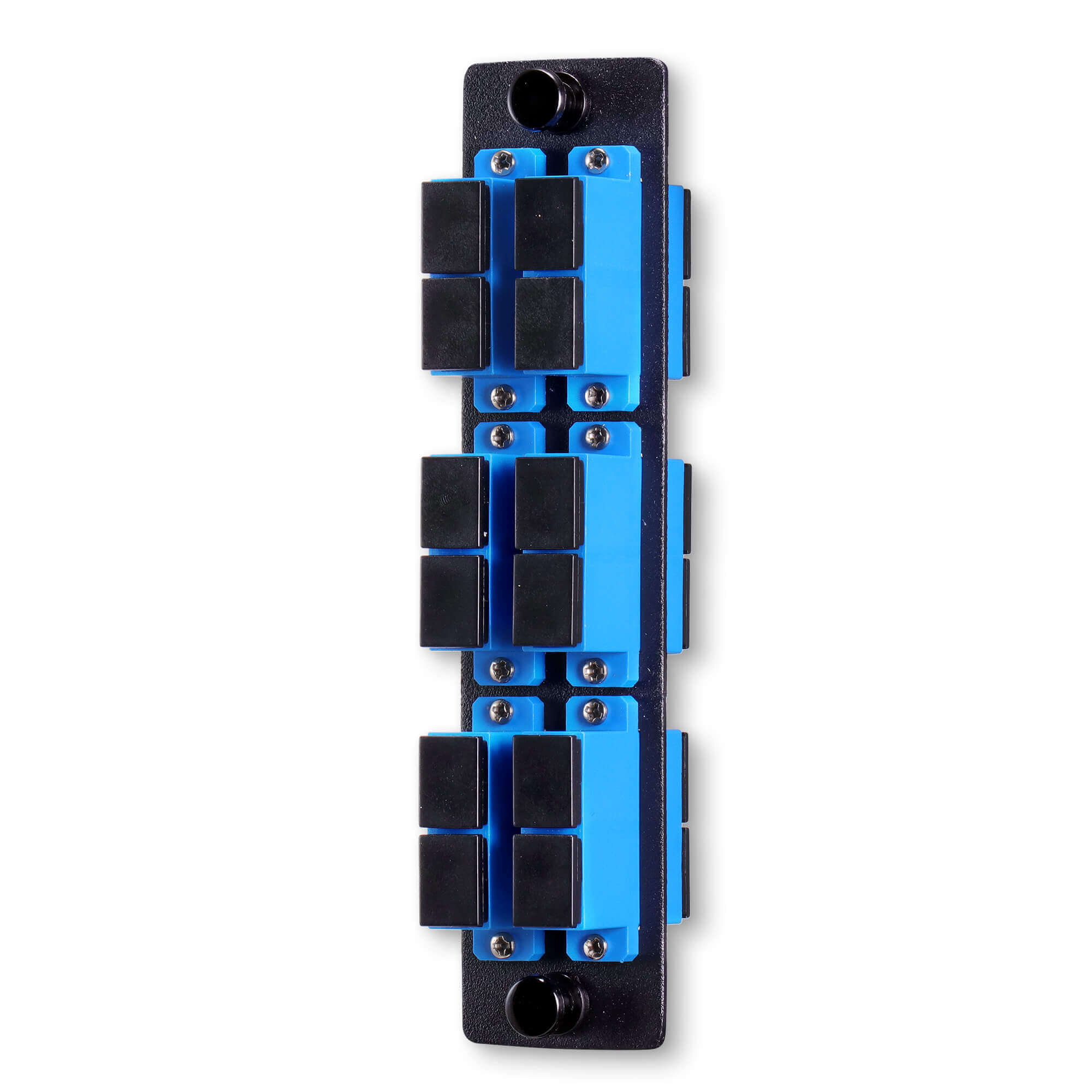

SC 12 Fiber 6-Position Loaded with Duplex Singlemode Adapters (Blue), Black | 12 | SC | Singlemode | OS1/OS2 | Blue | Duplex | AP-SC6-LDSM-B | $40.00 | 12 | sc | singlemode | os1-os2 | blue | duplex | ||

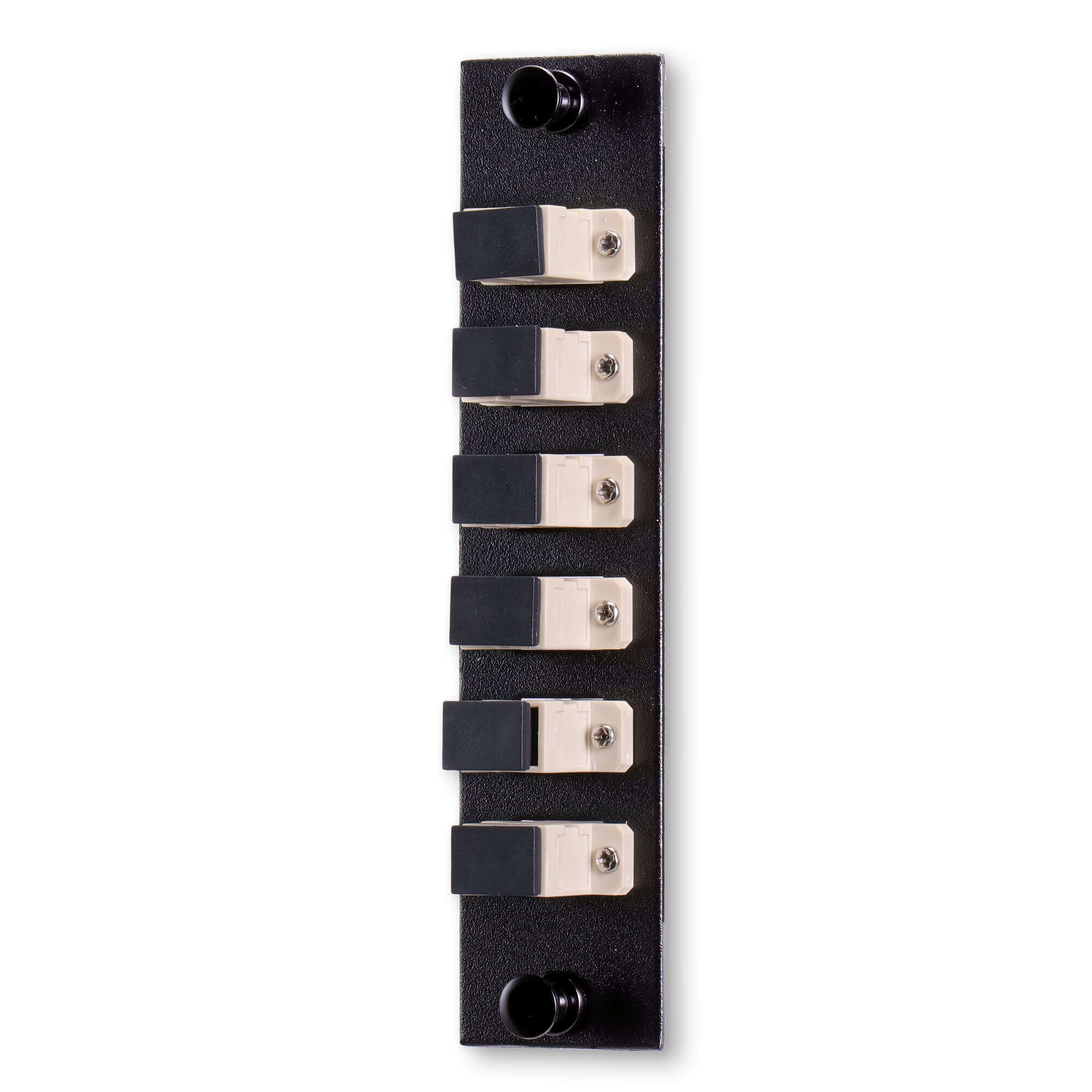

SC 6 Fiber 6 Position Loaded with Simplex Multimode Adapters (Beige), Black | 6 | SC | Multimode | OM1/OM2 | Beige | Simplex | AP-SC6-LSMM-B | $25.00 | 6 | sc | multimode | om1-om2 | beige | simplex | ||

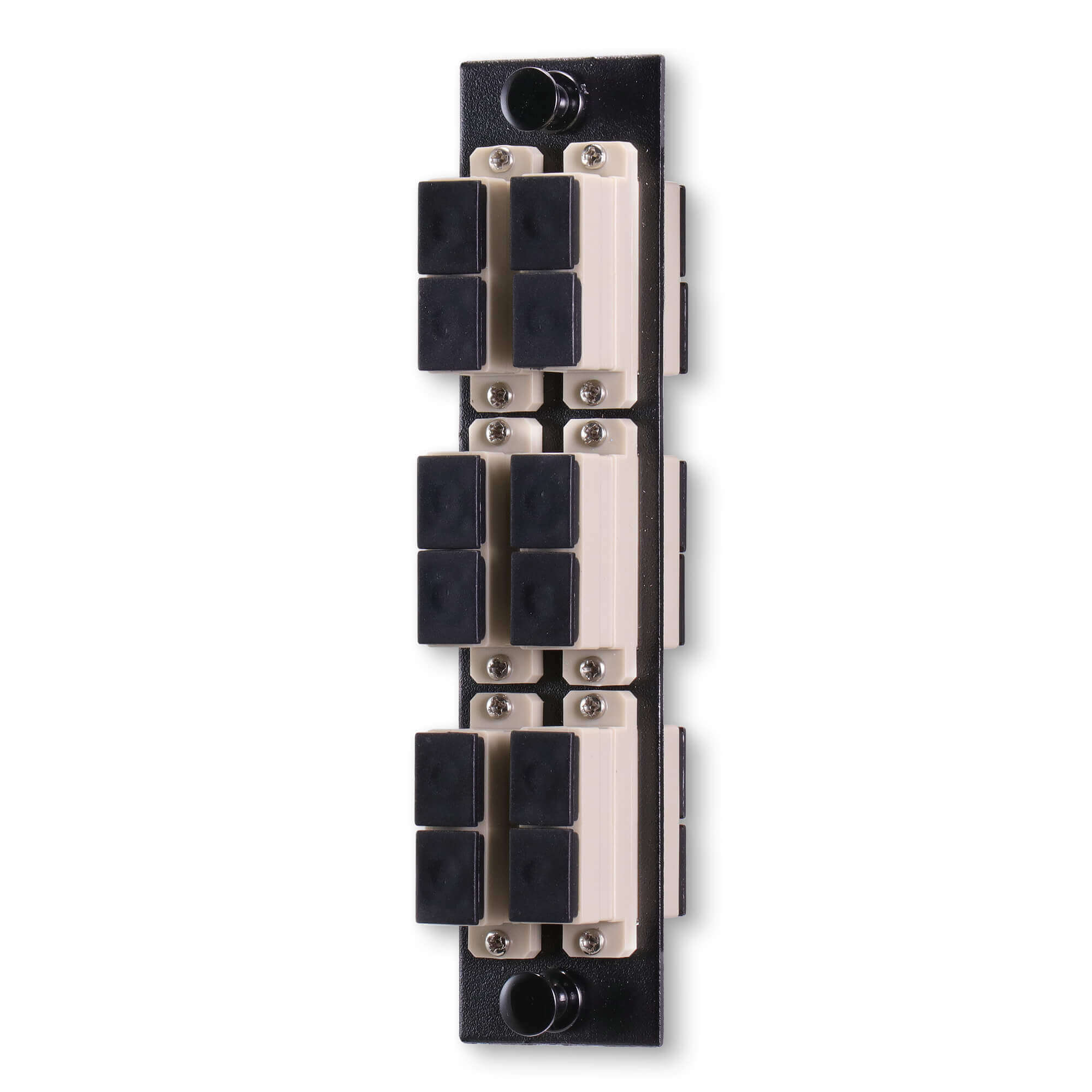

SC 12 Fiber 6-Position Loaded with Duplex Multimode Adapters (Beige), Black | 12 | SC | Multimode | OM1/OM2 | Beige | Duplex | AP-SC6-LDMM-B | $35.00 | 12 | sc | multimode | om1-om2 | beige | duplex | ||

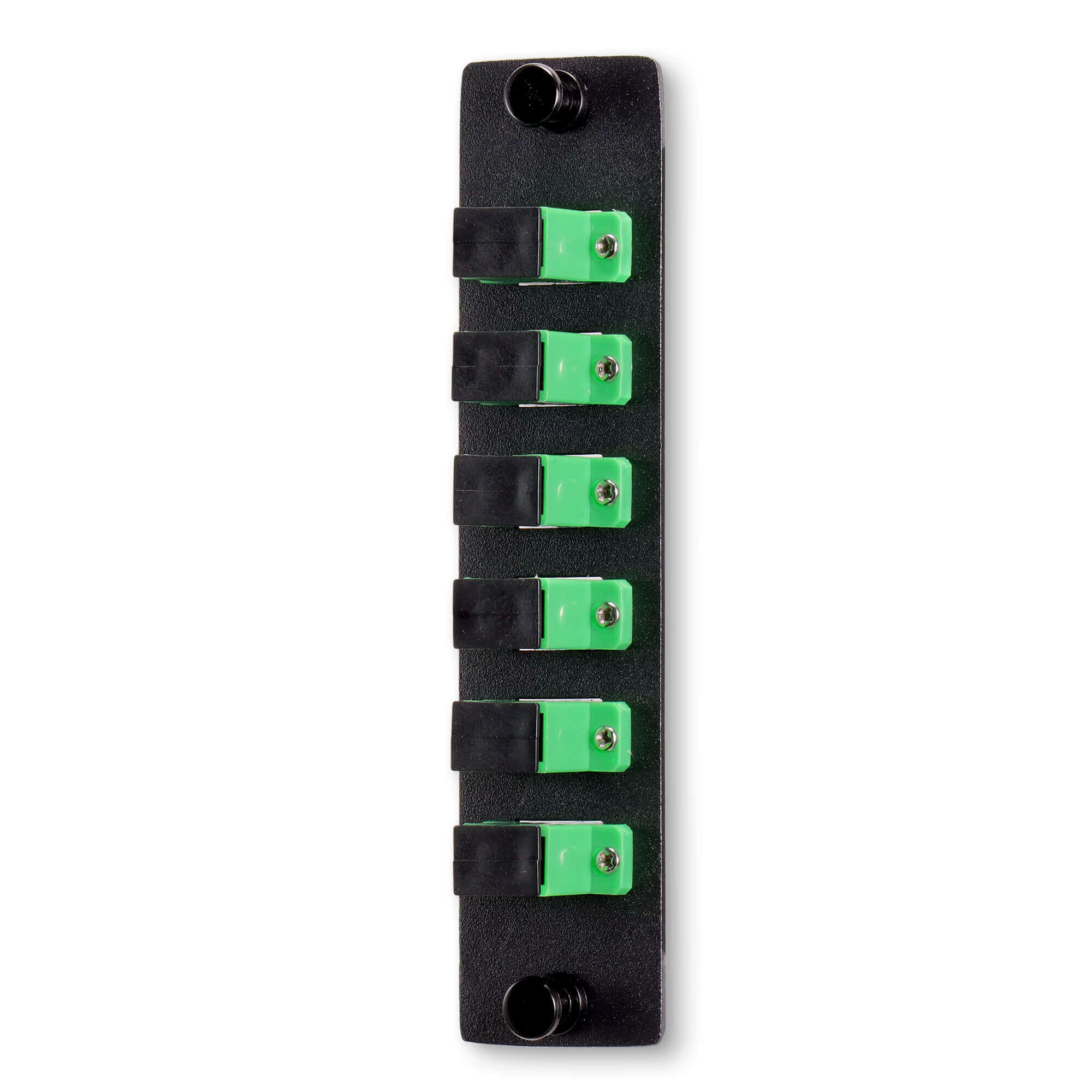

SC 6 Fiber 6 Position Loaded with Simplex Singlemode Adapters (Green), Black | 6 | SC/APC | Singlemode | OS1/OS2 | Green | Simplex | AP-SA6-LSSM-B | $25.00 | 6 | sc-apc | singlemode | os1-os2 | green | simplex | ||

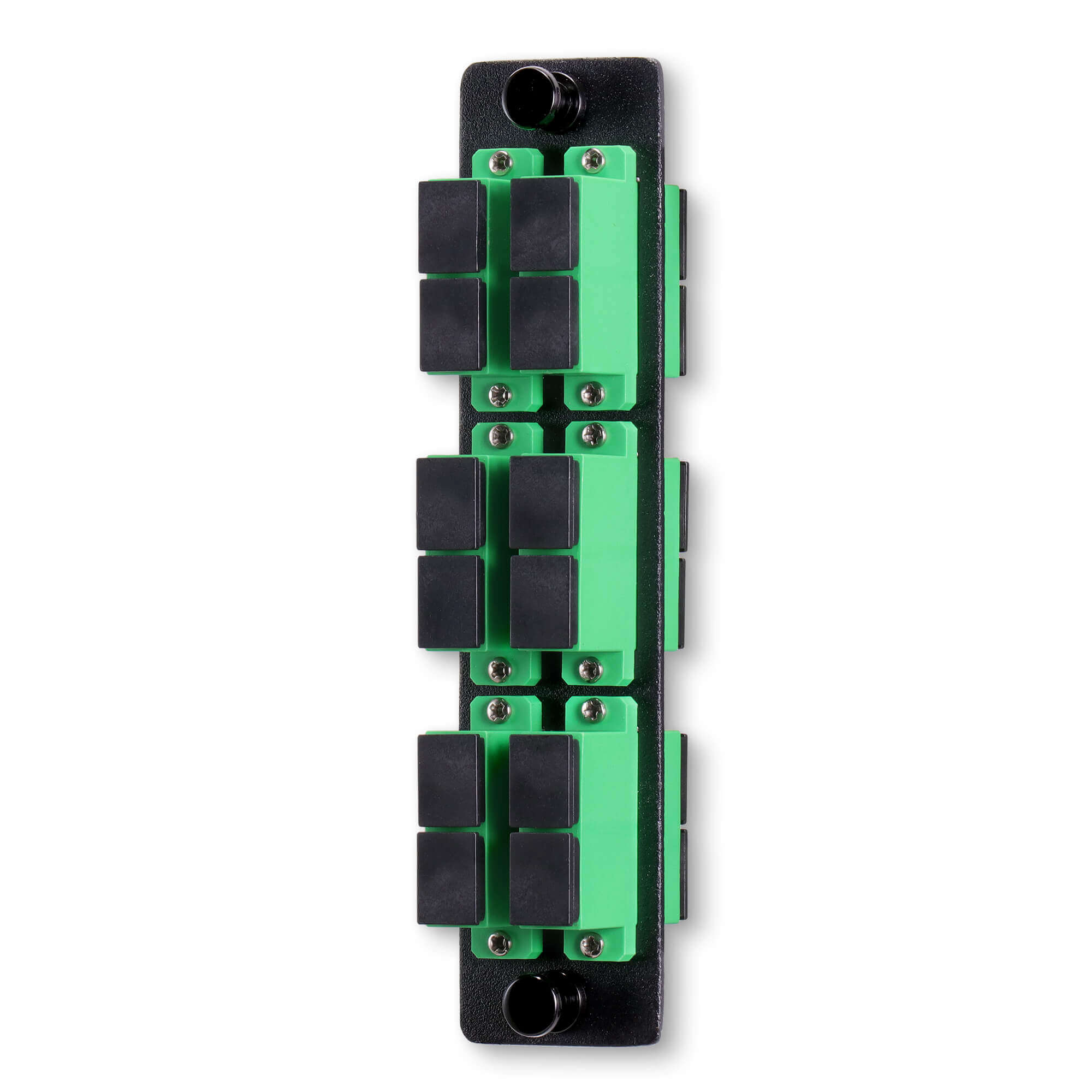

SC 12 Fiber 6-Position Loaded with Duplex Singlemode Adapters (Green), Black | 12 | SC/APC | Singlemode | OS1/OS2 | Green | Duplex | AP-SA6-LDSM-B | $40.00 | 12 | sc-apc | singlemode | os1-os2 | green | duplex | ||

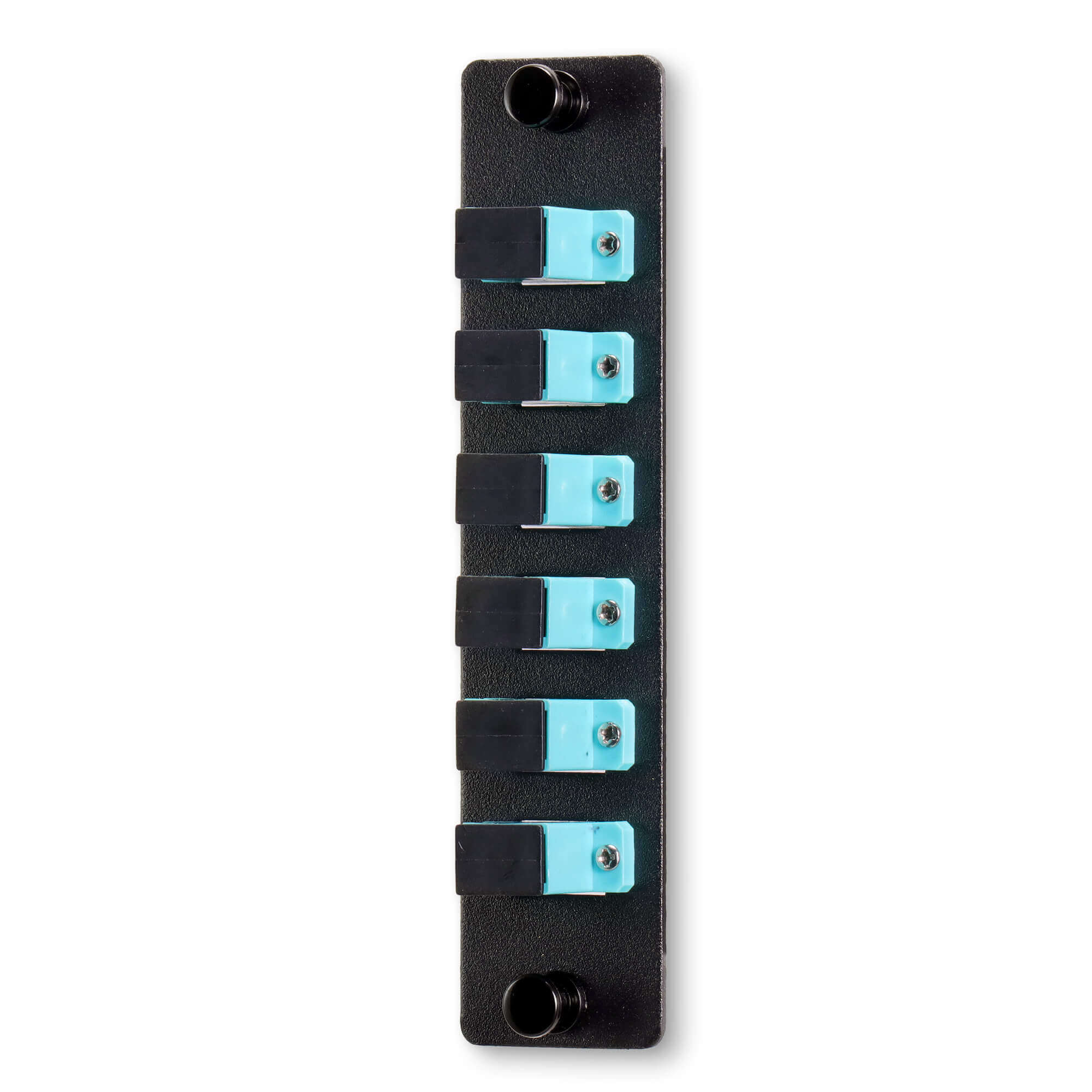

SC 6 Fiber 6 Position Loaded with Simplex Multimode Adapters (Aqua), Black | 6 | SC | Multimode | OM3/OM4 | Aqua | Simplex | AP-SC6-LSMX-B | $25.00 | 6 | sc | multimode | om3-om4 | aqua | simplex | ||

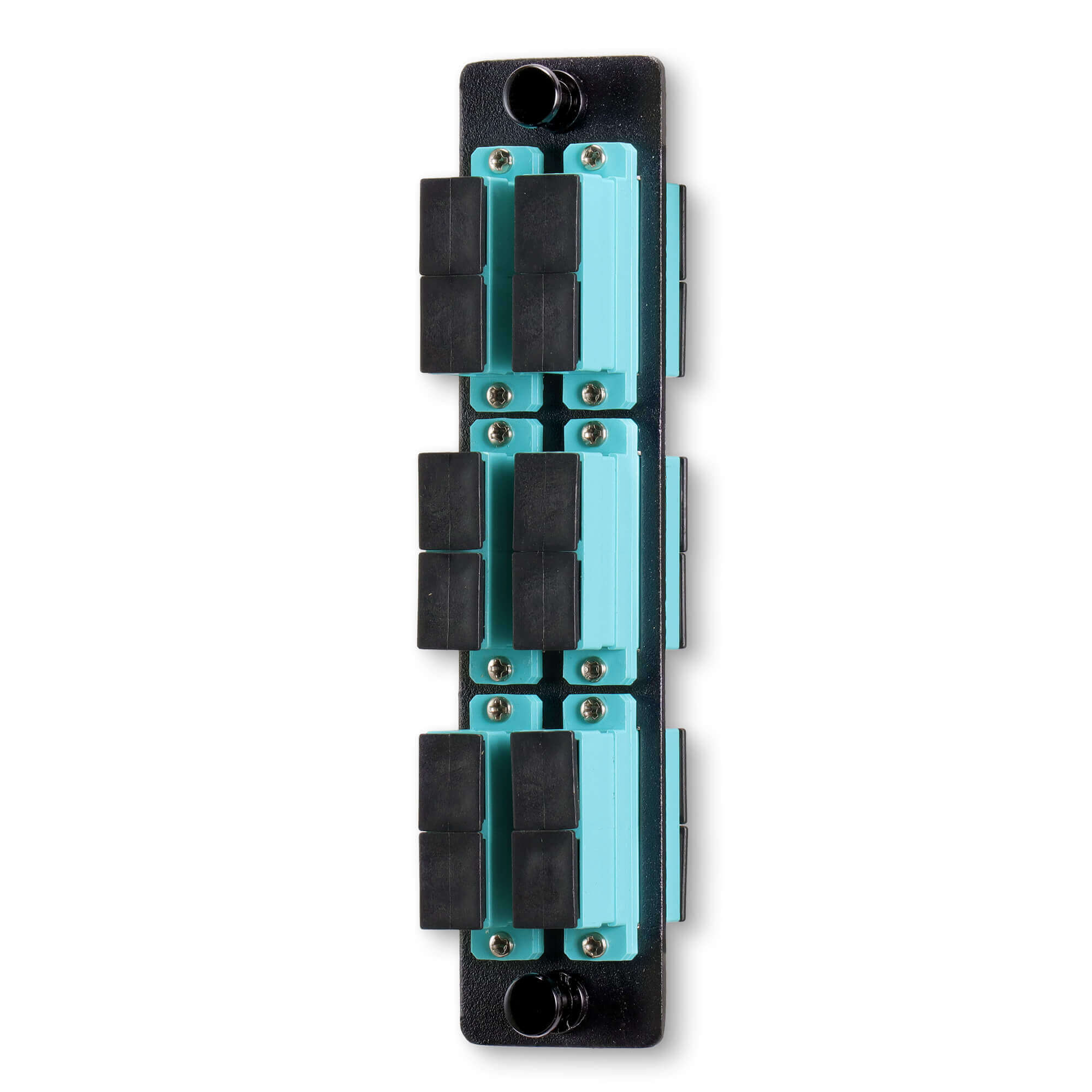

SC 12 Fiber 6-Position Loaded with Duplex Multimode Adapters (Aqua), Black | 12 | SC | Multimode | OM3/OM4 | Aqua | Duplex | AP-SC6-LDMX-B | $35.00 | 12 | sc | multimode | om3-om4 | aqua | duplex | ||
LC 6 Fiber 3-Position Loaded with Duplex Singlemode Adapters (Blue), Black | 6 | LC | Singlemode | OS1/OS2 | Blue | Duplex | AP-LC3-LDSM-B | $28.00 | 6 | lc | singlemode | os1-os2 | blue | duplex | ||

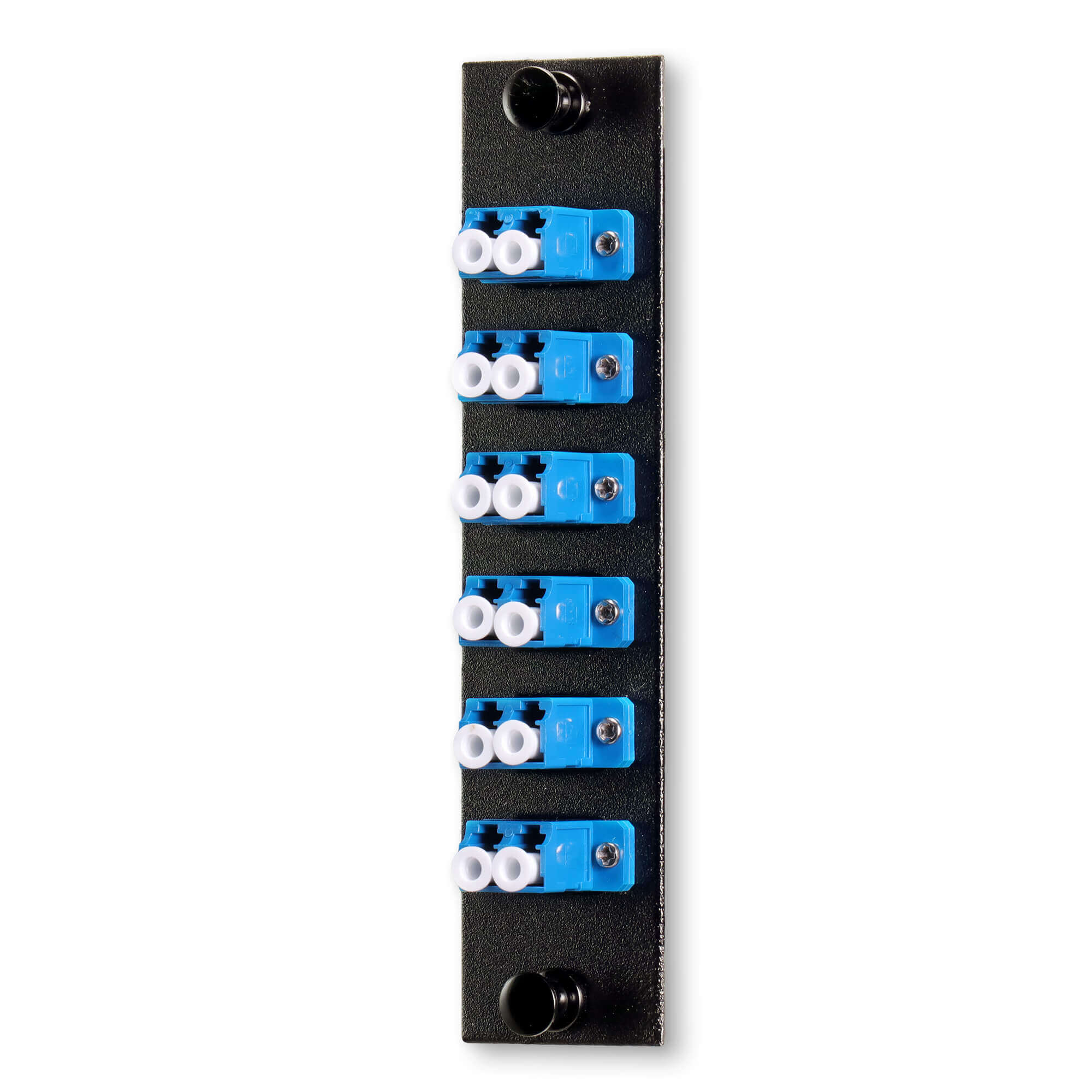

LC 12 Fiber 6-Position Loaded with Duplex Singlemode Adapters (Blue), Black | 12 | LC | Singlemode | OS1/OS2 | Blue | Duplex | AP-LC6-LDSM-B | $40.00 | 12 | lc | singlemode | os1-os2 | blue | duplex | ||

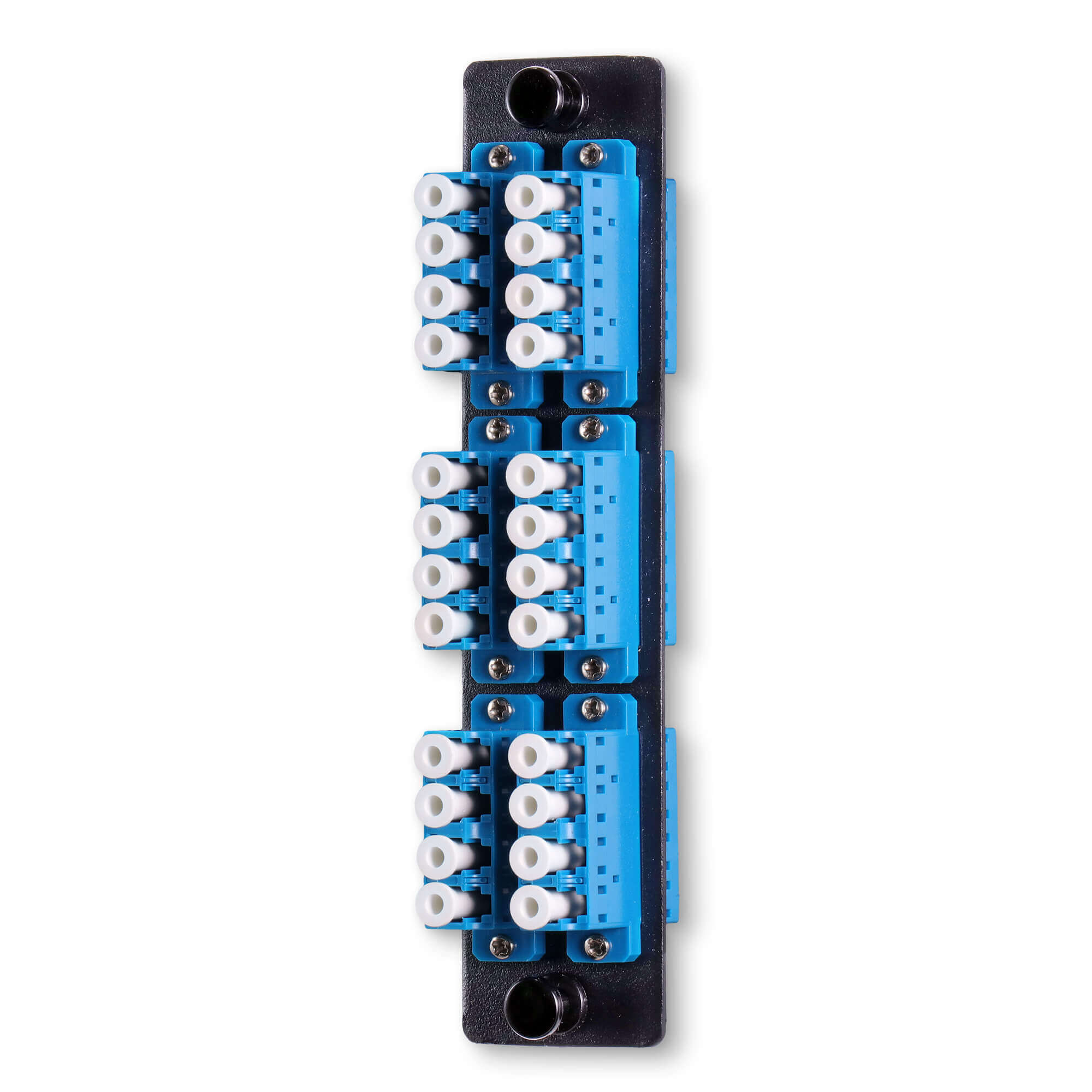

LC 24 Fiber 6-Position Loaded with Quad Singlemode Adapters (Blue), Black | 24 | LC | Singlemode | OS1/OS2 | Blue | Quad | AP-LC6-LQSM-B | $70.00 | 24 | lc | singlemode | os1-os2 | blue | quad | ||

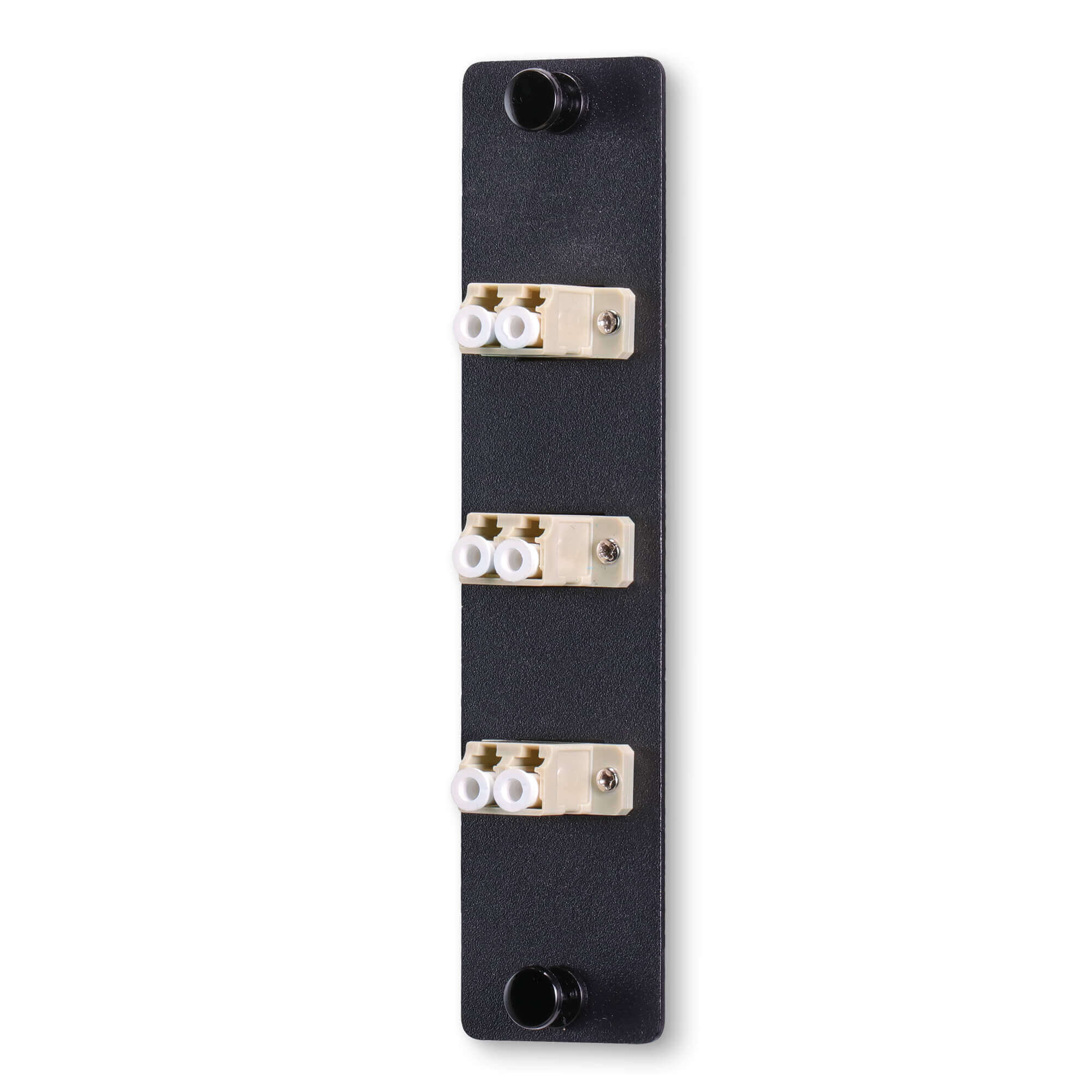

LC 6 Fiber 3-Position Loaded with Duplex Multimode Adapters (Beige), Black | 6 | LC | Multimode | OM1/OM2 | Beige | Duplex | AP-LC3-LDMM-B | $25.00 | 6 | lc | multimode | om1-om2 | beige | duplex | ||

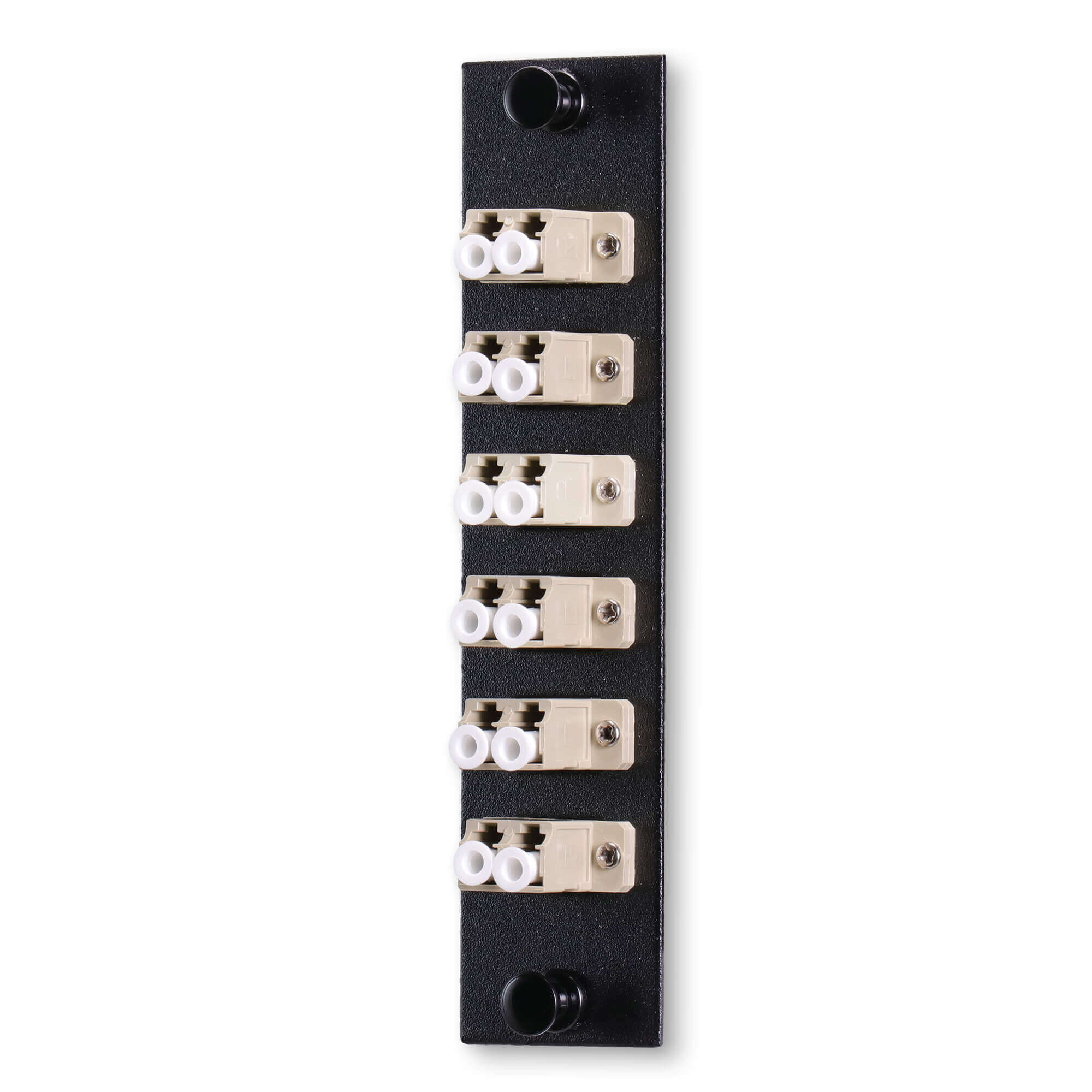

LC 12 Fiber 6-Position Loaded with Duplex Multimode Adapters (Beige), Black | 12 | LC | Multimode | OM1/OM2 | Beige | Duplex | AP-LC6-LDMM-B | $35.00 | 12 | lc | multimode | om1-om2 | beige | duplex | ||

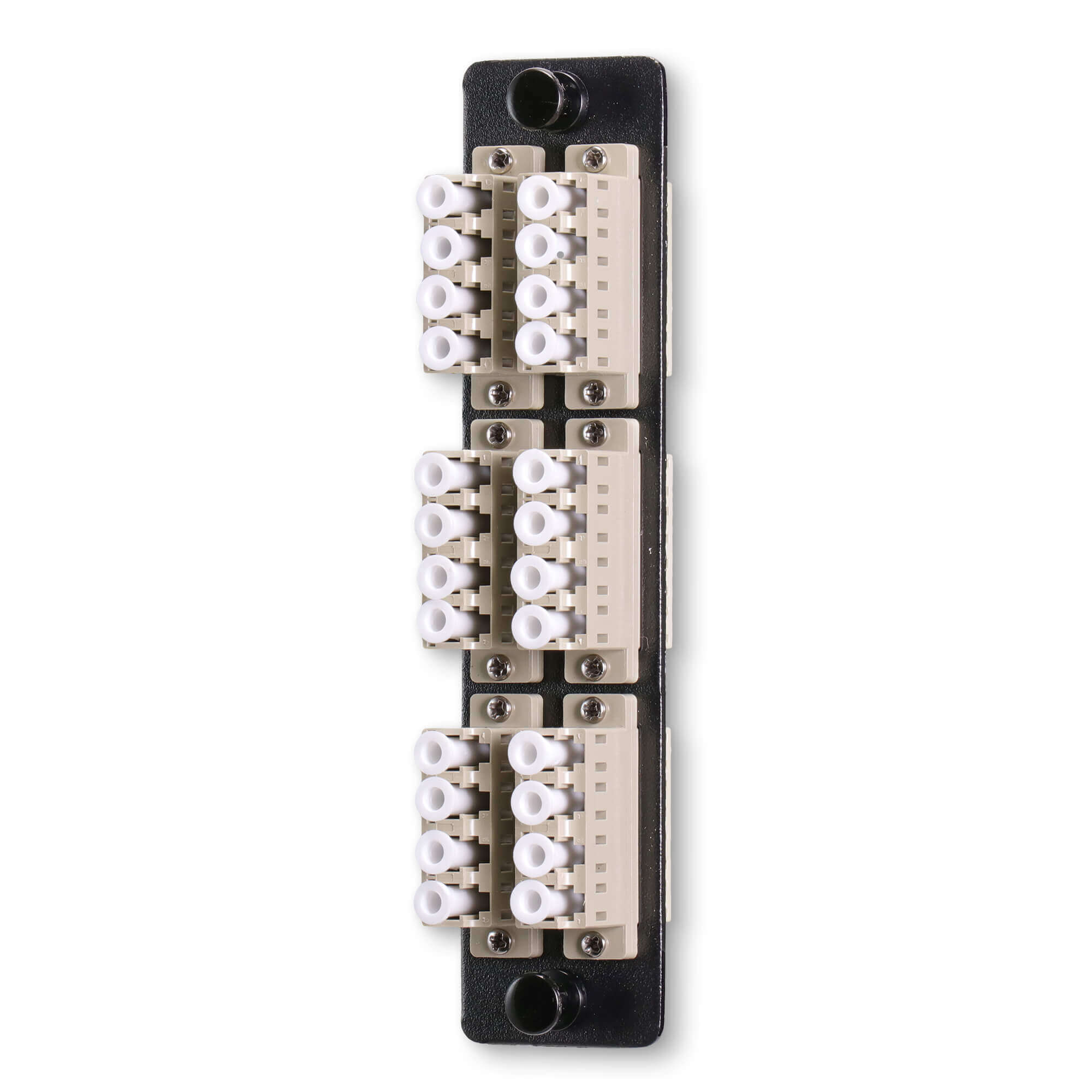

LC 24 Fiber 6-Position Loaded with Quad Multimode Adapters (Beige), Black | 24 | LC | Multimode | OM1/OM2 | Beige | Quad | AP-LC6-LQMM-B | $60.00 | 24 | lc | multimode | om1-om2 | beige | quad | ||
LC 6 Fiber 3-Position Loaded with Duplex Singlemode Adapters (Green), Black | 6 | LC/APC | Singlemode | OS1/OS2 | Green | Duplex | AP-LA3-LDSM-B | $28.00 | 6 | lc-apc | singlemode | os1-os2 | green | duplex | ||

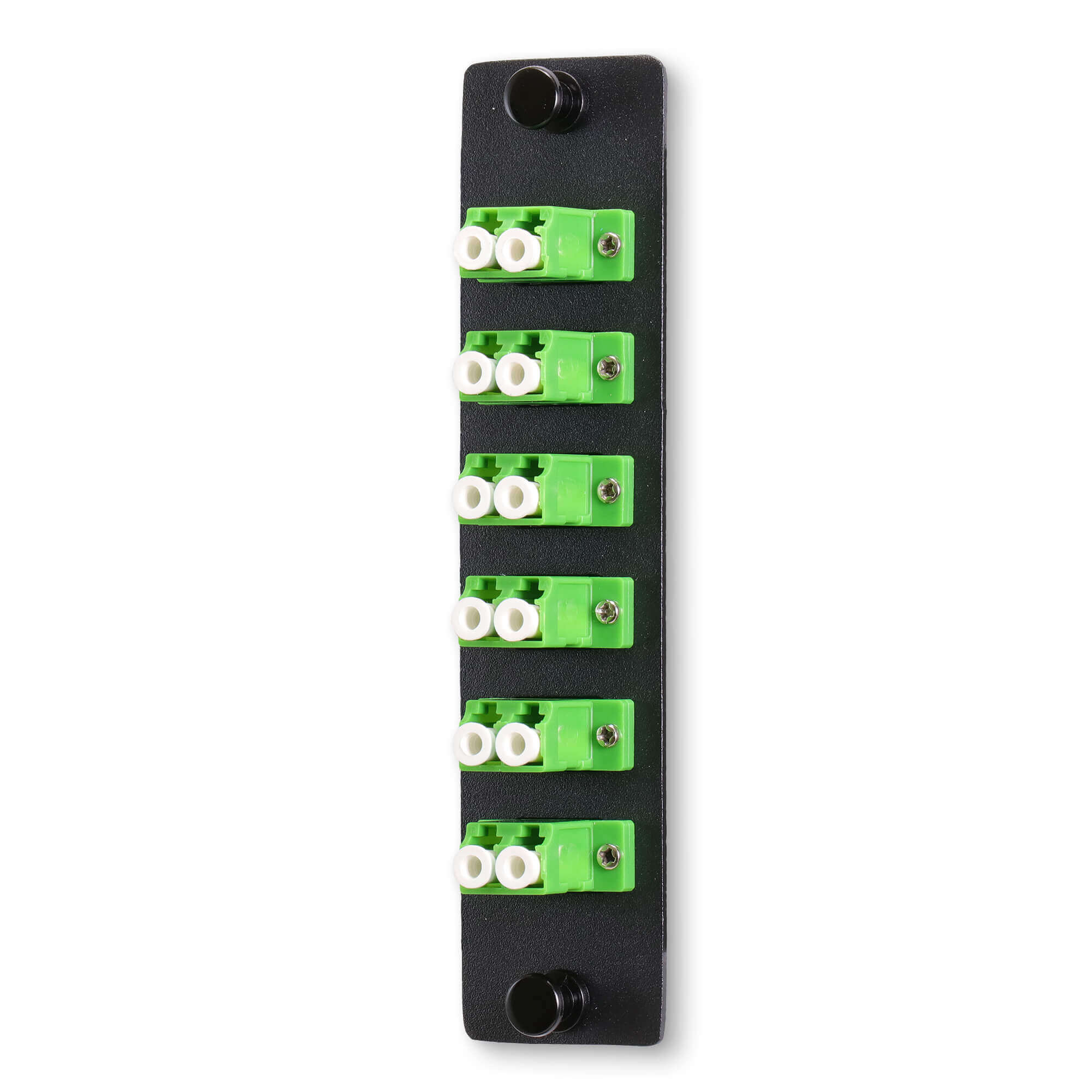

LC 12 Fiber 6-Position Loaded with Duplex Singlemode Adapters (Green), Black | 12 | LC/APC | Singlemode | OS1/OS2 | Green | Duplex | AP-LA6-LDSM-B | $40.00 | 12 | lc-apc | singlemode | os1-os2 | green | duplex | ||

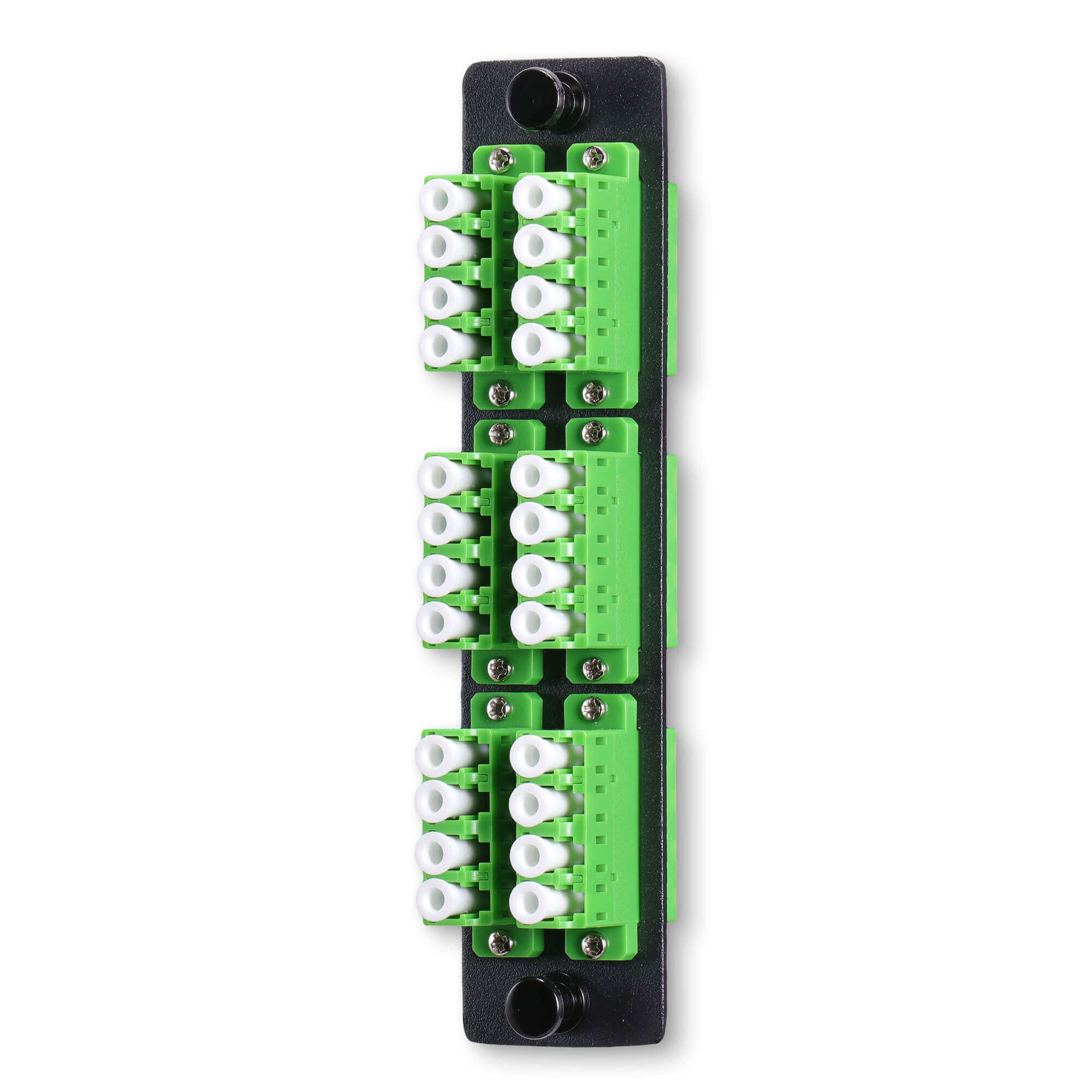

LC 24 Fiber 6-Position Loaded with Quad Singlemode Adapters (Green), Black | 24 | LC/APC | Singlemode | OS1/OS2 | Green | Quad | AP-LA6-LQSM-B | $70.00 | 24 | lc-apc | singlemode | os1-os2 | green | quad | ||

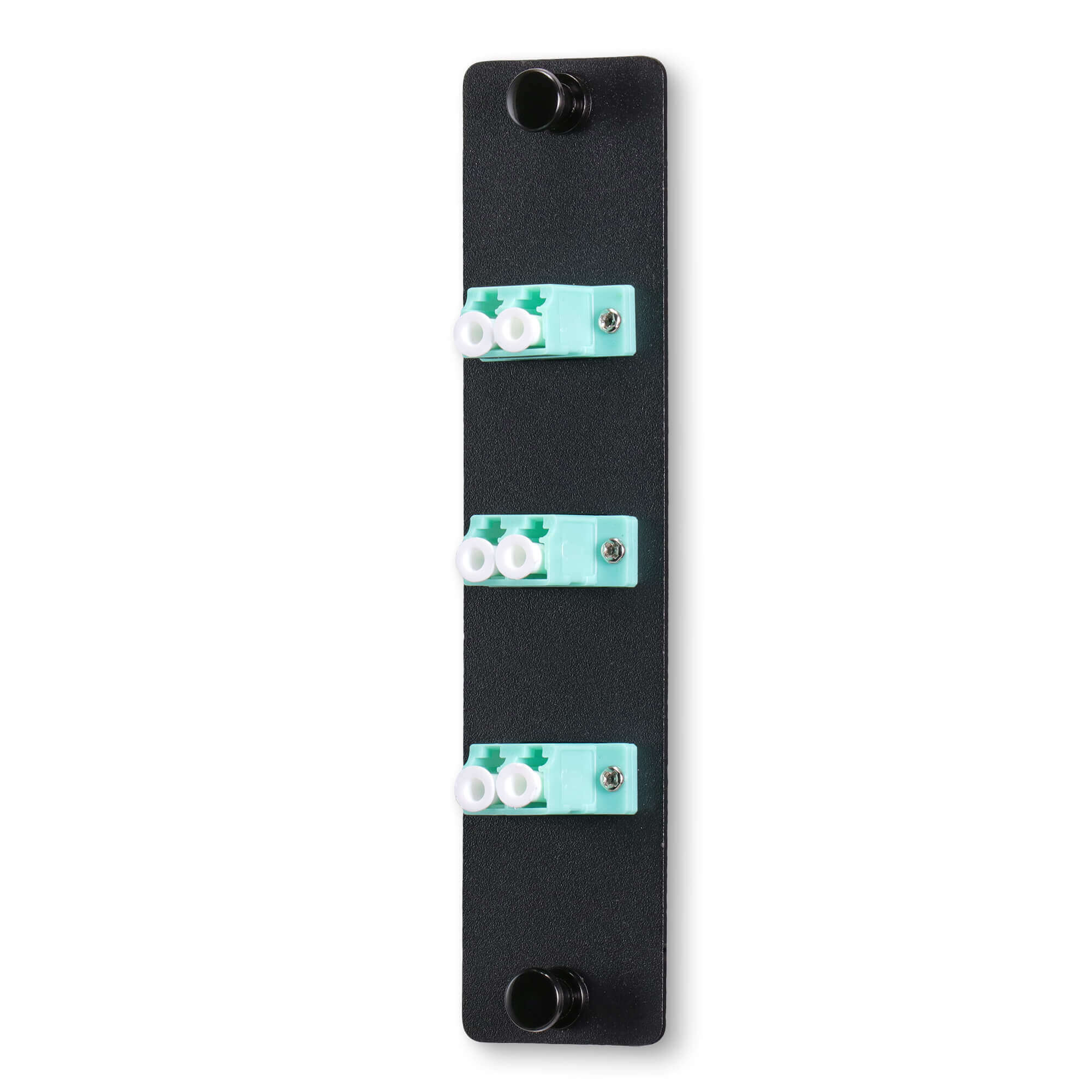

LC 6 Fiber 3-Position Loaded with Duplex Multimode Adapters (Aqua), Black | 6 | LC | Multimode | OM3/OM4 | Aqua | Duplex | AP-LC3-LDMX-B | $25.00 | 6 | lc | multimode | om3-om4 | aqua | duplex | ||

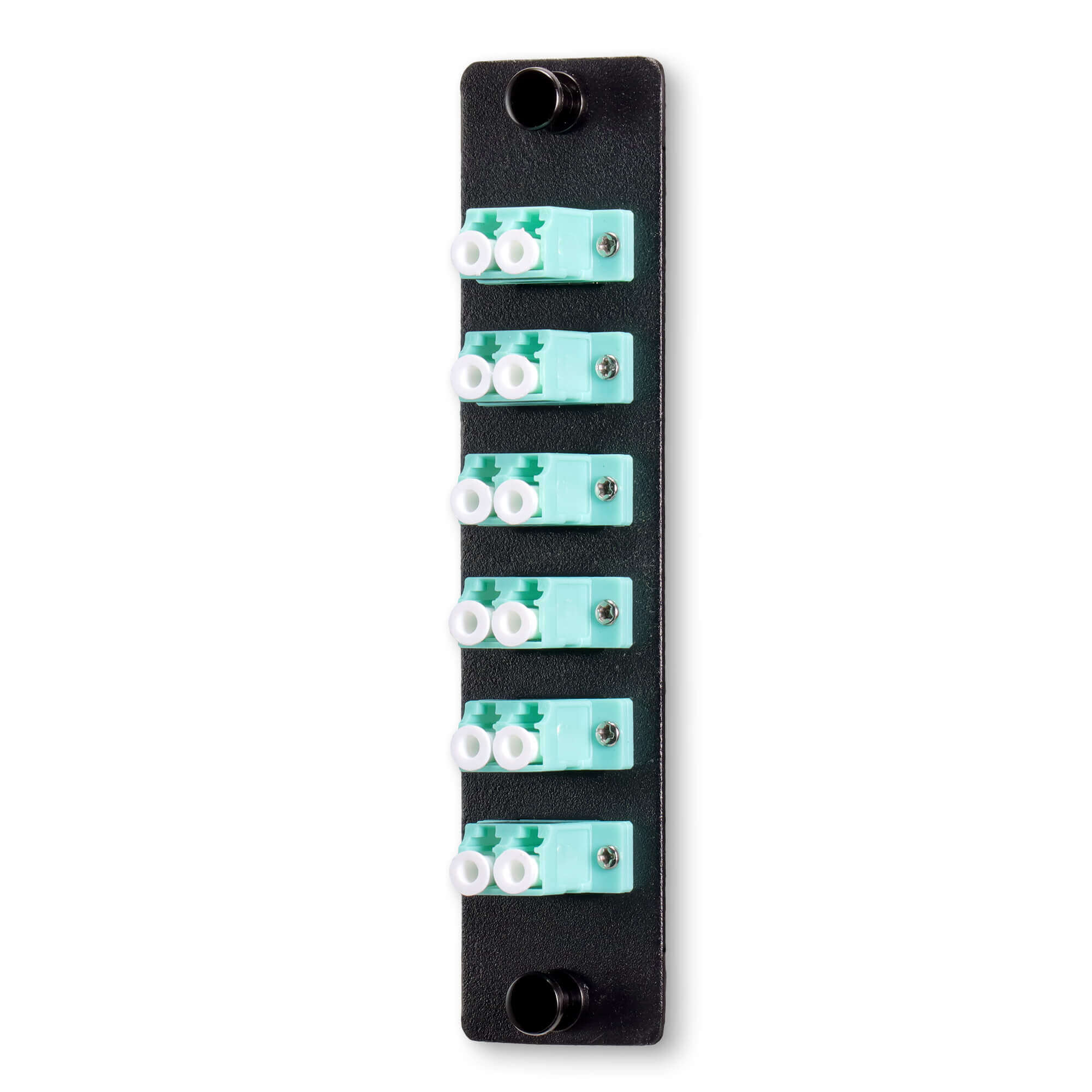

LC 12 Fiber 6-Position Loaded with Duplex Multimode Adapters (Aqua), Black | 12 | LC | Multimode | OM3/OM4 | Aqua | Duplex | AP-LC6-LDMX-B | $35.00 | 12 | lc | multimode | om3-om4 | aqua | duplex | ||

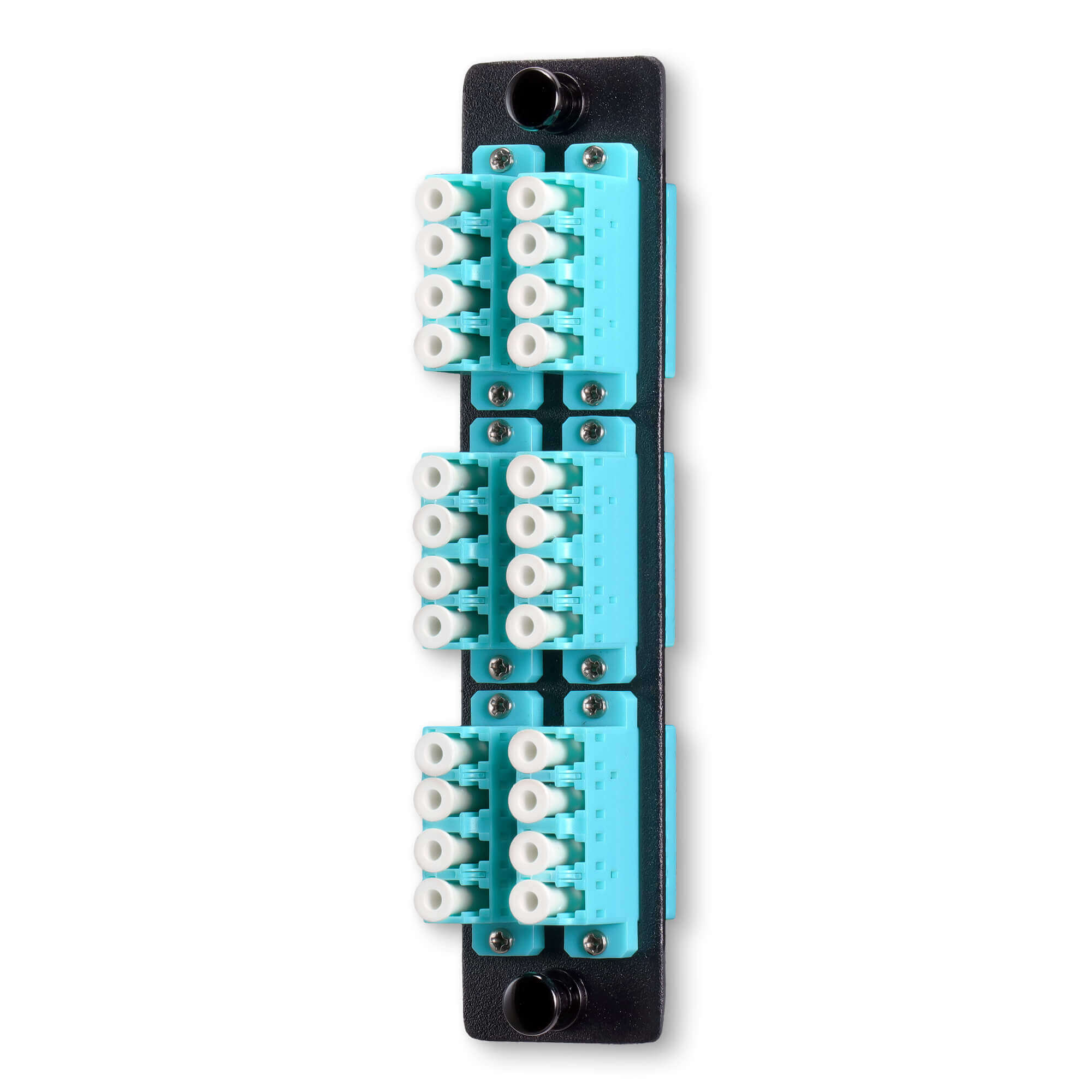

LC 24 Fiber 6-Position Loaded with Quad Multimode Adapters (Aqua), Black | 24 | LC | Multimode | OM3/OM4 | Aqua | Quad | AP-LC6-LQMX-B | $60.00 | 24 | lc | multimode | om3-om4 | aqua | quad | ||
FC 6 Fiber 6 Position Loaded with Simplex Singlemode Adapters (Yellow Caps), Black | 6 | FC | Singlemode | OS1/OS2 | Metal - Yellow Cap | Simplex | AP-FC6-LSSM-B | $30.00 | 6 | fc | singlemode | os1-os2 | metal-yellow-cap | simplex | ||
FC 6 Fiber 6-Position Loaded with Simplex Multimode Adapters (Black Caps), Black | 6 | FC | Multimode | OM1-OM4 | Metal - Black Cap | Simplex | AP-FC6-LSMM-B | $30.00 | 6 | fc | multimode | om1-om4 | metal-black-cap | simplex | ||
FC 6 Fiber 6 Position Loaded with Simplex Singlemode Adapters (Green Caps), Black | 6 | FC/APC | Singlemode | OS1/OS2 | Metal - Green Cap | Simplex | AP-FA6-LSSM-B | $30.00 | 6 | fc-apc | singlemode | os1-os2 | metal-green-cap | simplex | ||

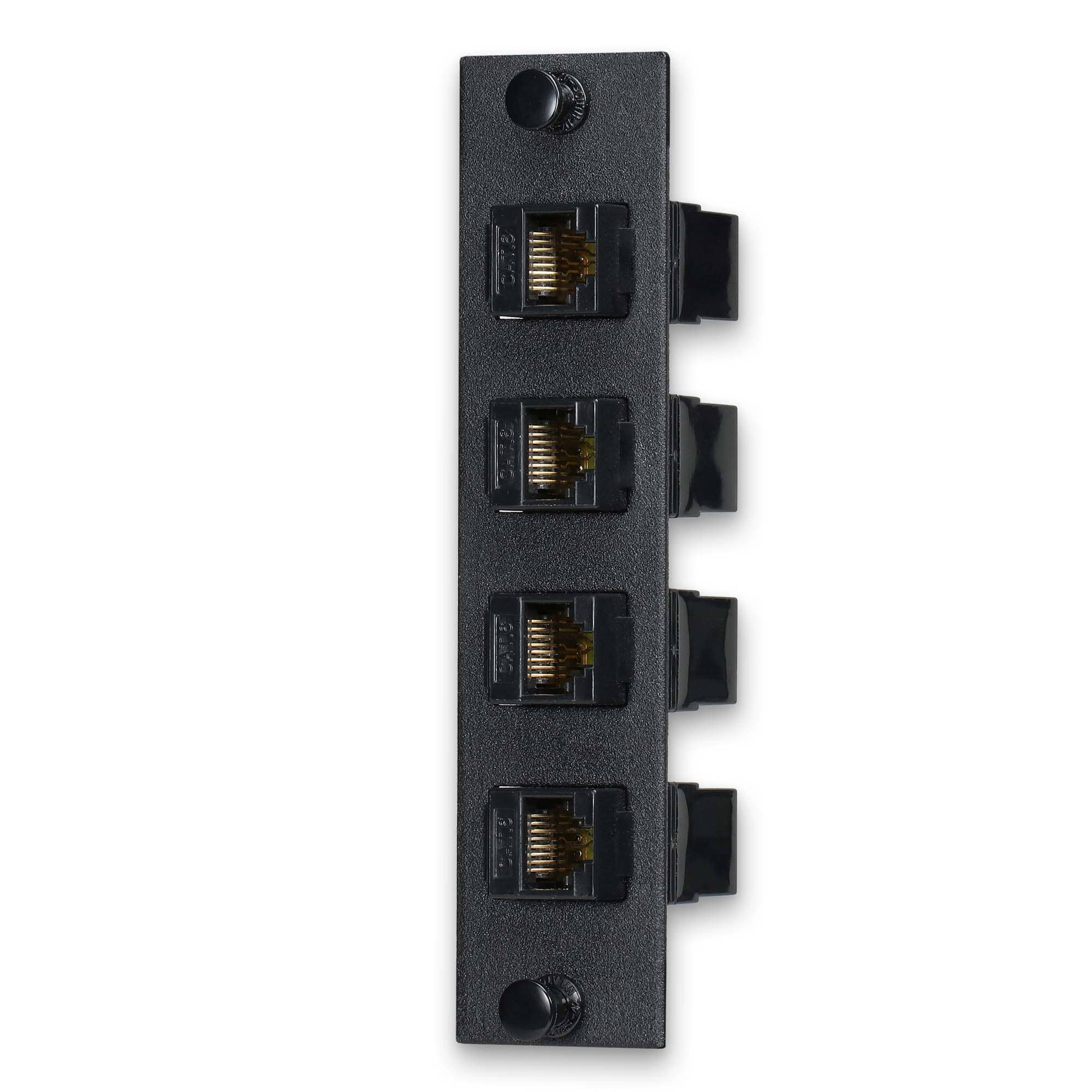

RJ-45 4-Position Adapter Plate loaded with CAT6 Coupler Keystones, Black | Zero | RJ-45 | Coupler | None | Black | None | AP-RJCAT6-CP4-B | $25.00 | zero | rj-45 | coupler | none | black | none | ||

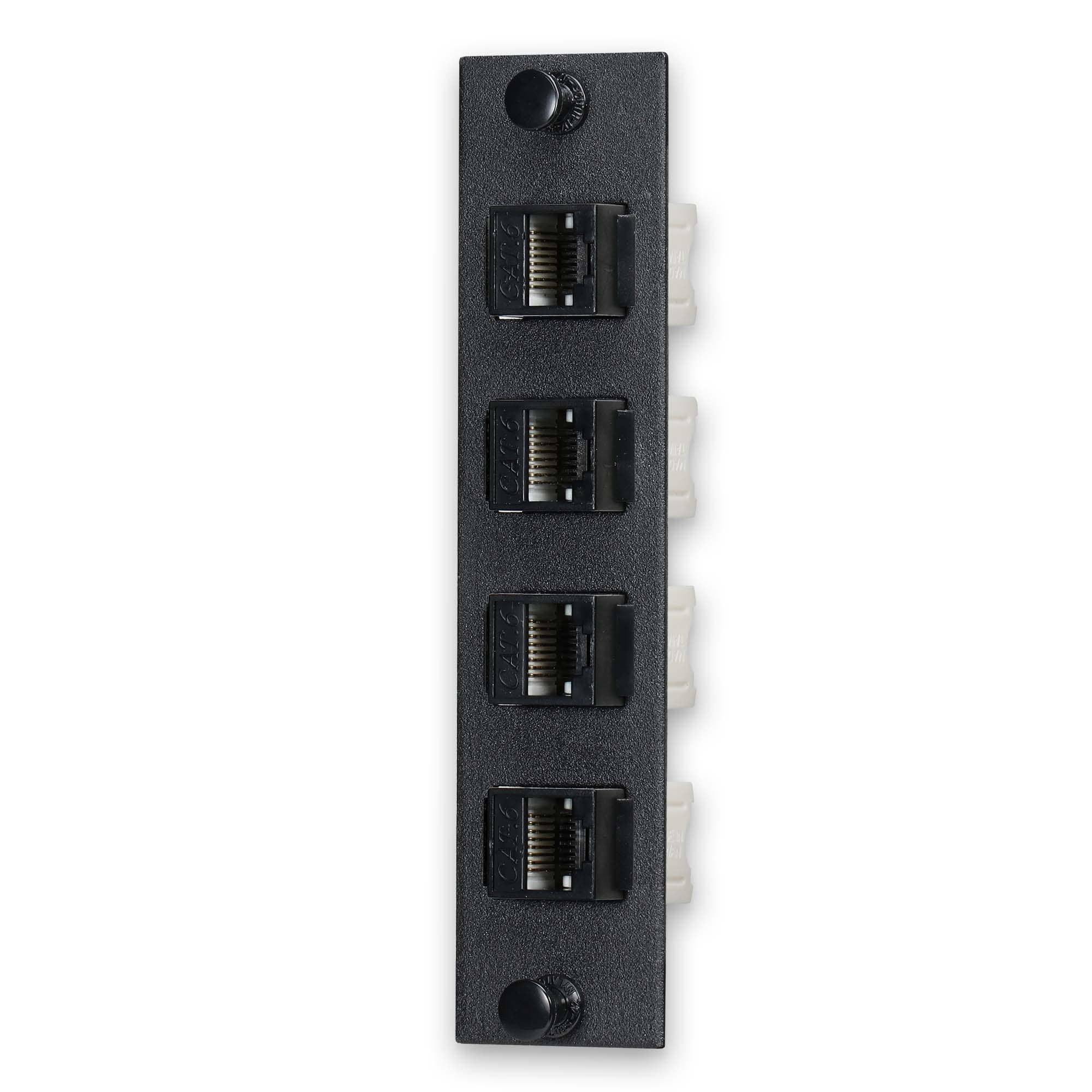

RJ-45 4-Position Adapter Plate loaded with CAT6 Punch Down Keystones, Black | Zero | RJ-45 | Punch Down | None | Black | None | AP-RJCAT6-PD4-B | $20.00 | zero | rj-45 | punch-down | none | black | none |
