Compact LGX Compatible Cassette
RLH Fiber Optic Splice Cassettes consist of fiber adapters and pre-terminated fiber pigtails for quick and easy splicing in high density applications.
Connector options include LC, LC/APC, SC, and SC/APC adapters for either multimode or singlemode applications. The splice cassettes are available with 250μm pigtails or ribbon pigtails.
The cassettes include all accessories required for field splicing: splice protectors, splice holders, and cable ties to secure the incoming cable to the cassette body.
Fiber and adapter colors follow TIA/EIA-568-C.3 suggested color identification scheme. The cassettes are compatible with most RLH enclosures and patch panels.
Features
- 12 or 24 fiber capacity
- Singlemode and multimode fiber types available
- Durable steel construction with Transparent Plastic Cover
- Compatible with many fiber patch panels that support LGX
- Meets or exceeds industry standards
- Saves installation time and labor
Please see the product documentation for the complete list of specifications
Cassette Construction:
Steel with Transparent Plastic Cover
Cassette Mounting:
LGX Style Mounting

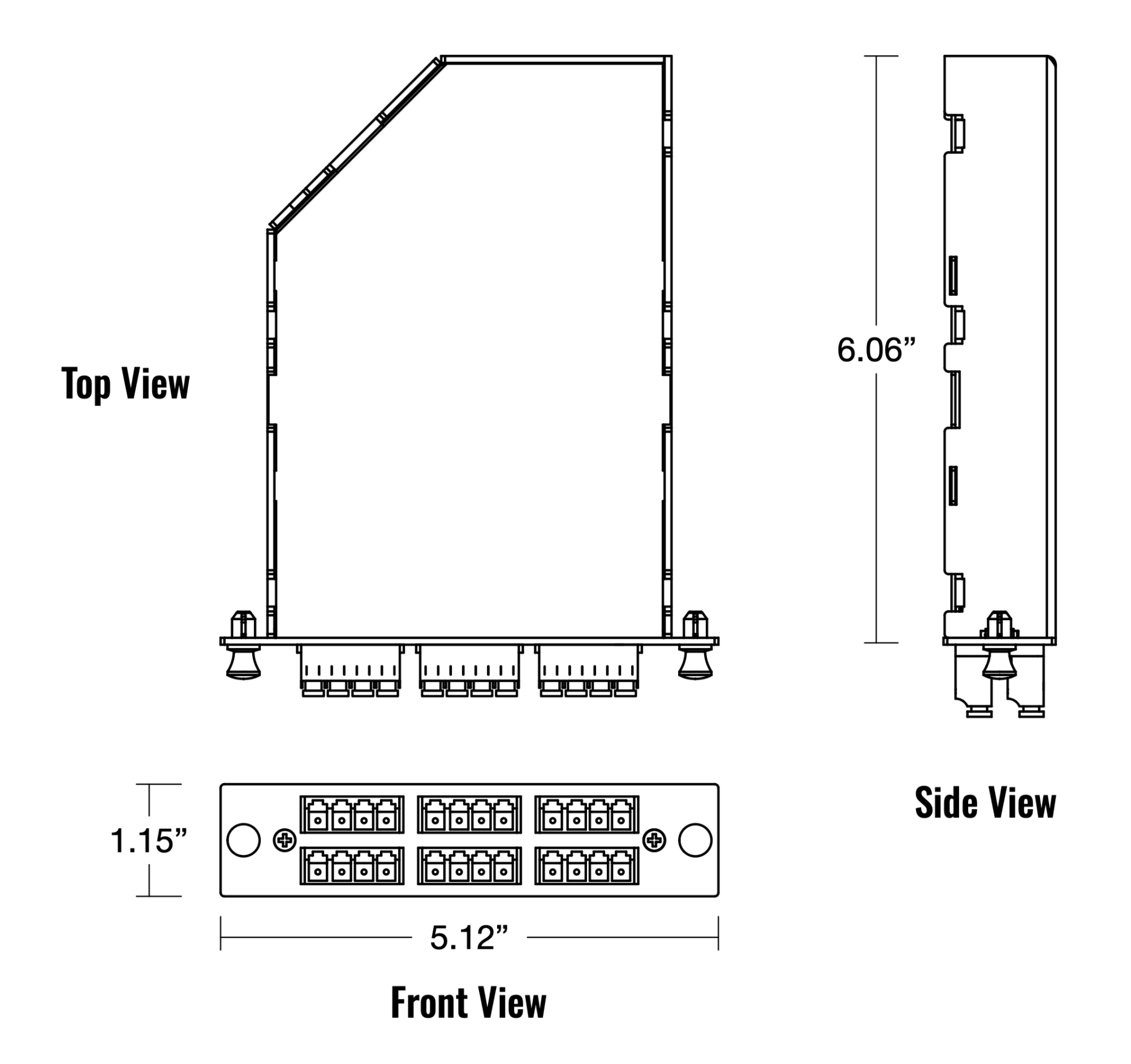

Cassette Dimensions:
5.12” (W) x 6.06” (D) x 1.15” (H), (105.4 mm x 153.9 mm x 29.2 mm)
Connector Durability:
500 Mating cycles
Return Loss:
>26dB Multimode, >55dB Singlemode
Performance Standards:
Connectivity meets or exceeds TIA/EIA-568-C.3 performance requirements
Supports IEEE 802.3ae and ANSI T11.2 (Fibre Channel) channel and link specifications
Operating Temperature:
-40°C to +70°C (-40°F to 158°F)
Storage Temperature:
-40°C to +75°C (-40°F to 167°F)
Safety:
RoHS
Product Information
CAD Files
FSC-12SMSC-1
FSC-12SMSA-1
FSC-12MMSC-1
FSC-12MCSC-1
FSC-12SMLC-1
FSC-12SMLA-1
FSC-12MMLC-1
FSC-12MCLC-1
FSC-24SMLC-1
FSC-24SMLA-1
FSC-24MMLC-1
FSC-24MCLC-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Fiber Splice Cassette
| Short description | Part number | Price | |
|---|---|---|---|

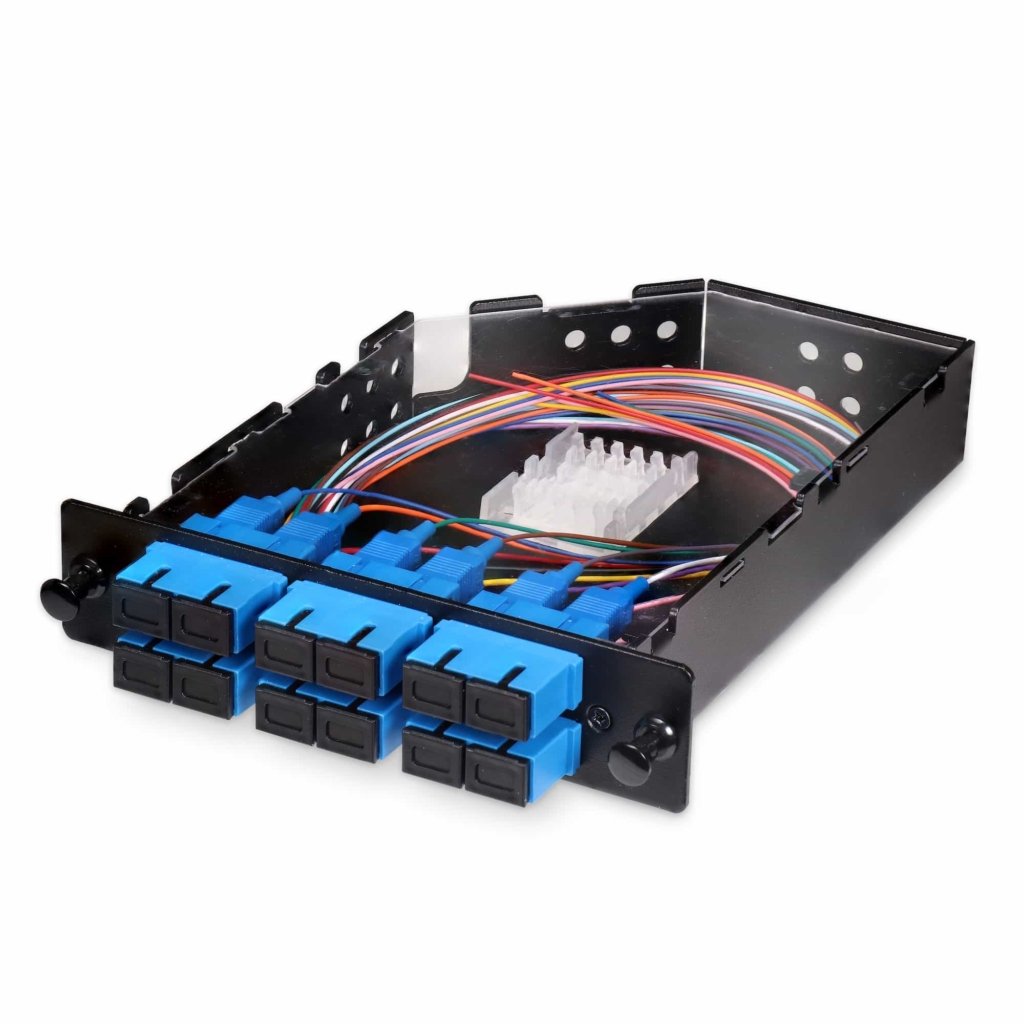

| 12 Fiber Splice Cassette SC/Duplex Singlemode (UPC) | FSC-12SMSC-1 | $125.00 | |
| 12 Fiber Splice Cassette SC/Duplex Singlemode (APC) | FSC-12SMSA-1 | $135.00 | |
| 12 Fiber Splice Cassette, SC/Duplex Multimode OM1 | FSC-12MMSC-1 | $120.00 | |
| 12 Fiber Splice Cassette, SC/Duplex Multimode OM3/OM4 | FSC-12MCSC-1 | $130.00 | |
| 12 Fiber Splice Cassette LC/Duplex Singlemode (UPC) | FSC-12SMLC-1 | $130.00 | |
| 12 Fiber Splice Cassette LC/Duplex Singlemode (APC) | FSC-12SMLA-1 | $140.00 | |
| 12 Fiber Splice Cassette, LC/Duplex Multimode OM1 | FSC-12MMLC-1 | $125.00 | |
| 12 Fiber Splice Cassette, LC/Duplex Multimode OM3/OM4 | FSC-12MCLC-1 | $135.00 | |

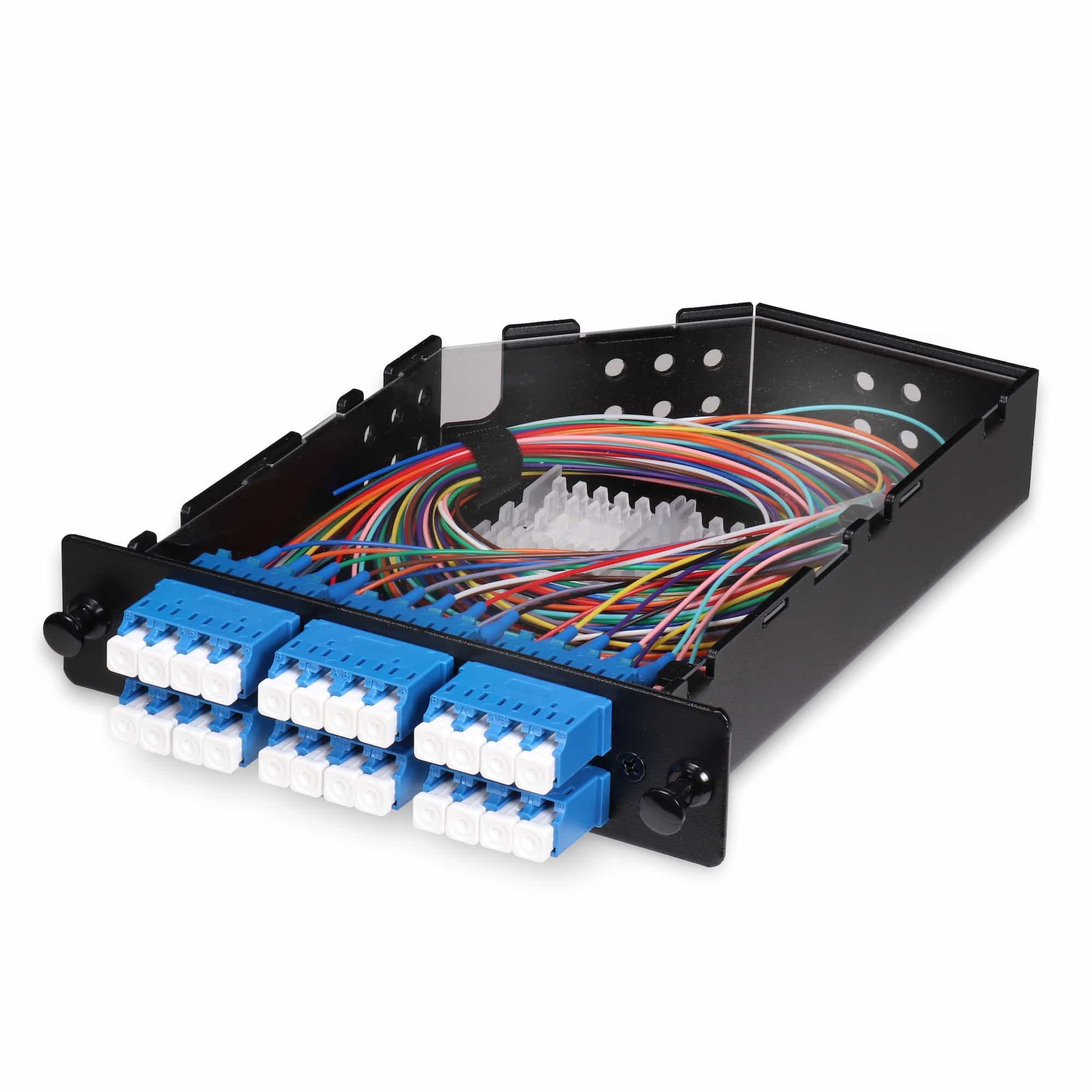

| 24 Fiber Splice Cassette LC/Quad Singlemode (UPC) | FSC-24SMLC-1 | $225.00 | |
| 24 Fiber Splice Cassette LC/Quad Singlemode (APC) | FSC-24SMLA-1 | $245.00 | |
| 24 Fiber Splice Cassette, LC/Quad Multimode OM1 | FSC-24MMLC-1 | $215.00 | |
| 24 Fiber Splice Cassette, LC/Quad Multimode OM3/OM4 | FSC-24MCLC-1 | $235.00 |
