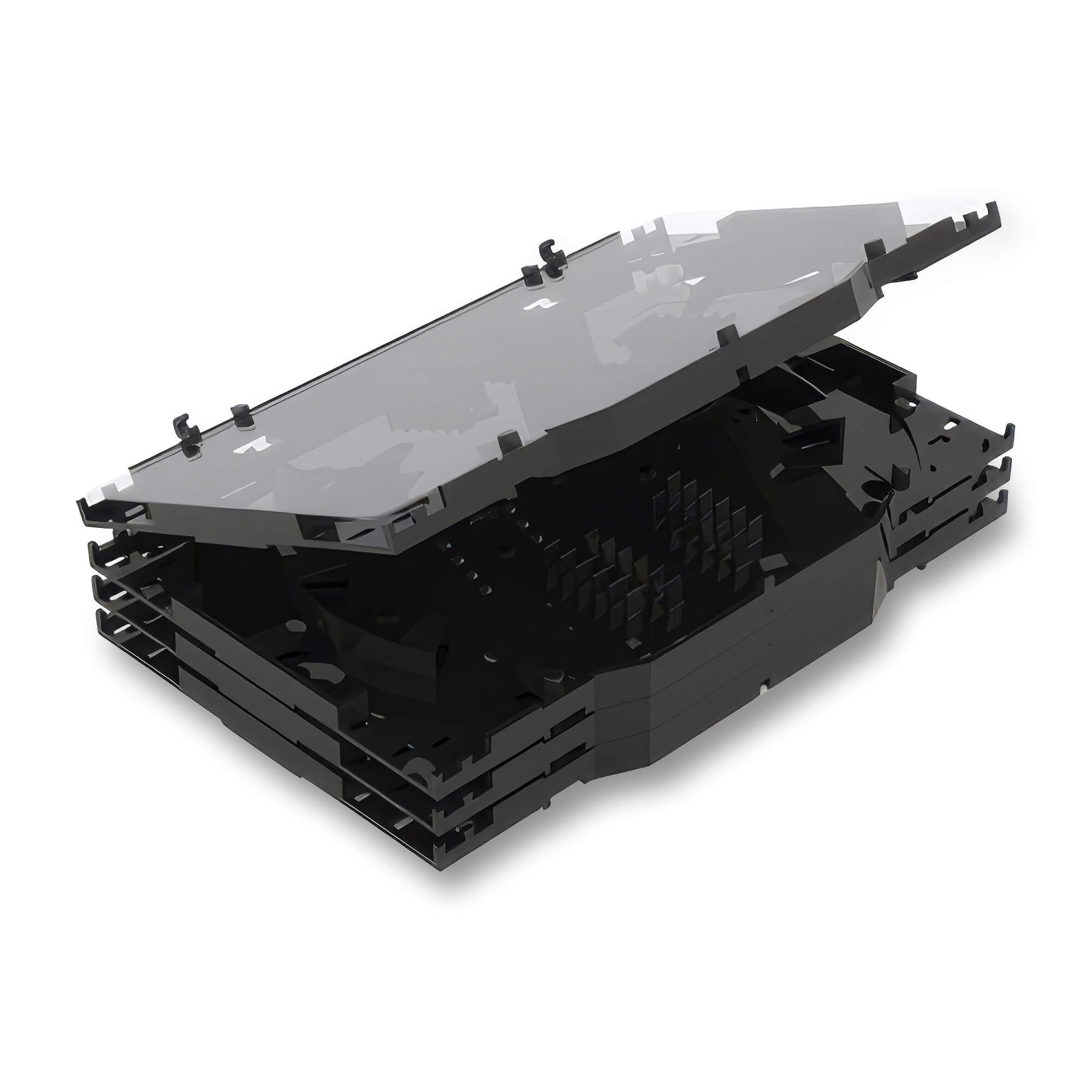

Stackable Fiber Splice Tray
Splice trays provide protection and organization of fiber splices and are typically used in fiber patch panels. These compact trays snap together with built-in hinges, ensuring organization and easy access to any tray without the need for removal.
Fiber sleeve holders are molded into the tray along with cable guides for easy fiber routing, and accept 2.6 mm diameter fusion splice protection sleeves.
Compatibility:
- SCORP4: 4 Plate Wall Mount Fiber Patch Panel
- WMP8: 8 Plate Wall Mount Fiber Patch Panel
- MANTA2/4:
- Manta 1RU Fiber Patch Panel
- Manta 2RU Fiber Patch Panel
- PRFL1/2:
- FiberLink 1RU Rack Mount Fiber Patch Panel
- FiberLink 2RU Rack Mount Fiber Patch Panel
- HIPPO4-1: HIPPO 4 Plate Fiber Patch Panel
- 2.6mm Splice Sleeves:
- 40 mm Length – FUSIONSS-40MM-XXX
- 60 mm Length – FUSIONSS-60MM-XXX
Features
- Lightweight plastic-molded tray
- 12 or 24 Fiber Splice Capacity
- Clear plastic cover
- For use with 40 mm or 60 mm splice sleeves
- Integrated holders for 2.6 mm diameter splice sleeves
- Trays snap together with built-in hinges
- Easily access any tray in the stack
Please see the product documentation for the complete list of specifications

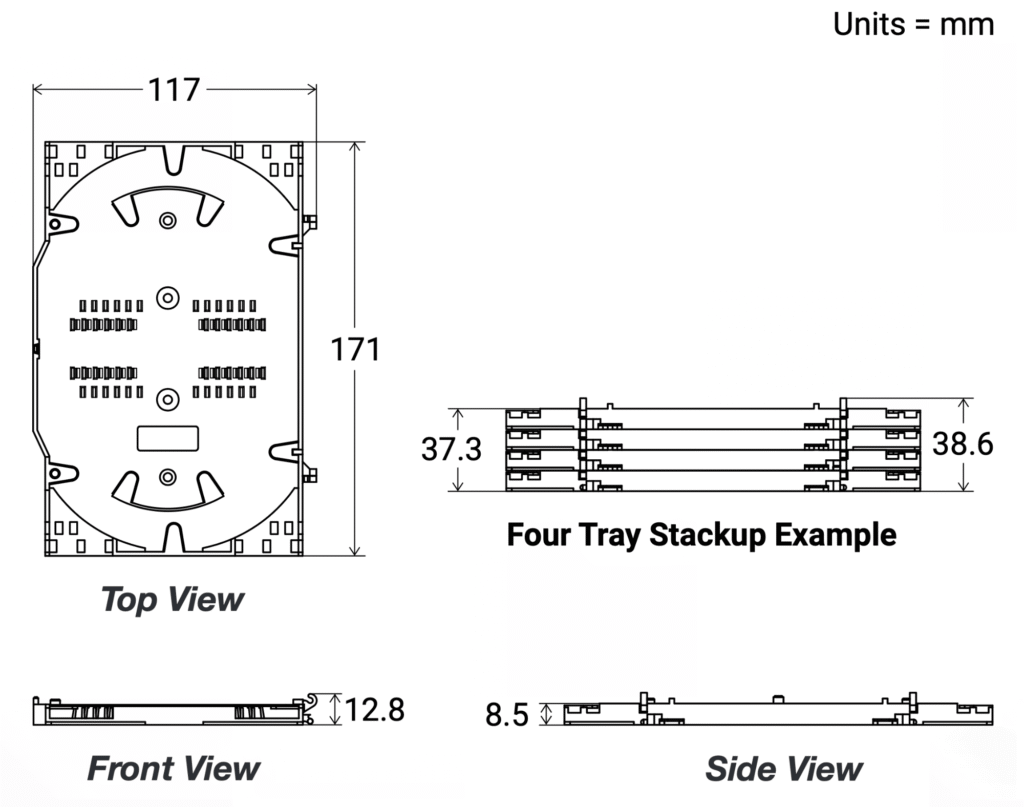

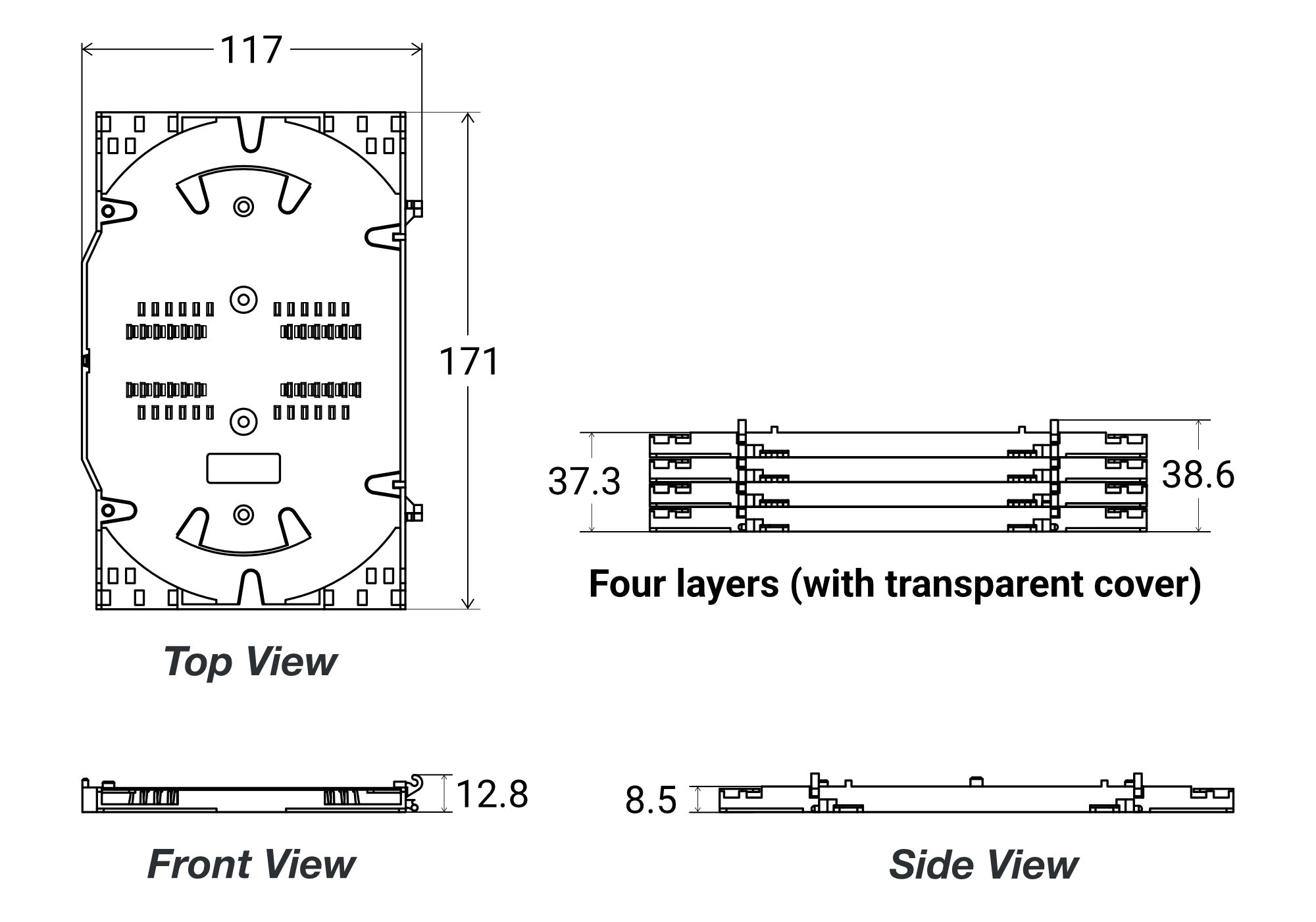

Dimensions:
6.7”(L) x 4.6”(W) x 0.3”(H), (171mm x 117mm x 8.5mm)
Material:
ABS (Acrylonitrile Butadiene Styrene)
Product Information
CAD Files
RLH-FST-06
RLH-FST-06-FSPS
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
12/24 Stackable Fiber Splice Tray
| Short description | Part number | Price | |
|---|---|---|---|
| 12/24 Stackable Fiber Splice Tray | RLH-FST-06 | $15.00 | |
| 12/24 Stackable Fiber Splice Tray with 30ea. 40 mm Splice Sleeves | RLH-FST-06-FSPS | $24.00 |
