Double Shielded, High-Bandwidth, Industrial and Sunlight Resistant Category 6A Ethernet Cable

RLH Cat 6A shielded outdoor patch cords provide optimum performance for Industrial and outdoor environments. These cables utilize a heavy duty and highly flexible jacket that is resistant to UV and continuous flexing applications. The foil + braid double shielded construction reduces EMI/RFI interference.

The factory manufactured and tested patch cords offer guaranteed quality and ensure system performance requirements specified by the ANSI/TIA-568.2-D. Patch cords are available in standard or custom lengths.

Compliance

Features

  • 4 Pairs Shielded Twisted Pair (SF/UTP) Cable
  • Operating temperature of -40°C to +75°C (-40°F to +167°F)
  • Ideal for 1G/10GBase-T Copper LAN
  • 600V Max. Voltage Rating
  • >1 Million Flexing Cycles
  • Offered in a variety of custom lengths and colors

Please see the product documentation for the complete list of specifications

Cable Type:
CAT6A SF/UTP (ANSI/TIA-568.2-D)

Conductor:
24AWGx4P Stranded Copper

EMI/RFI Shielding:

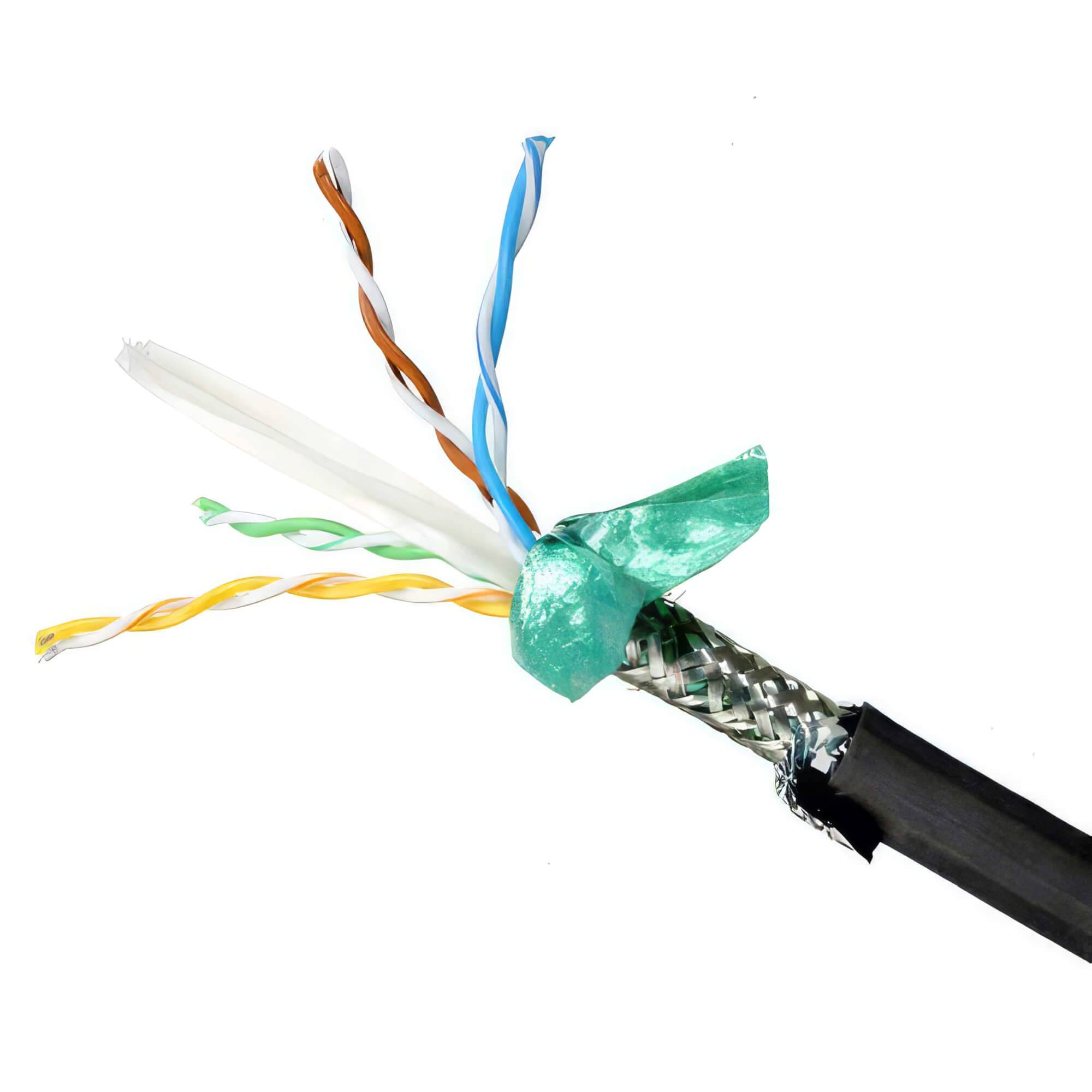

Alum/Poly Foil Shield, Tinned Copper Braid Shield, 4 Twisted Pair

Jacket Rating:
CMX Outdoor

Cable Outside Diameter:
0.325” +/-0.01”

Minimum Bend Radius:
Install/20xOD; Long Term/10xOD

Flex Cycles:
1,000,000 (10x OD) 10,000,000 (20x OD)

Operating Temperature:
-40°C to +75°C (-40°F to +167°F)

Operating Voltage Max:
600V

PoE Compliance:
Up to 80m (TIA TSB-184)

Environmental:
RoHS Compliant

Jacket Colors Available:
BK (Black), GY (Gray), TL (Teal)

Product Information

RLH-JORJ45BK-6S-05F
RLH-JORJ45BK-6S-10F
RLH-JORJ45BK-6S-15F
RLH-JORJ45BK-6S-20F
RLH-JORJ45BK-6S-25F
RLH-JORJ45BK-6S-30F
RLH-JORJ45BK-6S-40F
RLH-JORJ45BK-6S-50F
RLH-JORJ45BK-6S-75F
RLH-JORJ45BK-6S-100F

Price range: $87.50 through $420.00
Lead Time: 1 to 3 Days*
Order Now
Contact Sales

For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

  • Ethernet
  • Designed, Engineered, & Assembled in the USA
  • 35+ Years of Excellence

Ordering

CAT6A Shielded Outdoor Patch Cables

Short descriptionPart numberPrice
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 5 FeetRLH-JORJ45BK-6S-05F$87.50
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 10 FeetRLH-JORJ45BK-6S-10F$105.00
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 15 FeetRLH-JORJ45BK-6S-15F$122.50
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 20 FeetRLH-JORJ45BK-6S-20F$140.00
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 25 FeetRLH-JORJ45BK-6S-25F$157.50
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 30 FeetRLH-JORJ45BK-6S-30F$175.00
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 40 FeetRLH-JORJ45BK-6S-40F$210.00
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 50 FeetRLH-JORJ45BK-6S-50F$245.00
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 75 FeetRLH-JORJ45BK-6S-75F$332.50
- +
CAT6A Double Shielded High Flex Outdoor RJ45 Patch Cable, 100 FeetRLH-JORJ45BK-6S-100F$420.00
- +
