Rugged, Flexible & Reliable Fiber Connectivity

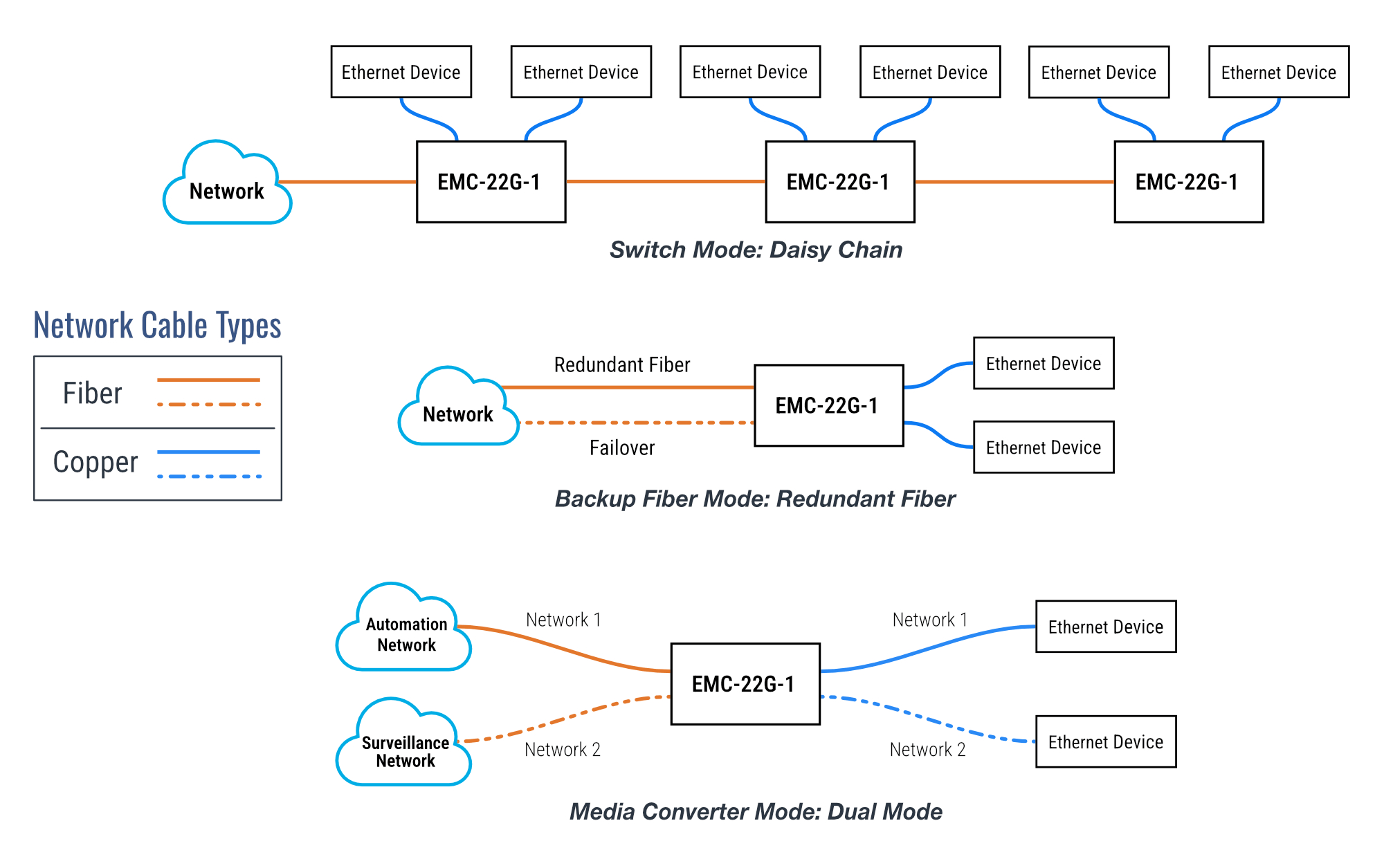

RLH Industries EMC-22G-1 is an industrial Gigabit Ethernet media converter featuring three operating modes: Unmanaged Switch Mode, Redundant Fiber Backup Mode, and Dual Media Converter Mode. The multiple operating modes provide reliable network topology solutions for a variety of field applications, reducing system complexity and deployment costs.
Multimedia Functions
- Unmanaged Switch Mode – Operates as a 4-port unmanaged switch for simplified daisy-chain network expansion
- Redundant Fiber Backup Mode – Provides automatic link protection for highly critical networks
- Dual Media Converter Mode – Supports two completely independent links for traffic separation
The dual-rate 100/1000 SFP ports support multimode, singlemode, and bi-directional WDM fiber depending on the SFP used. The EMC-22G-1 operates on 12~48VDC and supports dual redundant power inputs with surge protection for uninterrupted operation. A built-in alarm relay provides power and link fault notification.

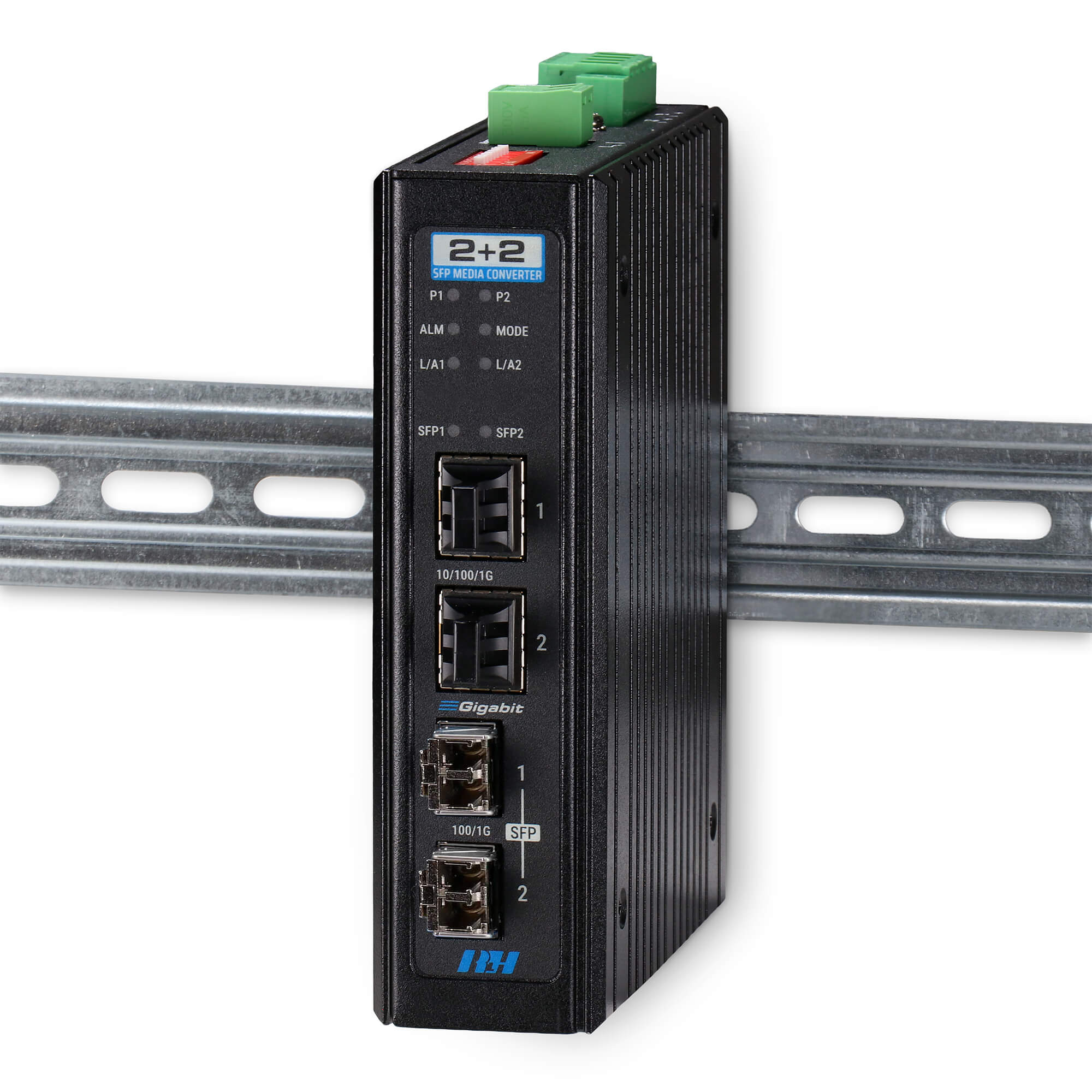

Designed for industrial applications, the EMC-22G-1 is DIN rail or wall mountable and hardened to operate in -40°C~+75°C, ensuring reliable performance in extreme environments.
Features
- 2 Gigabit RJ-45 & 2 dual-rate 100/1000Base-X SFP ports
- Supports Fiber Backup Mode, Dual Mode & Switch Mode
- Hardened to operate in -40°C~+75°C (-40°F~+167°F)
- Relay output for power and port link fault alarms
- LED indicators for Power, Mode/Function, SFP & Activity
- Supports 9k Jumbo Frames
- Dual DC power inputs (12~48VDC)
- DIN rail and wall-mountable
- IP-30 Aluminum Housing
Please see the product documentation for the complete list of specifications
Physical Ports:
2x 10/100/1000Base-T Ports RJ-45, 2x 100/1000Base-X Ports SFP
Standards:
IEEE 802.3 10Base-T (Ethernet), IEEE 802.3u 100Base-TX/FX (Fast Ethernet), IEEE 802.3ab 1000Base-T (Gigabit Ethernet), IEEE 802.3z 1000Base-X (Gigabit Ethernet)
Ethernet Interface:
Supports Jumbo Frames (9k Bytes), Auto MDI/MDI-X, Auto-Negotiation (Copper and Fiber Port)
Features:
Store and Forward, Fault Alarm Notification (Power, Ports), Auto & Force Mode Configuration, Full/Half Duplex Mode, Memory Buffer: 128K Bytes, Relay Output, MAC Address: 2k table size, Surge Protection: 6kV (K.21)
LED Indicators:
Power: P1, P2
Alarm Status: ALM
Operating Mode: Mode
RJ-45 Ports: LA1, LA2
SFP Ports: SFP1, SFP2
DIP Switch Function:
DIP | Function | OFF (Default) | ON
1 | External Port Link | Disable | Enable
2 | PoE Trigger | Disable | Enable
3 | Fiber Speed | 1000Mbps | 100Mbps
4 | Fiber Mode | Auto Negotiation Mode | Force Mode
5 | Operation Mode | Switch Mode | Converter Mode
6 | Converter Mode | Dual Mode | Redundant Fiber Mode
7 | N/A | Always Keep Off
8 | N/A | Always Keep Off
Power:
Redundant Input Power: Dual DC inputs. 12~48VDC on 4-pin terminal blocks
Power Consumption: 4.8W (Max.)
Physical:

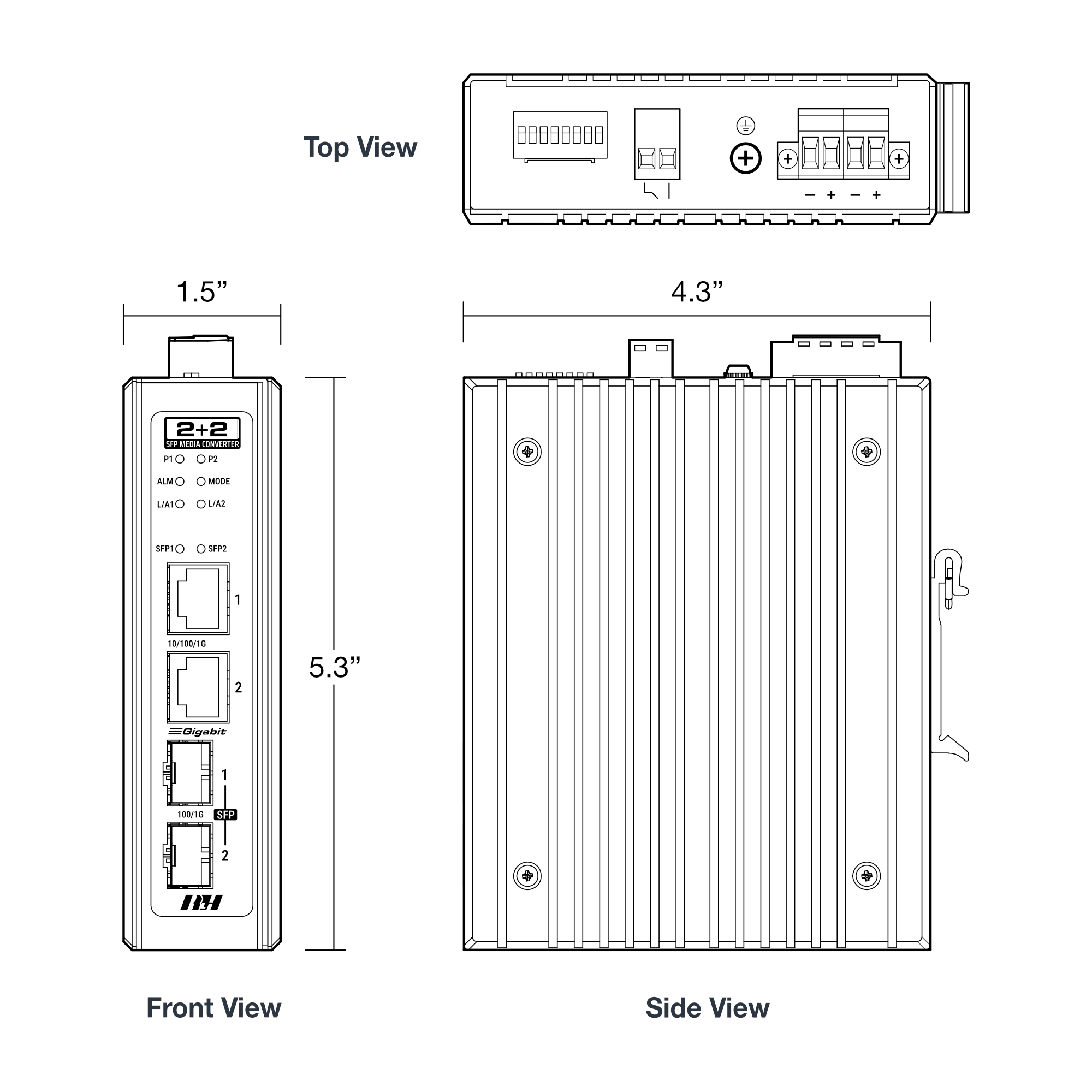

Dimensions: 1.4”(W) x 4.3”(D) x 5.3”(H) (36x110x135mm)
Weight: 0.64kg (22.58oz)
Housing: Aluminum, IP30
Temperature:
Operating: -40°C~+75°C (-40°F~+167°F)
Storage: -40°C~+85°C (-40°F~+185°F)
Humidity:
5% to 90% non-condensing
Stability:
IEC60068-2-27 (Shock), IEC60068-2-31 (Free Fall), IEC60068-2-6 (Vibration)
Compliance:
FCC Class A, CE, RoHS, ITU-T K.21
Product Information
CAD Files
Guide
EMC-22GP-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
2+2 Multi-Functional Industrial Ethernet Media Converter
| Short description | Part number | Price | |
|---|---|---|---|
| 2+2 10/100/1G Industrial Ethernet Media Converter, SFP (100/1G) 12~48VDC | EMC-22GP-1 | $390.00 |
