Long-Lasting Protection for Housing Electrical Components

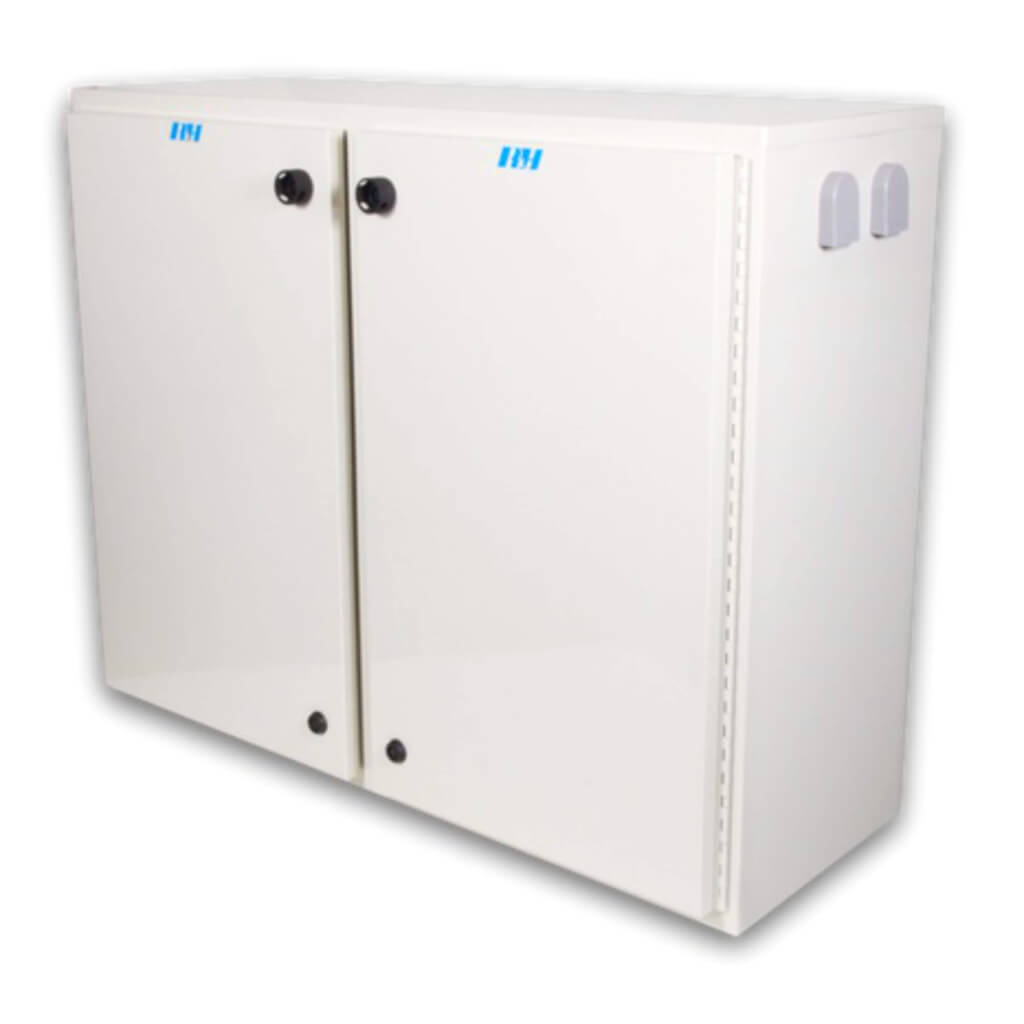

RLH Dual Access galvanized steel enclosures provide long-lasting, all-season protection for housing electrical components. These enclosures provide 2 separate, lockable enclosure sections in a single unit. This is an ideal solution for the Copper Fiber Junction (CFJ), or where controlling access to connected equipment is important.
Manufactured to NEMA 4X standards from 14 gauge steel, powder coated light grey and highly resistant to corrosion. They are suitable for both indoor and extreme outdoor environments.

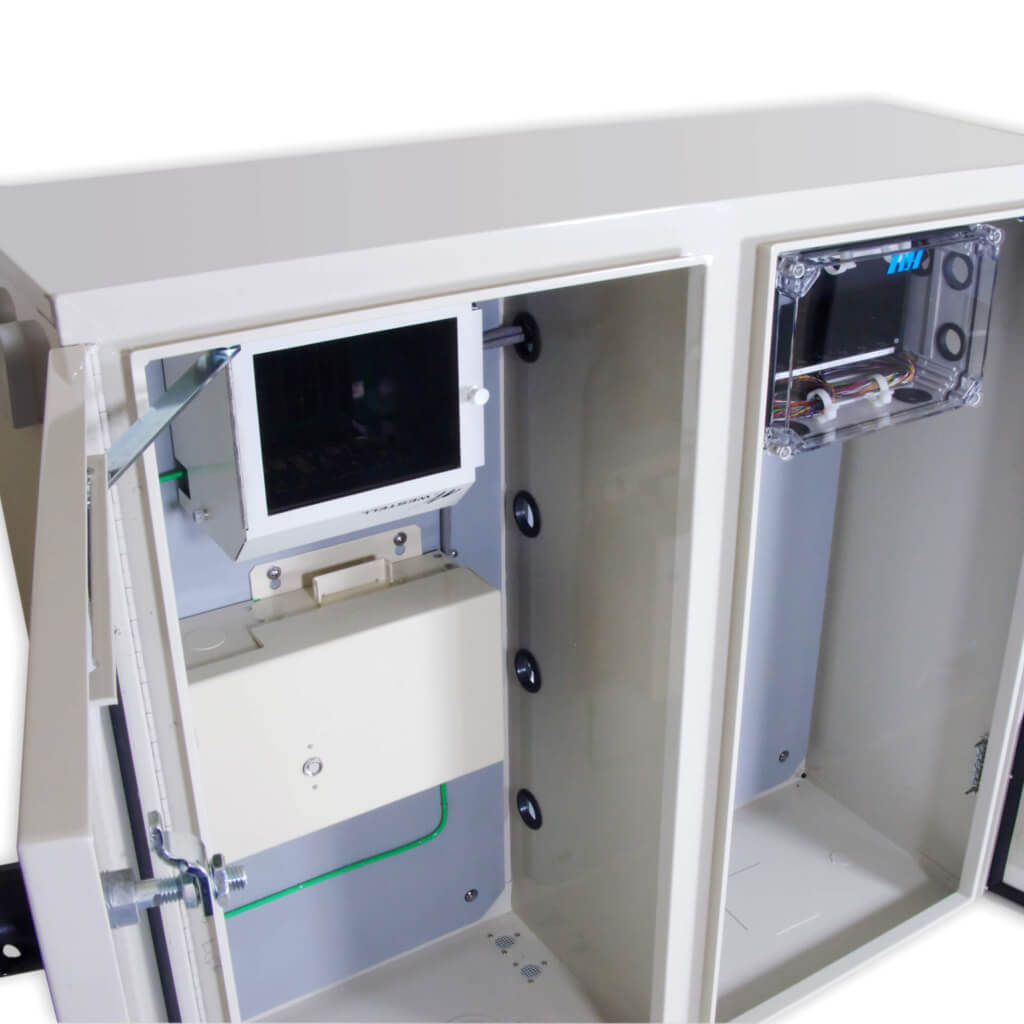

Each side is a full-featured, secure enclosure, equipped with a hinged door and quarter-turn latches, hardened padlock ring, documentation pocket, foam gasket seal, knockouts, vents, and treated and painted plywood backboard.
The enclosure comes with mounting feet and hardware, and knockouts are provided in the divider panel for pass through of wiring, fiber, or conduit between the two compartments.
Available options include pole mount bracket with bolt or strap capability, rack mount rails, exhaust fans with thermostat, custom color, company logo and more.
RLH also provides Custom Enclosure Configurations.
- Hinged door with:
- Hardened Padlock Locking Rings
- Quarter-turn latches
- Door limit stops
- Document pockets
- Neoprene gasket seals
- Powder coated, 14 gauge galvanized steel construction
- Bottom knockouts, from 3/4″ to 4″
- 1-3/4″ section divider knockouts
- 8-position ground bar, #2 to #14
- Weatherproof vents
- Treated & painted 3/4″ plywood backboard
- Frame mounting feet and attaching hardware
- Optional pole mount bracket
Options
- Pole Mount Bracket
- Exhaust fan with thermostat
- Heater with thermostat
- Rack Mount Rails
General Information
8806-1296-01GDA
8806-1296-01GDA-PMK
8806-1296-05GDA
8806-1296-05GDA-PMK
Ordering
Dual Access Galvanized Enclosure
| Short description | Mounting | Part number | hf:att:pa_mounting | |
|---|---|---|---|---|
| 32” X 40” X 15” Galvanized Steel Dual Access Enclosure with Treated ¾” Plywood Backboard | Mounting Feet | 8806-1296-01GDA | Get a Quote | mounting-feet |
| 32” X 40” X 15” Galvanized Steel Dual Access Enclosure with Treated ¾” Plywood Backboard and Pole Mount Bracket | Pole Mount Kit | 8806-1296-01GDA-PMK | Get a Quote | pole-mount-kit |
| 40” X 42” X 15” Galvanized Steel Dual Access Enclosure with Treated ¾” Plywood Backboard | Mounting Feet | 8806-1296-05GDA | Get a Quote | mounting-feet |
| 40” X 42” X 15” Galvanized Steel Dual Access Enclosure with Treated ¾” Plywood Backboard and Pole Mount Bracket | Pole Mount Kit | 8806-1296-05GDA-PMK | Get a Quote | pole-mount-kit |
- Enclosure dimensions (H x W x D)
- Enclosure color is RLH Light Grey
