Medium Sized Outdoor Weatherproof Equipment Enclosure
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

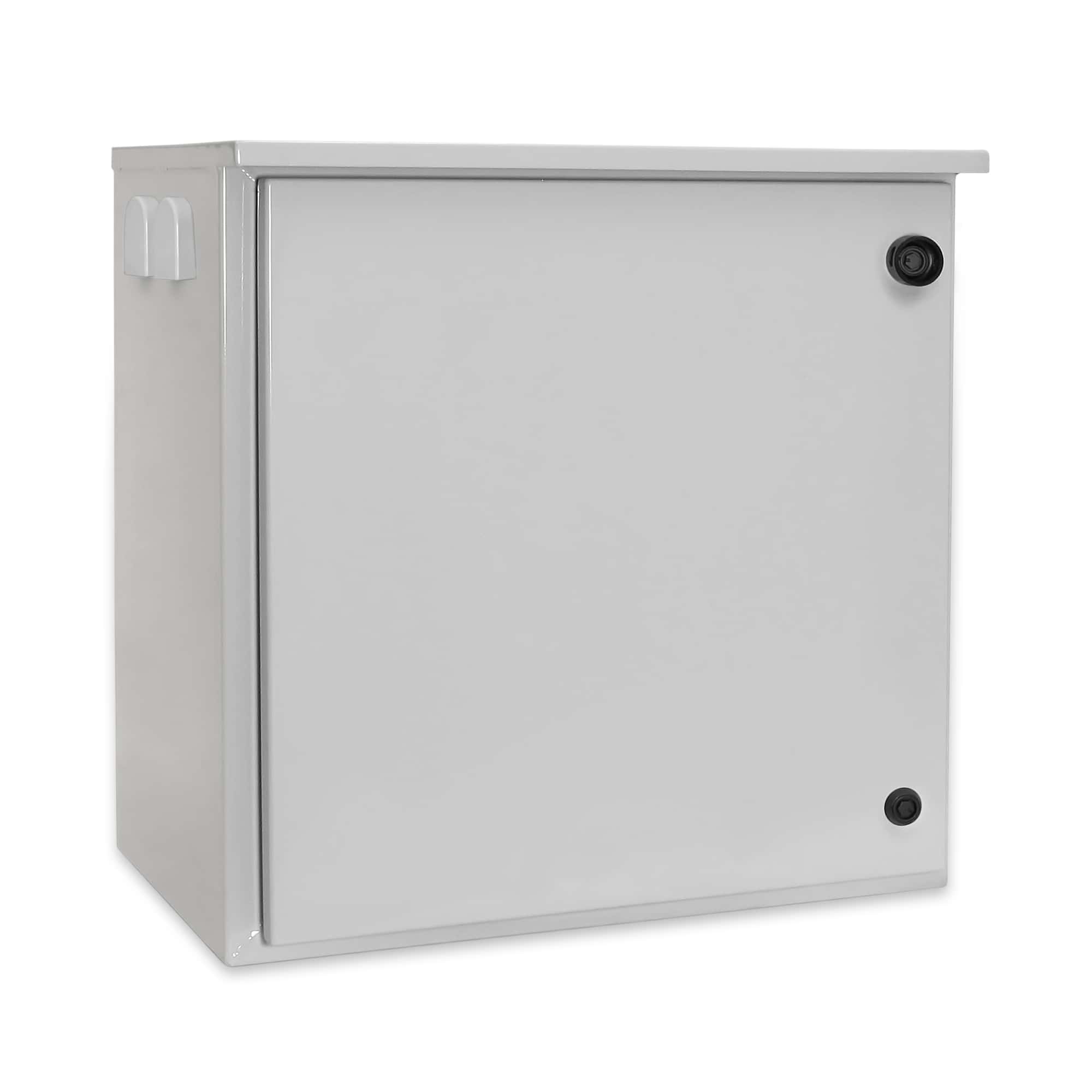

These commercial grade aluminum enclosures feature plywood backboards for easy field installation of communication devices and equipment in outdoor environments. Water and dust proof vents provide convection cooling to further protect installed equipment. Enclosures can be secured with a padlock, and include mounting feet for wall or strut mounting. A pole mount model is available with the bracket preinstalled and ready for deployment.
Custom fabricated enclosures and turn-key solutions to fit your specific applications needs are available from the RLH design group. Please contact an RLH sales representative for more information on enclosures and equipment.
Features
- Weatherproof design for outdoor use
- Heavy duty, precision welded, powder coated construction

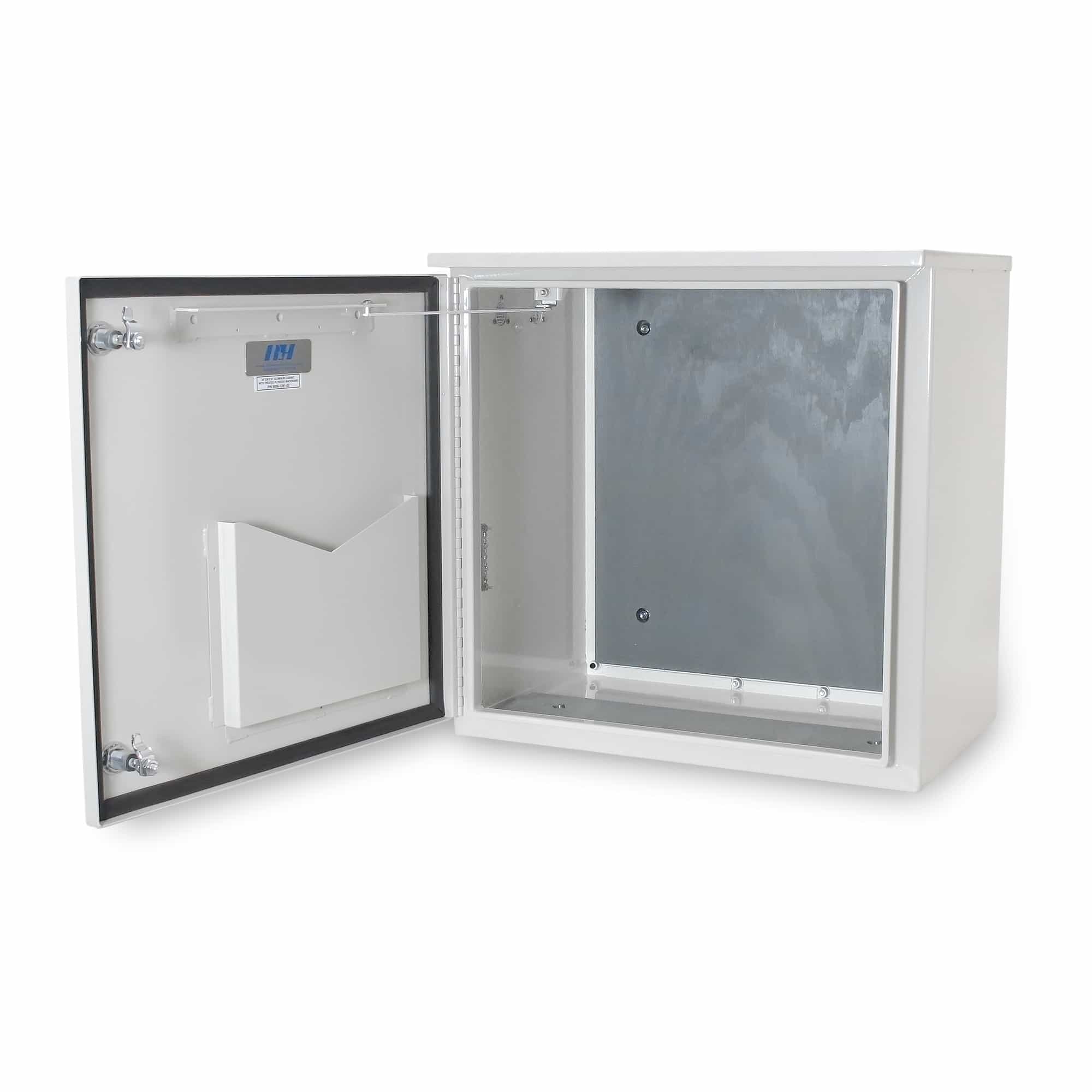

- Fire treated and painted 3/4″ plywood backboard

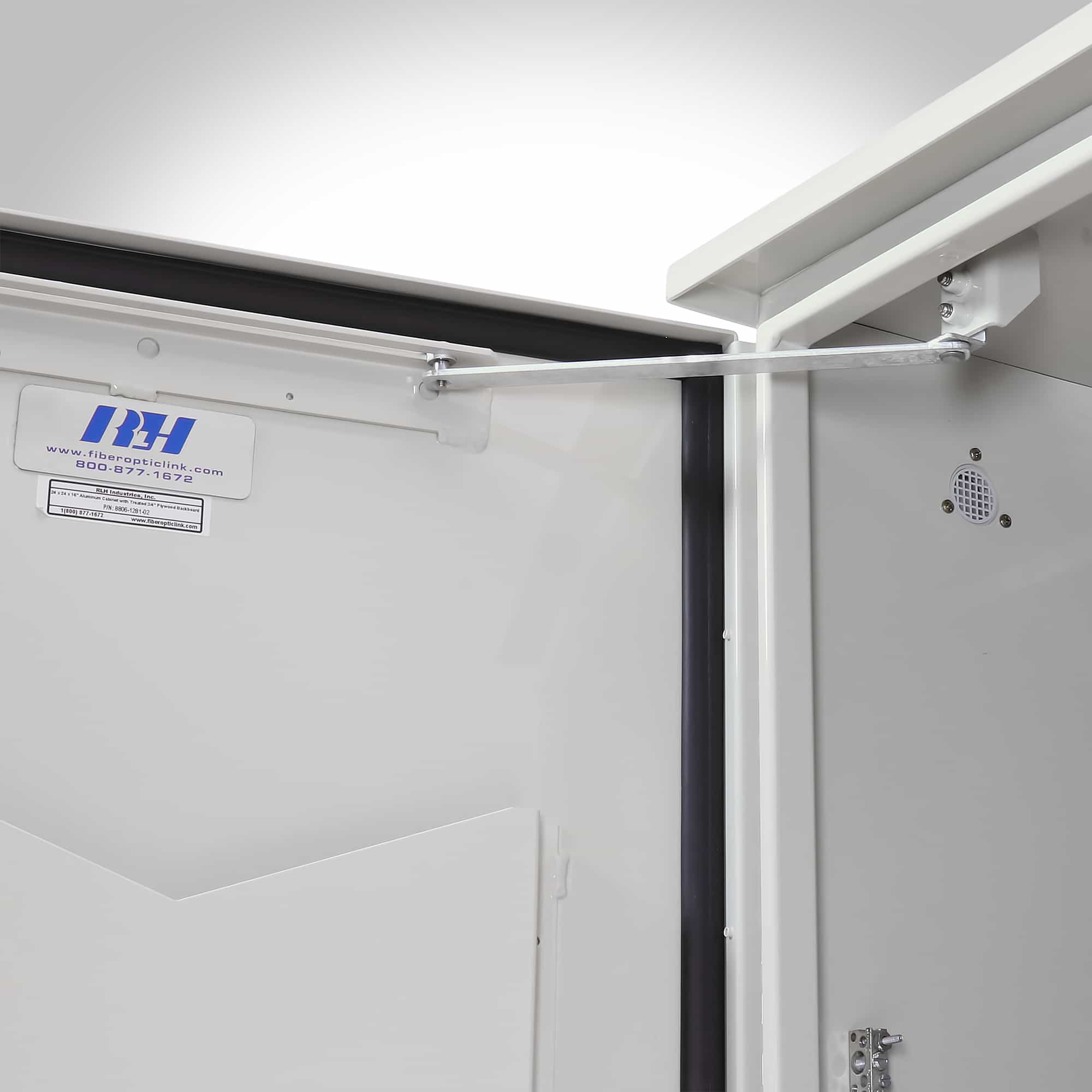

- Hinged door with limit stop
- Neoprene weather-tight door seal

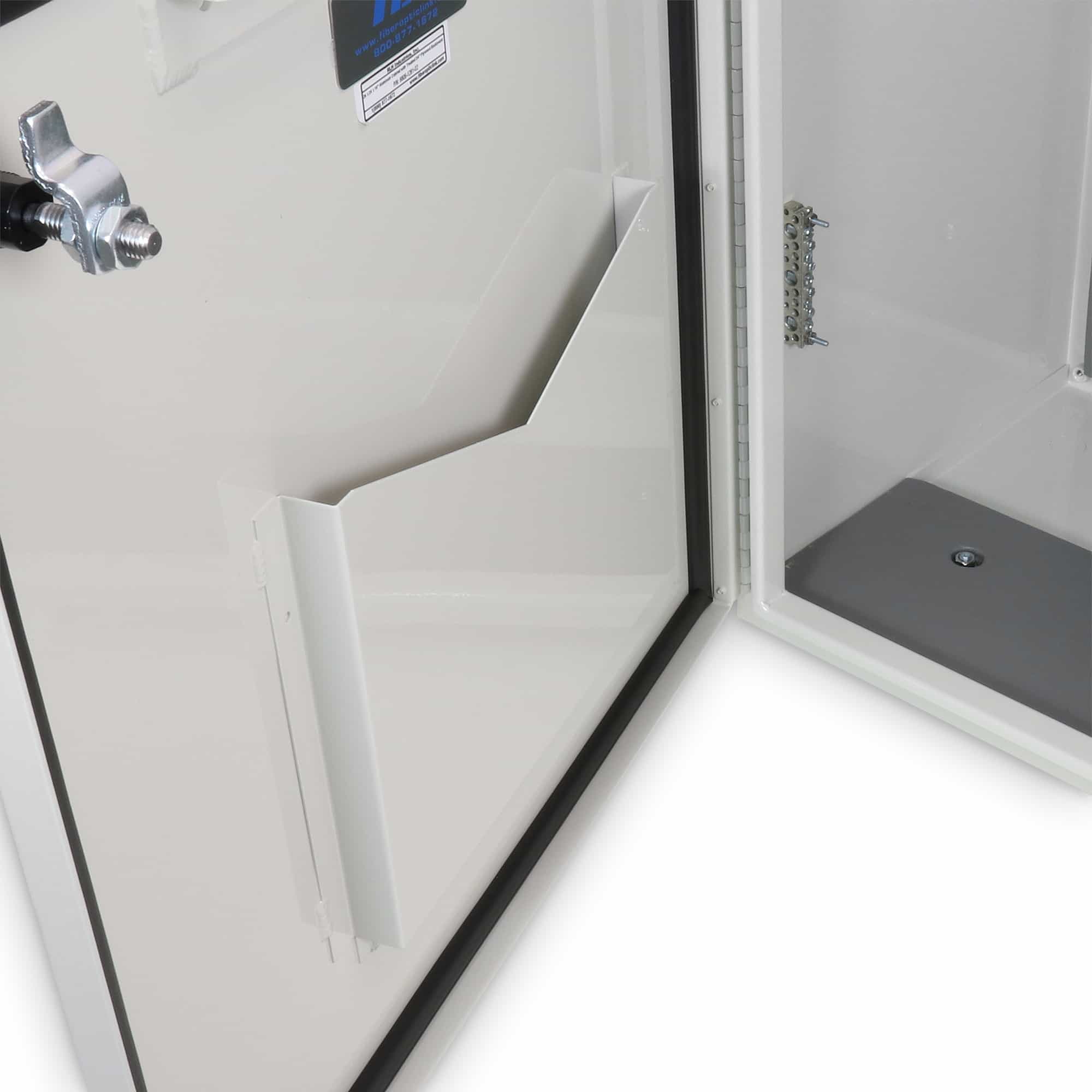

- Literature/document pocket on door interior
- Weatherproof side and bottom vents

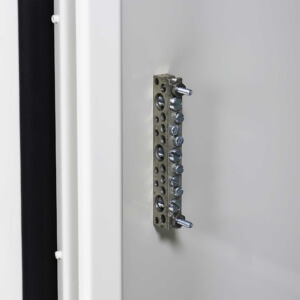

- 9 position ground bar, accepts #10 to #1/0 AWG ground wire

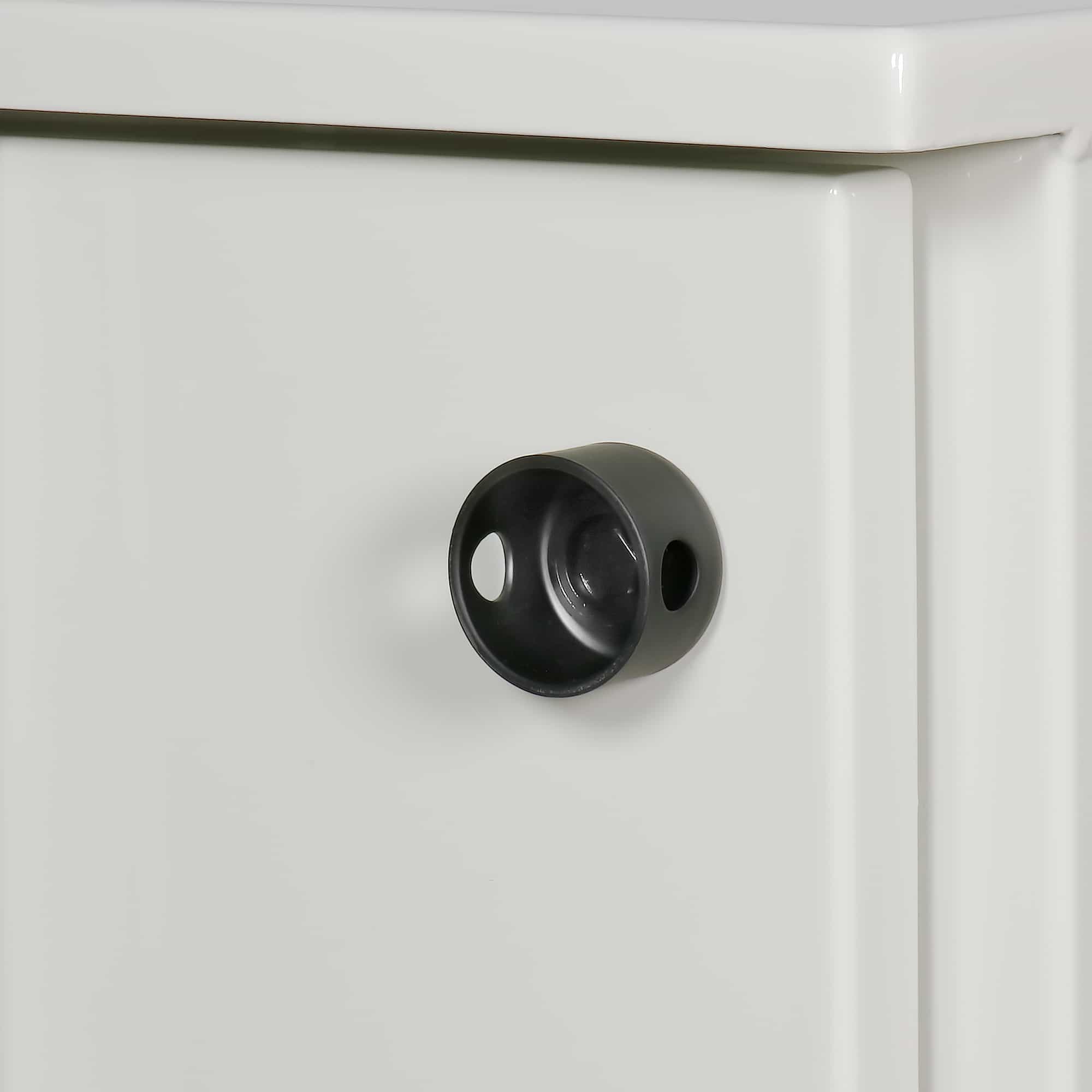

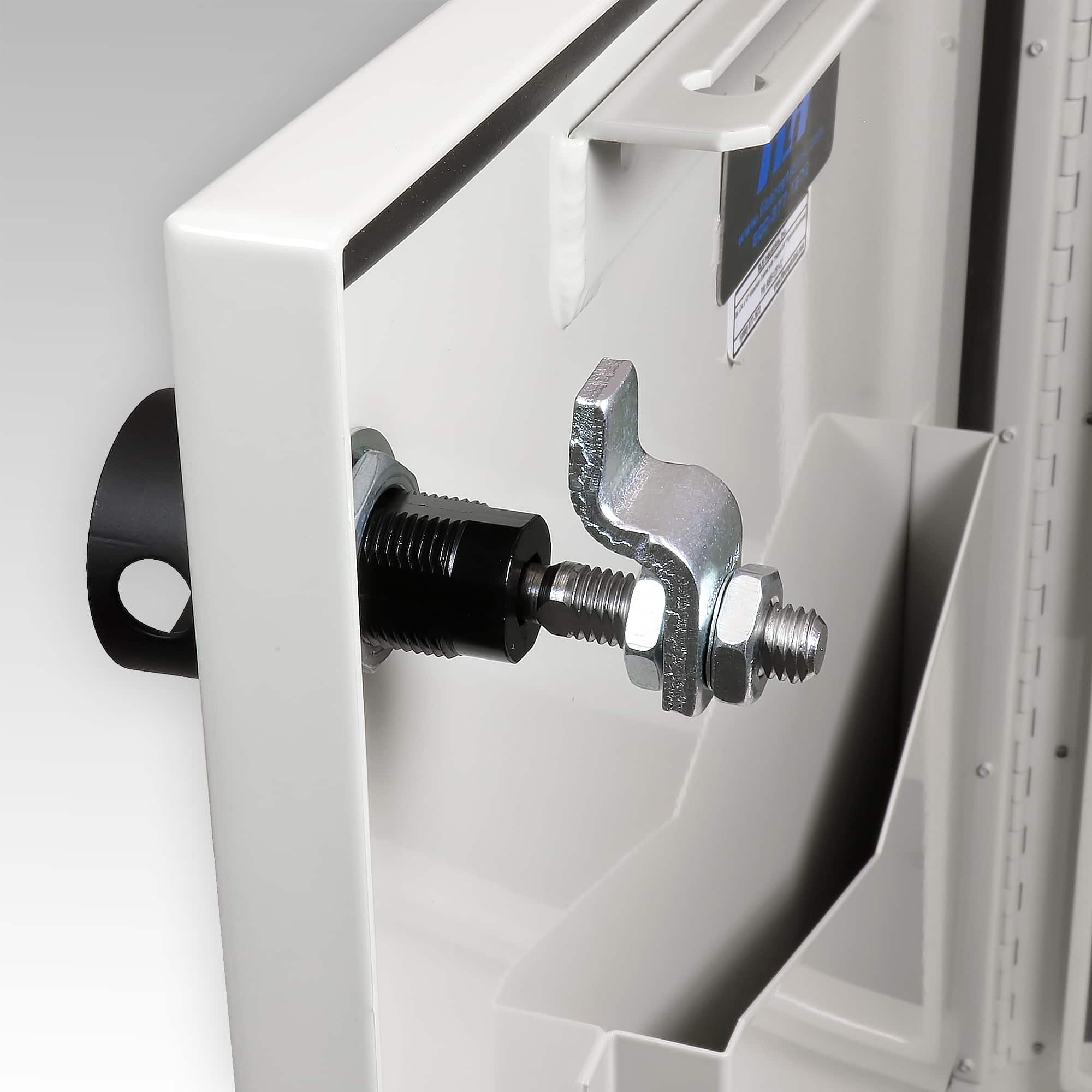

- Quarter-turn latch with padlock ring

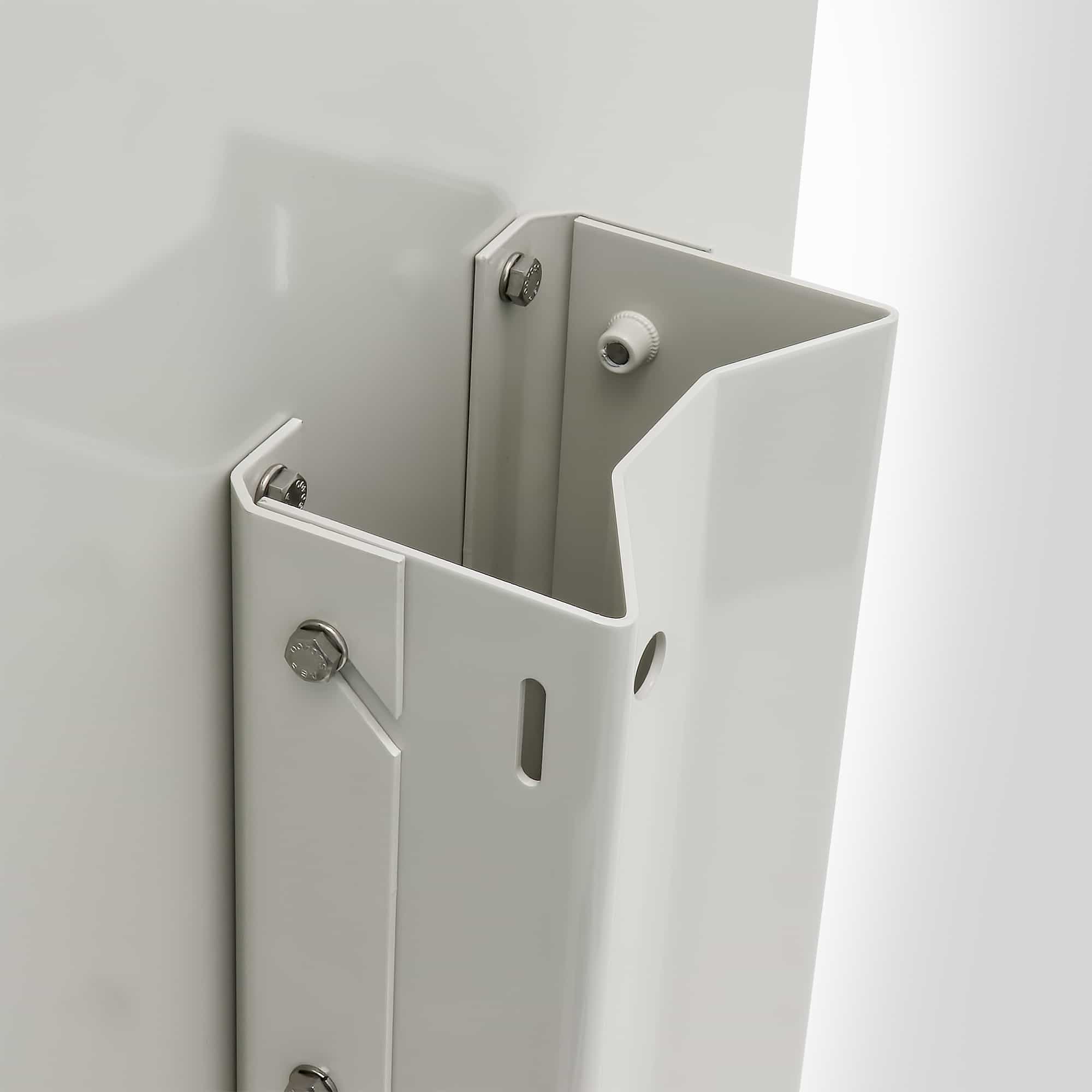

- Wall/Strut mount Standard, Pole Mount Option available
- Factory available options: include fans, heaters, thermostats, and more
- Made in USA
Specs
Construction
Material: Welded .090 Thick 5052-H32 Aluminum Alloy
Weight Wall Mount Model : 40lbs / 18kg
Weight Pole Mount Model : 45lbs / 20kg
Finish: Powder coat, beige smooth gloss

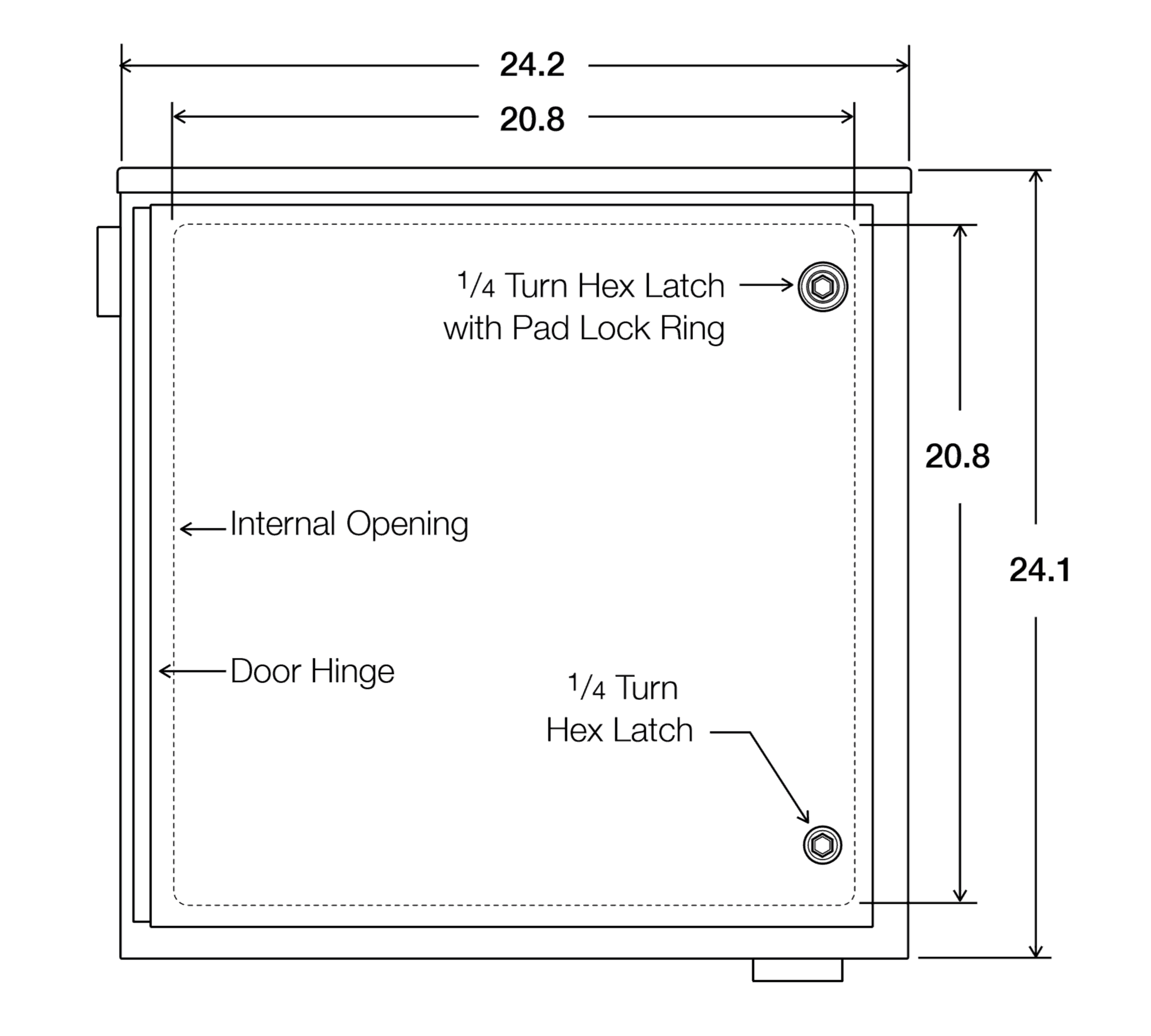

Exterior Dimensions: H 24” x W 24” x D 16” (not including pole mount bracket)
Door opening: H 20.8” x W 20.8”
Usable interior Depth: 14”
Venting: Weather and dust proof vents to provide air circulation 2 side vents, 2 bottom vents
Mounting – Wall Mount Model (Bolts or other attachment hardware not included)
Wall/Strut mounting with included feet
Accommodates 5/16” bolt for wall or strut mounting
Mounting – Pole Mount Model (Bolts or Straps not included)
Bolt or Strap attachment to 4 in. diameter pole or greater

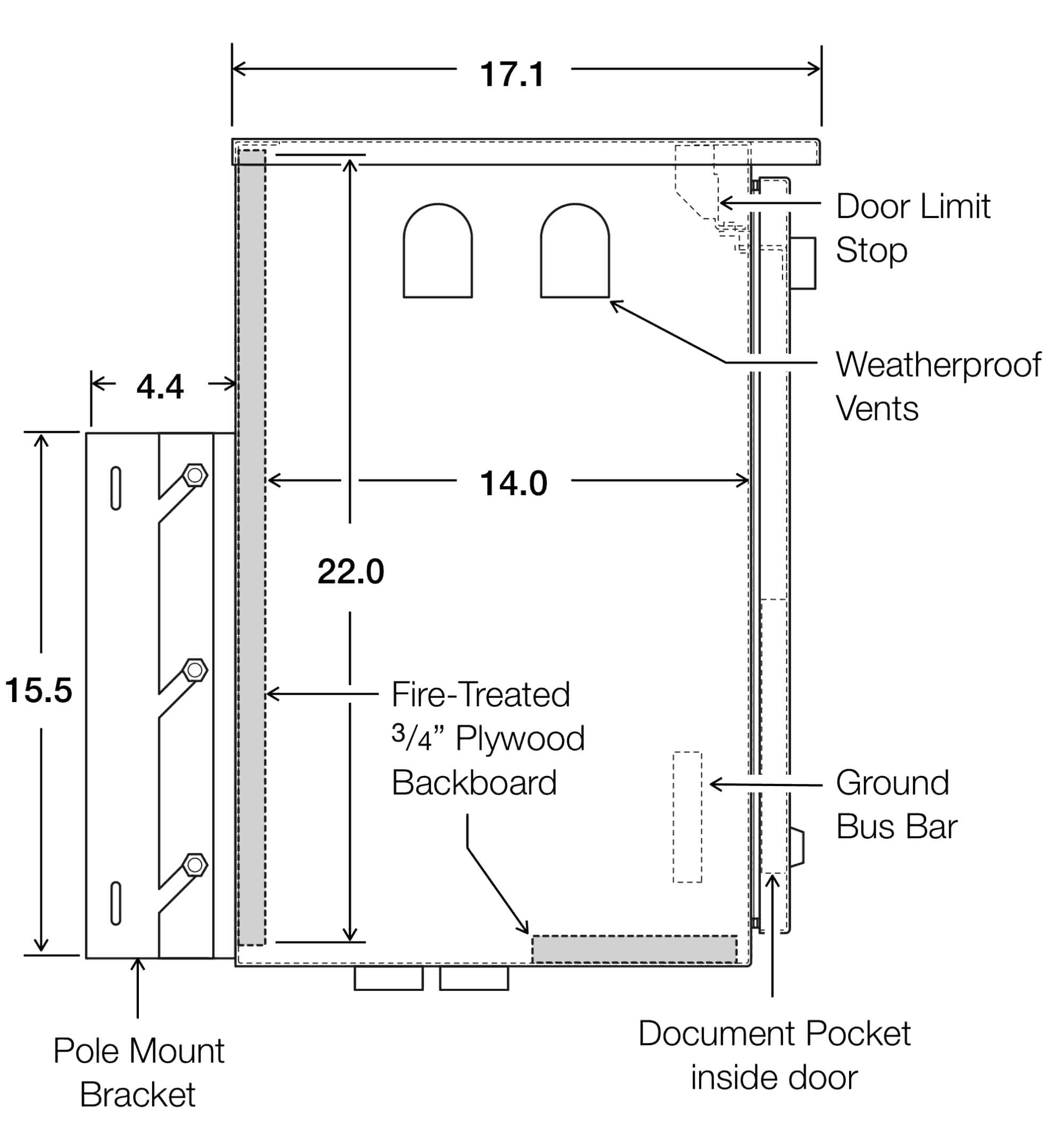

Qty. 2 – 1” strap slots, Qty. 2 – holes for 5/8” bolt
Access
Hinged door with weatherproof gasket seal
Quarter turn latches, Bellcore 216 style recessed hex key included, 1 padlock ring
Interior Details
Hinged door with weatherproof gasket seal
Quarter turn latches, Bellcore 216 style recessed hex key included, 1 padlock ring
Interior Details
Usable Backboard: H 22 in. x W 22 in.

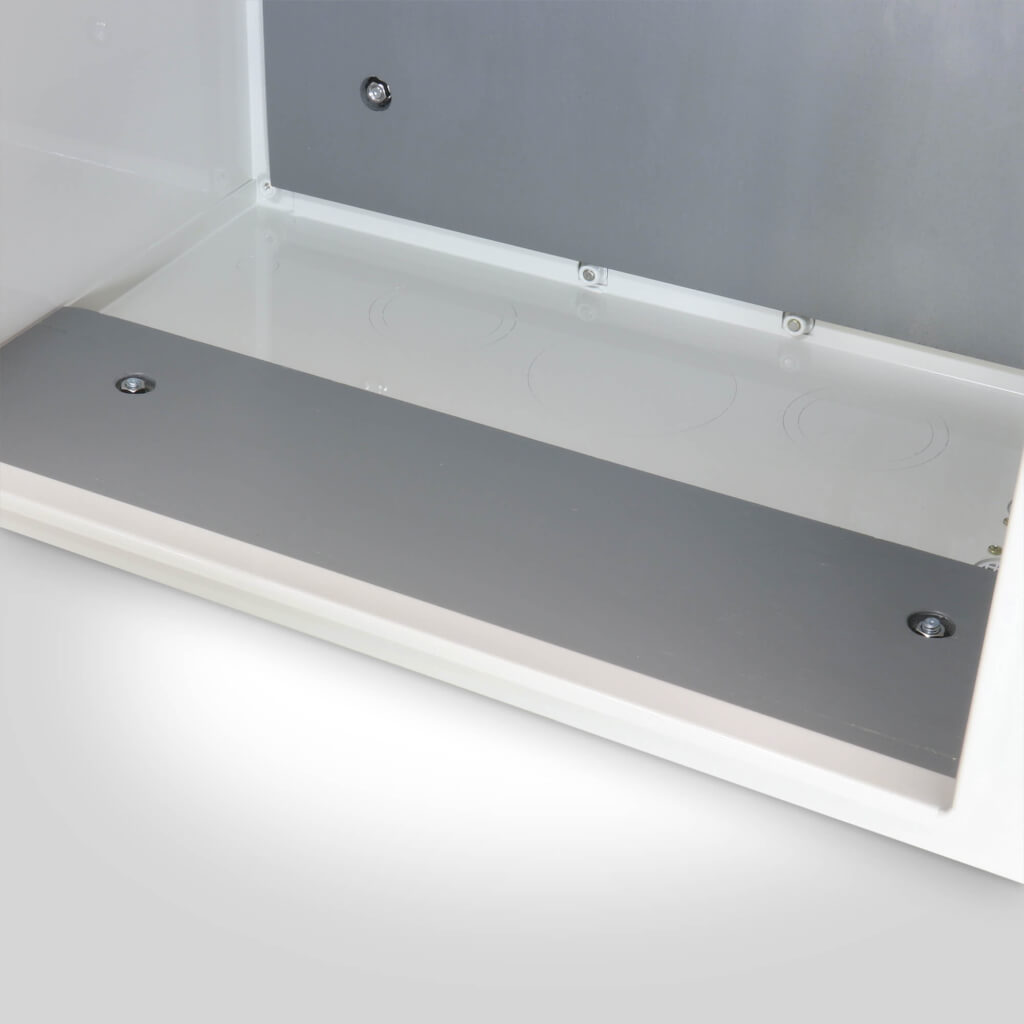

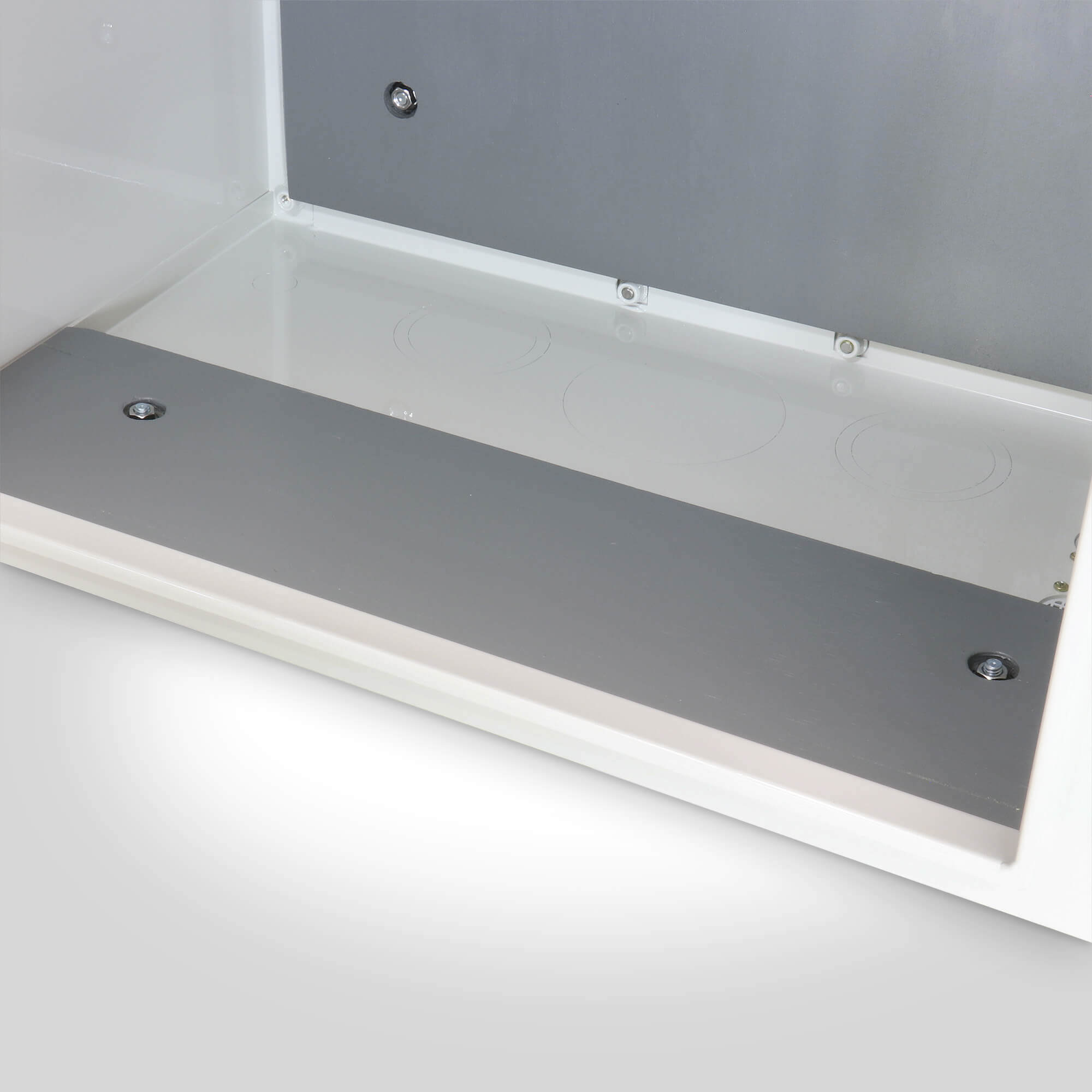

Usable Bottom Baseboard: W 22 in. x D 7 in.
Backboard Type: 3/4” thick fire treated, painted plywood

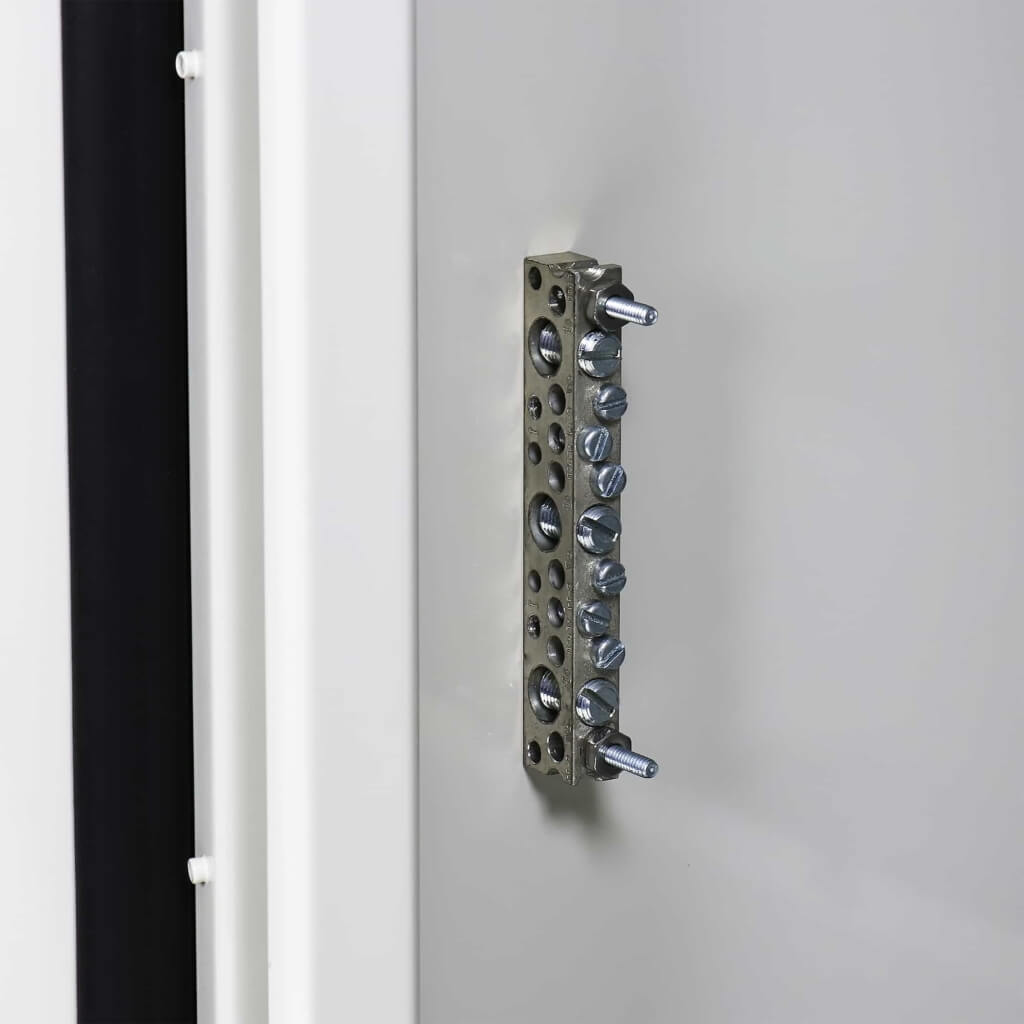

Ground Bus: Side wall bonded, 9 position ground wire capacity

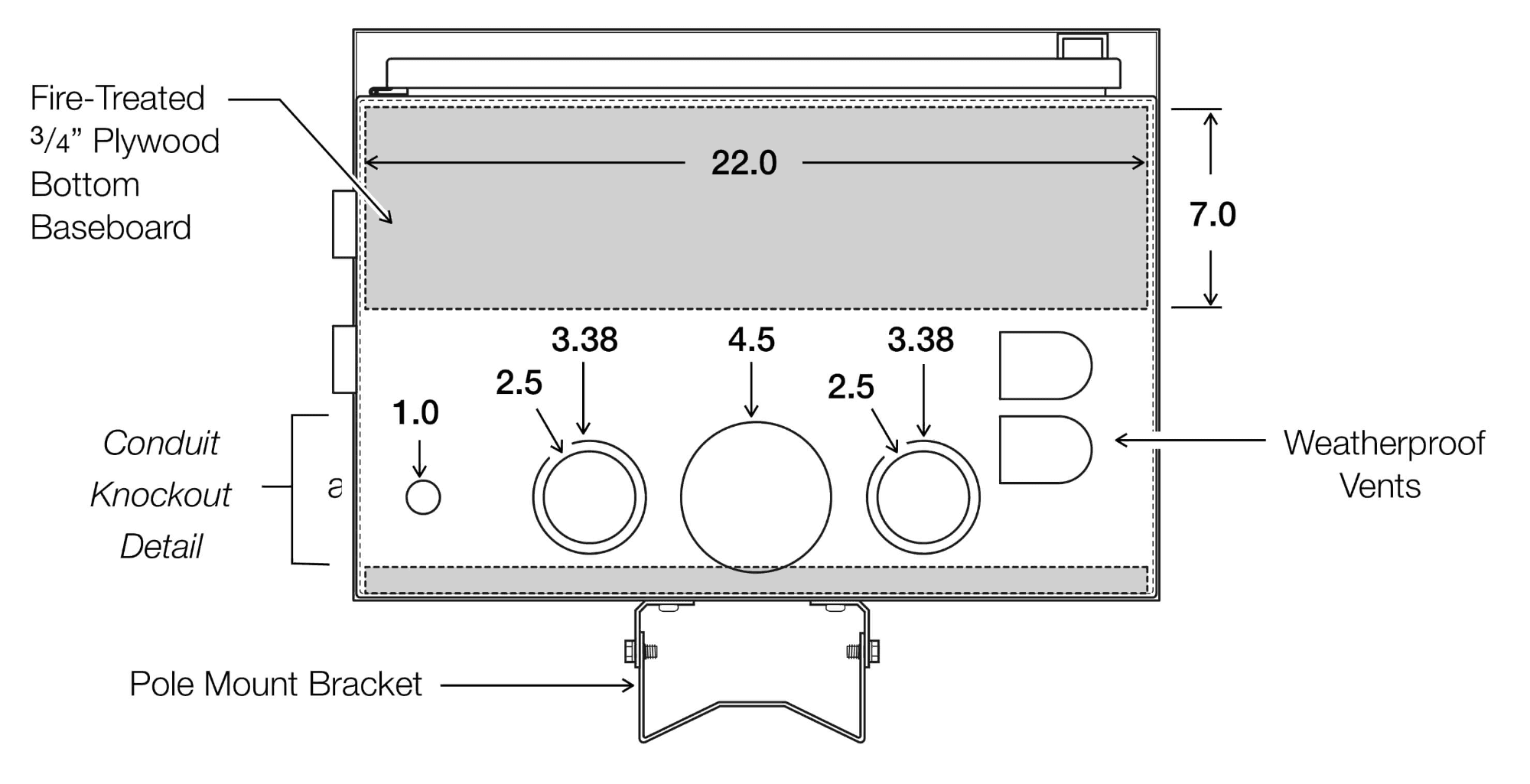

Conduit Knockouts: Qty. 1 – 1”, Qty. 2 – 2.5”/3”, Qty. 1 – 4.5”
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
RLH-242416-A-1
RLH-242416-A-1-PMK
PMK-2424
Ordering
24” x 24” x 16” – Aluminum Enclosure
| Short description | Legacy part number | Part number | Price | |
|---|---|---|---|---|
| H24” x W24” x D16” with Wall/Strut Mount Feet | 8806-1281-02 | RLH-242416-A-1 | $1,020.00 | |
| H24” x W24” x D16” with Pole Mount Bracket Preinstalled | 8806-1281-02-PMK | RLH-242416-A-1-PMK | $1,230.00 |
Pole Mount Bracket
| Short description | Legacy part number | Part number | Price | |
|---|---|---|---|---|
| Add-on Pole Mount Bracket Kit For: RLH-181610-A-1 & RLH-242416-A-1 | PMK-2016 | PMK-2424 | $210.00 |
