Engineered for Sensitive Equipment in Extreme Conditions
The RLH CORE series of outdoor cabinets offer full protection for critical equipment deployed in harsh environments. These enclosures may be configured with factory options to support a wide range of installation requirements and operating conditions.
Stainless CORE enclosures are made from high-grade 304 alloy, providing superior corrosion resistance and long-term durability compared to aluminum alloy. Standard thermal control options include air conditioner or vented exhaust fan.

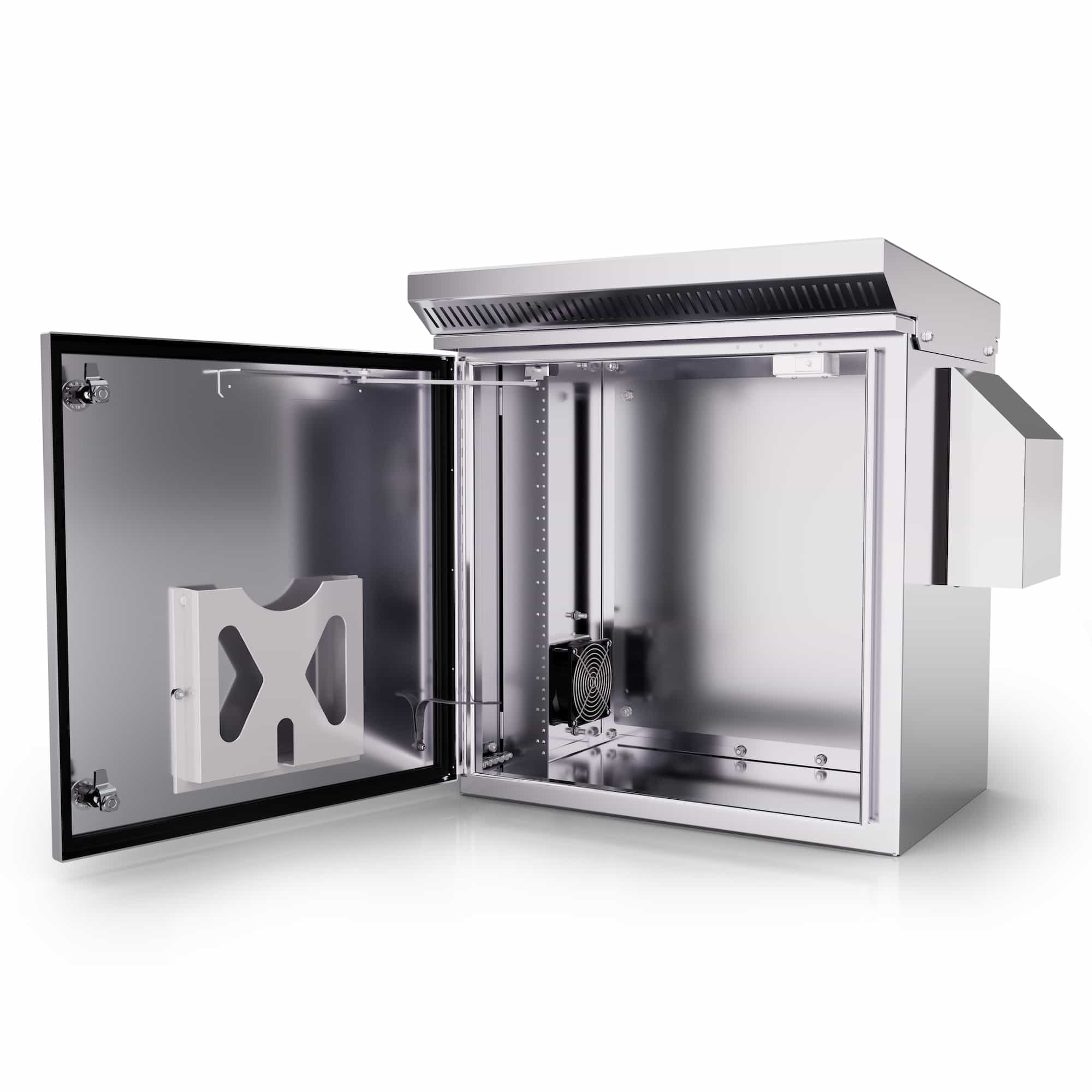

Each enclosure also features a vented solar shield, gasketed weatherproof door, aluminum back panel, ground bus bar, and pole mount bracket.
CORE enclosures are designed and manufactured in the USA, and are BABA and BEAD compliant.
Features
- Weatherproof design for outdoor use
- Heavy duty, precision welded, stainless steel construction
- Dimensions: 24”H x 24”W x 16”D (internal)
- Aluminum back panel
- Quarter turn latches with padlock ring
- Hinged door with alarm switch, limit stop and document pocket
- Removable 12RU 19 inch equipment rack
- Neoprene weather-tight door seal
- Standard NEMA 4R vent fan and thermostat

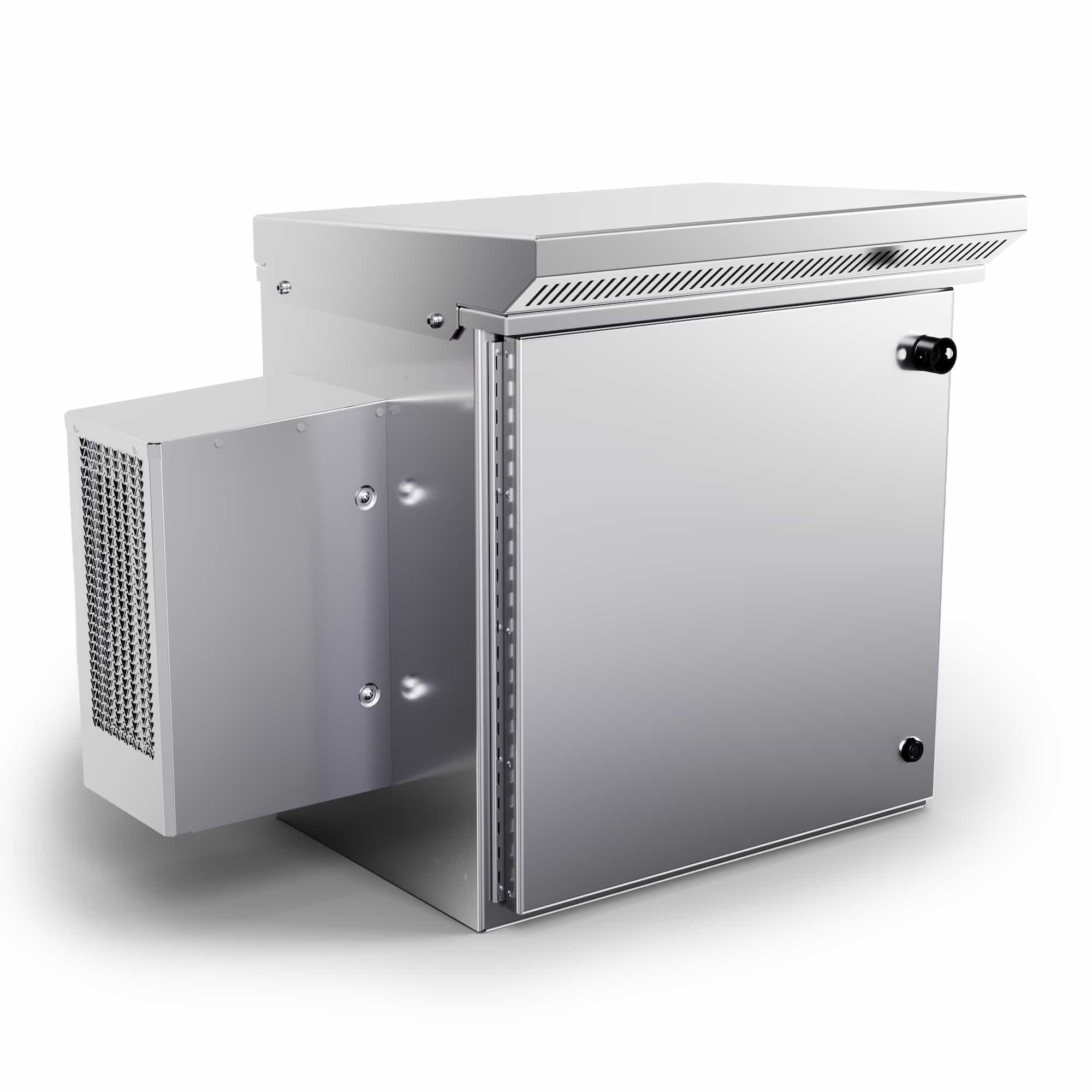

- Optional 1000 Btu air conditioner

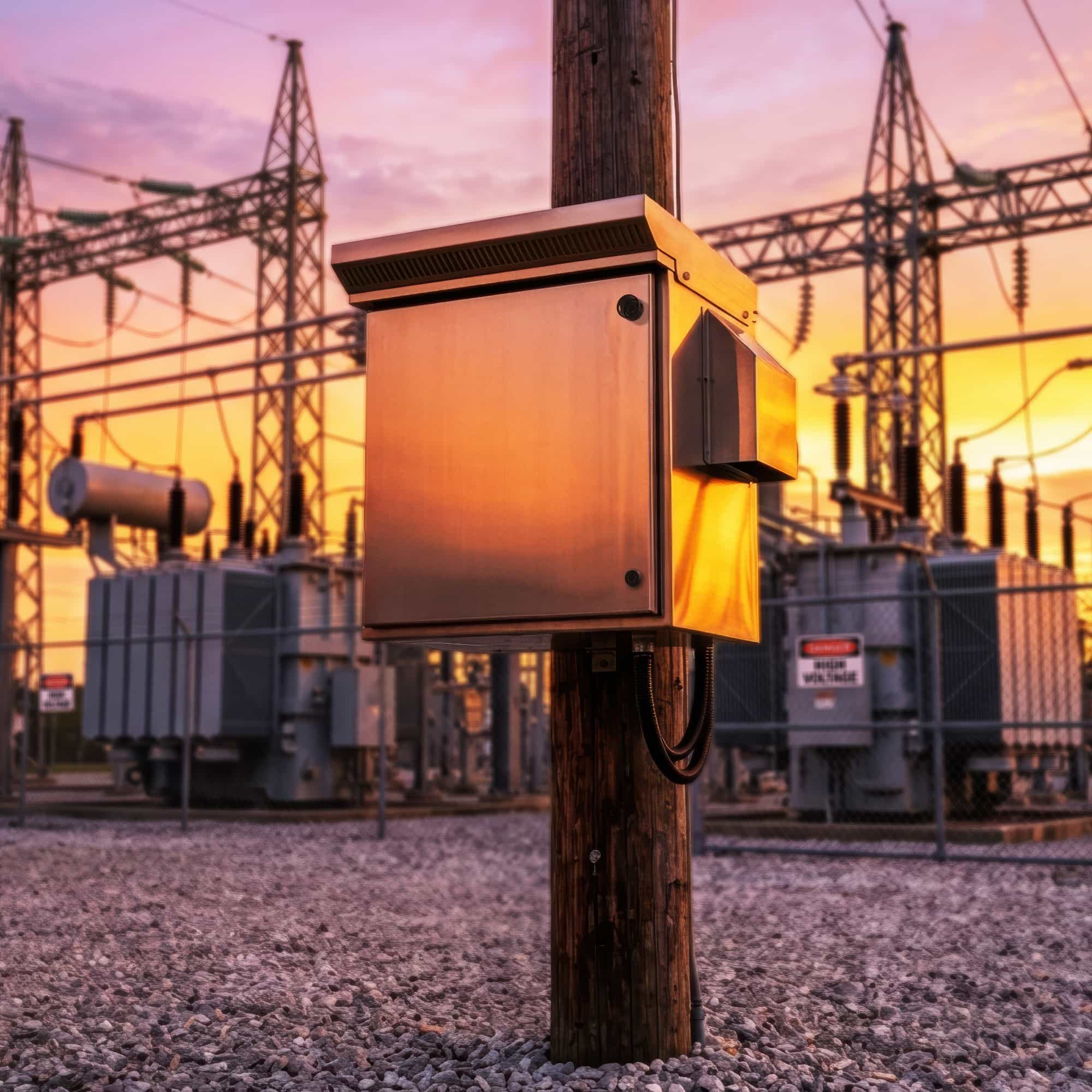

- Pole, wall or strut mountable
- Top solar shield
- Factory configurable options available
- Made in USA
Please see the product documentation for the complete list of specifications

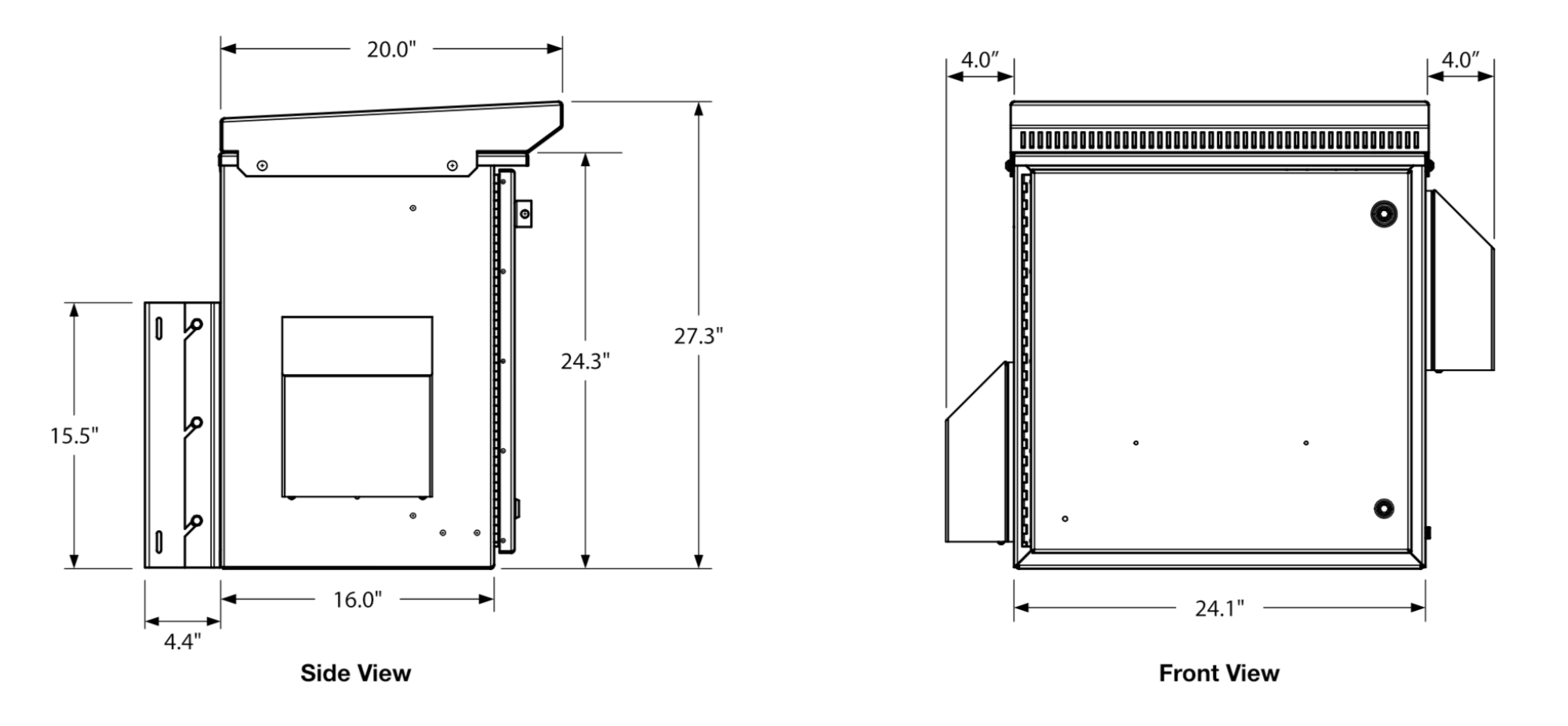

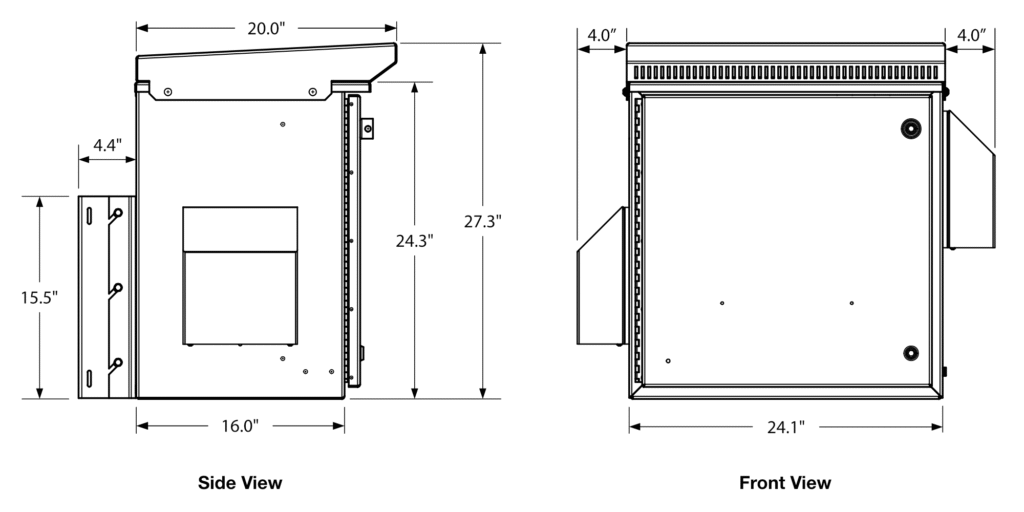

Dimensions:
24.3″ (H) x 24.1″ (W) x 16″ (D) (618mm x 612mm x 406mm)
Construction:
Grade 304 Stainless Steel
Compliance:
BABA and BEAD compliant
Product Information
CAD Files
CORE-242416S-SUA-ASX-1
CORE-242416S-SAA-ASX-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

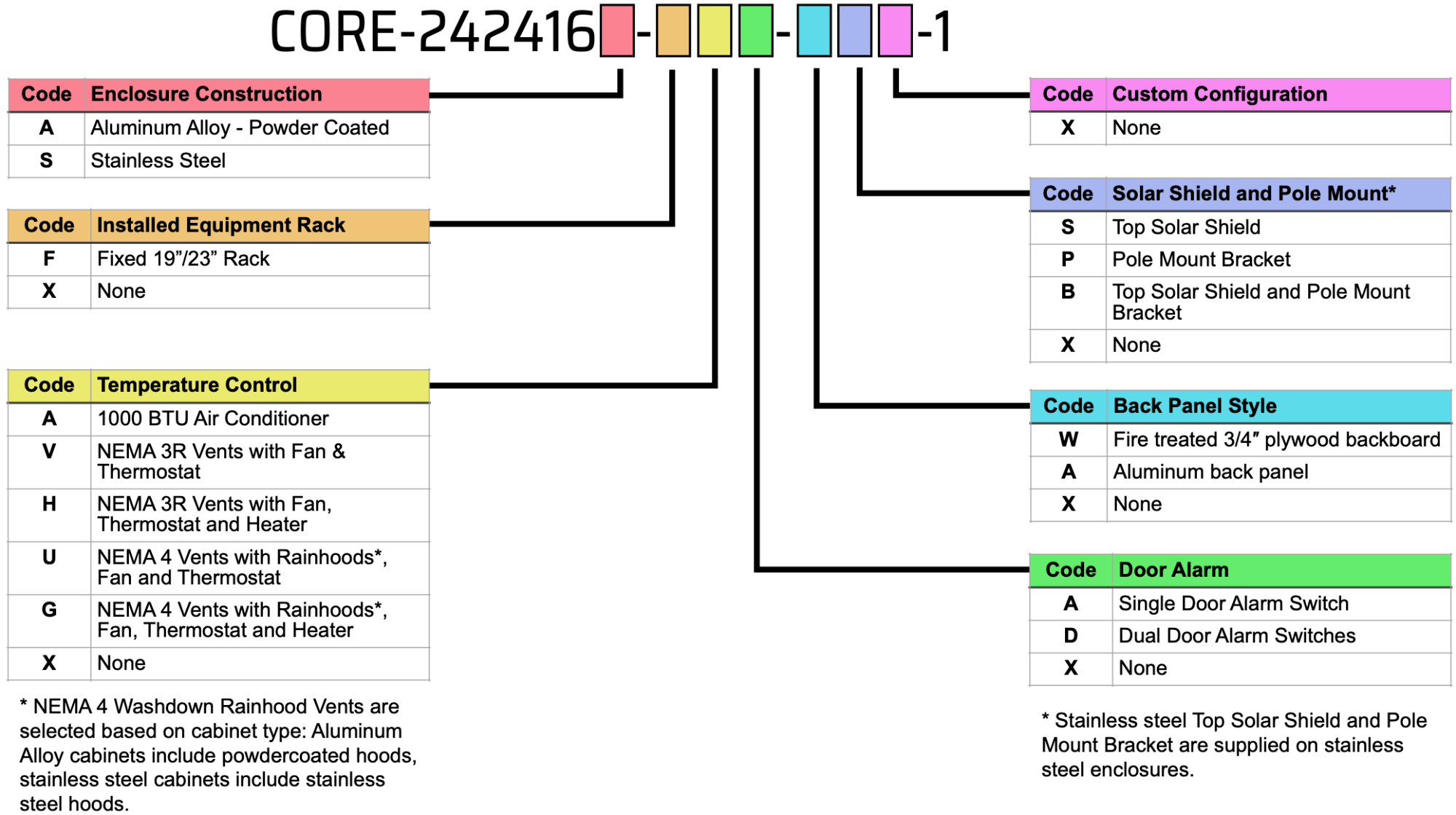

Ordering
CORE 24” x 24” x 16” Cabinet with 19” Equipment Rack
| Short description | Part number | Price | |
|---|---|---|---|
| 24x24x16" CORE Cabinet, Stainless Steel, 12RU 19” Rack Frame, NEMA 4X Vents/Fans, Door Alarm, Aluminum Back Panel, Top Solar Shield | CORE-242416S-SUA-ASX-1 | $3,040.00 | Get a Quote |
| 24x24x16" CORE Cabinet, Stainless Steel, 12RU 19” Rack Frame, 1000 BTU/H Air Conditioner, Door Alarm, Aluminum Back Panel, Top Solar Shield | CORE-242416S-SAA-ASX-1 | $5,190.00 |
