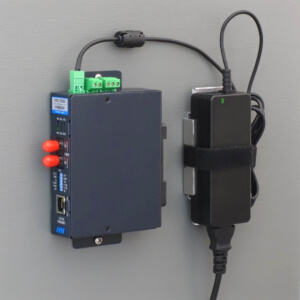

The Solo-24 Power Adapter is a compact, plug-and-play, wall mountable power supply that connects directly to a single RLH Fiber Link module without the need for any additional wiring. It has a standard 3 prong AC power input plug to connect to a mains outlet, and a DC power output connector that plugs into the module, resulting in a simple, user friendly power solution.

The power adapter features a universal AC input of 85-264VAC 50/60Hz, regulated 24VDC output, and is designed for class I operation in industrial and residential environments. It comes complete with a 4 foot AC power cord and a Velcro® strap to manage excess cable.

The Solo-24 is the perfect power solution for a single unit equipment room or office installations where an AC mains outlet is nearby, or for equipment testing and maintenance. For more information on RLH equipment powering options contact your RLH sales representative.

SOLO-24-1
SOLO-24-1-MBK
SOLO-24N-1
SOLO-24N-1-MBK

• Universal AC input, full range
• 24VDC output for use with a variety of RLH DIN mount equipment
• No load power consumption <0.3W
• LED Indicator for power ON status
• High efficiency across full load range
• Overload, over voltage, and short-circuit protection
• Low ripple and noise
• Fully enclosed plastic case

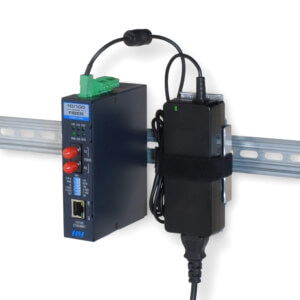

• DC output power connector attaches directly to equipment
• Wide operating temperature, -22°F ~ +140°F (-30°C – +70°C)

Construction:
Fully enclosed plastic case with detachable AC power cord

Dimensions:
4.9” L x 1.97” W x 1.24” H (125mm x 50mm x 31mm)
Main Housing Only

Mounting Style:
Desktop style

Operating Temperature:
-22°F to +140°F (-30°C to +70°C) (Refer to output load derating curve)

Power Input:
90~264VAC, 127~370VDC

Power Output:
