Regulated Power with UPS for Industrial Equipment

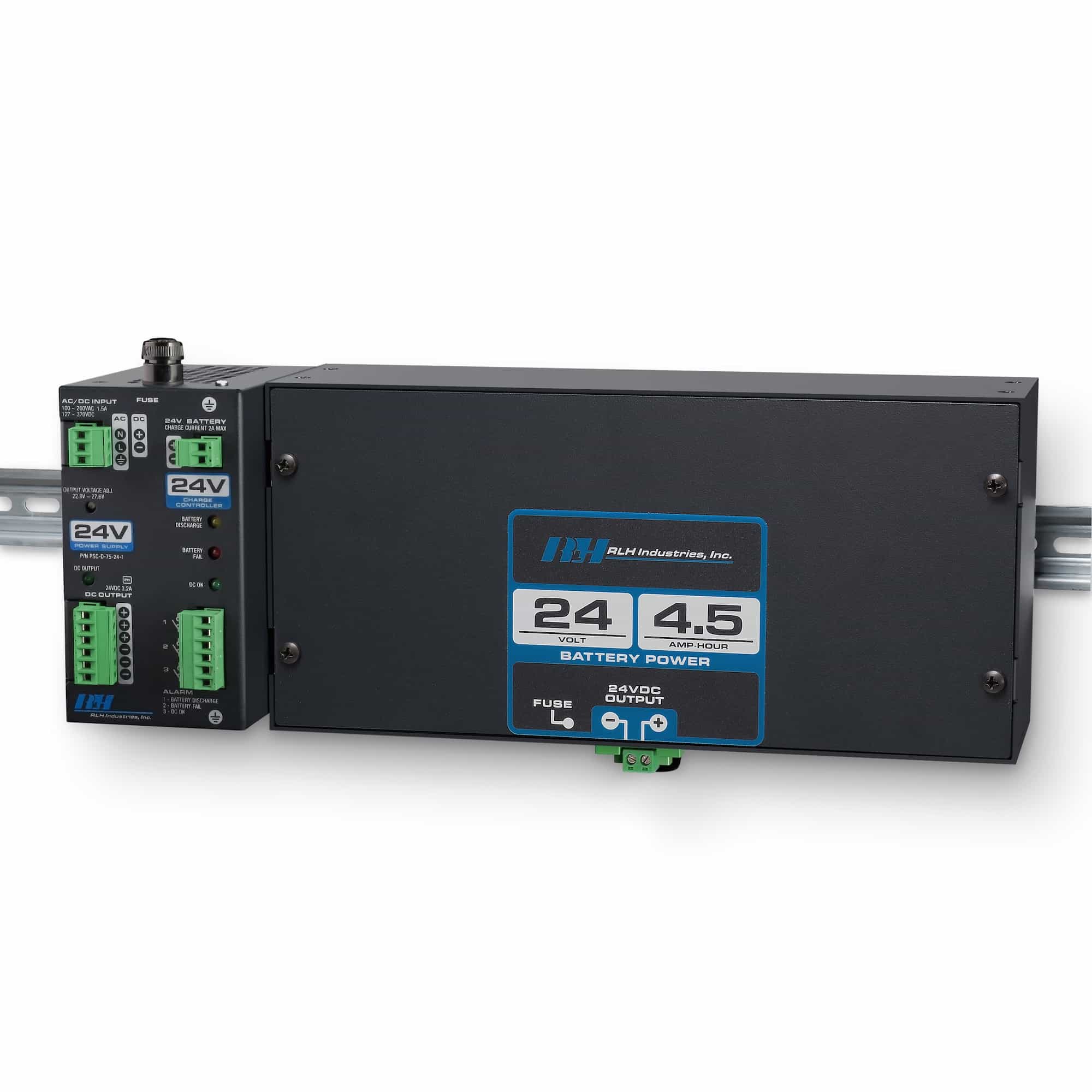

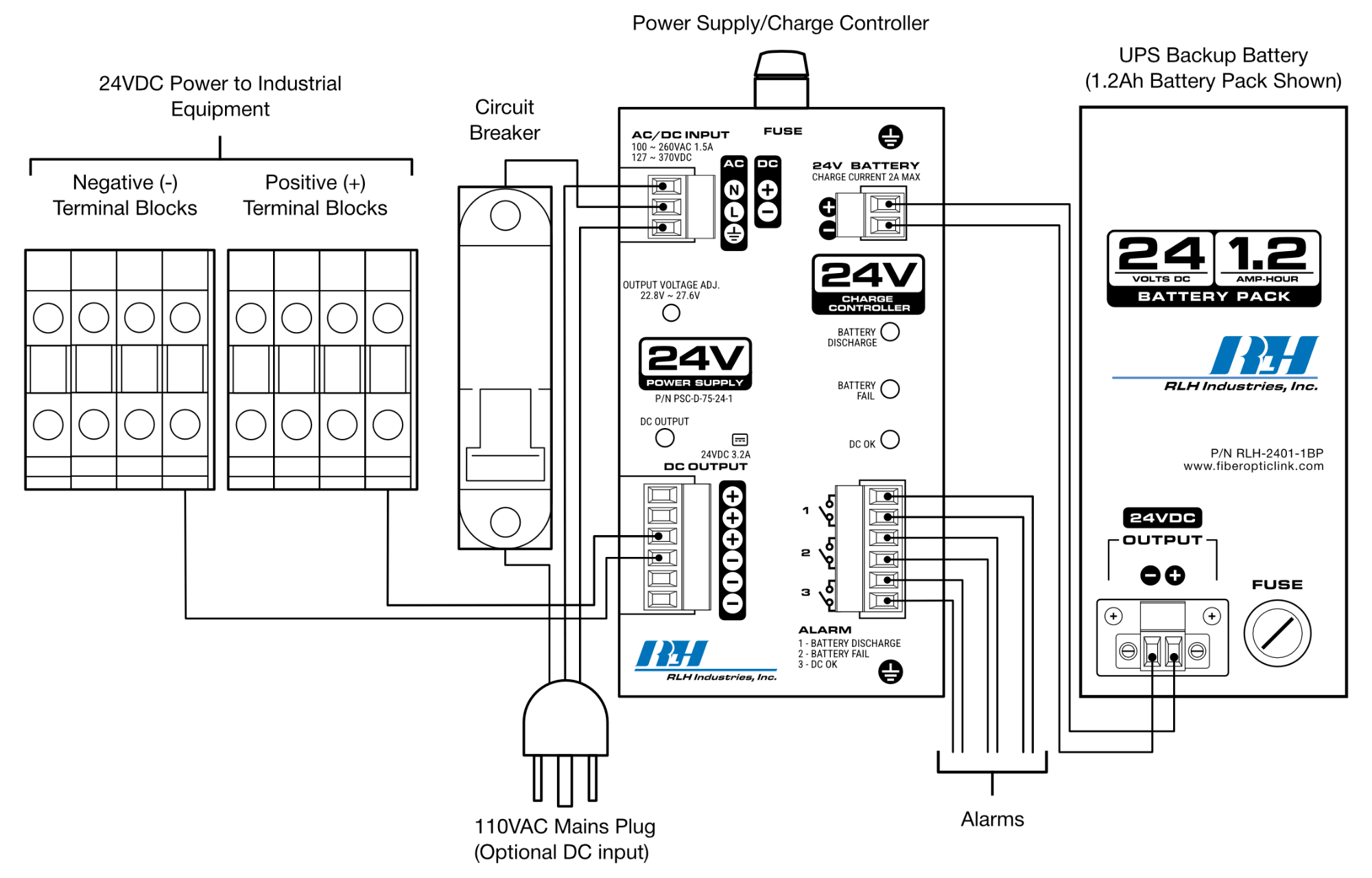

The RLH 75W AC/DC 24V power supply with integrated battery charger offers a complete power system designed for 24VDC UPS applications. The compact switching power supply has a built-in UPS charge controller, and is available with a 24V 1.2Ah or 24V 4.5Ah DIN mount backup battery pack. This system is designed to provide regulated 24V power for industrial equipment, while providing battery backup power in the event of a source power interruption.
The system features flexible AC or DC input, low output ripple, and built-in short-circuit, overload and overvoltage protection. Constant-current limiting automatically reduces output voltage during fault conditions, protecting connected control components from direct shorts and device failures.
The integrated charge controller continuously maintains the correct charge level on the battery and ensures a seamless power transition to battery power when needed for a complete UPS power supply solution.

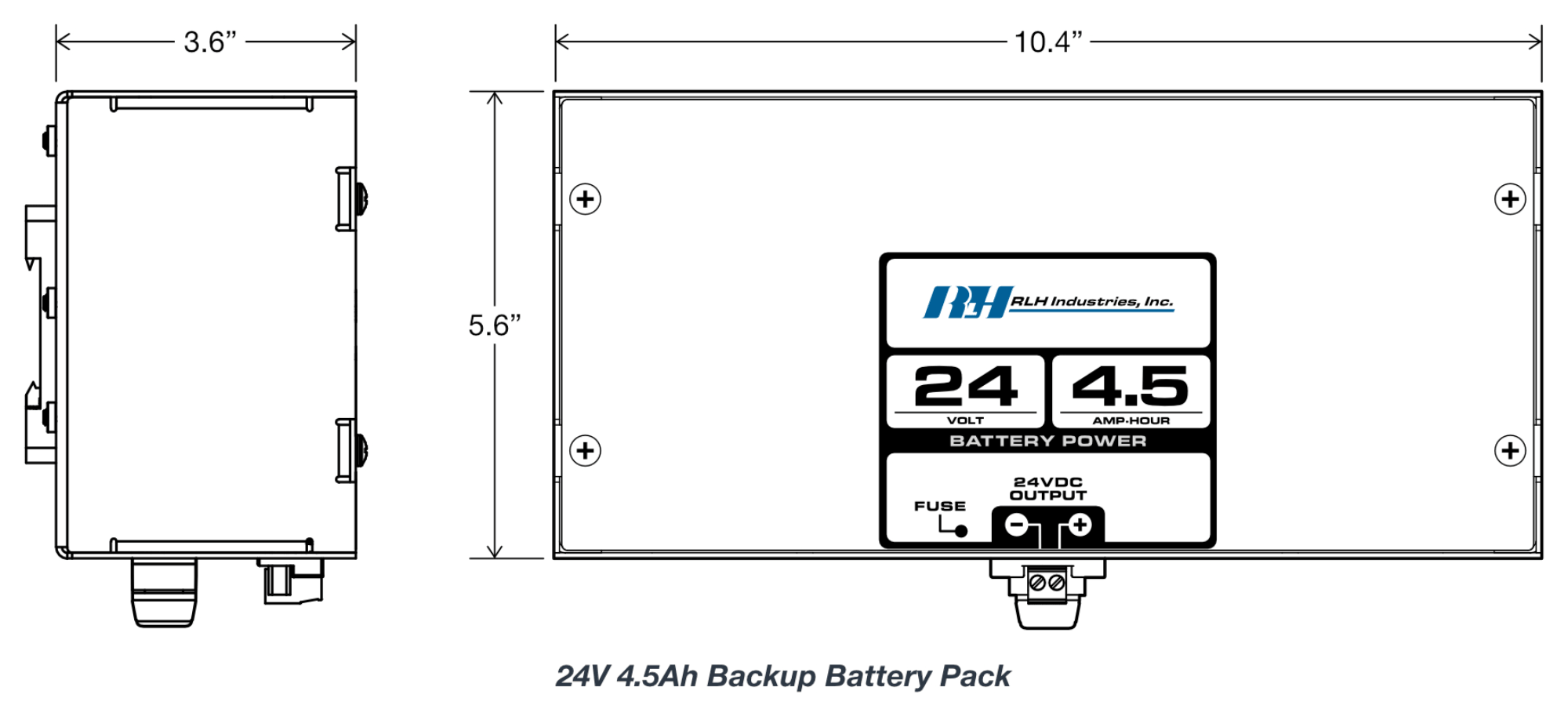

The optional battery packs contain sealed batteries that are field replaceable. They include convenient screw terminals for wiring, and an externally replaceable fuse for protection.
This compact UPS system offers an excellent price/performance ratio, and provides tightly regulated output voltage for sensitive loads in industrial environments.
Features
- 75W 24V power supply accepts AC or DC input power
- Short circuit, overload, over voltage and over temperature protection
- Cooling by free air convection
- Standard DIN Rail T35 per IEC 60715 mounting
- LED status indicators
- 100% full load burn-in test
- Built-in battery test function
- Battery polarity protection
- Relay contact signal output with LED indicators for DC Bus OK, Battery Fail and Battery Discharge
- Optional backup battery packs contain sealed batteries that are field replaceable
- Convenient screw down terminals
- Made in USA with domestic and imported components
Please see the product documentation for the complete list of specifications
Power Supply Specifications
DC Output:
DC Voltage: 24V
Rated Current: 3.2A
Current Range: 0 – 4.2A
Rated Power: 76.8W
Peak Load (23.5CFM): 100.8W
Ripple & Noise (max): 240mVp-p
Voltage Adjustment Range: 22.8 – 27.6V
Voltage Tolerance: ±1.0%
Line Regulation: ±0.5%
Load Regulation: ±1%
Setup, Rise Time: 500ms, 30ms/230VAC, 500ms, 30ms/115VAC at full load
Hold Up Time (typical): 80ms/230VAC, 20ms/115VAC at full load
Input:
Voltage Range: 90 – 264VAC, 127 – 370VDC
Frequency Range: 47 – 63Hz
Efficiency (typical): 85%
AC Current (typical): 1.5A/115V, 1A/230V
Inrush Current (typical): Cold Start 25A/115VAC, 50A/230VAC
Leakage Current: Earth leakage current <1μA / 264VAC, Touch current <100μA / 264VAC
Included Fuse: 6A (slow blow), user replaceable
Protection:
Overload: 140 – 180% rated output power, Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 27.6 – 32.4V, Protection type: Shut down o/p voltage, re-power on to recover
Environment:
Working Temperature: -20°C ~ +70°C (-4°F ~ 158°F)
Working Humidity: 20 ~ 90% RH non-condensing
Storage Temperature: -40°C ~ +85°C (-40 °F ~ 185°F)
Storage Humidity: 10 ~ 95% RH non-condensing
Temperature Coefficient: ±0.03%/ °C (0 – 45°C)
MTBF:
446.8K hrs min. MIL-HDBK-217F (25°C)
Construction:
Durable Powder Coated Aluminum Alloy

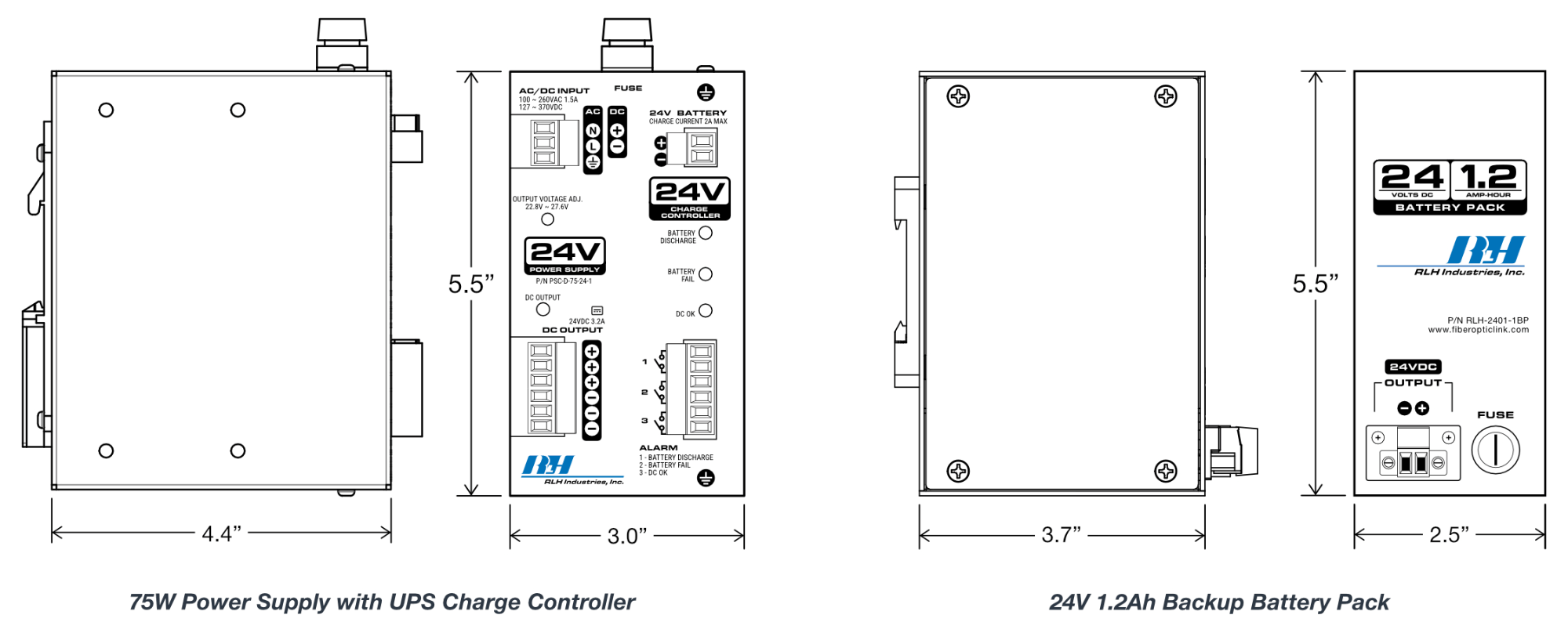

Dimensions:
3.0” (W) x 4.4” (D) x 5.5” (H), (77mm x 112mm x 140mm)*
*Housing Only
Mounting:
DIN Rail T35 per IEC 60715
Weight:
1.5 lbs. (0.7kg)
Charge Controller Specifications
Battery Output:
Voltage Range (typical): 21 ~ 29V
Current Range: 0 ~ 15A
Charge Current (typical): 2A
External Battery (typical): 4 / 7 / 12 / 20AH / 24V
Relay Contact Rating: Short when DC voltage between 21-29(3%), relay contacts
Function:
DC BUS OK:
Relay contact: Short when DC voltage between 21-29(3%), relay contacts
LED (Green) ON: DC BUS OK
LED (Green) OFF: DC BUS failure
Battery Fail:
Relay contact: Short when battery failure is observed through the battery test function, relay contacts
LED (Red) ON: Battery over-discharge warning or battery malfunction
LED (Red) OFF: Battery OK
Battery Discharge:
Relay contact: Short when battery in discharge condition, relay contacts
LED (Yellow) ON: Battery discharging
LED (Yellow) OFF: Battery is not discharging or discharging current <400mA
Product Information
CAD Files
PSC-D-75-24-1
RLH-2401-1BP
RLH-2401-1RB
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Integrated 75W AC/DC UPS with Battery Backup
| Short description | Part number | Price | |
|---|---|---|---|
| 75 Watt Power Supply With Integrated Battery Charge Controller, 24 Volt DC Output, No Battery Pack Included | PSC-D-75-24-1 | $410.00 | |
| 75 Watt Power Supply With Integrated Battery Charge Controller, 24 Volt DC Output, Includes 1.2Ah 24VDC Battery Pack (RLH-2401-1BP) | PSC-D-75-24-UPS1-1 | $555.00 | |
| 75 Watt Power Supply With Integrated Battery Charge Controller, 24 Volt DC Output, Includes 4.5Ah 24VDC Battery Pack (RLH-2404-2BP) | PSC-D-75-24-UPS4-1 | $580.00 |
