Compact, DIN or Wall Mountable, with Universal Power Input
The 150 Watt industrial switching power supply series features a universal input of 100-240VAC or 120-370VDC. Designed for industrial use and is UL Listed, RoHS and CE compliant and operates over a wide temperature range. Includes a powder coated steel housing that can be DIN or wall mounted.
When used in combination with the optional battery charge controllers and battery packs, these power supplies make a compact and reliable UPS system.
- Input Range 100–240VAC/120–370VDC
- Short circuit, overload, over voltage and over temperature protection
- Wide operating temperature range, -40 – 140°F
- Low ripple and noise
- Easily accessible output trim adjustment ±10%
- Cooling by free air convection
- Designed for 35mm DIN rail mounting or wall
- LED power indicator
- Convenient screw down terminals
- 100% full load tested
Construction:
Powder Coated Steel Housing
Mounting Style:
Standard 35mm DIN rail (T-35) or Wall (with included ears)
Operating Temperature:
-40°C – +60°C max (above +40°C see derating curve for max output)
Power Input:
VAC Input: 100~240
VDC Input: 120~370
Power Output:
AD1150-24F – 24VDC ±10% @ 6.3A

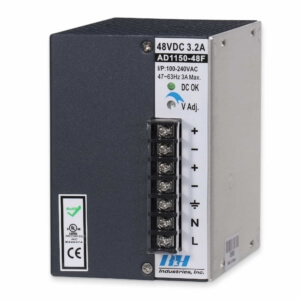

AD1150-48F – 48VDC ±10% @ 3.2A
Dimensions:
4.4” H x 3” W x 4.8” D (110mm x 75mm x 121mm)
*Not including DIN bracket
General Information
AD1150-24F
AD1150-48F
Ordering
Industrial AC/DC + DC/DC Switching 150 Watt Power Supply
| Short description | Part number | Price | |
|---|---|---|---|
| Industrial AC/DC + DC/DC Switching Power Supply, 24 Volts, 6.3 Amps, 150 Watts | AD1150-24F | $110.00 | |
| Industrial AC/DC + DC/DC Switching Power Supply, 48 Volts, 3.2 Amps, 150 Watts | AD1150-48F | $110.00 |
