Industrial PoE+ Gigabit SFP Switch
RLH industrial switches are engineered to provide reliable network performance in harsh environments. The 5+2 Gigabit SFP PoE+ switch provides both copper and fiber Gigabit Ethernet access, along with PoE+ powering capabilities. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
The PoE+ ports provide up to 30 Watts of power to end devices following the IEEE 802.3af/at standard. The unique Flex Power feature allows the device to maintain a consistent PoE+ voltage to end devices regardless of the DC powering voltage provided.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
- Hardened design has a wide operating temperature range: -40 to +167F (-40 to + 75 C)
- Flex Power – Constant 48VDC PoE+ power (at low input voltages)
- 2 Dual Rate SFP Ports – 100Mbps & 1Gbps
- 4 PoE+ ports with up to 30 watts per port
- IEEE 802.3af/at Power over Ethernet
- PoE Mode A (End Span)
- Auto MDI/MDI-X
- Rugged case rated to IP-30
- 12~48VDC redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Please see the product documentation for the complete list of specifications
SFP Slots:
(2) Dual Rate SFP
Supports both 100 & 1000 Mbps speed modules
Ethernet Ports:
(4) 10/100/1000 Mbps PoE+
(1) 10/100/1000 Mbps
Ethernet Interface:
Supports Jumbo Frames, Auto-Negotiation, Auto-MDI/MDI-X
Max. PoE Power:
30 Watts (per PoE port)
Flex Power:
Max. PoE Output: 60W/12VDC, 120W/36~55VDC
Power Input:
Dual 12~55VDC redundant power inputs
Power Protection:
Over Current, Reverse Polarity Protection
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Operating Temperature:
-40°C ~ 75°C (-40°F ~ 167°F)
Construction:
Powder coated IP30 steel housing
Installation:
Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

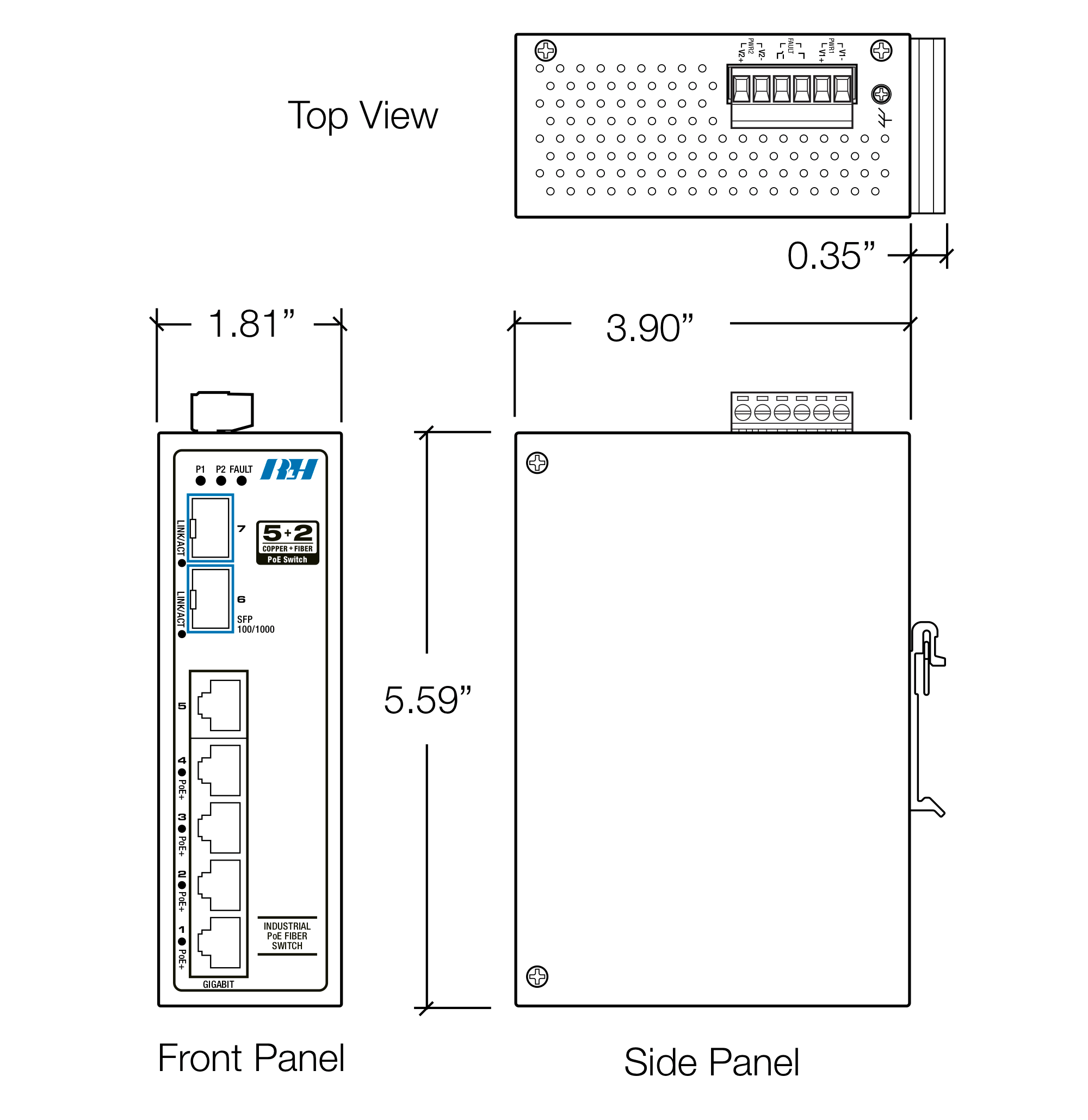

Dimensions:
1.81” (W) x 3.90” (D) x 5.59” (H), (46mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety:
CE, FCC Class A, UL 61010-1, UL 61010-2-201, File Number: E480850, UL Class 1/Div.2
Compliance:
NDAA, TAA, NEMA TS2 (ITS), RoHS and REACH compliant
MTBF:
866,424 hrs.
Warranty:
Limited 5 years
Product Information
CAD Files
ETH-52GP-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 5+2 Gigabit SFP PoE+ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 5 Gigabit RJ-45 Ports, 2 Dual Rate SFP Ports, 30 Watt PoE+ | ETH-52GP-1 | $545.00 |
