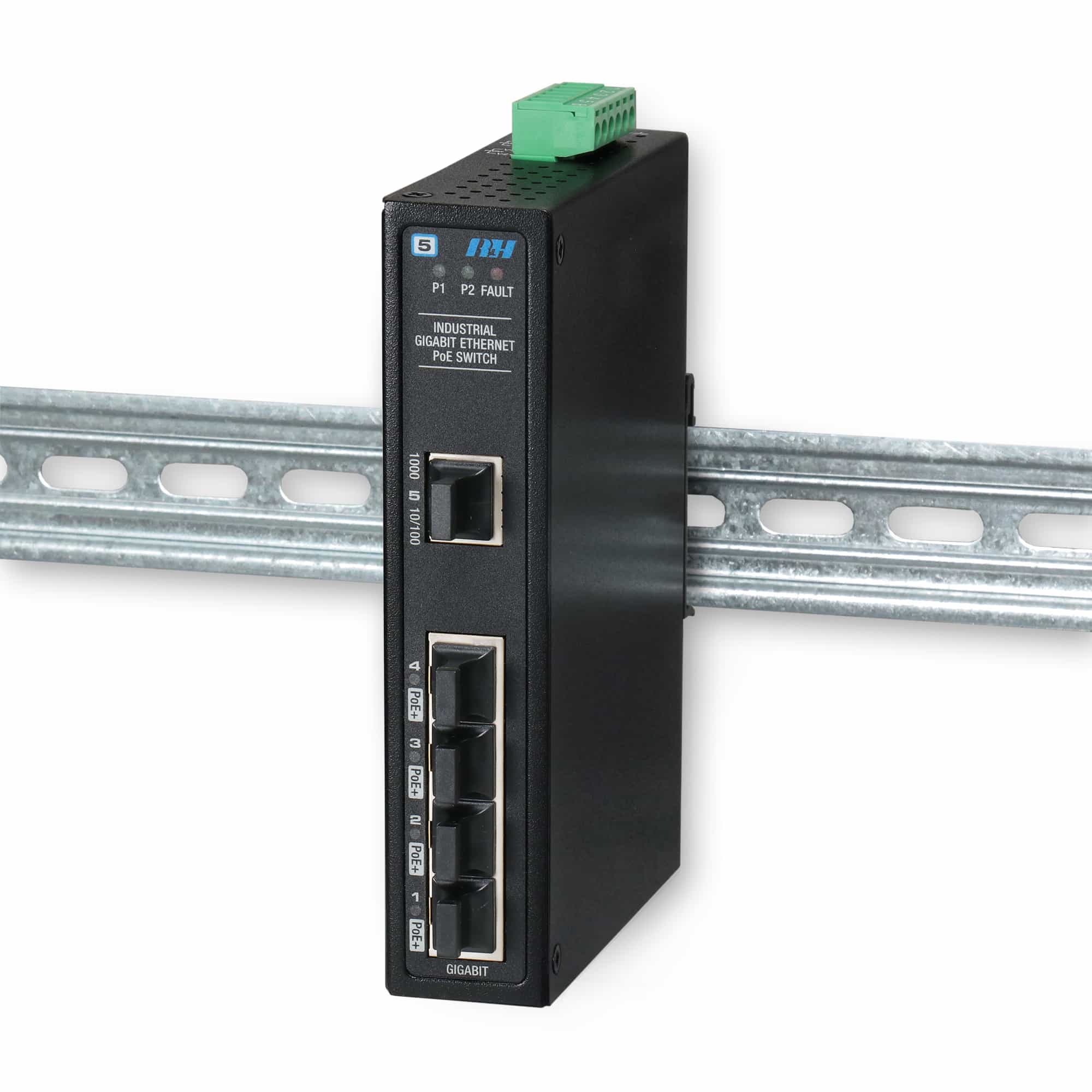

Industrial Gigabit PoE+ Switch
RLH industrial switches are engineered to provide reliable network performance in harsh environments. The 5 Port Gigabit PoE+ switch provides Gigabit Ethernet access, along with PoE+ powering capabilities. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
The PoE+ ports provide up to 30 Watts of power to end devices following the IEEE 802.3af/at standard. The switch has redundant power inputs and an integrated alarm relay for use in critical applications.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
- Wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- 5 Gigabit Ethernet Ports
- 4 PoE+ ports with up to 30 Watts per port
- Up to 120 Watts of PoE output power
- Redundant power inputs
- Integrated alarm relay
- IEEE 802.3af/at Power over Ethernet
- Rugged case rated to IP30
- DIN rail & wall mountable
- UL Listed
Please see the product documentation for the complete list of specifications
Ethernet Ports:
(4) 10/100/1000 Mbps PoE+
(1) 10/100/1000 Mbps
Ethernet Interface:
Jumbo Frames up to (10Kbytes), Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDIX
Max PoE Power:
30 Watts @ 48VDC per port
IEEE 802.2af/at (Mode A / End Span)
Power Consumption:
6 Watts Maximum (All ports active), 120W PoE Max Budget
Power Input:
Dual 48~55VDC redundant power inputs (6 position pluggable terminal block)
Power Protection:
Overload Current Protection, Reverse Polarity Protection
Operating Temperature:
-40°C ~ 75°C (-40°F ~ 167°F)
Construction:
Powder coated IP30 steel housing
Installation:
Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

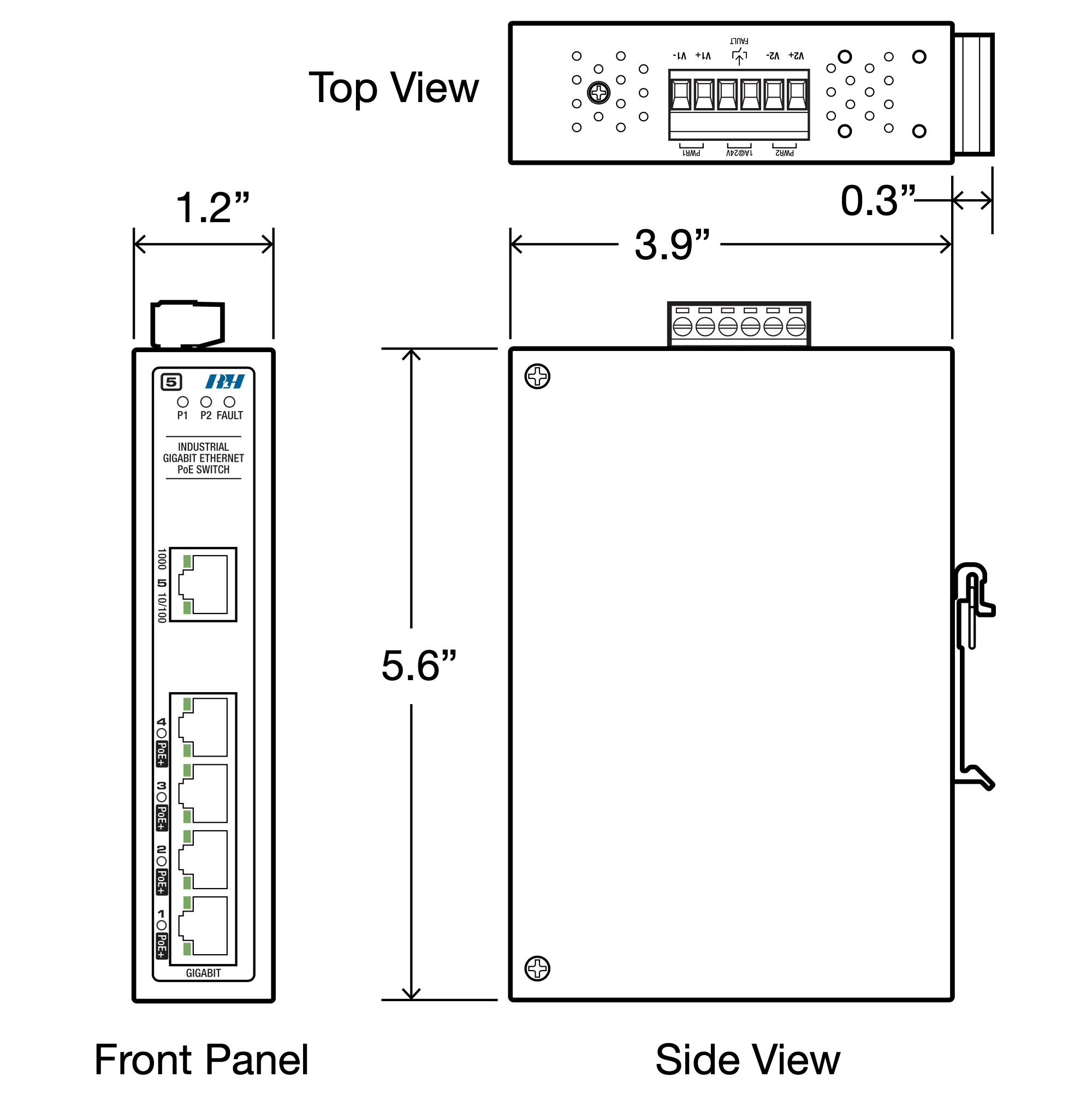

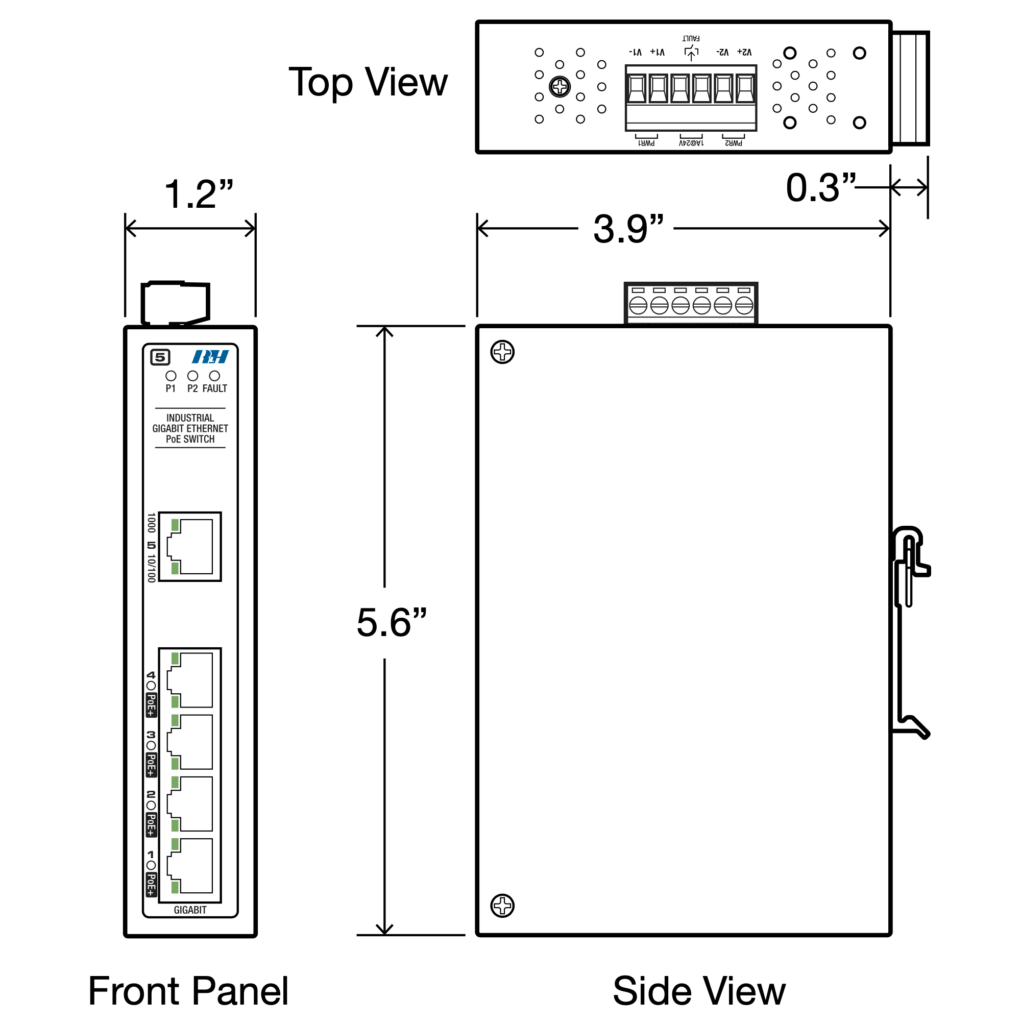

Dimensions:
1.18” (W) x 3.90” (D) x 5.59” (H), (30mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety:
CE, FCC Class A, UL 61010-1, UL 61010-2-201, File Number: E480850, UL Class 1/Div.2
Compliance:
NDAA, TAA, RoHS and REACH compliant
MTBF:
1,037,363 hrs.
Warranty:
5 Years
Product Information
CAD Files
ETH-5GP-48-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 5 Port Gigabit PoE+ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| Industrial 5 Port Gigabit PoE+ Switch | ETH-5GP-48-1 | $385.00 |
