802.3bt 90 watts of power and management features like Ping Alive
RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 5+2 Managed Gigabit SFP PoE++ switch provides both copper and fiber Gigabit Ethernet access, along with IEEE 802.3bt PoE++ powering capabilities. This environmentally hardened Light Layer 3 switch is manageable and offers a wide array of configuration and monitoring options.
The (4) PoE++ ports provide up to 90 Watts of power to end devices with a maximum total power budget of 240W shared between all 4 ports. The switch also comes with redundant power inputs and fault alarm relay for additional reliability.
Our feature rich industrial switch meets the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation network environments.
Features
System:
- 4 Ports of Gigabit PoE++ (90W/Port), IEEE 802.3bt
- 2 Dual Rate SFP ports – 100Mbps & 1Gbps
- 1 Port 10/100/1000Base-T
- Hardened design has a wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- 48V DC redundant power inputs with alarm relay
- DIN rail & wall mountable
- UL Listed
Management:
- Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82
- Network Ring support: G.8032 ERPS v2/STP/RSTP/MSTP
- Configuration via Web, Serial, Telnet, & SSH
- Supports VLANs, SNMP v1/v2c/v3, and ACLs
- PoE Port Control & Monitoring
Please see the product documentation for the complete list of specifications
SFP Ports:
(2) Dual Rate SFP Port
Supports both 100 & 1000 Mbps speed SFP modules
Ethernet Ports:
(4) 10/100/1000 Mbps PoE++
(1) 10/100/1000 Mbps
Transfer Rates:
14,880pps – Ethernet port, 148,800pps – Fast Ethernet port, 1,488,000pps – Gigabit Ethernet port
Transfer Distance:
Up to 100 Meters over twisted pair
Ethernet Interface:
Supports Jumbo Frames (9.6K), Auto-MDI/MDI-X, Auto-Negotiation
PoE Power:
90 Watts (Mode A , Mode B, 4-Pair Mode)
Power Input:
Dual 48~55VDC redundant power inputs (6 position pluggable terminal block)
Power Protection:
Over Current, Power Reversal, Polarity Protection
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Operating Temperature:
-40°C ~ 75°C (-40°F ~ 167°F)
Construction:
Powder coated IP30 steel housing
Installation:
Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

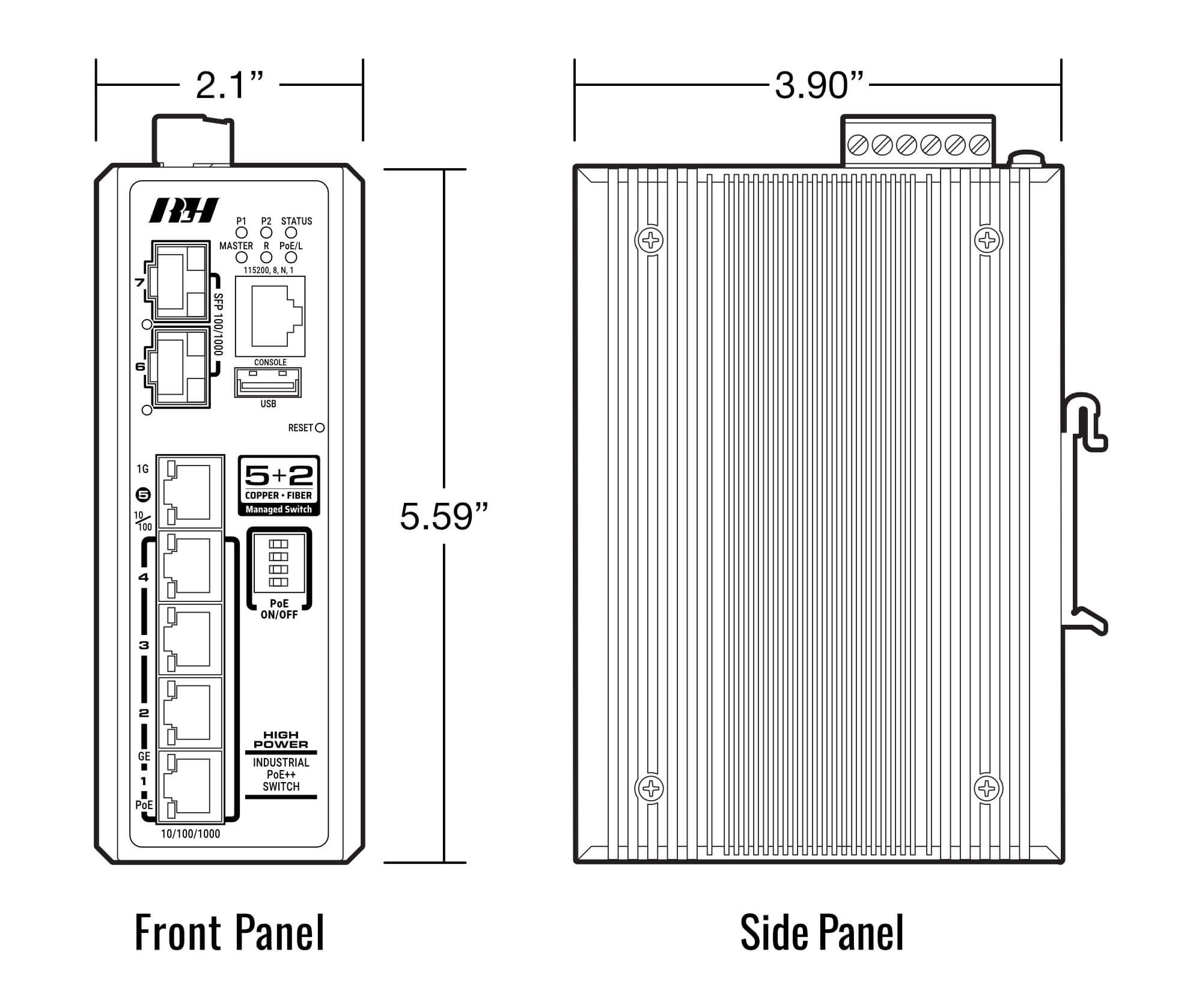

Dimensions:
2.12” (W) x 3.90” (D) x 5.59” (H), (54mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety:
CE, FCC Class A, UL 61010-1, UL 61010-2-201, File Number: E480850
Compliance:
NDAA, TAA, RoHS and REACH compliant
MTBF:
384,570 hrs.
Warranty:
Limited 5 years
Product Information
CAD Files
ETH-52GMP-BT-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
5+2 Managed 10/100/1G SFP PoE++ Industrial Switch
| Short description | Part number | Price | |
|---|---|---|---|
| Managed Switch, 5 Gigabit RJ-45 Ports, 2 Dual Rate SFP Ports, 90 Watt PoE++, Powering Voltage 48~55 DC | ETH-52GMP-BT-1 | $1,495.00 |
- SFP Transceivers are ordered separately:
– View our compatible Fast Ethernet SFPs
– View our compatible Gigabit SFPs
