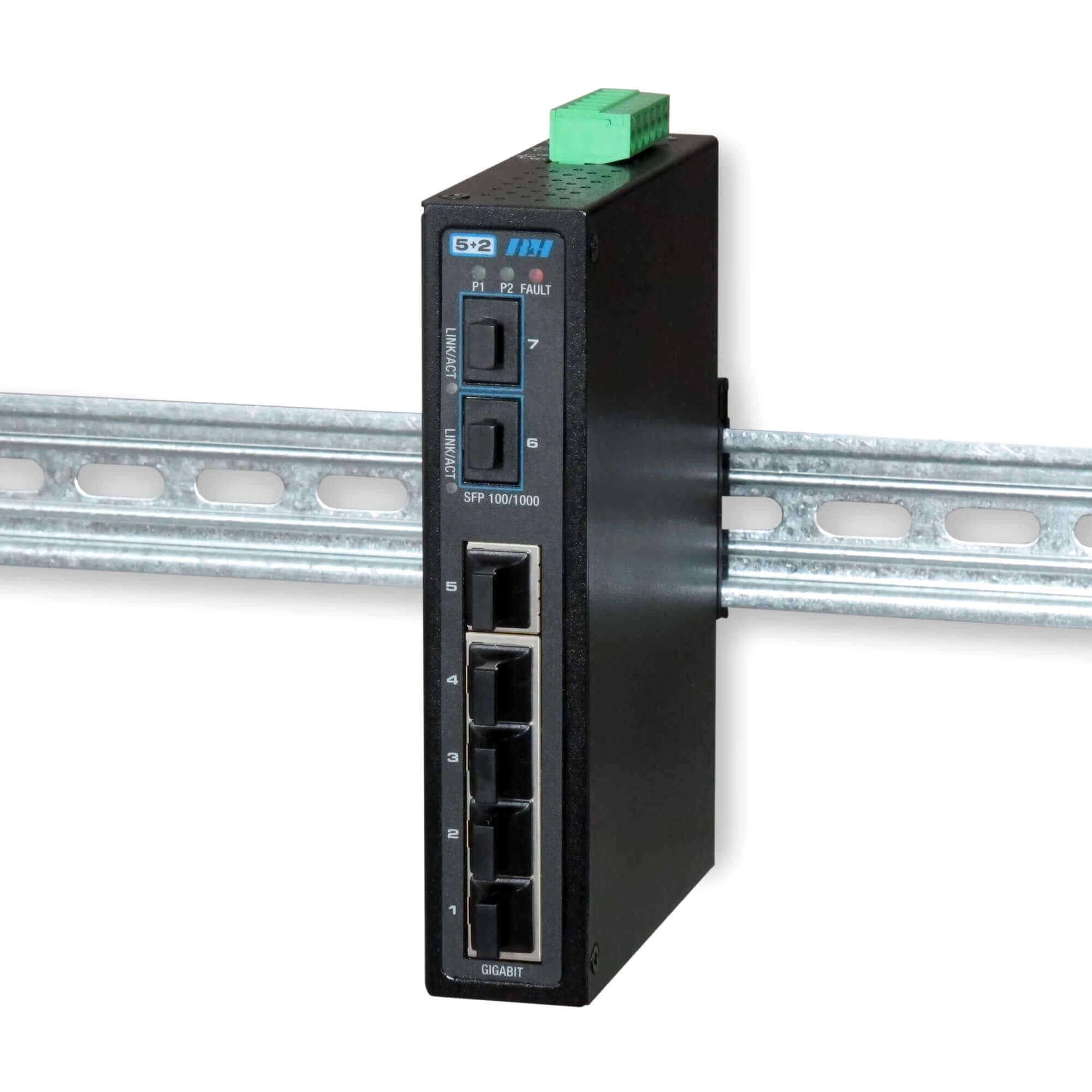

Industrial Gigabit SFP Switch
RLH industrial switches are engineered to provide reliable network performance in harsh environments. The 5+2 Gigabit SFP switch provides both copper and fiber Gigabit Ethernet access. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
- Hardened design has a wide operating temperature range: -40 to +167F (-40 to + 75 C)
- 2 Dual Rate SFP ports – 100Mbps & 1Gbps
- 5 Ports of Gigabit Ethernet
- 9.6Kb Jumbo Frame Support
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- 12~48VDC redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Please see the product documentation for the complete list of specifications
Fiber Ports:
(2) Dual Rate SFP
Supports both 100 & 1000 Mbps speed modules
Ethernet Ports:
(5) 10/100/1000 Mbps
Ethernet Interface:
Supports Jumbo Frames (9.6K), Auto-Negotiation, Auto-MDI/MDIX
Power Input:
12~48VDC redundant power inputs
Power Protection:
Over Current, Power Reversal, Polarity Protection
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Operating Temperature:
-40°C ~ 75°C (-40°F ~ 167°F)
Construction:
Powder coated IP30 steel housing
Installation:
Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

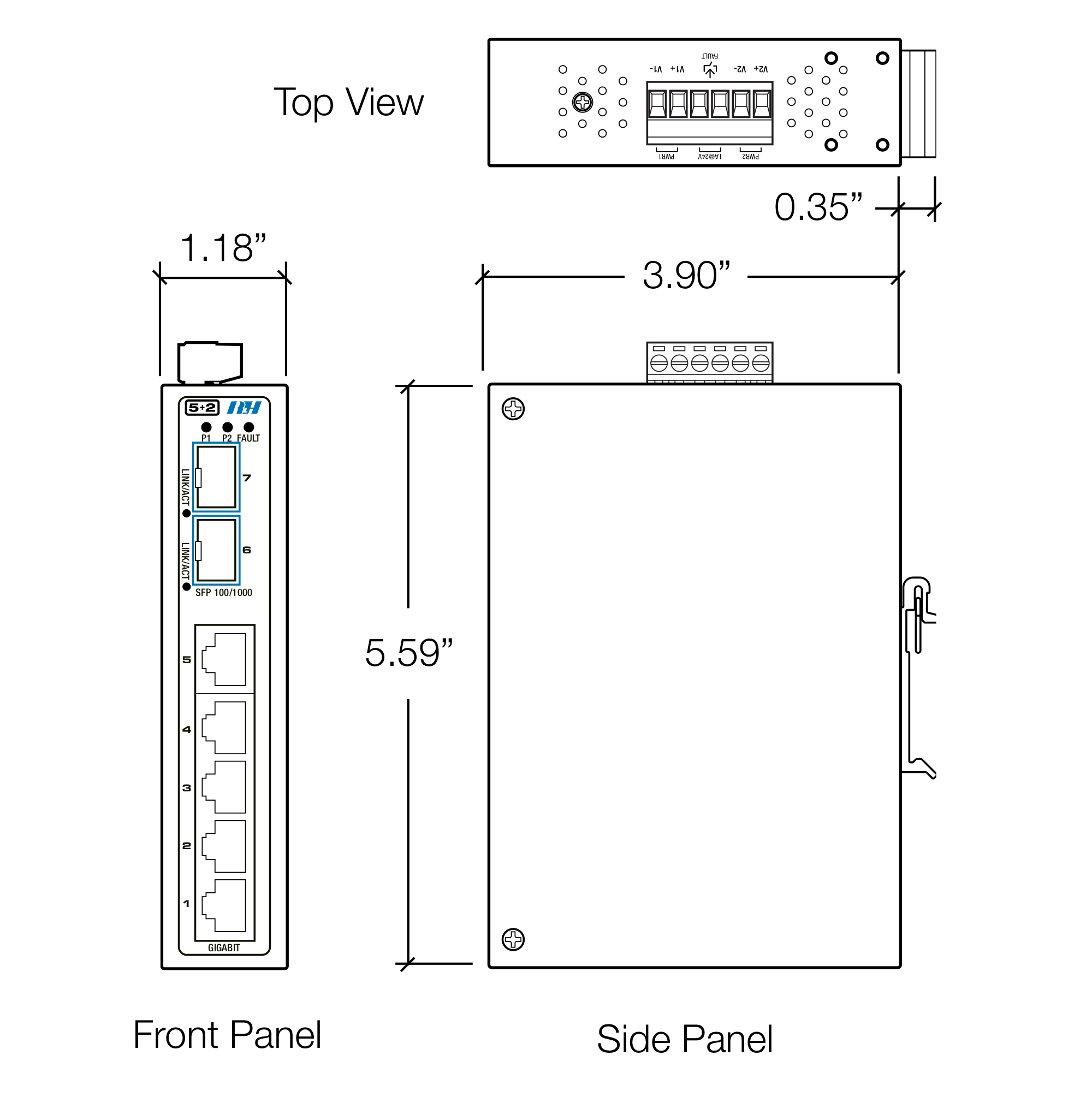

Dimensions:
1.2” (W) x 3.9” (D) x 5.6” (H), (30mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety:
CE, FCC Class A, UL 61010-1, UL 61010-2-201, File Number: E480850, ISA 12.12.01, UL Class 1/Div.2
Compliance:
NDAA, TAA, NEMA TS2 (ITS), RoHS and REACH compliant
MTBF:
936,469 hrs.
Warranty:
5 Years
Product Information
CAD Files
ETH-52G-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
5+2 Gigabit SFP Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 5 Gigabit RJ-45 Ports, 2 Dual Rate SFP Ports, Powering Voltage 12-48 DC | ETH-52G-1 | $345.00 |
- View our compatible Fast Ethernet SFPs
- View our compatible Gigabit SFPs
