AC-Powered 19-inch Rackmount Gigabit Switch with Fiber Uplink Options
The RLH 26-Port 10/100/1G Unmanaged Industrial Ethernet Rackmount Switch (ETH-R2402G-AC-1) is an environmentally hardened, high-performance networking platform engineered to maintain mission-critical communications in harsh and demanding environments.
This switch provides 24 dedicated 10/100/1G (1000Base-T) ports and two additional 1000Base-T ports that share media access with two 100/1G SFP slots, enabling flexible copper or fiber uplink configuration. Its 1U, 19-inch rackmount form factor delivers a high port count while minimizing space requirements.
Features
- Hardened to operate in -40°C to 75°C (-40°F to 167°F)
- 24 ports of 10/100/1G + 2 Combo ports
(2 – 10/100/1G Tx RJ45 and 2 – SFP ports) - Auto MDI/MDI-X
- 8K MAC Address Table
- 9.6 Kbyte Jumbo Frames
- 100-240VAC power input
- 19” rack mount (1U)
- Rugged case rated to IP-40
- NDAA and TAA Complaint
- 5 Year Warranty
Please see the product documentation for the complete list of specifications
Ports:
(24) 10/100/1G Ports
(2) Gigabit combo ports (SFP slots or RJ45)
Switch Properties:
Protocol: CSMA/CD
Data Process: Store and Forward
MAC address: 8K
Backplane bandwidth: 56G
LED Indicators:
PWR – Power Supply 1 ON/OFF indicator
Speed/Link/Act – Each Ethernet Port
Link/Act – Each SFP Port

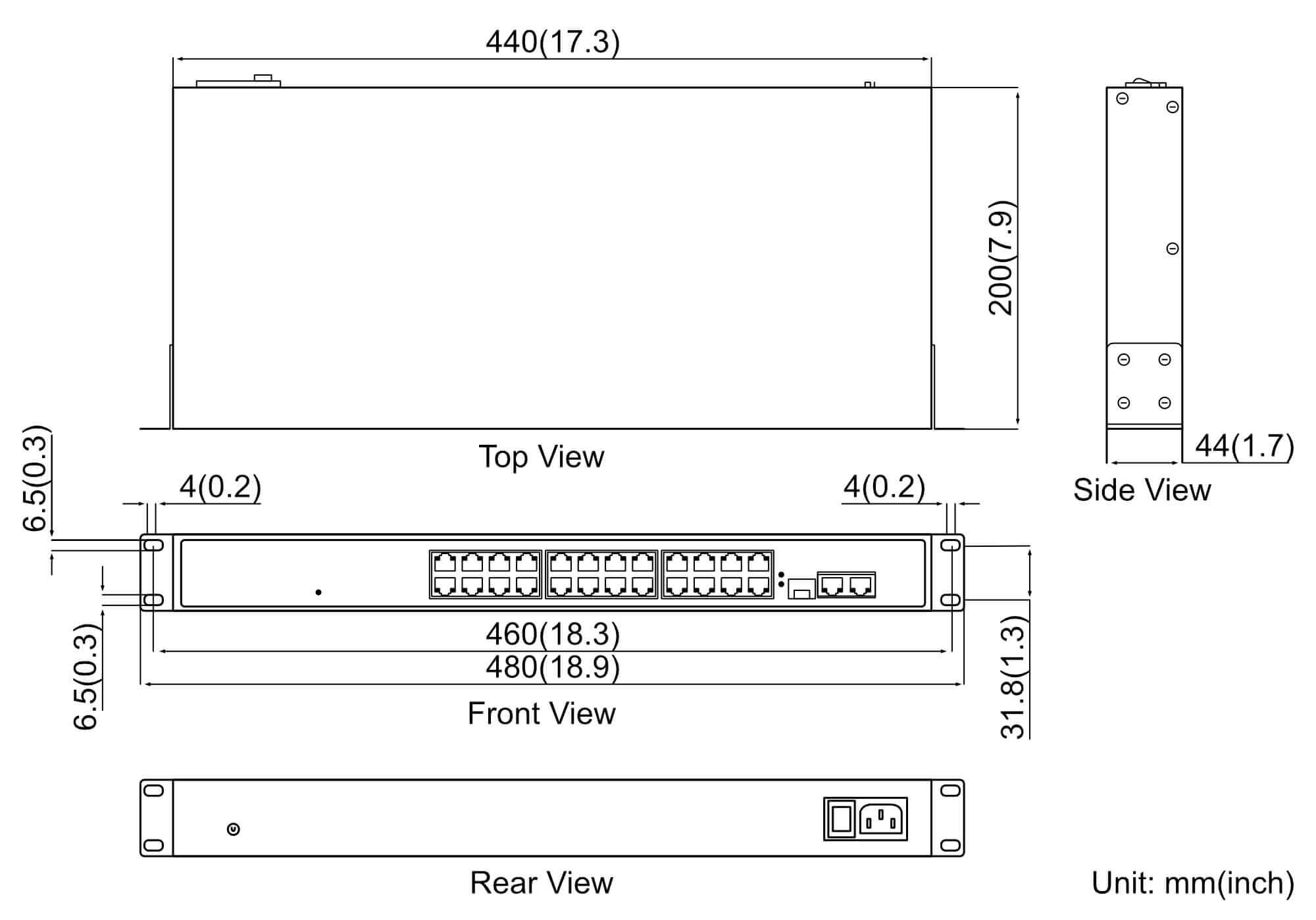

Dimensions:
17.3” (W) x 7.9” (D) x 1.73” (H), (440mm x 200mm x 44mm)
EIA 19” Rack Mountable, 1RU rack height
Power:
AC Socket – 100-240VAC, 50-60Hz
Power Consumption:
Full-load: 21W@220VAC
Temperature:
-40°F to 167°F (-40°C to 75°C)
Humidity:
5%~95% non-condensing
Safety:
CE, FCC Class A
Compliance:
NDAA, TAA, RoHS and REACH compliant
MTBF:
321,961 hrs.
Warranty:
Limited 5 years
Product Information
CAD Files
ETH-R2402G-AC-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
24+2 Unmanaged 10/100/1G SFP Rack Mount Ethernet Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 24+2 Unmanaged 10/100/1G Industrial Ethernet Switch, Rack Mount, SFP(100/1G) ports, 120-240VAC Power | ETH-R2402G-AC-1 | $1,155.00 |
