Layer 3 Gigabit switch with 10gig uplink SFP+, UL listed

RLH managed industrial switches are engineered to provide reliable network performance in demanding environments. The ETH-R160804GXM-DC-1 provides 16 copper Gigabit Ethernet ports, 8 fiber Gigabit Ethernet SFP ports, and 4 high-speed 1G/2.5G/10G SFP+ uplink ports for high-bandwidth aggregation and backbone connectivity in industrial networks. A comprehensive set of Layer 2 and Layer 3 management features provides extensive configuration, security, redundancy, and monitoring capabilities required for industrial networking and automation applications.

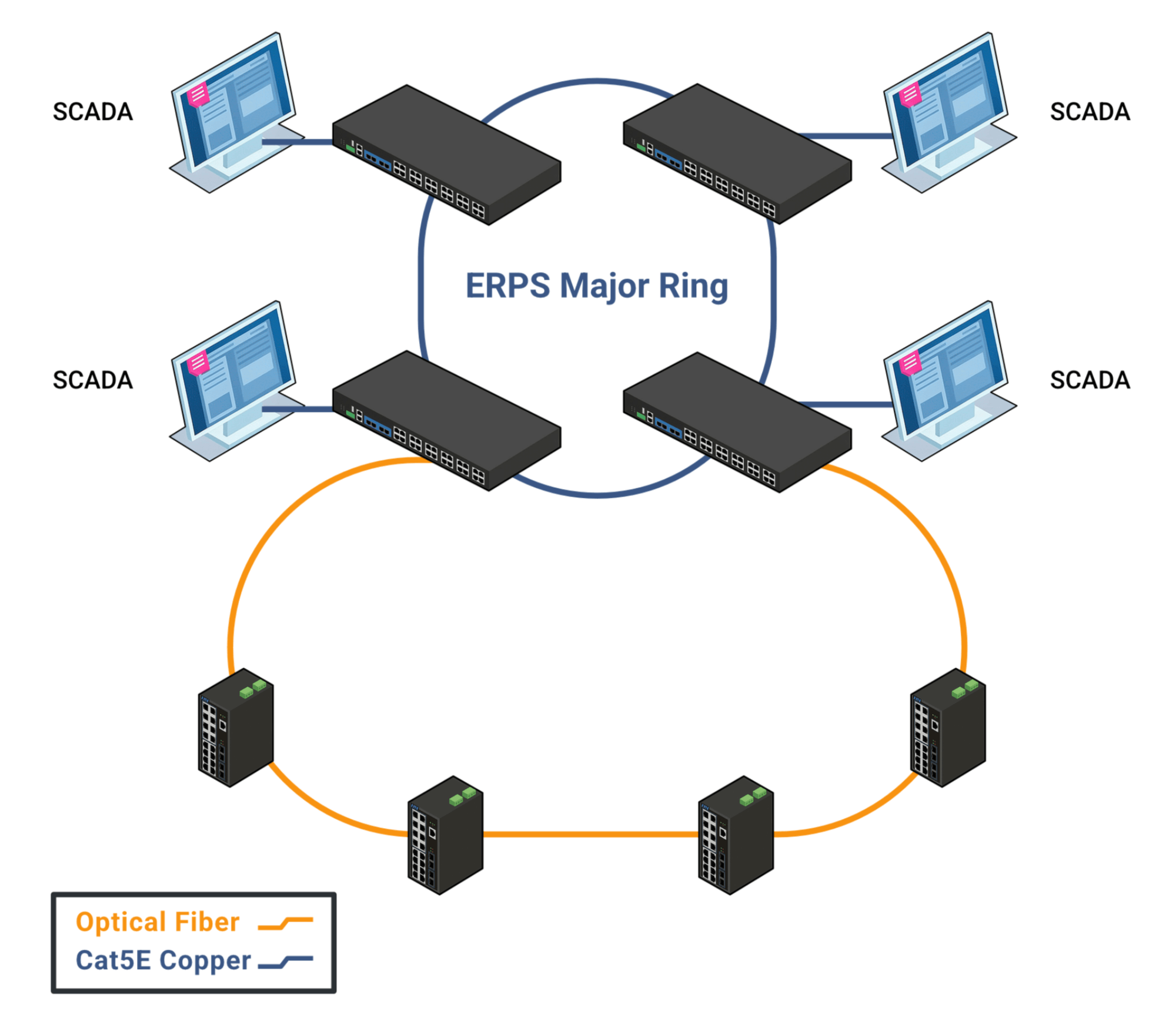

Advanced management functionality includes VLAN support, QoS traffic prioritization, Static Routing, OSPF, ERPS ring protection, link aggregation, SNMP, SSH, HTTPS, and IPv4/IPv6 management support. Standardized ITU-T G.8032 ERPS v1/v2 ring protection provides network recovery times of less than 50ms, helping maintain network uptime in mission-critical industrial and utility applications.

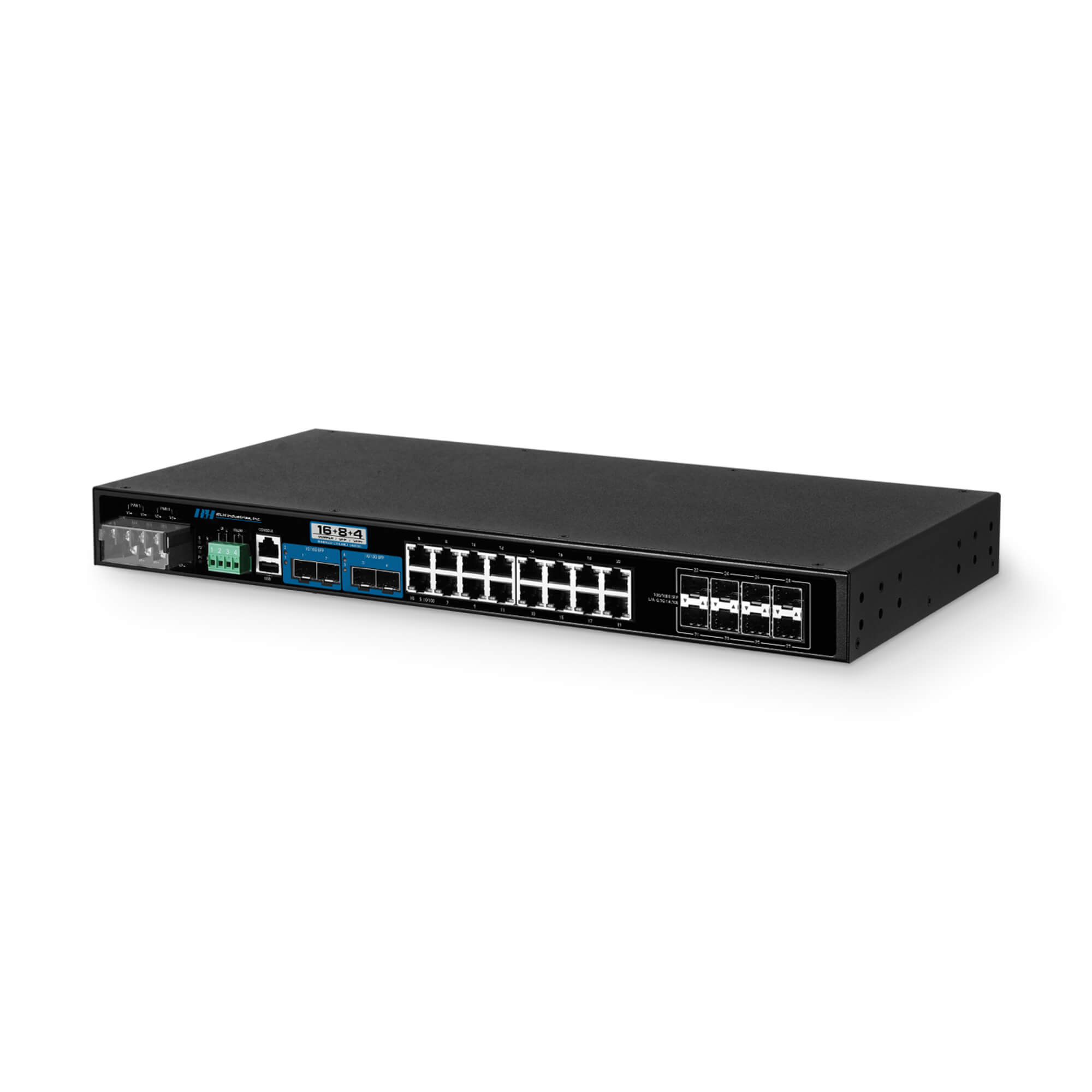

This environmentally hardened industrial Ethernet switch features a rugged fanless design, redundant 12~48VDC power inputs, and a wide operating temperature range of -0°C~75°C for deployment in harsh environments. The ETH-R160804GXM-DC-1 is housed in a compact 1RU rack mount enclosure and is engineered to meet the demands of utility, transportation, automation, security, and industrial Ethernet networks where reliability and high port density are critical.

Features

  • 16 x 10/100/1000mbps RJ-45 Ethernet ports
  • 8 x Gigabit 100/1000 SFP fiber ports
  • 4 high-speed 1G/2.5G/10G SFP+ uplink ports
  • Wide operating temperature range: -40°C~75°C
  • Fanless industrial design
  • Redundant 12~48VDC power inputs
  • Embedded web management interface
  • Layer 2 and Layer 3 management features
  • Supports Static Routing, OSPF, RIP, and VRRP
  • IEEE 802.1Q VLANs and QoS
  • RSTP, MSTP, and G.8032 ERPS ring protection
  • SNMP v1/v2c/v3, SSH, HTTPS, and CLI management
  • Supports LACP link aggregation
  • 19” 1RU rack mount steel enclosure
  • IP30 rated metal housing
  • Low power consumption design

Please see the product documentation for the complete list of specifications

Interface:
Copper Ports: 16 x 10/100/1000BASE-T Gigabit Ethernet, Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Fiber Port: 4 x 1G/2.5G/10GbE SFP+ slots, 8 x 100/1000BASE-X SFP slots
Console Port: 1 x RS232 in RJ45 connector, baud rate 115,200bps,8,N,1
LED Indicators: System: Power 1, Power 2, Master (M), Ring (R), Status
Ethernet ports: Speed/Link/Active
SFP: Link/Active
Relay Contact: 24 VDC, 1A resistive
DI: 1 x Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA

Switch Properties:
Switching Capacity: 128Gbps
Forwarding Rate: 95.232 Mpps
MAC Table Size: 32k
Packet Buffer: 32Mbits
Jumbo Frame: 10Kbytes
Max. VLAN Number: 4095
VLAN ID: 1 to 4095
IGMP Groups: 1024
Transfer Rate:
14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet Port
14,880,000pps for 10 Gigabit Ethernet Port

Power:
Input Voltage: Dual 12-48VDC redundant power inputs
Power Connection: Fixed 8-contact terminal block
Overload Current Protection: Present (Slow-Blow Fuse)
Reverse Polarity Protection: Present
System Power Consumption: Max. 38.5W full loading

Mechanical Characteristics:
Housing: Metal, IP30 protection

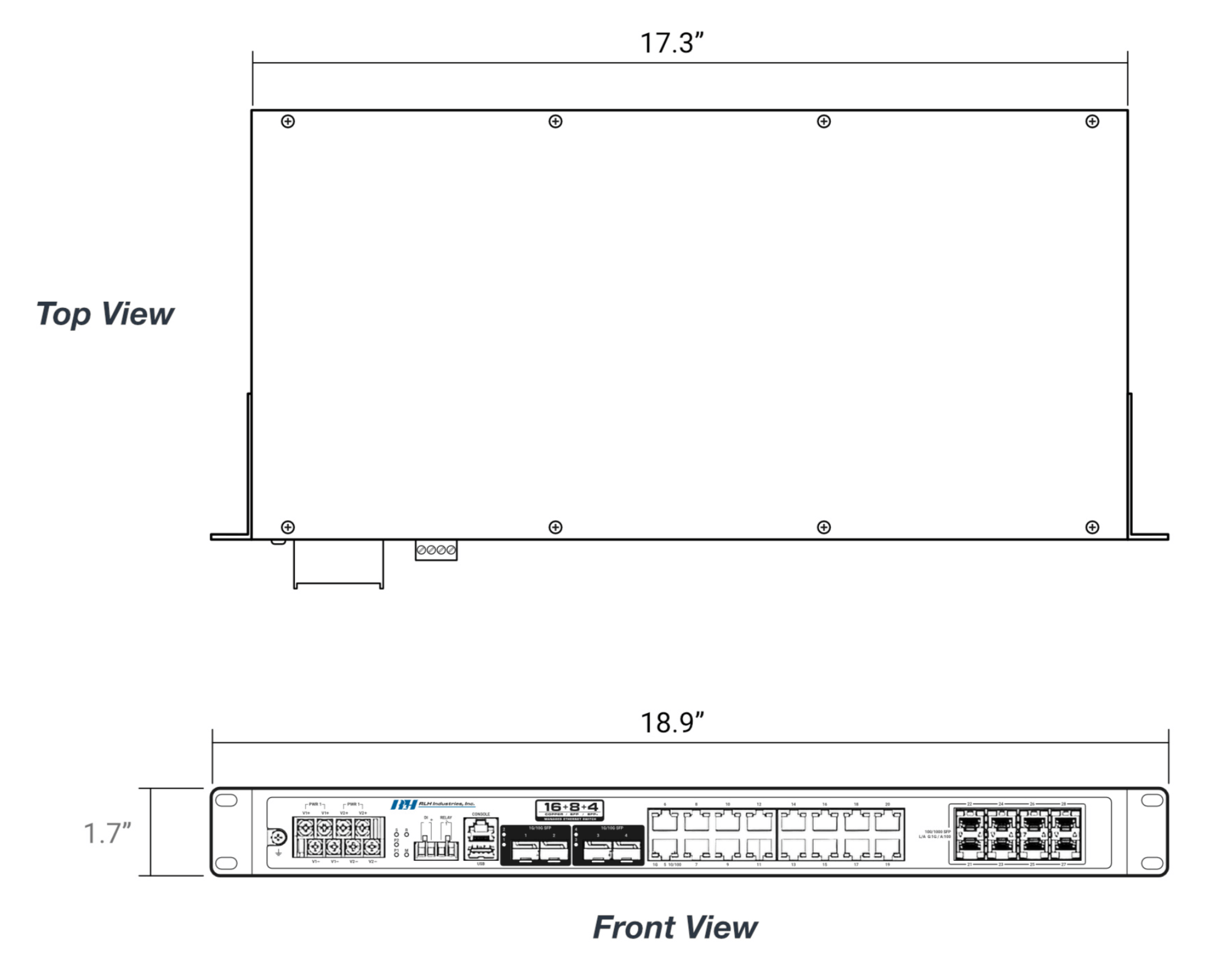

Dimensions: 17.32”(W) x 1.73”(H) x 8.46”(D) (440 x 44 x 215 mm)
Weight: Unit weight: 4.26 kg (9.39 lb)
Mounting: Rack mounting

Temperature:
Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity:
5 to 95% (Non-Condensing)

Software Features:
VLAN: Private VLAN,Port-based VLAN, IP Subnet-based VLAN, GVRP, Guest VLAN, MAC-based VLAN, Protocol-based VLAN, VLAN Trunking
L2 Features: STP, MSTP, Port Mirror, Loop Guard, BPDU Guard, MEP, RSTP, G.8032 ERPS v1/v2,
Loop Detection, LACP, Error Disable Recovery
L2 Multicast: IGMPv1/v2/v3 Snooping, IGMP Filtering, IPMC Filtering Leave Proxy, MLDv1/v2 Snooping,
IPMC Throttling
L3 Features: ARP, NAT, Static Route, RIPv2, RIPng, OSPFv2, OSPFv3, VRRPv2, VRRPv3
QoS: 802.1p, Port/Queue/ACL Policer, Queue Egress Shaper, Tag Remarking, Input Priority Mapping, Port Egress Shaper, DiffServ (DSCP), Scheduler Mode
Power Saving: 802.1p, Port/Queue/ACL Policer, Queue Egress Shaper, Tag Remarking, Input Priority Mapping, Port Egress Shaper, DiffServ (DSCP), Scheduler Mode
Security: SSHv2, Port-based 802.1X, MAC-based Authentication, QoS Assignment, TACACS+,
Web/CLI Authentication, Port Security, IP Source Guard, DHCP Snooping, Secure Copy Protocol (SCP), IP Based Access Filter, Access Control List (ACL), ACL for Filtering/Policing/Port Copy, VLAN Assignment, IP MAC Binding, User Privilege (15 levels), RADIUS Authentication and Accounting, ARP Inspection,
Broadcast/Multicast/Unicast Storm Control
Management: Secure FTP, IPv4/Ipv6, LLDP / LLDP-MED, DHCP Client, DHCP Server, DNS Proxy, Syslog,
Daylight Saving, RMON, Command Line Interface (CLI), Relay Trigger, Telnet Server and Client, Dual Image Protection, Ping6, DDMI, SMTP, SNMP v1/v2c/v3, HTTP / HTTPS, DHCPv6 Client, DNS Client, ICMPv6, Time Zone, NTP Client, sFlow, Power Lost Warning, DHCP Option 82, TFTP, Ping, USB Configuration Backup/Restore, Modbus TCP
Ethernet Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X Gigabit Fiber, IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3x Flow Control
Spanning Tree / Redundancy: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP,
ITU-T G.8032/Y.1344 ERPS v1/v2
VLAN / QoS: IEEE 802.1Q VLAN, IEEE 802.1p QoS/CoS
Authentication / Discovery: IEEE 802.1X, IEEE 802.1AB LLDP, TIA 1057 LLDP-MED
Link Aggregation: IEEE 802.3ad LACP
RFC Standards: RFC 2674 VLAN MIB, RFC 2819 RMON, FC 1215 TRAPS, RFC 4292 IP forwarding table,
RFC 5519 multicast group membership discovery, RFC 4670 RADIUS accounting, RFC 2863 interface group MIB, RFC 4133 entity MIB v3, RFC 3414 SNMPv3 security model, RFC 2613 SMON – PortCopy, RFC 1213 MIB II, RFC 4188 bridge, RFC 4293 IP MIB, RFC 4668 RADIUS auth client, RFC 3635 Ethernet-like, RFC 3636 802.3 MAU, RFC 3411 SNMP frameworks, RFC 3415 VACM for SNMP

Regulatory Compliance:
EMI: FCC Part 15 Subpart B Class A, EN61000-6-4 Class A, CE EN55032
EMS: CE EN55035, IEC61000-4-2 (ESD), IEC61000-4-4 (EFT), IEC61000-4-6 (CS), EN61000-6-2, IEC61000-4-3 (RS), IEC61000-4-5 (Surge), IEC61000-4-8 (Magnetic Field)
Free Fall: IEC60068-2-32
Shock: IEC60068-2-27
Vibration: IEC60068-2-6
Green Compliance: RoHS Compliant
Safety: UL Pending, ISA 12.12.01
Compliance: IEC-61850-3 (Pending)
MTBF: 195,504 hrs. (Telcordia SR-332, Issue 3, GB, 25°C)

Product Information

ETH-R160804GXM-DC-1

$4,625.00
Lead Time: 3 to 4 Weeks*
Order Now
Contact Sales

For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

  • Temperature
  • 1RU
  • Fiber Optic
  • GIG Ethernet
  • SFP+ Optics
  • Web Interface
  • 35+ Years of Excellence

Ordering

16+8+4 Managed Layer 3 10/100/1G SFP+ Industrial Rack Switch

Short descriptionPart numberPrice
16+8+4 Managed Layer 3 Industrial Ethernet Switch, Rack MountETH-R160804GXM-DC-1$4,625.00
- +
