Flexible & Reliable Industrial PoE+ Connectivity

RLH Industries EMC-22GP is an industrial Gigabit Ethernet PoE+ media converter with three selectable operating modes: Redundant Fiber Backup Mode, Media Converter Mode, and Unmanaged Switch Mode. These operating modes provide flexible network topology solutions for a variety of field applications while reducing system complexity and deployment costs.

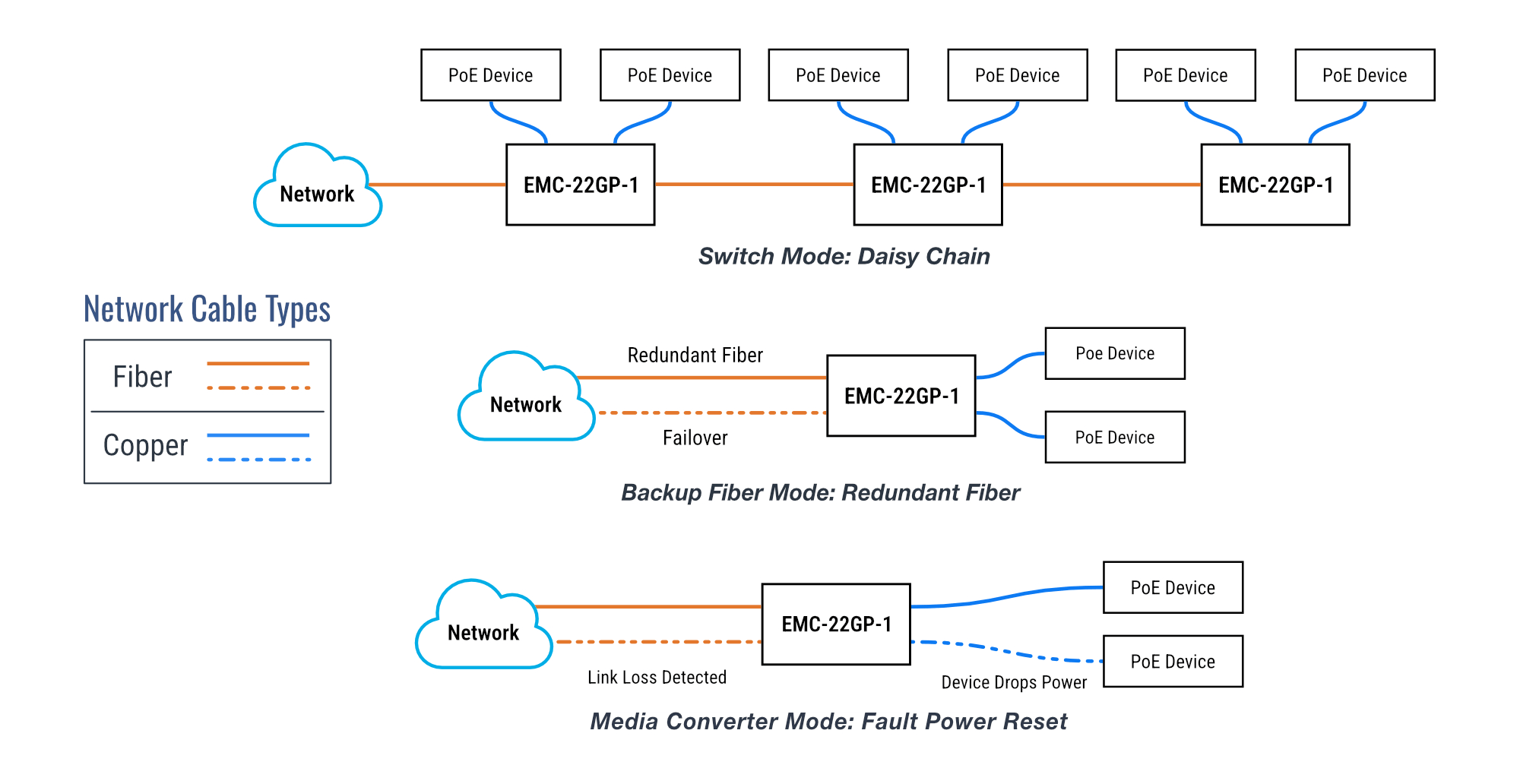

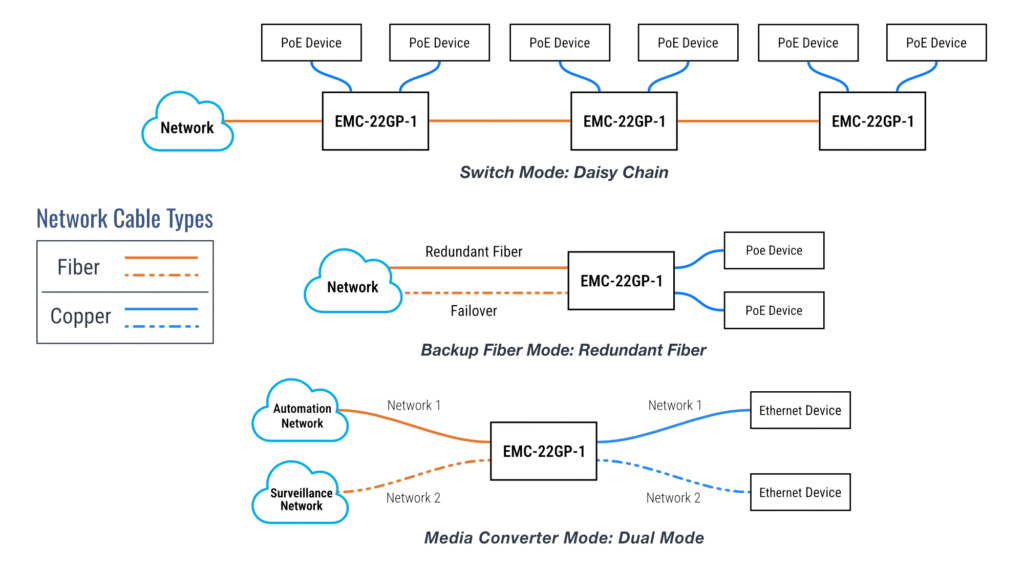

Multimedia Functions

  • Redundant Fiber Backup Mode – Provides automatic link protection for highly critical networks
  • Media Converter Mode – Supports fault link pass-through for improved network
fault detection
  • Unmanaged Switch Mode – Operates as a 4-port unmanaged switch for simplified
daisy-chain network expansion

The dual-rate 100/1000 SFP port supports multimode, singlemode, and bi-directional WDM fiber depending on the installed SFP. The EMC-22GP operates on 12~57VDC and supports dual redundant DC power inputs with surge protection for uninterrupted operation when connected to separate power sources.

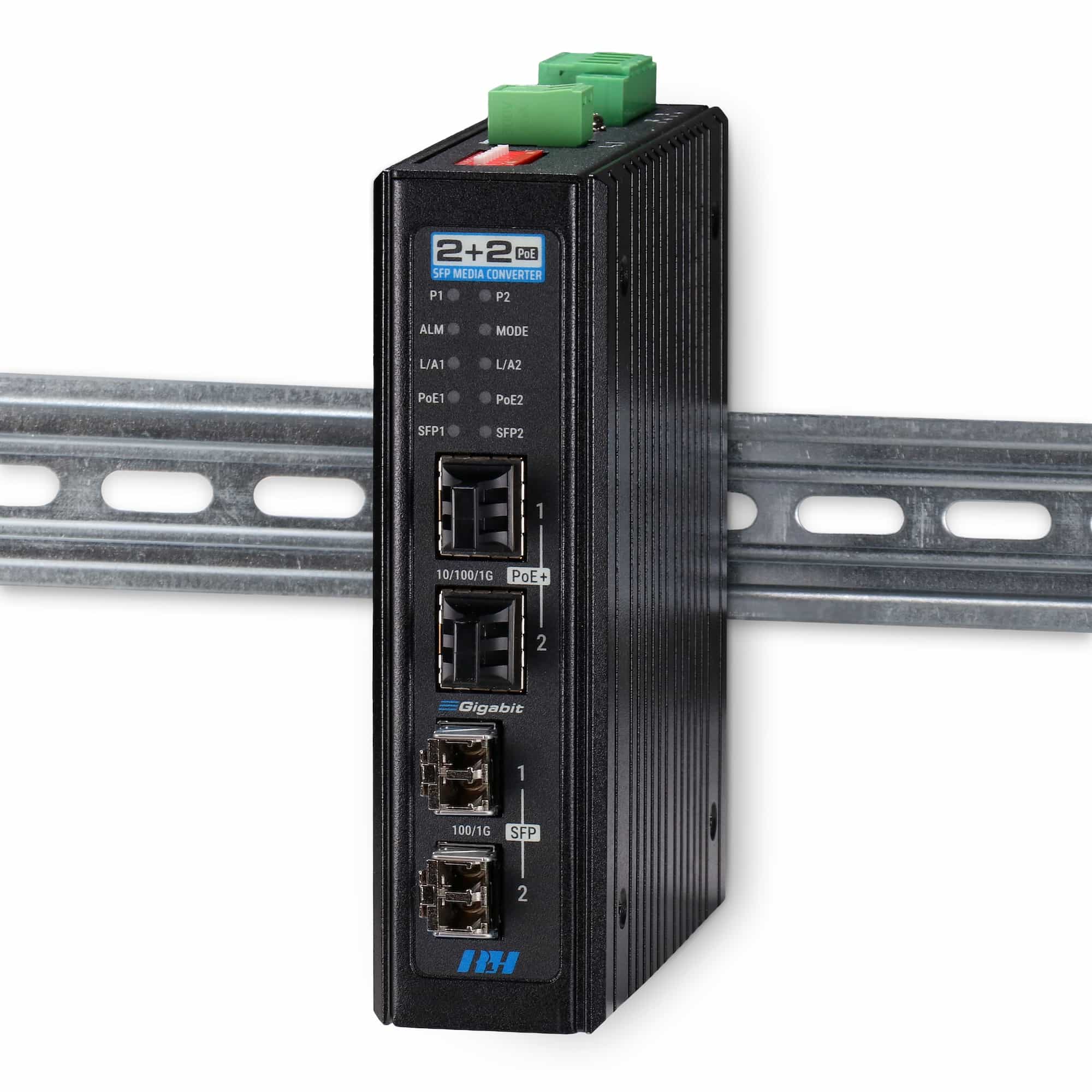

Designed for industrial applications, the EMC-22GP is DIN rail mountable and hardened to operate in -40°C~+75°C, ensuring reliable performance in extreme environments.

Compliance

Features

  • 2 Gigabit RJ-45 & 2 dual-rate 100/1000Base-X SFP ports
  • IEEE 802.3af/at PoE+ with 90W PoE budget
  • Constant 48VDC PoE+ via integrated booster
  • Supports Switch, Fiber Backup & Media Converter modes
  • Relay output for power and port link faults
  • LEDs for Power, Mode/Function, SFP, PoE & Activity
  • Hardened to operate in -40°C~+75°C (-40°F~+167°F)
  • Supports 9K Jumbo Frames
  • Dual Redundant DC power inputs (12~57VDC)
  • PoE control settings: Auto / Force Power
  • DIN rail and wall-mountable
  • IP30 aluminum housing

Please see the product documentation for the complete list of specifications

Physical Ports:
2x 10/100/1000Base-T Ports RJ-45, 2x 100/1000Base-X Ports SFP

Standards:
IEEE 802.3 10Base-T (Ethernet), IEEE 802.3u 100Base-TX/FX (Fast Ethernet), IEEE 802.3ab 1000Base-T (Gigabit Ethernet), IEEE 802.3z 1000Base-X (Gigabit Ethernet), IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+)

Ethernet Interface:
Supports Jumbo Frames (9k Bytes), Auto MDI/MDI-X, Auto-Negotiation (Copper and Fiber Port)

Features:
Store and Forward, Fault Alarm Notification (Power, Ports), Auto & Force Mode Configuration, Full/Half Duplex Mode, Memory Buffer: 128K Bytes, Relay Output, MAC Address: 2k table size, Surge Protection: 6kV (K.21)

LED Indicators:
Power: P1, P2
Alarm Status: ALM
Operating Mode: Mode
RJ-45 Ports: LA1, LA2
PoE+ Status: PoE+ 1, PoE+ 2
SFP Ports: SFP1, SFP2

DIP Switch Function:
DIP | Function | OFF (Default) | ON
1 | External Port Link | Disable | Enable
2 | PoE Trigger | Disable | Enable
3 | Fiber Speed | 1000Mbps | 100Mbps
4 | Fiber Mode | Auto Negotiation Mode | Force Mode
5 | Operation Mode | Switch Mode | Converter Mode
6 | Converter Mode | Dual Mode | Redundant Fiber Mode
7 | TP Port 1 PoE Configure | Auto Mode | Force Mode
8 | TP Port 2 PoE Configure | Auto Mode | Force Mode

Power:
Redundant Input Power: Dual DC inputs. 12~57VDC on 4-pin terminal blocks
Power Consumption: 96W (Max.)

Caution: Use 14AWG or better powering wire

PoE:
RJ-45 Port 1 at 802.3af/at (60W), RJ-45 Port 2 at 802.3af/at (30W)

Note: Only Port 1 is capable of 60W output. Both Ports 1 and 2 are capable of PoE+ (30W) simultaneously

Physical:

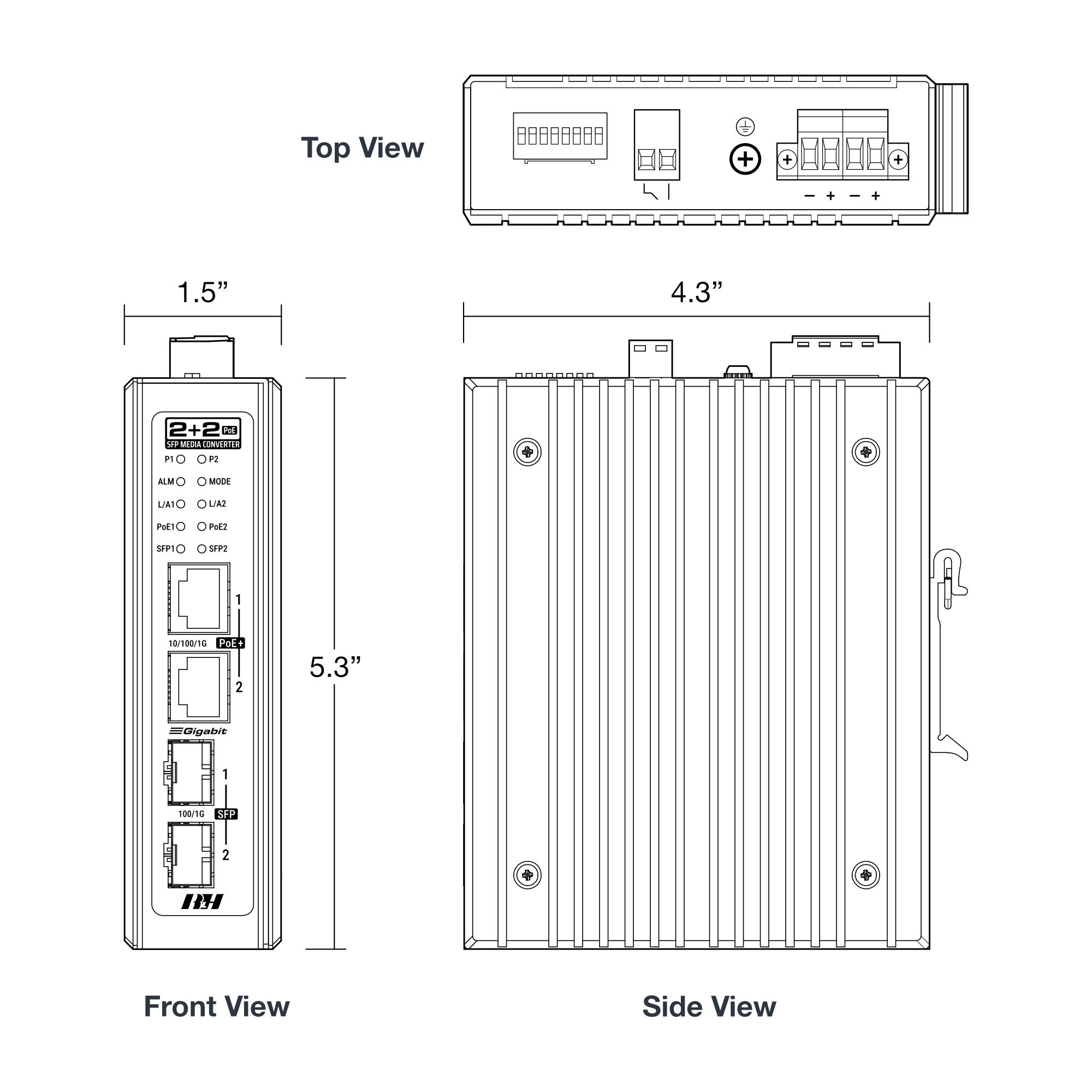

Dimensions: 1.4”(W) x 4.3”(D) x 5.3”(H) (36x110x135mm)
Weight: 0.64kg (22.58oz)
Housing: Aluminum, IP30

Temperature:
Operating: -40°C~+75°C (-40°F~+167°F)
Storage: -40°C~+85°C (-40°F~+185°F)

Humidity:
5% to 90% non-condensing

Stability:
IEC60068-2-27 (Shock), IEC60068-2-31 (Free Fall), IEC60068-2-6 (Vibration)

Compliance:
FCC Class A, CE, RoHS, ITU-T K.21

Product Information

CAD Files

Guide

EMC-22GP-1

$460.00
Lead Time: 1 to 3 Days*
Order Now
Contact Sales

For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

  • Temperature
  • DIN Mount
  • Fiber Optic
  • GIG Ethernet
  • SFP Optics
  • PoE
  • 35+ Years of Excellence

Ordering

2+2 PoE+ Multi-Functional Industrial Ethernet Media Converter

Short descriptionPart numberPrice
2+2 Flex PoE+ 10/100/1G Industrial Ethernet Media Converter, SFP (100/1G) 12~57VDCEMC-22GP-1$460.00
- +
