Monitor and Control 4 Analog Outputs Over Copper or Fiber Ethernet with Real-Time Alerts

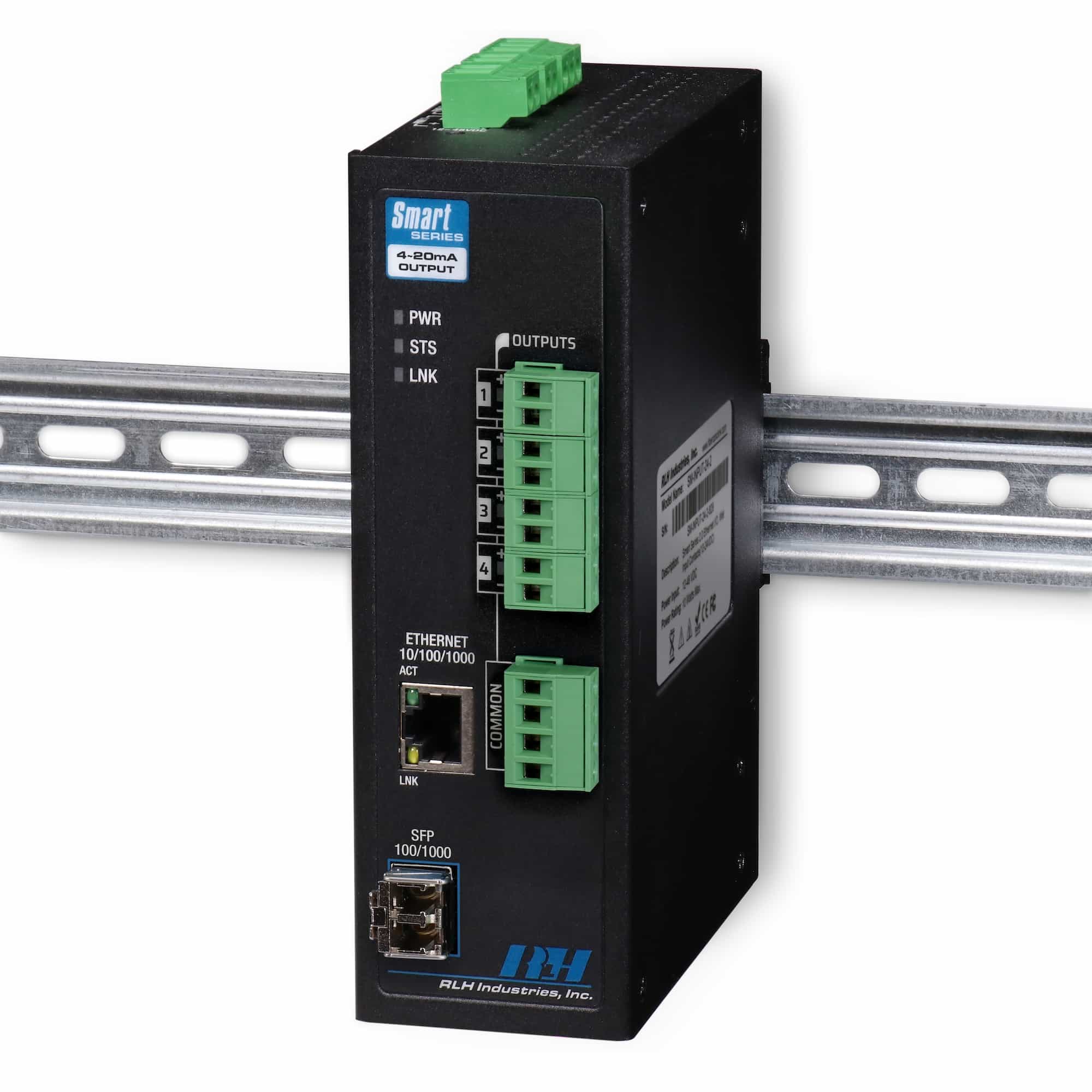

The Smart 4 Analog (4~20mA) Analog Output is a programmable Ethernet I/O controller that interfaces with industrial process control instruments such as environmental sensors, flow meters, level transmitters, and actuators.
Each of the Analog Output channels are configurable through a built-in web management portal, and can be integrated with network management systems, industrial control systems, Internet of Things (IoT) frameworks, and REST-integrated automation platforms.
The Smart 4 Analog Output support TLS/SSL encryption, IEEE 802.1X via RADIUS authentication (AAA), role based access control (RBAC), and event logging. Its versatile 2-port (1xRJ45, 1xSFP) Ethernet interface offers network access redundancy and segmentation.
Each device can operate as a standalone unit, independently monitoring and controlling the value of their 4 analog inputs or 4 outputs, or paired together with our Smart 4 Analog (4~20mA) Input Sensor over a secure TLS/SSL-encrypted tunnel.
This System Pairing feature allows Input Sensors to transmit 4~20mA signals across an Ethernet network to one or multiple remote locations.
Features
- 4 independent channels for monitoring and controlling 4 Analog (4~20mA) Outputs
- 30kHz analog bandwidth ensures precise signal acquisition of high-frequency 4~20mA signals
- Supports loop-powered 4~20mA operation for connected 2-wire, 3-wire, and 4-wire transmitters
- Hardened to operate in -40°C to +70°C (-40°F to +158°F)
- DIN rail or Wall Mount (Wall mount ears included)
- 12-48VDC and 125VDC models available with redundant power terminals
- Self-limiting analog input signal overcurrent (24mA) protection
- Designed, Engineered, and Assembled in the USA
- Covered by our Lifetime Warranty
Please see the product documentation for the complete list of specifications
Power:
Power Input: 12-48VDC (11-53VDC)
-A powering option: 125VDC (42~160V)
Dual Redundant Power Inputs – Polarity insensitive
Power Consumption: 8 Watts Maximum
DC Input Isolation (In/Out):
1.5kV *For -A power option models only
Overcurrent Protection:
1.0A Automatic Recovery
Operating Temperature:
-40˚C to +70˚C (-40˚F to +158˚F)
Storage Temperature:
-40˚C to +85˚C (-40˚F to +185˚F)
Humidity:
95% non-condensing
Dimensions:
H 4.93” x W 2.0” x D 3.93” (125mm x 51mm x 100mm) – not including DIN clip
Weight:
1.6 lbs. (0.73kg)
Mounting:
Standard T-35 DIN rail clip and wall mount ears (Included)
Compliance:
RoHS and REACH
Warranty:
Lifetime – Visit our warranty page for information and coverage details
Product Information
CAD Files
SM4-AO-420-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Smart 4 Analog (4~20mA) Output
| Short description | Part number | Price | |
|---|---|---|---|
| Smart 4 Analog Output, 4x 4~20mA Outputs, Powered by 12-48VDC | SM4-AO-420-1 | $835.00 |
- Add -A to the end of the part number for 125 VDC input power option and get your quote here.
Smart 4 Analog (4~20mA) Input Sensor
| Short description | Part number | Price | |
|---|---|---|---|
| Smart 4 Analog Input Sensor, 4x 4~20mA Inputs, Powered by 12-48VDC | SM4-AI-420-1 | $835.00 |
- Add -A to the end of the part number for 125 VDC input power option and get your quote here.
