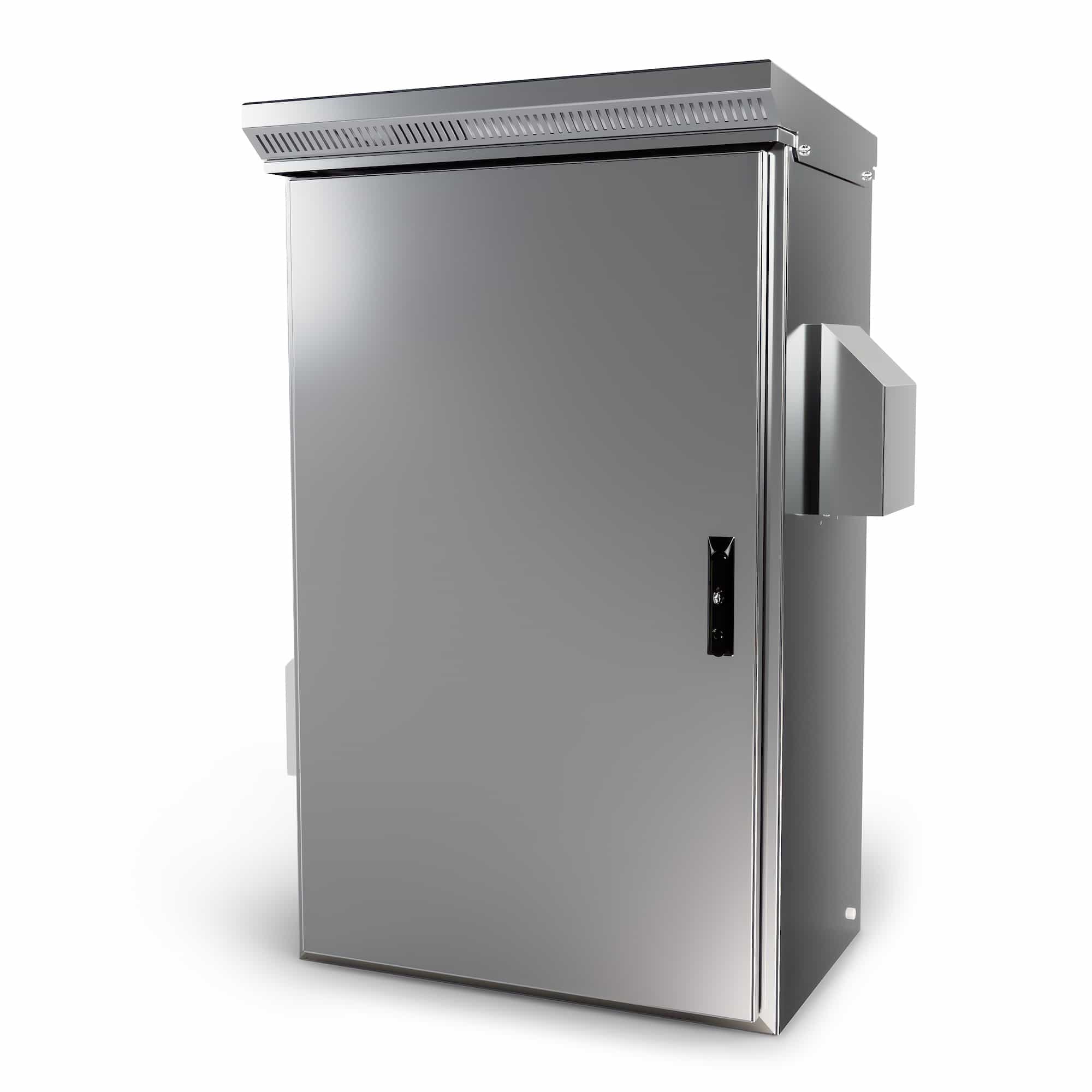

Engineered for Sensitive Equipment in Extreme Conditions
The RLH CORE (Communications Outdoor Rack Enclosure) series provides full NEMA 4/4X protection for critical equipment in harsh outdoor environments. Built from ultra rugged 304 stainless steel, these enclosures deliver superior corrosion resistance and long-term durability.

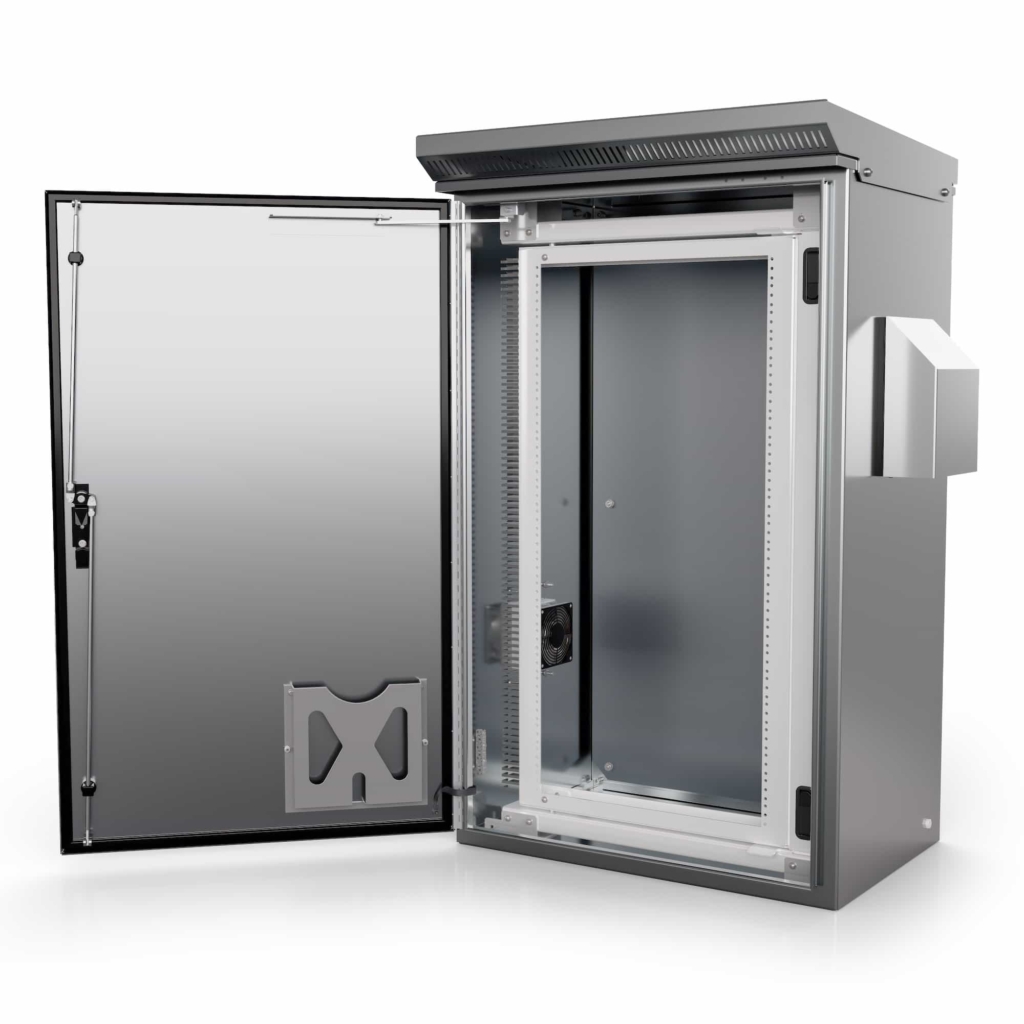

Each unit features an adjustable, swing open, 22RU EIA 19 inch equipment rack and aluminum alloy backboard for secure, accessible equipment mounting. Standard thermal management includes dual NEMA 4X vents with positive airflow fans and a vented solar shield. Additional features include weatherproof gasket door seals, ground bus bar, thermostat, and internal fan terminal blocks.
CORE enclosures are designed and manufactured in the USA and are BABA and BEAD compliant.
Features
- NEMA 4 weatherproof design for outdoor use
- Heavy duty, precision welded, stainless steel construction
- Dimensions: 48”H x 30”W x 20”D
- Aluminum Back Panel
- Padlockable Door Handle
- Hinged door with limit stop and document pocket
- Neoprene weather-tight door seal
- Swing out 22RU 19″ equipment rack
- Optional 2000 Btu Air Conditioner
- Available with 70 Amp Load Center or 100 Amp Load Center with Generator Plug
- Pole, wall or strut mountable
- Top solar shield
- Factory configurable options available
- Made in USA
Please see the product documentation for the complete list of specifications

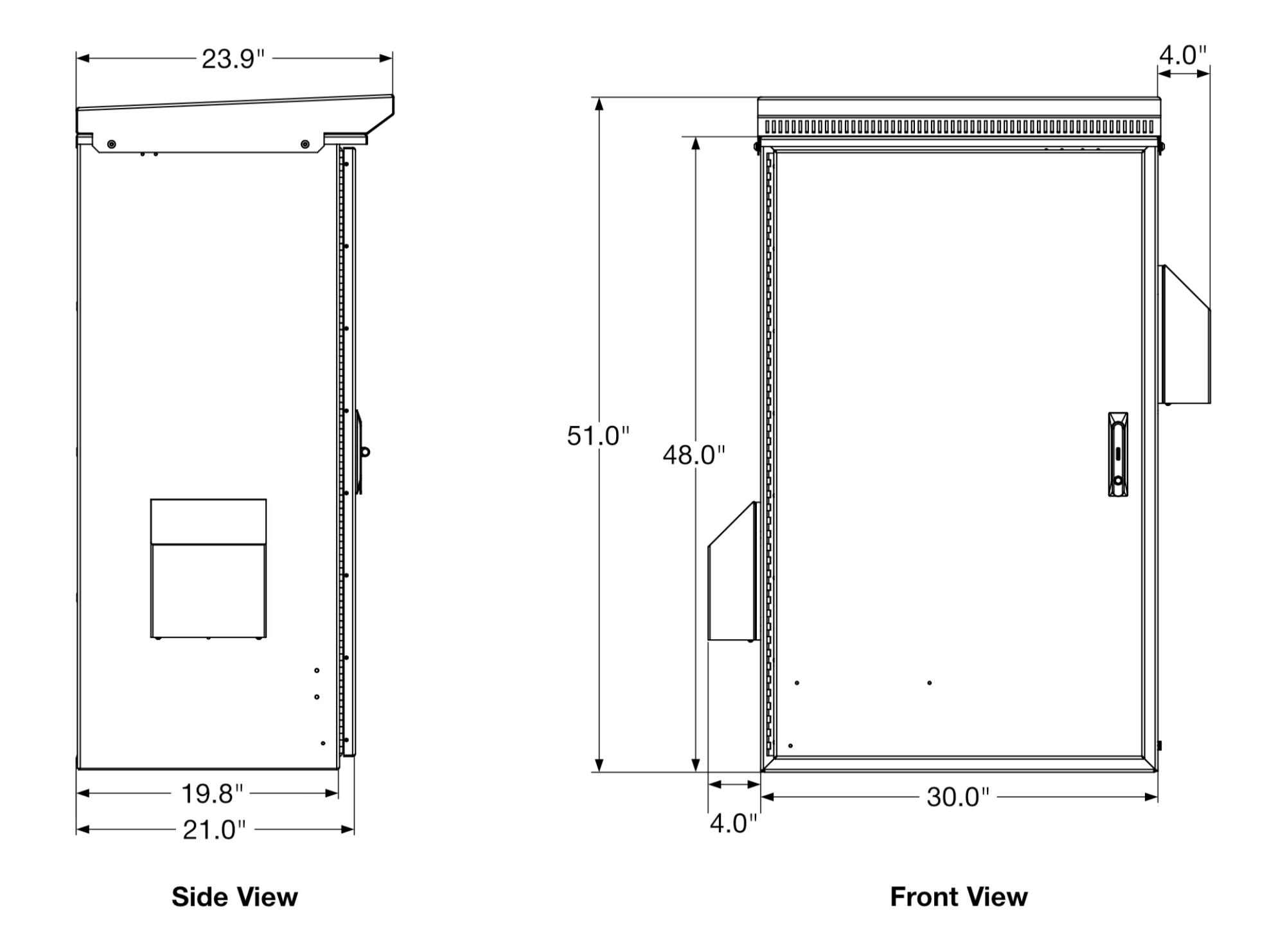

Dimensions:
1219.2mm (H) x 762 (W) x 502.9mm (D) (48.0″ H x 30.0″ W x 19.8″ D)
Construction:
Grade 304 Stainless Steel
Product Information
CAD Files
CORE-483020S-SAA-ASX-1
CORE-483020S-SUA-ASX-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

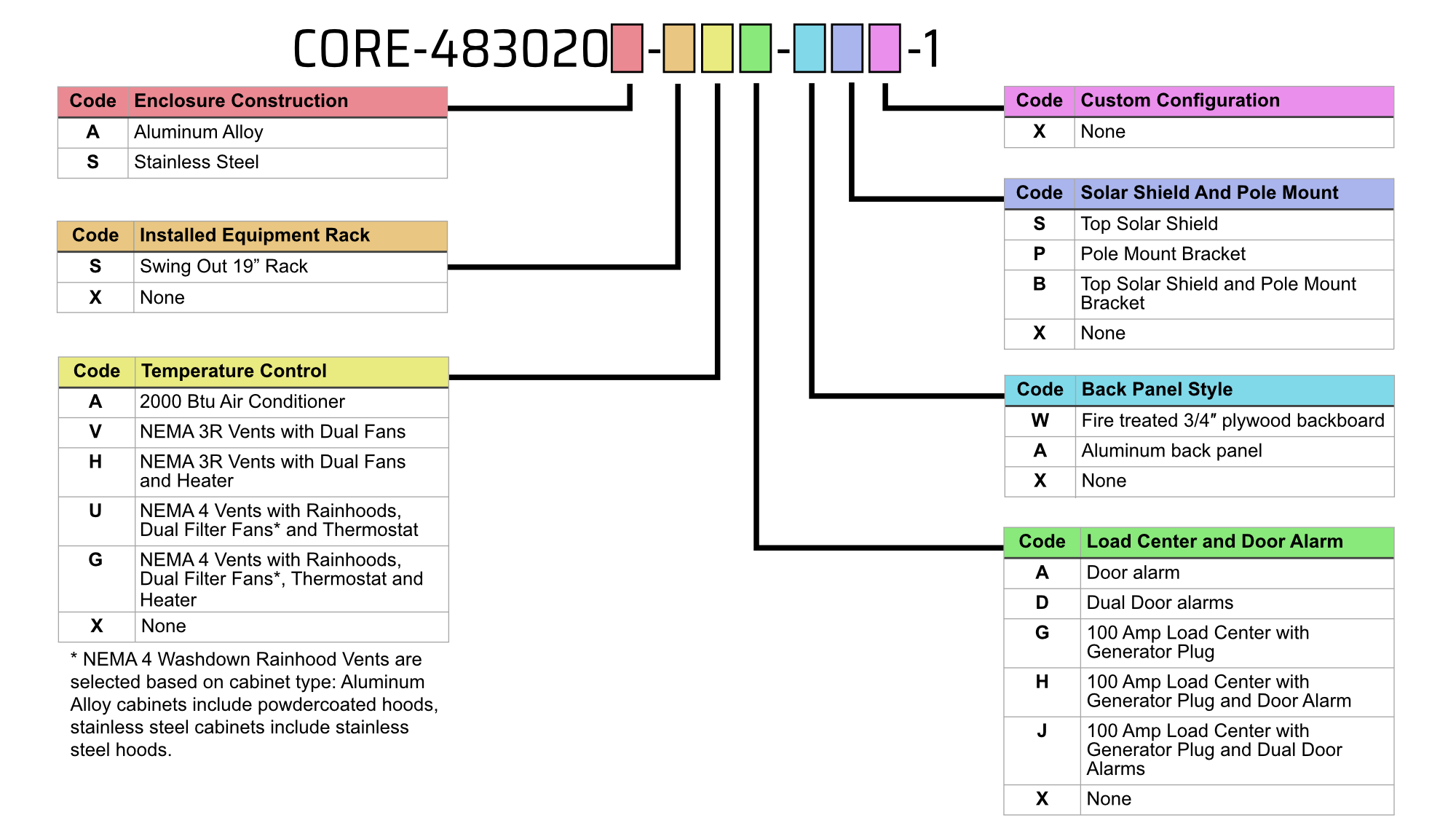

Ordering
CORE 48” x 30” x 20” Cabinet with 19” Equipment Rack
| Short description | Part number | Price | |
|---|---|---|---|
| 48x30x20" CORE Cabinet, Stainless Steel, 22RU Rack Swing Out Rack, NEMA 4X Vents/Fans, Door Alarm, Aluminum Back Panel, Top Solar Shield | CORE-483020S-SUA-ASX-1 | $6,200.00 | Get a Quote |
| 48x30x20" CORE Cabinet, Stainless Steel, 22RU Swing Out Rack, 2000 BTU/H Air Conditioner, Door Alarm, Aluminum Back Panel, Top Solar Shield | CORE-483020S-SAA-ASX-1 | $8,840.00 |
