Riser and Plenum Patch Cords with Preinstalled Connectors

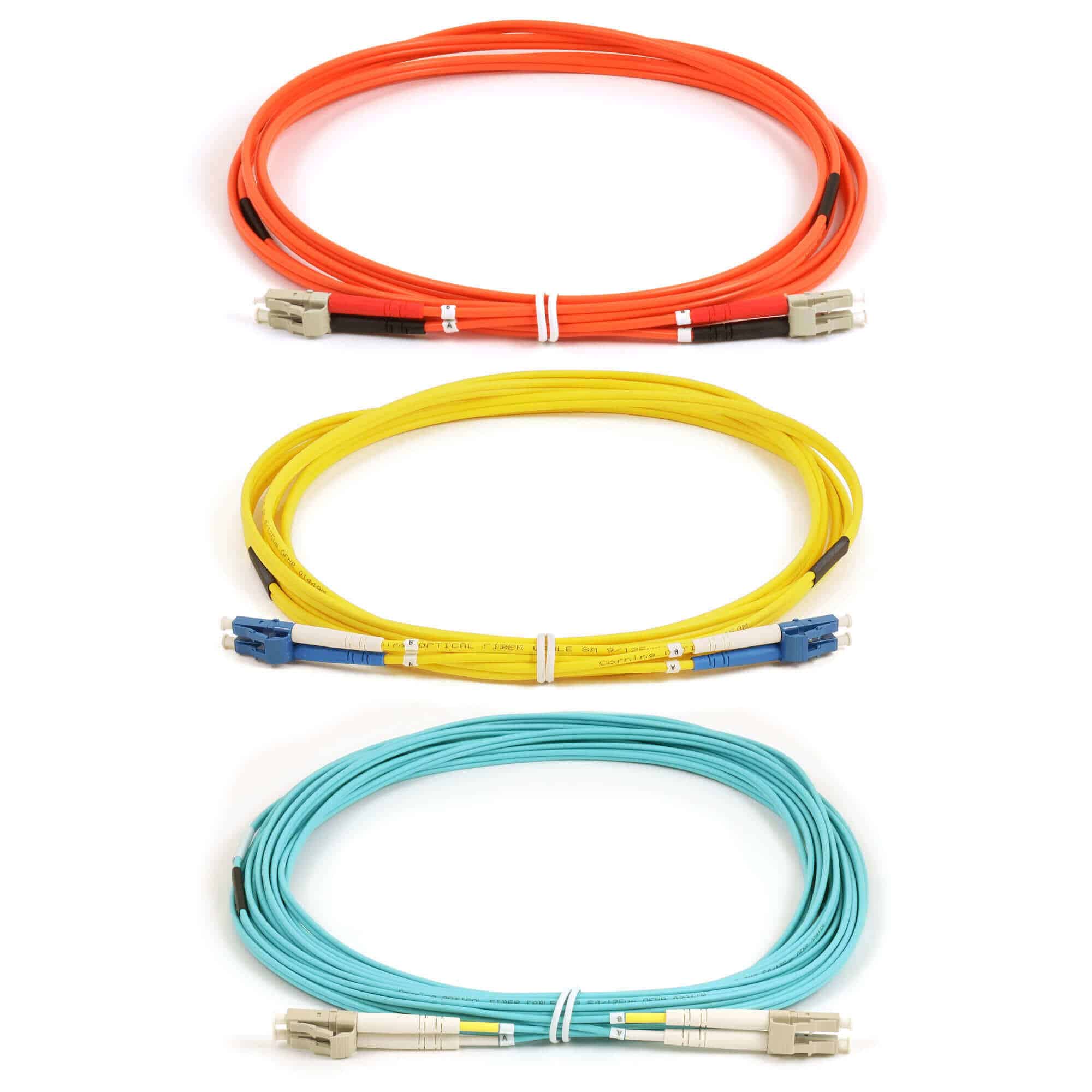

Our fiber optic patch cords are factory terminated, inspected and tested to meet industry standards. They are available in either riser or plenum flame rating, and have a 2.0mm or 3.0mm thick color-coded jacket.

Standard patch cords are available in simple or duplex style, have matching connectors at each end and are available in 1, 2, 3, 5, and 10 meter lengths. They feature low connector insertion loss to ensure proper operation upon installation. Duplex cable is conveniently labeled with an A or B to identify the connector at each end.

Specialty and custom patch cords are also available with different connectors at each end, or connectorless when used to terminate bulk fiber cables via mechanical or fusion splicing.

RLH patch cords are commonly used in communications, data centers and industrial control environments, and are ideal for reliable and rapid interconnection of any fiber optic based equipment.

Key Features

  • Standard 1,2,3,5 and 10 meter lengths
  • Custom lengths up to 99 meter lengths
  • Simplex or Duplex fiber
  • Includes individual test results
  • Available in Riser or Plenum rated jacketing
  • Meets or exceeds industry standards
  • Conveniently identified connector ends
  • Can be configured to meet your requirements
Fiber Cable Assemblies - Fiber Optic Patch Cords
Fiber Optic Patch Cords

Specifications

Cable Parameters Singlemode OM1 OM2 OM3 OM4
Fiber Count 1 or 2 1 or 2 1 or 2 1 or 2 1 or 2
Jacket Rating OFNR or ORNP OFNR or ORNP OFNR or ORNP OFNR or ORNP OFNR or ORNP
Jacket Diameter 2 mm or 3 mm 2 mm or 3 mm 2 mm or 3 mm 2 mm or 3 mm 2 mm or 3 mm
Jacket Color Yellow Orange Orange Aqua Aqua
Standard SM - G.652D OM1 OM2 OM3 - 10G-150 OM4
Wavelength (nm) 1310/1550 850/1300 850/1300 850/1300 850/1300
Attenuation Coefficient (dB/km) ≤0.34 @ 1310nm
≤0.20 @ 1550nm
≤2.7 @ 850nm
≤0.6 @ 1300nm
≤2.5 @ 850nm
≤0.6 @ 1300nm
≤2.5 @ 850nm
≤0.8 @ 1300nm
≤2.5 @ 850nm
≤0.8 @ 1300nm
Bandwidth (Min) (MHz/km) 200 @ 850nm
500 @ 1300nm
500 @ 850nm
500 @ 1300nm
OFL Bandwidth (MHz/km) ≥700 @ 850nm
≥500 @ 1300nm
≥3500 @ 850nm
≥500 @ 1300nm
Effective Modal (MHz/km) ≥950 @ 850nm
≥500 @ 1300nm
≥4700 @ 850nm
≥500 @ 1300nm
Mechanical Characteristics Singlemode Multimode (OM1 - OM4)
Simplex
2mm Jacket
Tension (N) Long Term - 60
Short Term - 100
Long Term - 60
Short Term - 100
Crush (N/10 cm) Long Term - 100
Short Term - 500
Long Term - 100
Short Term - 500
Min. Bend Radius Dynamic - 50 mm
Static - 30 mm
Dynamic - 50 mm
Static - 30 mm
Simplex
3mm Jacket
Tension (N) Long Term - 80
Short Term - 150
Long Term - 80
Short Term - 150
Crush (N/10 cm) Long Term - 100
Short Term - 500
Long Term - 100
Short Term - 500
Min. Bend Radius Dynamic - 60 mm
Static - 30 mm
Dynamic - 60 mm
Static - 30 mm
Duplex
2mm Jacket
Tension (N) Long Term - 80
Short Term - 150
Long Term - 90
Short Term - 150
Crush (N/10 cm) Long Term - 100
Short Term - 500
Long Term - 200
Short Term - 1000
Min. Bend Radius Dynamic - 50 mm
Static - 30 mm
Dynamic - 50 mm
Static - 30 mm
Duplex
3mm Jacket
Tension (N) Long Term - 160
Short Term - 300
Long Term - 160
Short Term - 300
Crush (N/10 cm) Long Term - 200
Short Term - 1000
Long Term - 200
Short Term - 1000
Min. Bend Radius Dynamic - 60 mm
Static - 30 mm
Dynamic - 60 mm
Static - 30 mm
Storage Temperature -20°C to +60°C -20°C to +60°C
Operating Temperature -20°C to +60°C -20°C to +60°C
Duplex Boot Color Simplex Boot Color
Cable Mode Connectore Connector Color 2 mm 3 mm 2 mm 3 mm Polish Insertion Loss Return Loss
Singlemode ST
SC
SC/APC
LC
LC/APC
FC
FC/APC
Metal
Blue
Green
Blue
Green
Metal
Metal
Blue/White
Blue/White
Blue/White
White*
White*
Black**
Green**
Blue/White
Blue/White
Blue/White
Blue/White
Blue/White
Black
Green
Blue
Blue
Blue
White
White
Black
Green
Blue
Blue
Blue
Blue
Blue
Black
Green
UPC
UPC
APC
UPC
APC
UPC
APC
≤ 0.30dB( 0.25dB↓) ≥ 50dB
≥ 50dB
≥ 60dB
≥ 50dB
≥ 60dB
≥ 50dB
≥ 60dB
OM1 ST
SC
LC
FC
Metal
Beige
Beige
Metal
Black/Red
Black/Red
Black/Red
Black**
Black/Red
Black/Red
Black/Red
Black
Black
Black
Black
Black
Black
Black
Black
Black
PC
PC
PC
PC
≤ 0.30dB( 0.2dB↓)


OM3 ST
SC
LC
FC
Metal
Beige
Beige
Metal
Black/Red
Black/Red
White*
Black**
Black/Red
Black/Red
Black/Red
Black
Black
Black*
White
Black
Black
Black
Black
Black
PC
PC
PC
PC
≤ 0.30dB( 0.2dB↓)


OM4 SC
LC
FC
Magenta
Magenta
Metal
Black/Red
White*
Black**
Black/Red
Black/Red
Black
Black
White
Black
Black
Black
Black
PC
PC
PC
≤ 0.30dB( 0.2dB↓)

*Connectors with white boots will have yellow/white heat shrink under the boot to indicate fiber A & B
** FC connectors will be tagged with A & B indicators
NOTE: Operating temperature for all cables is -20°C to +60°C
NOTE: Test Standards for all cables are NTT or Telcordia GR 326core

Fiber Part Numbers Singlemode OM1 OM2 OM3 OM4
Simplex 2 mm Jacket RLH-JSR2SM-**M RLH-JSR2MM-**M RLH-JSR2M5-**M RLH-JSR2MX-**M RLH-JSR2MC-**M
3 mm Jacket RLH-JSR3SM-**M RLH-JSR3MM-**M RLH-JSR3M5-**M RLH-JSR3MX-**M RLH-JSR3MC-**M
Duplex 2 mm Jacket RLH-JDR2SM-**M RLH-JDR2MM-**M RLH-JDR2M5-**M RLH-JDR2MX-**M RLH-JDR2MC-**M
3 mm Jacket RLH-JDR3SM-**M RLH-JDR3MM-**M RLH-JDR3M5-**M RLH-JDR3MX-**M RLH-JDR3MC-**M

** Indicates the length in meters and may range from 01 to 99
