Ultra Wide Input, 12V, 24V & 48V Output Models

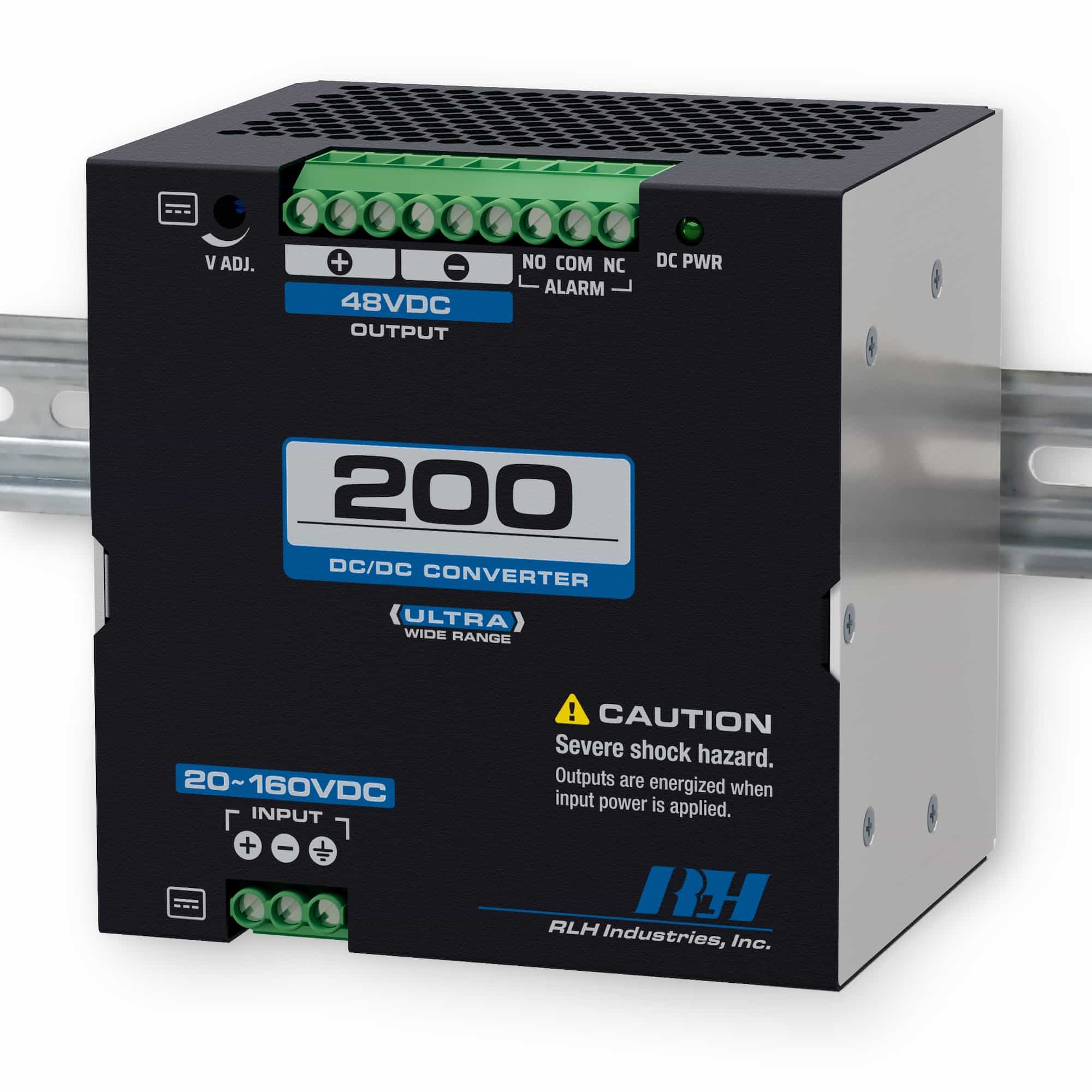

The RLH 200W DC/DC converter is a compact power supply designed to convert a DC Input voltage to a regulated and isolated DC output voltage. These converters have a unique ultra wide input, and are able to power a wide range of industrial equipment. They are available in three different models with standard output voltages commonly found in substations, Telco, and automation & control environments.
This rugged power supply features a tough aluminum alloy frame with a powder coated, galvanized steel housing for superior corrosion resistance. The DIN clip allows for easy mounting anywhere DIN rail can be placed.
Each model allows for adjusting the output voltage to ± 10% of the rated output voltage, a convenient LED power status indicator, and an alarm relay output for remote monitoring.
Features
- DIN rail mountable
- Built in protection: Over-voltage, Over-current, Over-temperature
- Isolated DC Output with ± 10% adjustment
- High DC input available for converting large battery array power to usable range for network devices
- Alarm relay output for remote/external monitoring
- Sturdy aluminum alloy and powder coated steel housing
- Hardened to operate in -40°C to +75°C environment
- Fanless, maintenance free operation with natural convection cooling
Please see the product documentation for the complete list of specifications
Construction
Aluminum alloy and powder coated steel

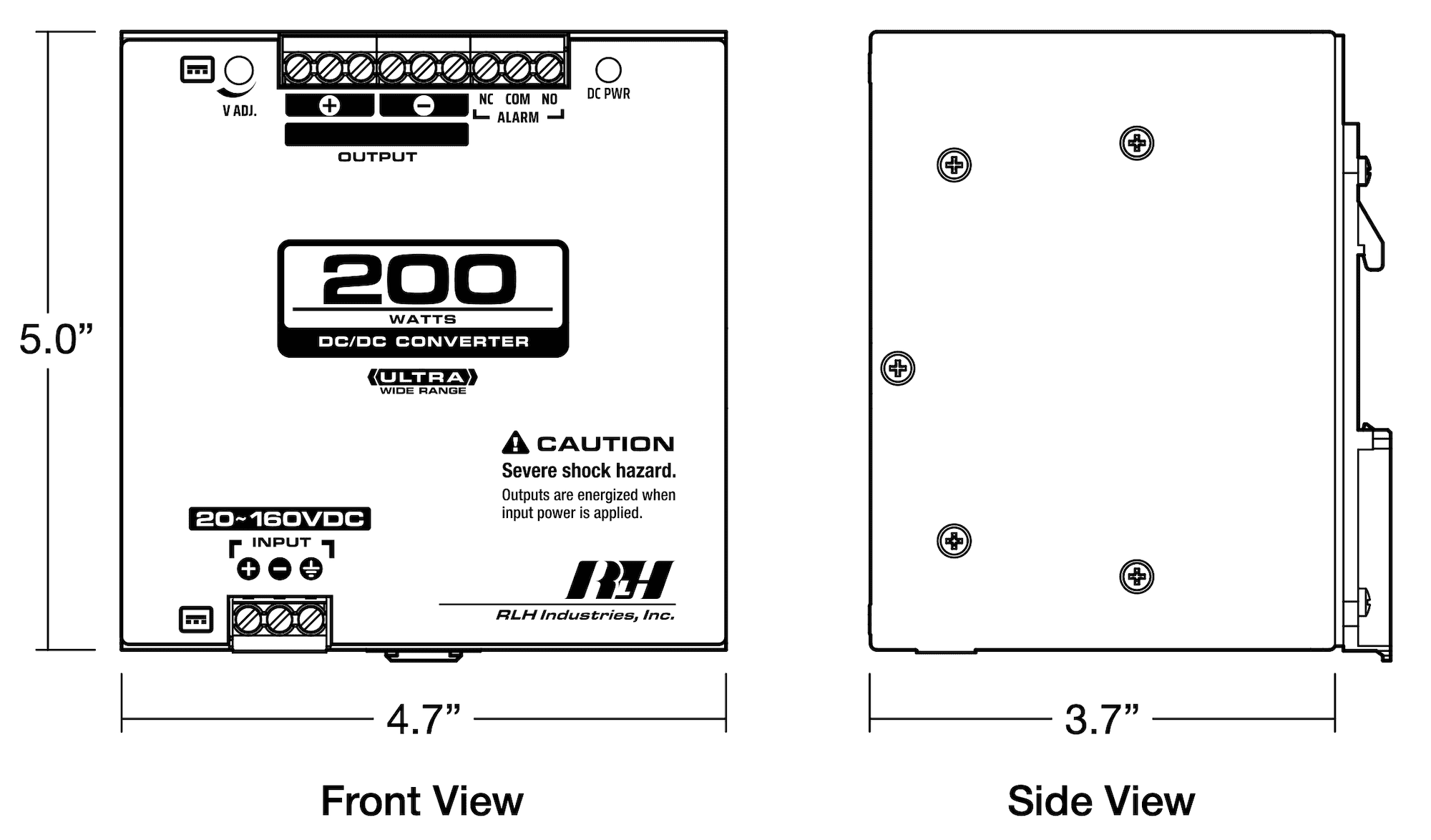

Dimensions
H 5.0 in. x W 4.7 in. x D 3.7 in. (127mm x 119mm x 94mm)
*Not including DIN bracket
Weight
2.4 lbs (1.1 kg)
Mounting Style
Standard 35mm DIN rail (TS-35)
Operating Temperature

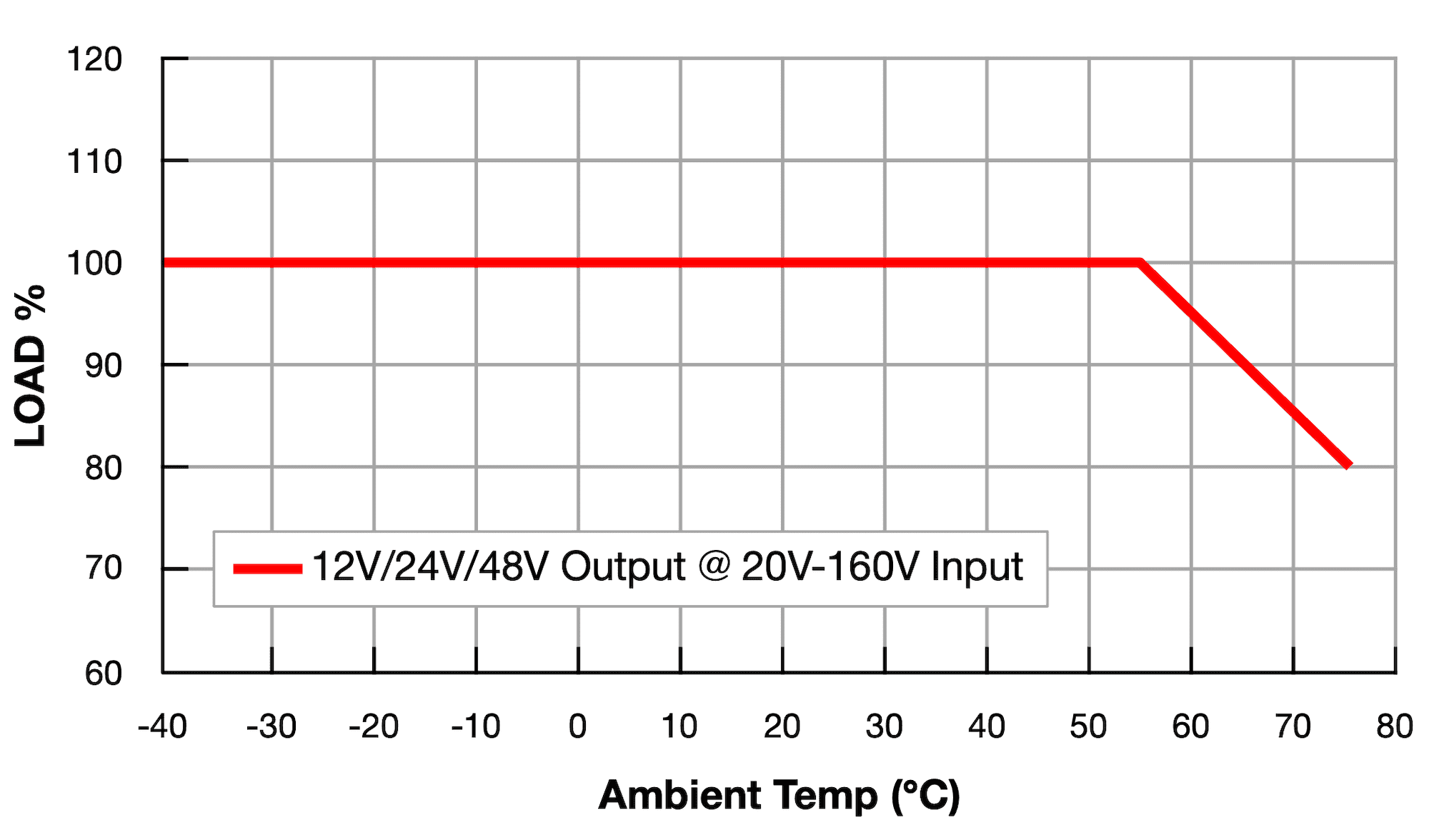

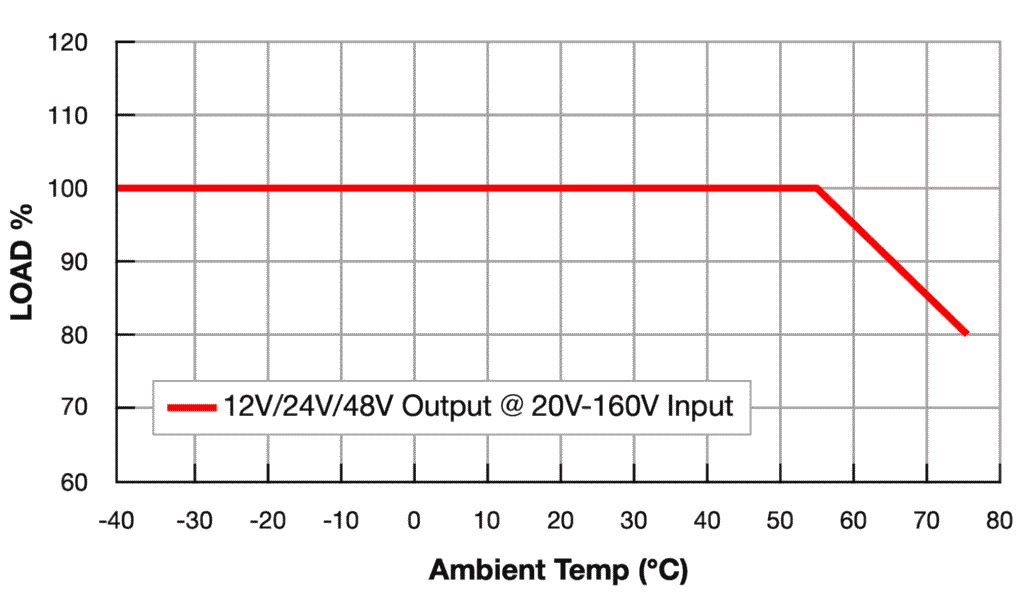

-40˚C to +75˚C (-40°F to +167°F) *See Derating Curve
Power Input
20-160VDC
Power Output
12VDC@16.7A
24VDC@8.4A
48VDC@4.2
MTBF
228,159 hours MIL-HDBK-217F2, GB, 25°C
Product Information
CAD Files
D200-UW48-1
D200-UW24-1
D200-UW12-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
200W DC/DC Converter
| Short description | Input Voltage | Output Voltage | Amps | Part number | Price | |
|---|---|---|---|---|---|---|
| 200 Watt DC/DC Converter, Input Voltage: 20~160VDC, Output Voltage: 12VDC, 16.7A | 20VDC~160VDC | 12VDC | 16.7A | D200-UW12-1 | $485.00 | |
| 200 Watt DC/DC Converter, Input Voltage: 20~160VDC, Output Voltage: 24VDC, 8.4A | 20VDC~160VDC | 24VDC | 8.4A | D200-UW24-1 | $485.00 | |
| 200 Watt DC/DC Converter, Input Voltage: 20~160VDC, Output Voltage: 48VDC, 4.2A | 20VDC~160VDC | 48VDC | 4.2A | D200-UW48-1 | $485.00 |
