Managed Light Layer 3, Industrial 30W PoE+
RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 8+2 Managed Gigabit SFP PoE+ Switch provides both copper and fiber Gigabit Ethernet access, along with PoE+ powering capabilities. This environmentally hardened Light Layer 3 switch is manageable and offers a wide array of configuration and monitoring options.
The PoE+ ports provide up to 30 Watts of power to end devices following the IEEE 802.3af/at standard. The switch also comes with redundant power inputs and fault alarm relay for reliability, and is covered by our 5 year warranty.
Features
System:
- 8 Ports of 10/100/1000 PoE+ (30W/Port), IEEE 802.3af/at
- 2 Dual Rate SFP ports – 100Mbps & 1Gbps
- Wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- 12-55VDC dual redundant power inputs
- Rugged case rated to IP-30
- DIN rail & wall mountable
- UL Listed, Class 1 Division 2 Hazardous Location Certified
- TAA, NDAA, REACH, CE, FCC Class A, and RoHS Compliant
- Meets NEMA TS2 Requirements for Traffic Control
- Covered by our 5 year warranty
Management:
- Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82

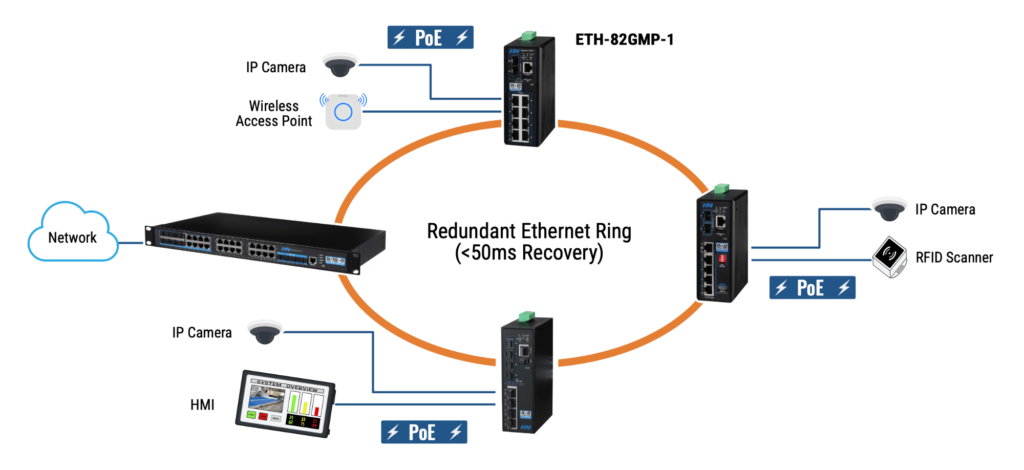

- Network Redundancy: ERPS v1/v2 (G.8032), STP/RSTP/MSTP
- Network Monitoring: SNMP v1/v2c/v3, RMON, sFlow, SPAN
- PoE Port Control & Monitoring
- Programmable alarm relay that alerts users of power/link/PoE failures
- Configuration via Web, Serial, Telnet, SSH, and SNMP
Please see the product documentation for the complete list of specifications
SFP Slots:
(2) Dual Rate SFP
Supports both 100 & 1000 Mbps speed modules
Ethernet Ports:
(8) 10/100/1000 Mbps PoE+
Ethernet Interface:
Auto-Negotiation, Full/Half-Duplex, Auto-MDI/MDIX
Max. PoE Power:
30 Watts (per PoE port)
Flex Power:
Max. PoE Output: 60W/12VDC, 120W/36~55VDC
Power Input:
Dual 12~55VDC redundant power inputs
Power Protection:
Over Current, Reverse Polarity Protection
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Operating Temperature:
-40°C ~ 75°C (-40°F ~ 167°F)
Construction:
Powder coated IP30 steel housing
Installation:

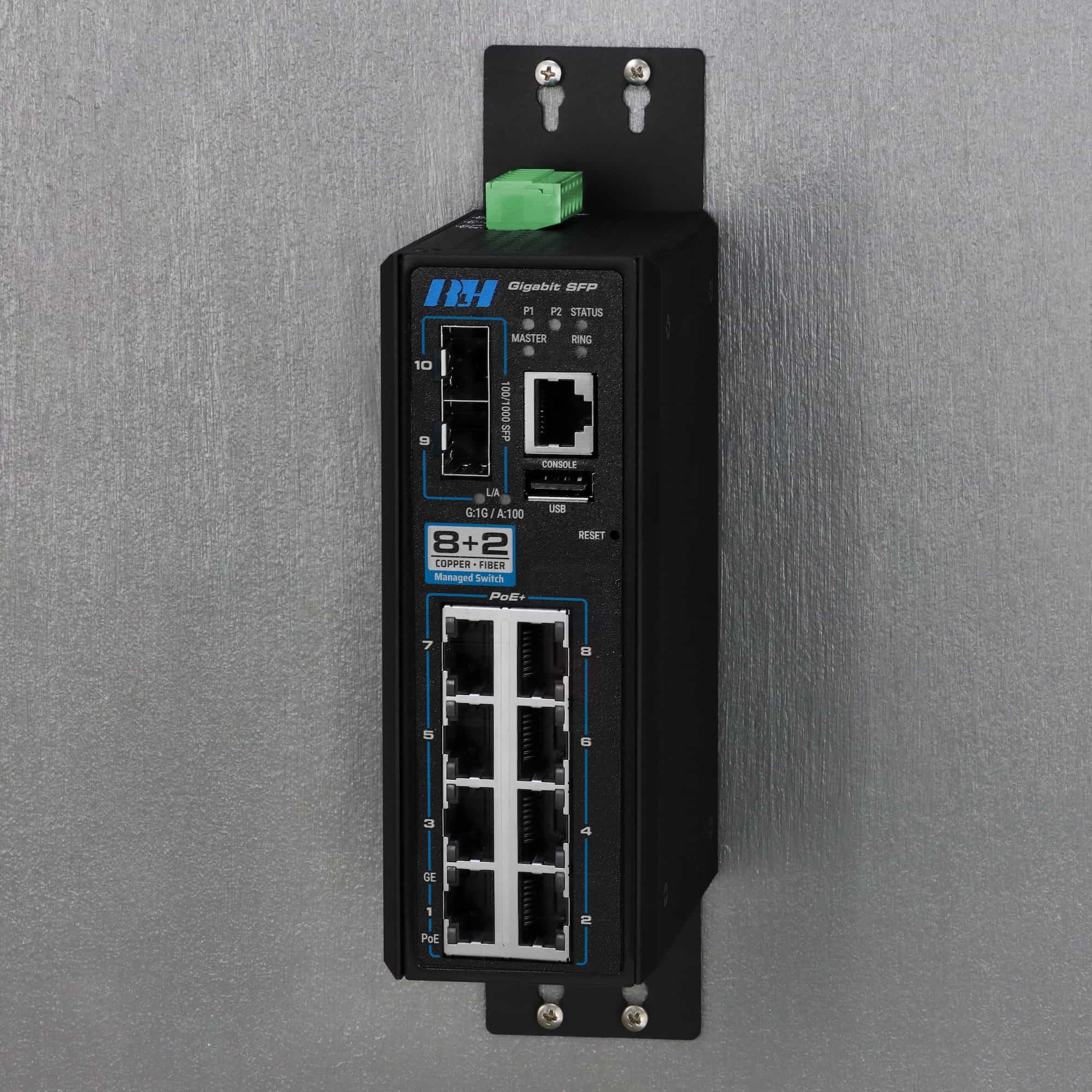

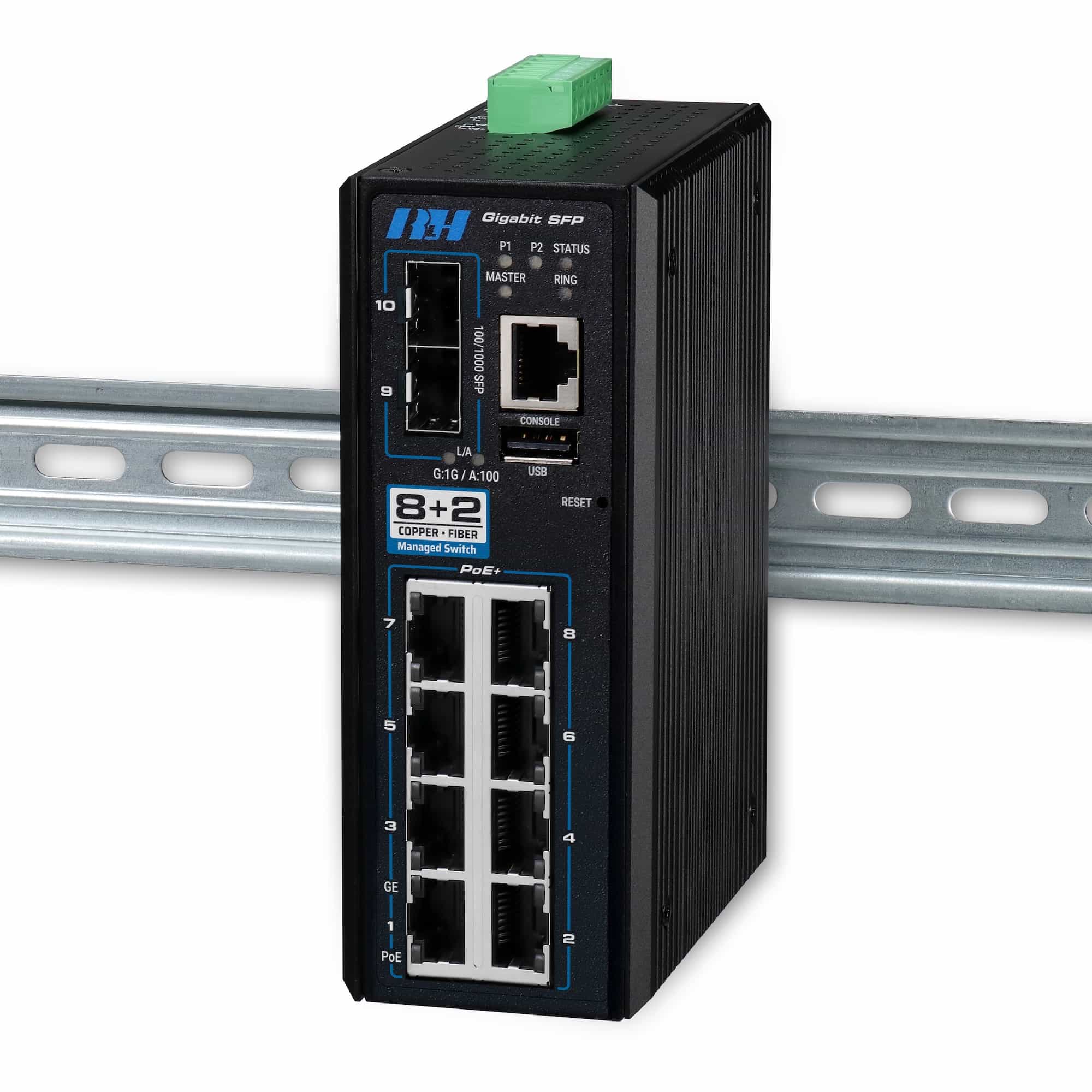

Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

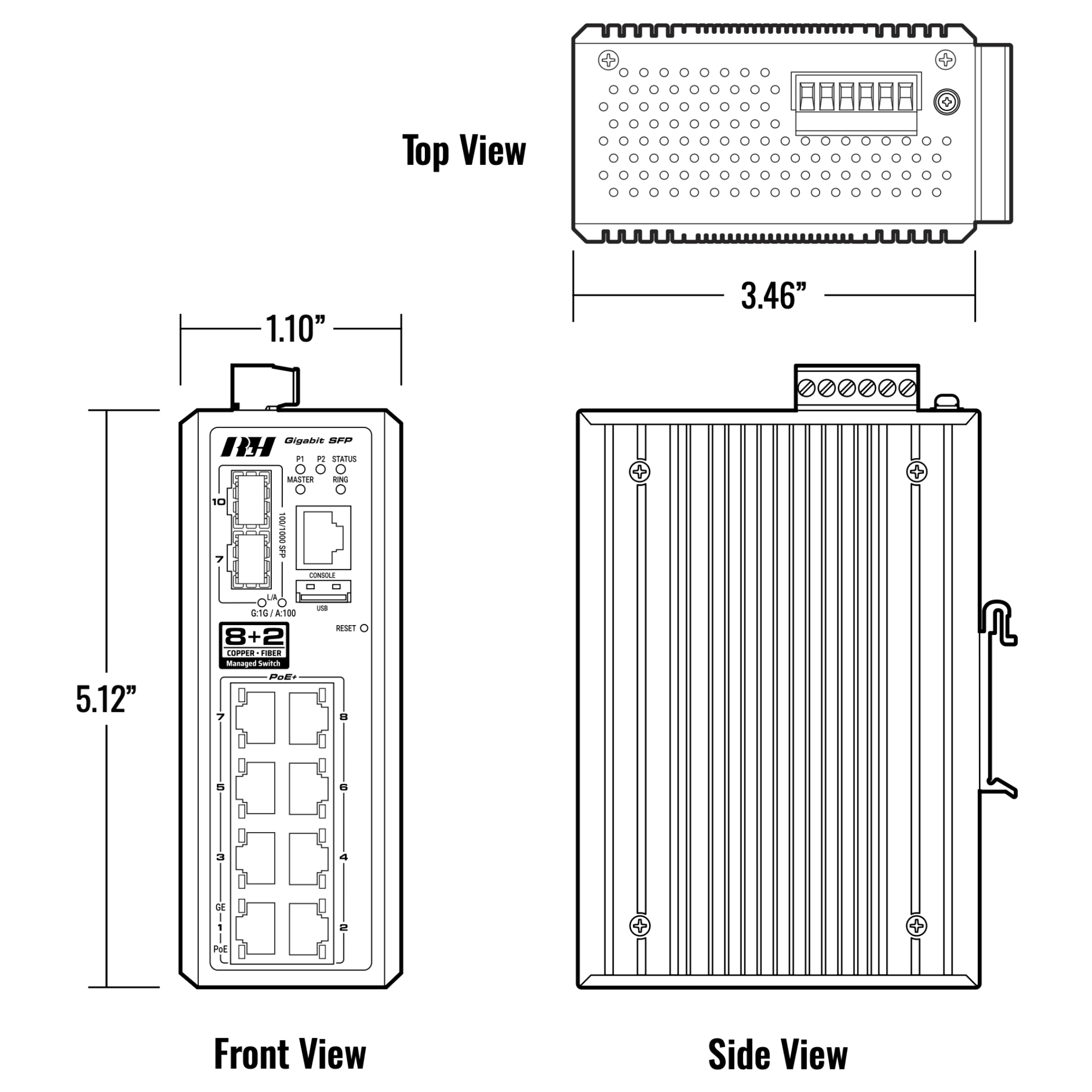

Dimensions:
2.13” (W) x 3.90” (D) x 5.59” (H), (54mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety:
CE, FCC Class A, UL 61010-1, UL 61010-2-201, File Number: E480850, UL Class 1/Div.2
Compliance:
NDAA, TAA, NEMA TS2 (ITS), RoHS and REACH compliant
MTBF:
866,424 hrs.
Warranty:
Limited 5 years
Product Information
CAD Files
ETH-82GMP-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 8+2 Managed Gigabit SFP PoE+ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 8+2 Gigabit PoE+ Managed Industrial Ethernet Switch, 2 Dual Rate SFP Slots, Power: 12-48VDC | ETH-82GMP-1 | $1,215.00 |
