Unmanaged Industrial PoE++ Gigabit Ethernet Switch
RLH hardened industrial Ethernet switches are engineered to provide reliable network performance in harsh environments. The Industrial 5 Port Gigabit Ultra PoE++ Switch provides Gigabit data transfer and can supply four Powered Devices (PDs) with up to PoE++-rated power. Four (4) of its five (5) copper Ethernet ports can supply PoE++.
Four (4) PoE++-rated ports can output up to 90 Watts of power in compliance with Type 4 IEEE 802.3bt power distribution, while the switch upholds a maximum power consumption budget of 190W. It also includes DIP switches that disable the PoE++ ports’ PoE functionality, decreasing the switch’s overall power consumption. This switch maintains redundant power input terminals with a corresponding alarm relay that informs users of lost redundant power and/or PoE faults.
The Industrial 5 Port Gigabit Ultra PoE++ Switch’s ability to supply PDs with PoE++ categorizes it as an ideal solution when deploying advanced surveillance systems, high-performance wireless networks, and industrial automation systems. Common power-hungry PDs integrated with this switch are monitored PTZ IP cameras, gate and building access controllers, wireless access points, and thin clients.
Features
- 4 Ports of Gigabit PoE++ (90W/Port), 1 Non-PoE Gigabit Port
- IEEE 802.3af/at/bt-compliant (Type 3 and Type 4 IEEE 802.3bt)
- Supports Mode A, Mode B, and 4-Pair Mode PoE power relaying
- PoE ON/OFF DIP switches for simplified PoE port control
- Status LEDs for input power, alarm relay, and PoE Load
- Alarm relay for redundant power loss and PoE faults
- Overload current protection and reverse polarity protection
- Hardened to operate in -40°F to +75°F (-40°C to +167°C)

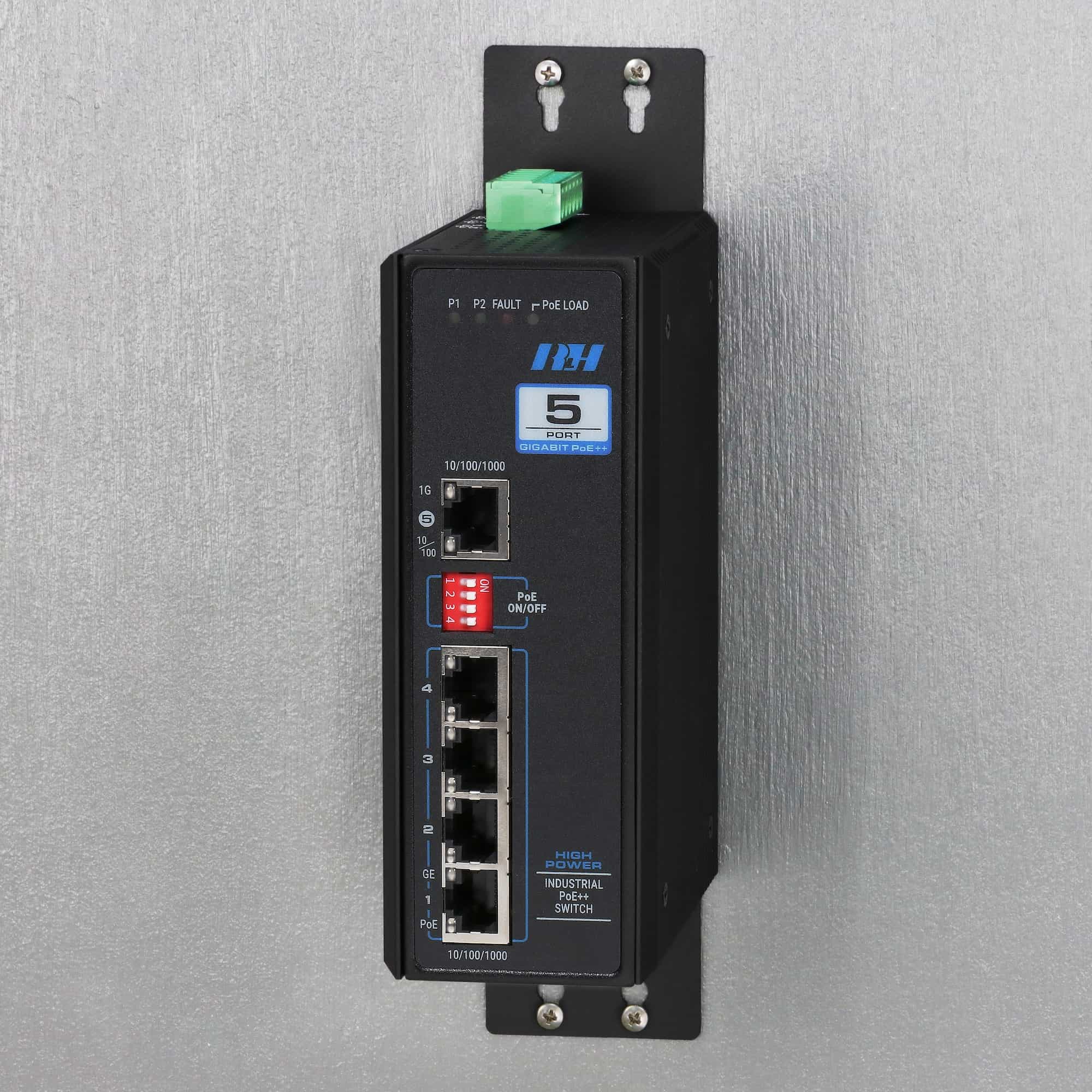

- DIN rail or Wall Mount (Wall mount ears included)
- Redundant Power Inputs (48~55VDC)
- Highly reliable 1,542,873-hour MTBF
- UL Listed, CE, FCC, RoHS, REACH, NDAA Compliant
- Limited 5-Year Warranty
Please see the product documentation for the complete list of specifications
Ethernet Ports:
(4) 10/100/1000 Mbps PoE++
(1) 10/100/1000 Mbps
Ethernet Interface:
Supports Jumbo Frames (10K), Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Max. PoE Power:
90 Watts (per PoE port)
Power Input:
Dual 48~55VDC redundant power inputs (6 position pluggable terminal block)
Power Protection:
Over Current, Reverse Polarity Protection
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Operating Temperature:
-40°C ~ 75°C (-40°F ~ 167°F)
Construction:
Powder coated IP30 steel housing
Installation:

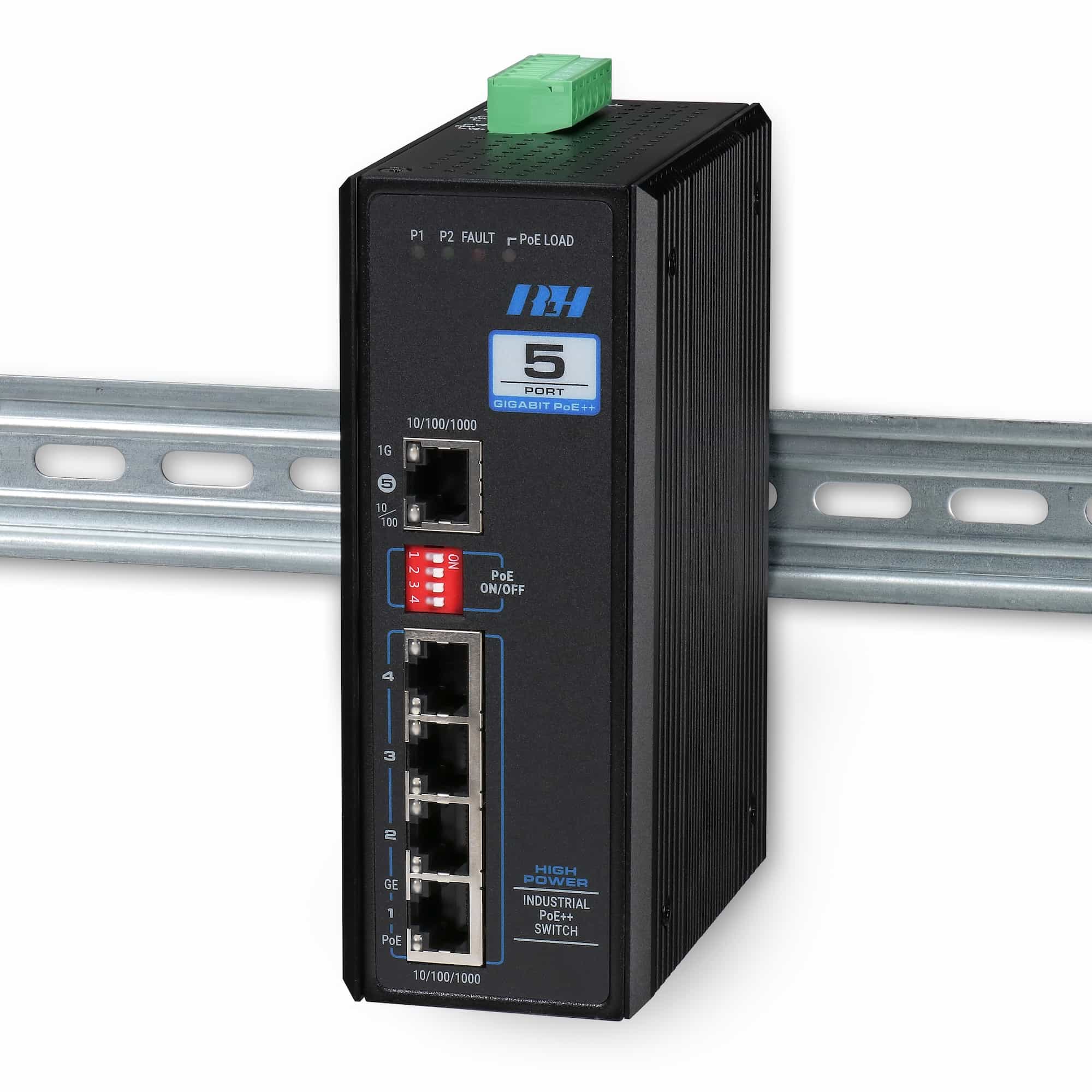

Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

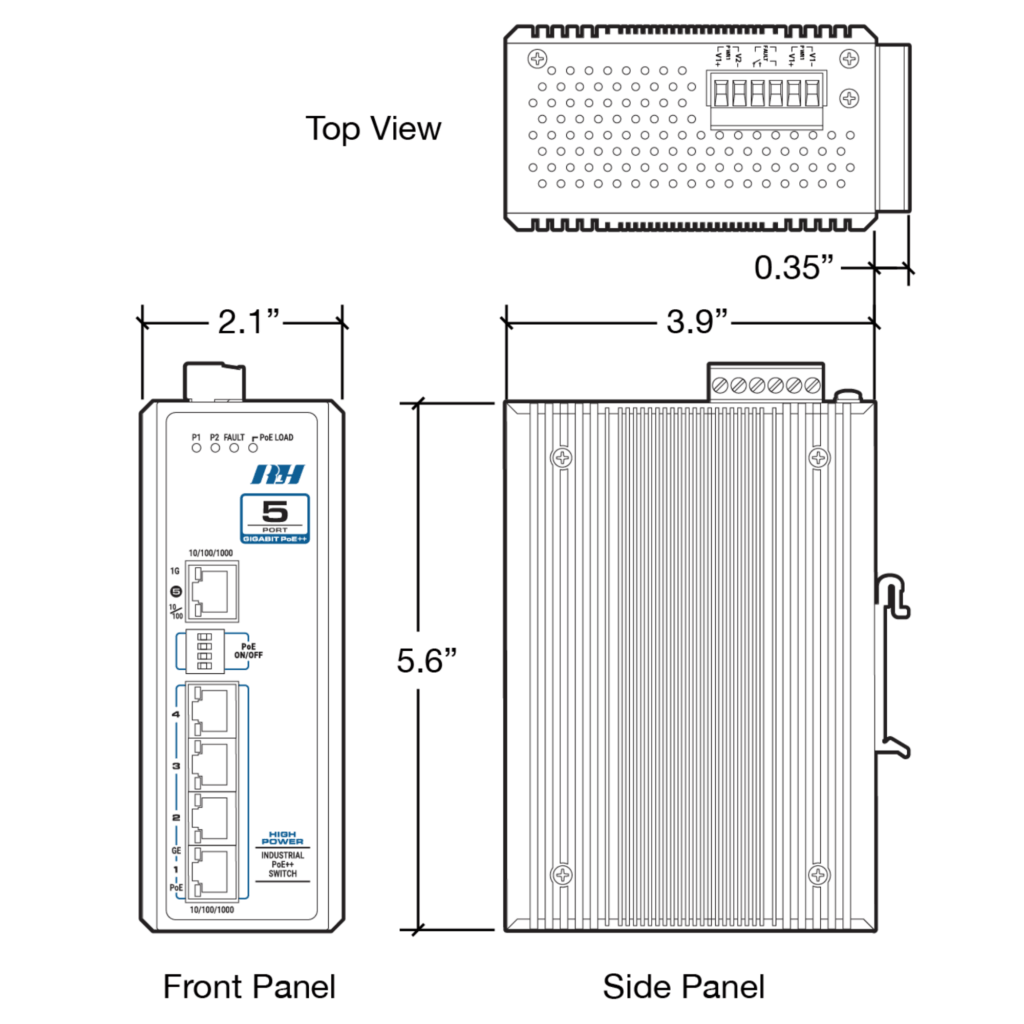

Dimensions:
2.12” (W) x 3.90” (D) x 5.59” (H), (54mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety:
CE, FCC Class A, UL 61010-1, UL 61010-2-201, File Number: E544369, CE, FCC, UL Class 1/Div.2
Compliance:
NDAA, TAA, RoHS and REACH compliant
MTBF:
1,542,873 hrs.
Warranty:
Limited 5 years
Product Information
CAD Files
ETH-5GP-BT-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 5 Port Gigabit Ultra PoE++ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 5-Port Gigabit IEEE 802.3bt PoE++ Industrial Ethernet Switch | ETH-5GP-BT-1 | $795.00 |
