Transmit up to 2.5Gbps Ethernet and 90W PoE Over Copper, and up to 10Gbps Ethernet Over Fiber

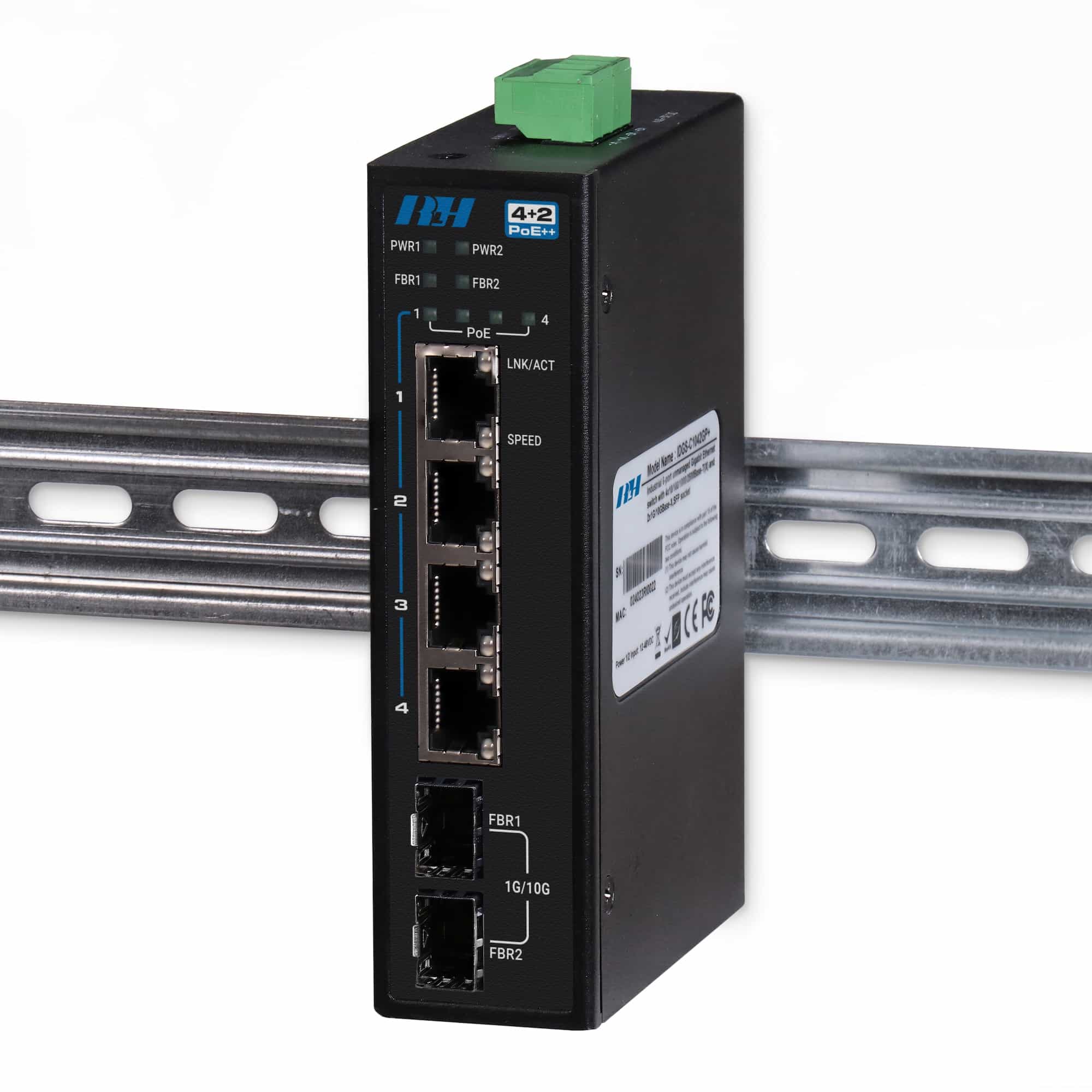

The RLH 4+2 Industrial Unmanaged 2.5G SFP+ Ultra PoE++ Switch is a high-performance, high-powered networking solution built to sustain critical communications in harsh environments.
It is equipped with (4) 2.5G-rated copper Ethernet ports, and (2) dual-rated 1G/10G SFP+ Ethernet ports for accommodating all industrial and enterprise network bandwidth needs.

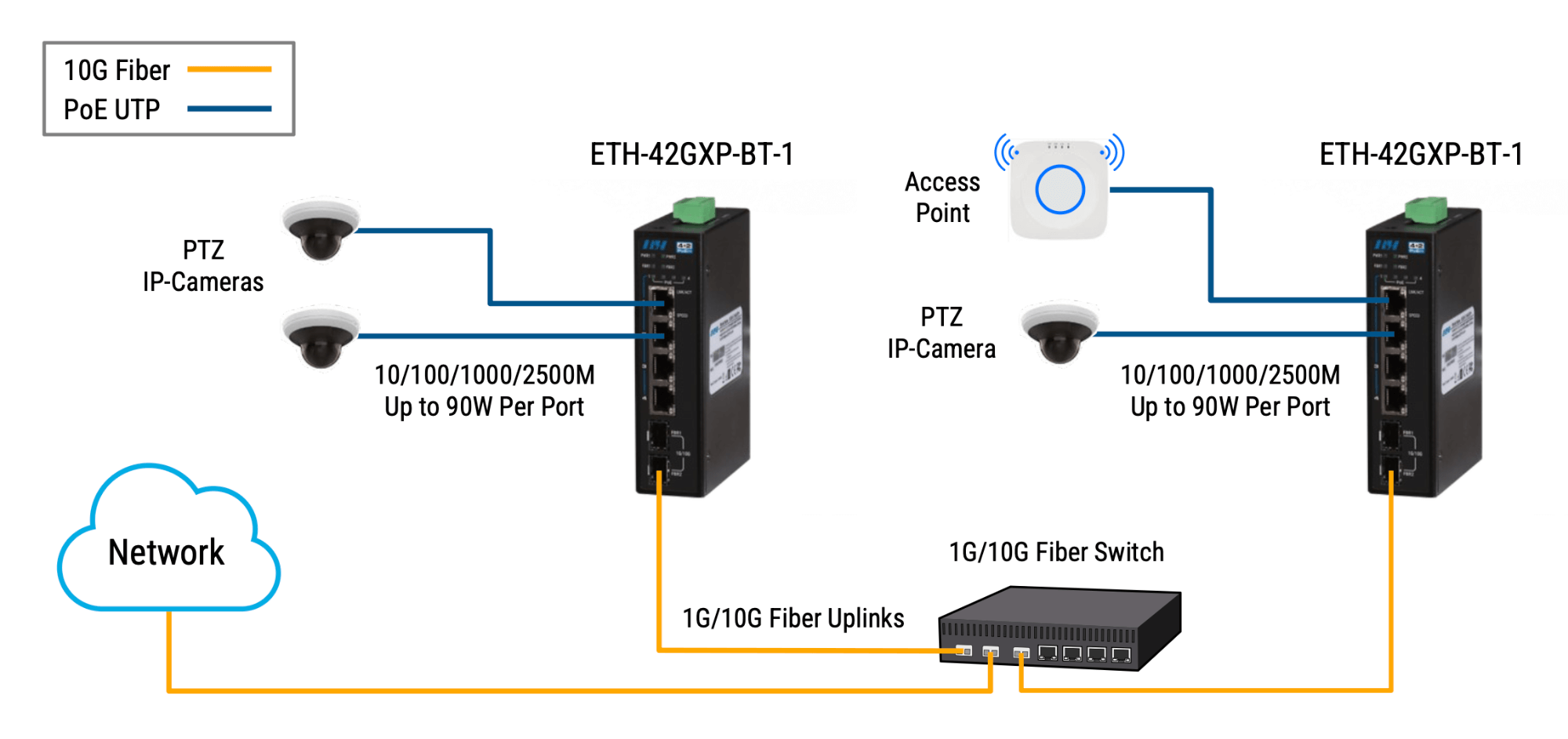

The switch’s (4) available PoE++ ports can provide up to 90W of Power, optimizing its role in applications that include high-powered PTZ IP cameras, gate and building access controllers, wireless access points, and thin clients.
This Ethernet switch is DIN rail mountable, hardened to operate in -40°C to 75°C (-40°F to +158°F) conditions, and covered by our limited 5 Year Warranty.
Features
- 4 Copper Ports, 10/100/1000/2500Mbps Ethernet
- 2 SFP/SFP+ Ports, 1G/10G Ethernet
- 4 Ports PoE++ (90W/Port), IEEE 802.3bt
- Hardened to operate in -40°F to +167°F (-40°C to +75°C)
- 52~57VDC redundant power inputs
- DIN Rail mountable
- UL Listed, RoHS Complaint, FCC Part 15 B Class A
- Covered by our limited 5 Year Warranty
Please see the product documentation for the complete list of specifications
Power Input:
52~57VDC redundant power inputs (4 position pluggable terminal block)
Power Output:
Up to 90W per port, 240W Maximum PoE Power Budget
Power Consumption (typ.):
<10W
Power Protection:
Current Overload and Reverse Polarity Protection
Construction:
Metal, IP40 protection
Mounting:
Standard DIN rail (TS-35)

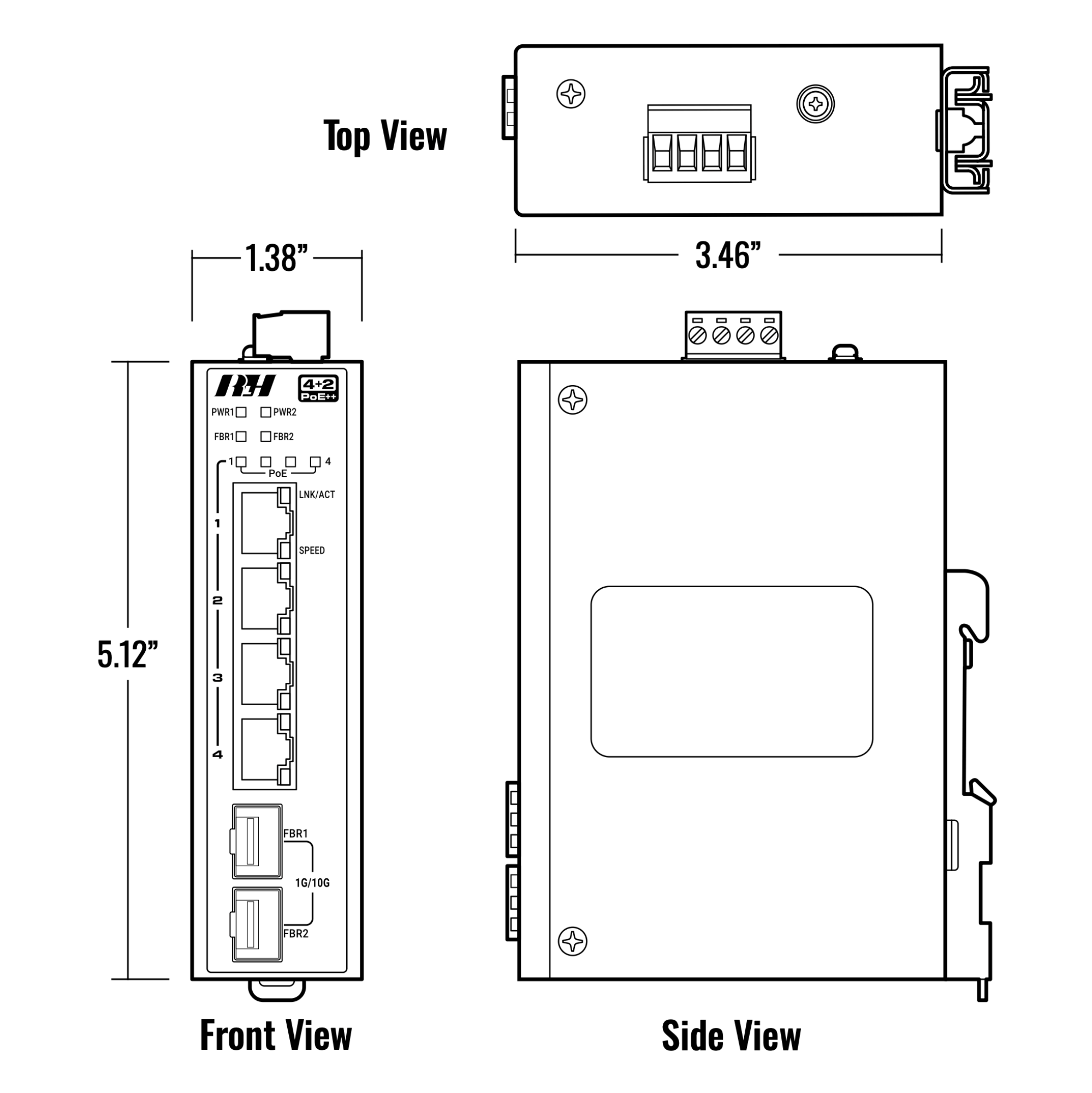

Dimensions:
1.38″ (W) x 3.46″ (D) x 5.12″ (H), (35mm x 88mm x 130mm)
*Not including connectors or DIN bracket
Operating Temperature:
-40°C to 75°C (-40°F to 167°F)
Product Information
CAD Files
ETH-42GXP-BT-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 4+2 Gigabit SFP+ Ultra PoE++ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 4+2 Gigabit PoE++ (90W) Unmanaged Industrial Ethernet Switch, 2 Dual Rate 1G/10G SFP/SFP+ Slots, Powering Range: 48-55VDC | ETH-42GXP-BT-1 | $545.00 |
