MAC address port security, ARP inspection and DHCP snooping provide additional security
RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 8+2 Managed Gigabit SFP switch provides both copper and fiber Gigabit Ethernet access. This environmentally hardened Light Layer 3 switch is manageable and offers a wide array of configuration and monitoring options.
Our feature rich industrial switch meets the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
System:
- Hardened design has a wide operating temperature range -40°C to +75°C (-40°F to +167°F)
- 2 Dual Rate SFP ports – Fast Ethernet & Gigabit
- 8 Ports of Gigabit Ethernet
- 9.6K Bytes Jumbo Frame Support
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- Redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Management:
- Static Routing – Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82
- Configuration via Web, Serial, Telnet, & SSH
- Supports SNMPv3
- Supports IEEE 802.1q Vlans
- Port Mirroring, Control, & Monitoring
Please see the product documentation for the complete list of specifications
SFP Slots:
(2) Dual Rate SFP
Supports both 100 & 1000 Mbps speed modules
Ethernet Ports:
(8) 10/100/1000 Mbps
Ethernet Interface:
Supports Jumbo Frames (9.6Kb), Auto-Negotiation, Auto-MDI/MDIX
Power Input:
Dual 12~48VDC redundant power inputs (6 position pluggable terminal block)
Power Protection:
Over Current, Power Failover, Reverse Input Polarity
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Operating Temperature:
-40°C ~ 60°C (-40°F ~ 140°F)
Construction:
Powder coated IP30 steel housing
Installation:
Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

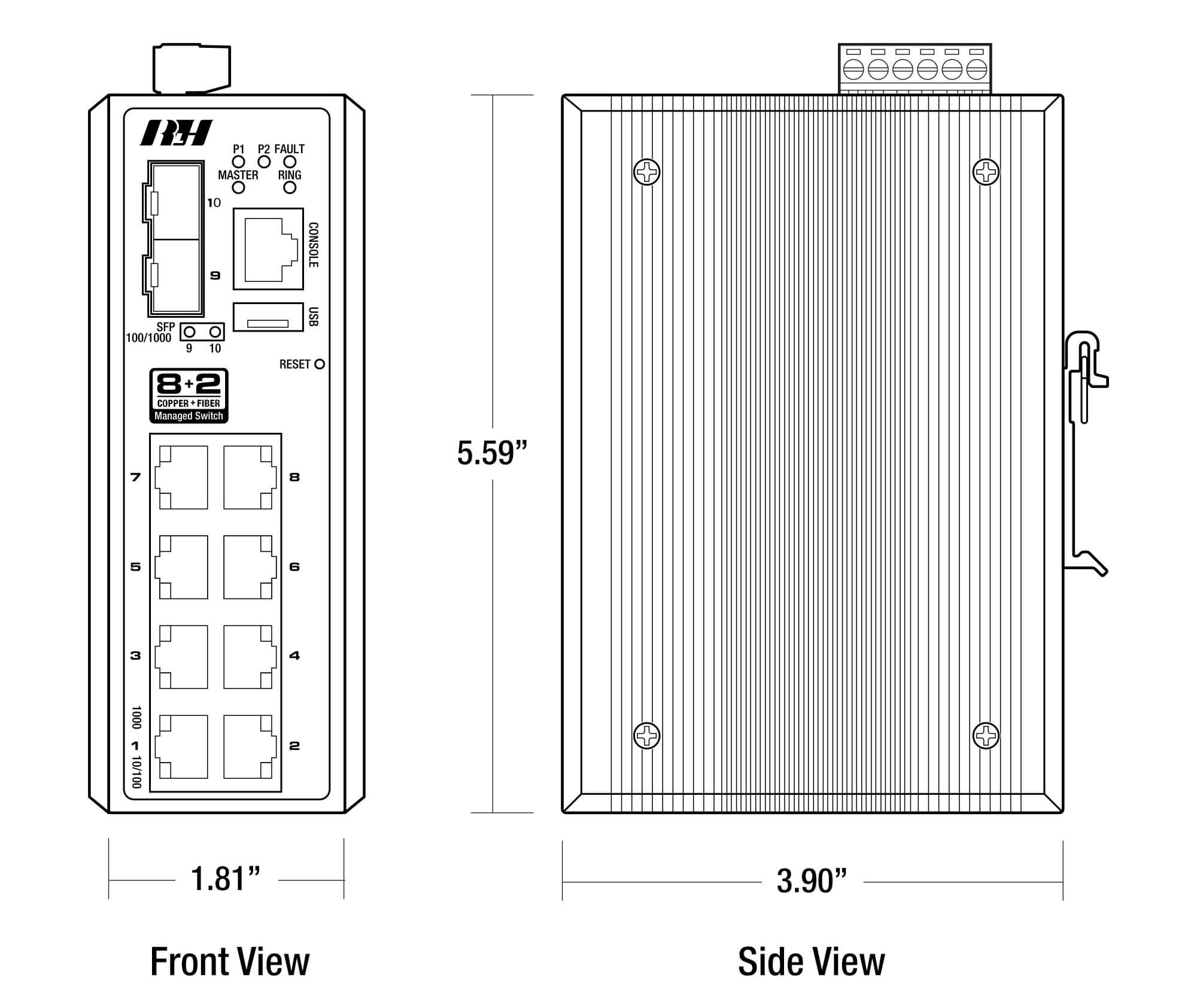

Dimensions:
2.13” (W) x 3.90” (D) x 5.59” (H), (54mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety:
CE, FCC Class A, UL 61010-1, UL 61010-2-201, File Number: E480850, UL Class 1/Div.2, ISA 12.12.01
Compliance:
NDAA, TAA, NEMA TS2 (ITS), RoHS and REACH compliant
MTBF:
571,361 hrs.
Warranty:
5 Years
Product Information
CAD Files
Guide
ETH-82GM-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
8+2 Managed 10/100/1G SFP Industrial Switch
| Short description | Part number | Price | |
|---|---|---|---|
| Managed Switch, 8 Gigabit RJ-45 Ports, 2 Dual Rate SFP Ports, Powering Voltage 12-48 DC | ETH-82GM-1 | $965.00 |
