Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
RLH industrial Ethernet switches are engineered to provide reliable network performance in harsh environments. The 4+2 Managed Fiber Switch is an industrial switch with 4 10/100BASE-T ports and 2 fiber ports.The 100BASE-FX fiber ports support single and dual fiber configurations, singlemode and multimode, ST and SC connectors. This fully manageable Light Layer 3 switch, combines the functionality of a Layer 2 switch with basic Layer 3 routing capabilities.
RLH Switches are engineered with robust features and construction to meet the demands of a variety of industrial applications. The switch includes standard design features such as 12~48VDC dual redundant power inputs, fault alarm relay, DIN rail and wall mounting hardware, and -40°C to 75°C operating temperature range, and is an ideal solution for a wide range of utility and automation network environments.
Features
System:
- 4 Fast Ethernet ports
- 2 Fiber 100Base-FX ports, SC or ST
- Hardened to operate in -40°C to +75°C (-40°F to +167°F)
- 12~48VDC Dual redundant power inputs
- Built-in alarm relay
- Rugged IP30 housing, DIN rail & wall mountable
- UL, CE, and FCC certification
- TAA and NDAA compliant
- NEMA TS2 (ITS) compliant
- 5 Year Warranty
Management:
- Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, Ipv4/Ipv6, and DHCP Option 66/67/82
- Configuration via Web, Serial, Telnet, & SSH
- Supports SNMPv3
- Supports IEEE 802.1q Vlans
Please see the product documentation for the complete list of specifications
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(4) 10/100
Fiber Ports:
(2) 100BaseFX, ST or SC Connectors
Fiber Wavelength:
Multimode: 1310nm
Singlemode: 1310nm, 1550nm
*Other wavelengths available by request
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
Management:
Light Layer 3 – See User Guide for Complete Management Details

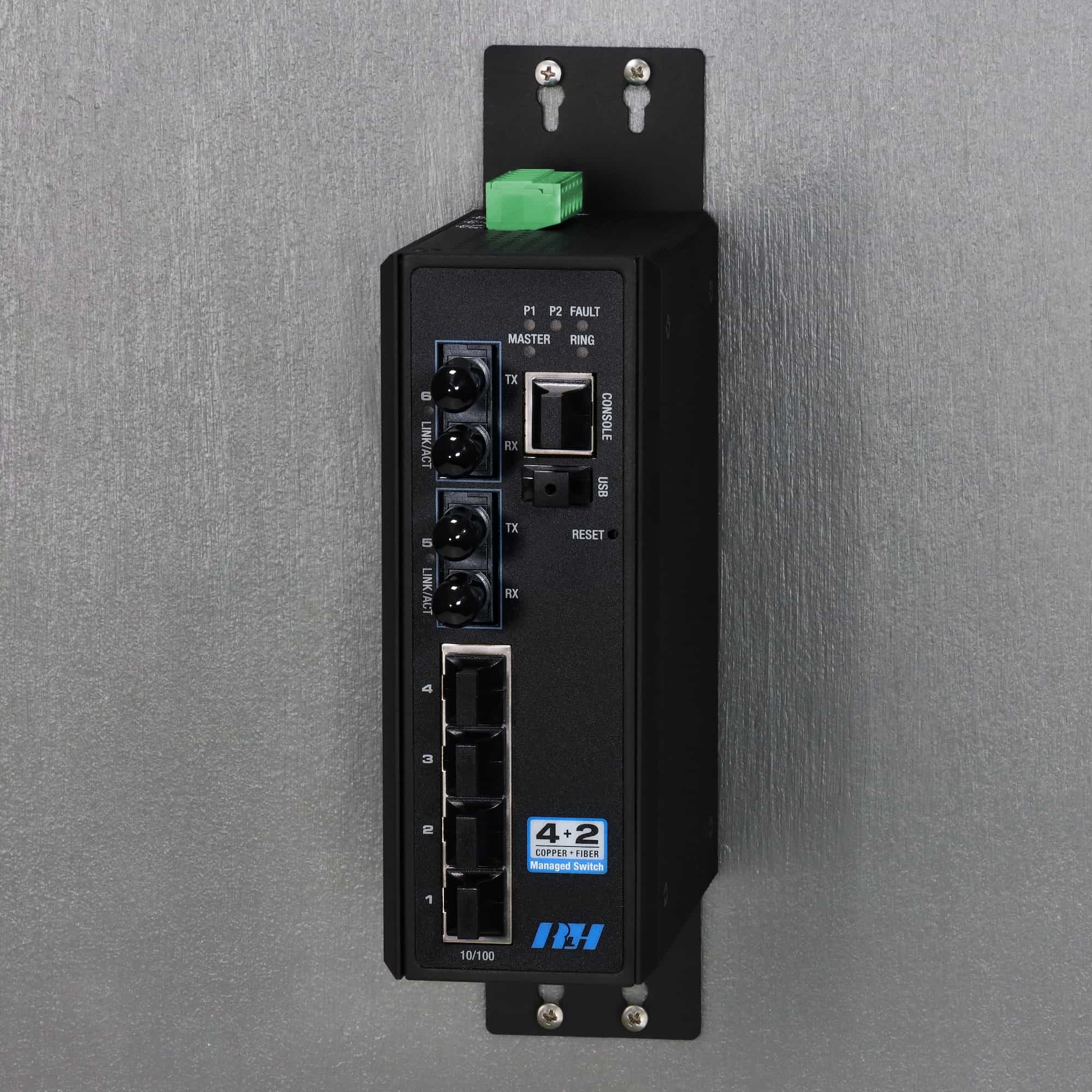

Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wall mount brackets included

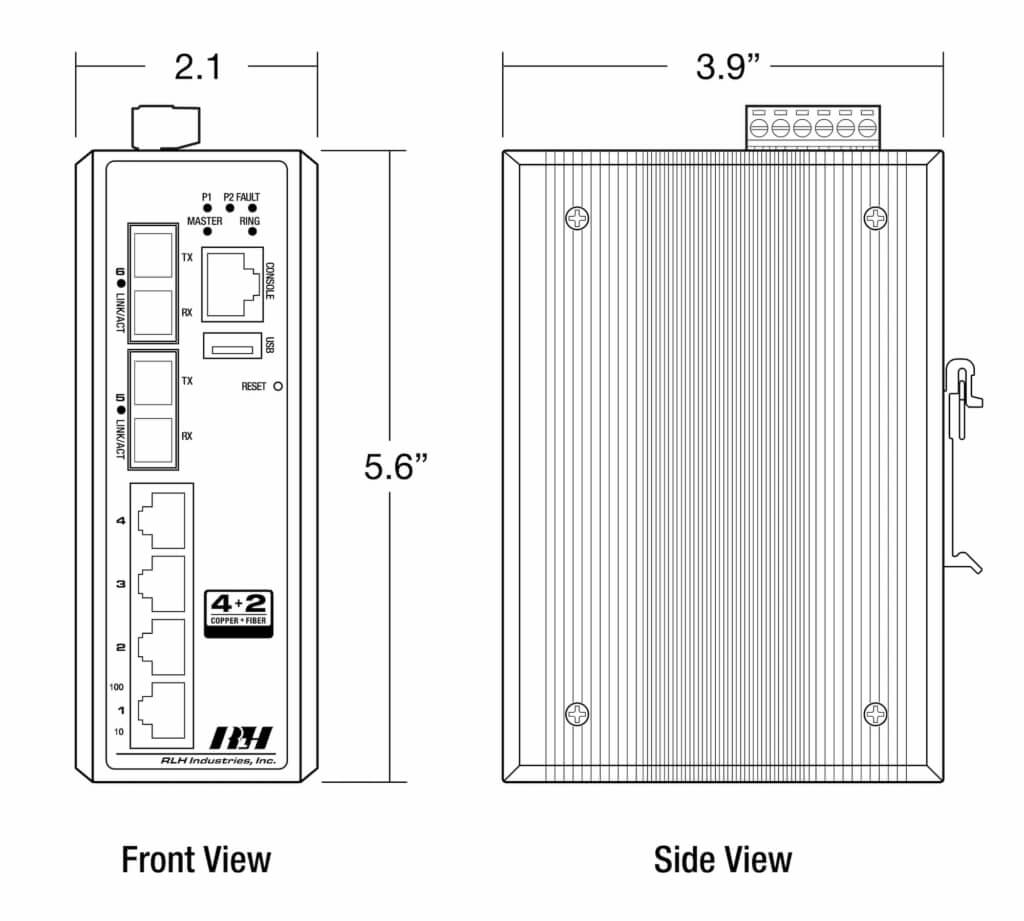

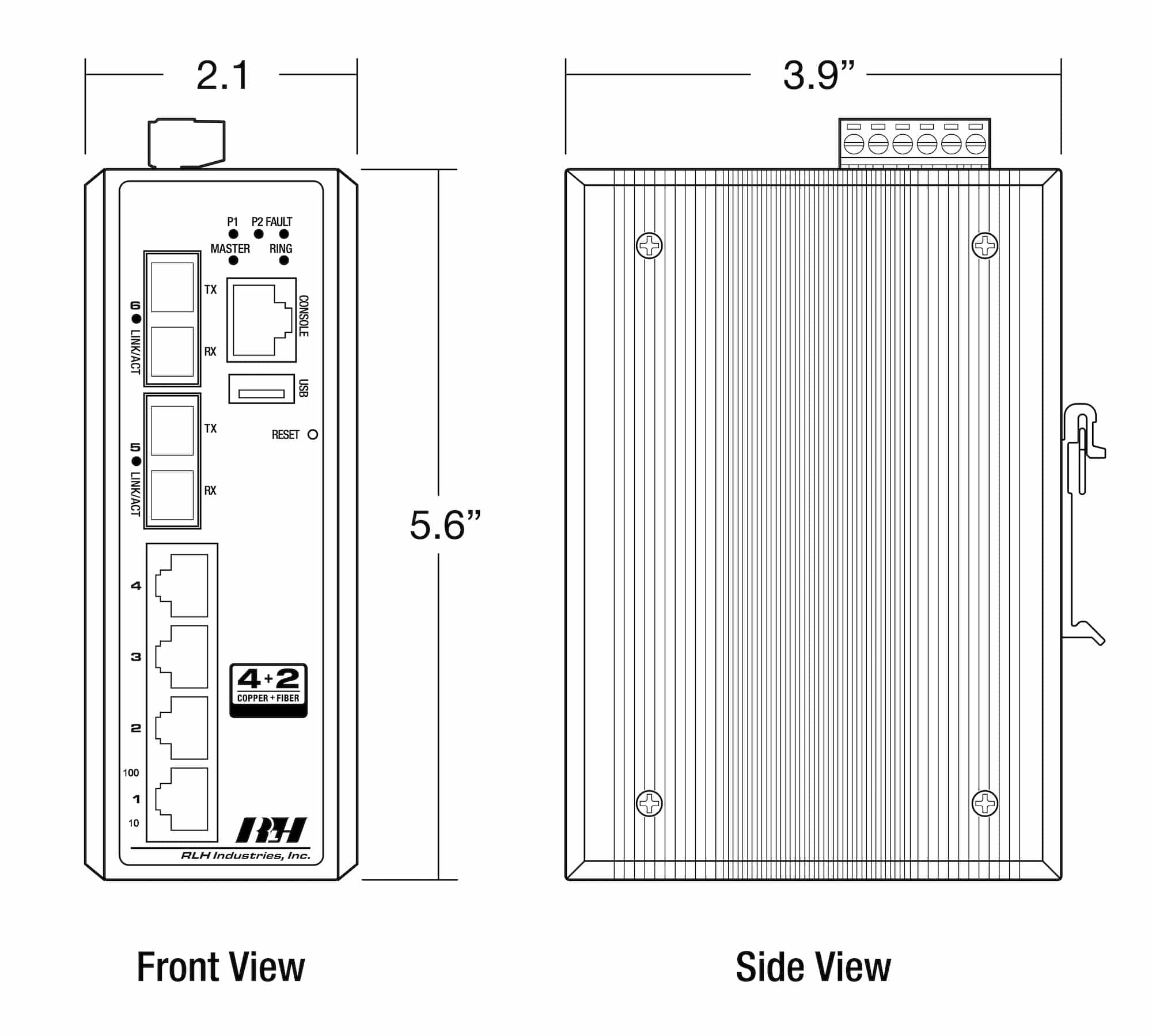

Dimensions:
2.1” (W) x 3.9” (D) x 5.6” (H), (54mm x 99mm x 142mm)
Not including connectors or DIN bracket
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Power Protection:
Over Current, Power Reversal, Polarity Protection
Powering Requirement:
12~48VDC redundant power inputs
MTBF:
584,088 hours
Product Information
CAD Files
ETH-42M-03-2
ETH-42M-04-2
ETH-42M-10-2
ETH-42M-11-2
ETH-42M-14-2
ETH-42M-15-2
ETH-42M-40-2
ETH-42M-41-2
ETH-42M-45-2
ETH-42M-50-2
ETH-42M-51-2
ETH-42M-55-2
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4+2 Managed 10/100 Fixed Fiber Industrial Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Multimode, SC, 2km 1310nm 12-48VDC | ETH-42M-03-2 | $645.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Multimode, ST, 2km 1310nm 12-48VDC | ETH-42M-04-2 | $645.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode BiDi side A, SC, 20km 1310/1550nm 12-48VDC | ETH-42M-10-2 | $855.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode BiDi side B, SC, 20km 1550/1310nm 12-48VDC | ETH-42M-11-2 | $855.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode BiDi side A, SC, 60km 1310/1550nm 12-48VDC | ETH-42M-14-2 | $1,035.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode BiDi side B, SC, 60km 1550/1310nm 12-48VDC | ETH-42M-15-2 | $1,035.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode, SC, 20km 1310nm 12-48VDC | ETH-42M-40-2 | $695.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode, SC, 60km 1310nm 12-48VDC | ETH-42M-41-2 | $915.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode, SC, 120km 1550nm 12-48VDC | ETH-42M-45-2 | $1,355.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode, ST, 20km 1310nm 12-48VDC | ETH-42M-50-2 | $695.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode, ST, 60km 1310nm 12-48VDC | ETH-42M-51-2 | $915.00 | |
| 4+2 Managed Light Layer 3 10/100 Industrial Ethernet Switch, Singlemode, ST, 120km 1550nm 12-48VDC | ETH-42M-55-2 | $1,355.00 |
- Single fiber (bi-directional) systems must always be paired, side A and side B
