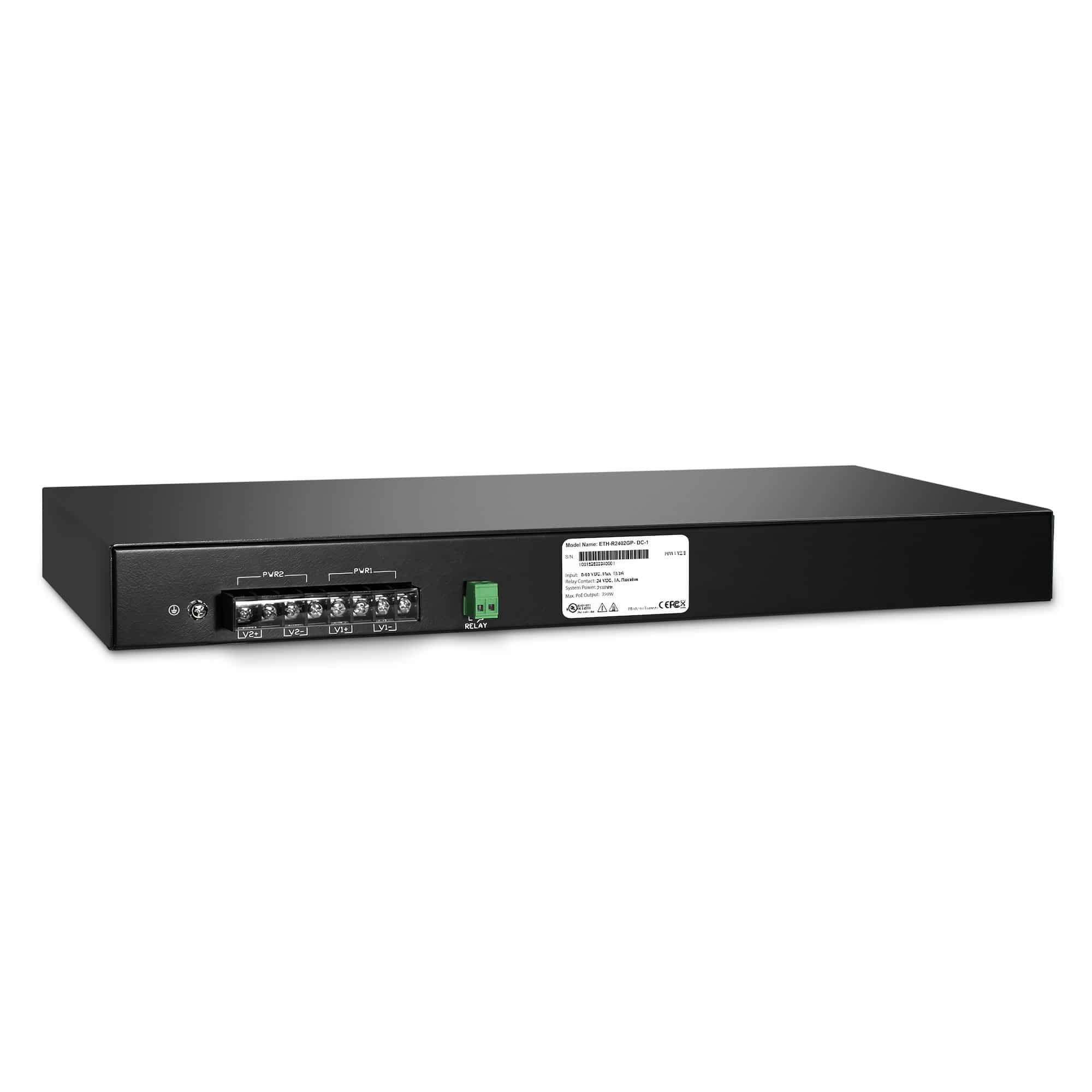

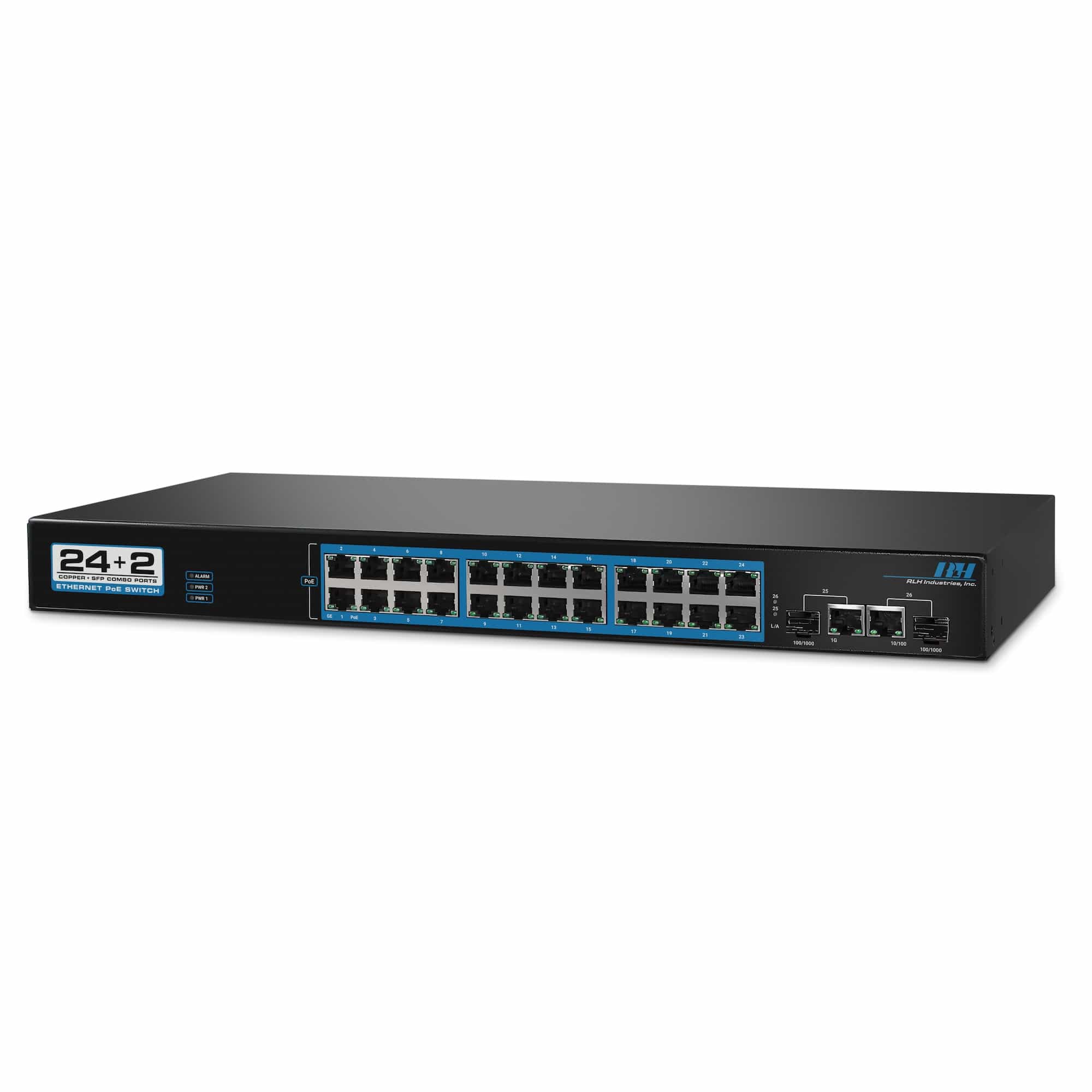

Dual DC-Powered 19-inch PoE+ (802.3at 30 watts), Rackmount Gigabit Switch with Fiber Uplink Options
The RLH 26-Port 10/100/1G PoE+ Unmanaged Industrial Ethernet Rackmount Switch (ETH-R2402GP-DC-1) is an environmentally hardened, high-performance networking platform engineered to maintain mission-critical communications in harsh and demanding environments while delivering PoE power to devices up to 100 meters away.
This switch provides 24 dedicated 10/100/1G (1000Base-T) PoE+ ports and two additional 1000Base-T ports that share media access with two 100/1G SFP slots, enabling flexible copper or fiber uplink configuration. Its 1U, 19-inch rackmount form factor delivers a high port count while minimizing space requirements.
Features
- Hardened to operate in -40°C to 75°C (-40°F to 167°F)
- 24 PoE ports of 10/100/1G + 2 Combo ports
(2 – 10/100/1G Tx RJ45 and 2 – SFP ports) - Auto MDI/MDI-X
- 8K MAC Address Table
- 9.6 Kbyte Jumbo Frames
- 48-55VDC Power Input
- 19” rack mount (1U)
- Rugged case rated to IP-40
- NDAA and TAA Complaint
- 5 Year Warranty
Please see the product documentation for the complete list of specifications
Ports:
(24) 10/100/1G PoE Ports
(2) Gigabit combo ports (SFP slots or RJ45)
Switch Properties:
Protocol: CSMA/CD
Data Process: Store and Forward
MAC address: 8K
Backplane bandwidth: 56G
LED Indicators:
PoE
PWR 1 – Power Supply 1 ON/OFF indicator
PWR 2 – Power Supply 2 ON/OFF indicator
Speed/Link/Act – Each Ethernet Port
Link/Act – Each SFP Port

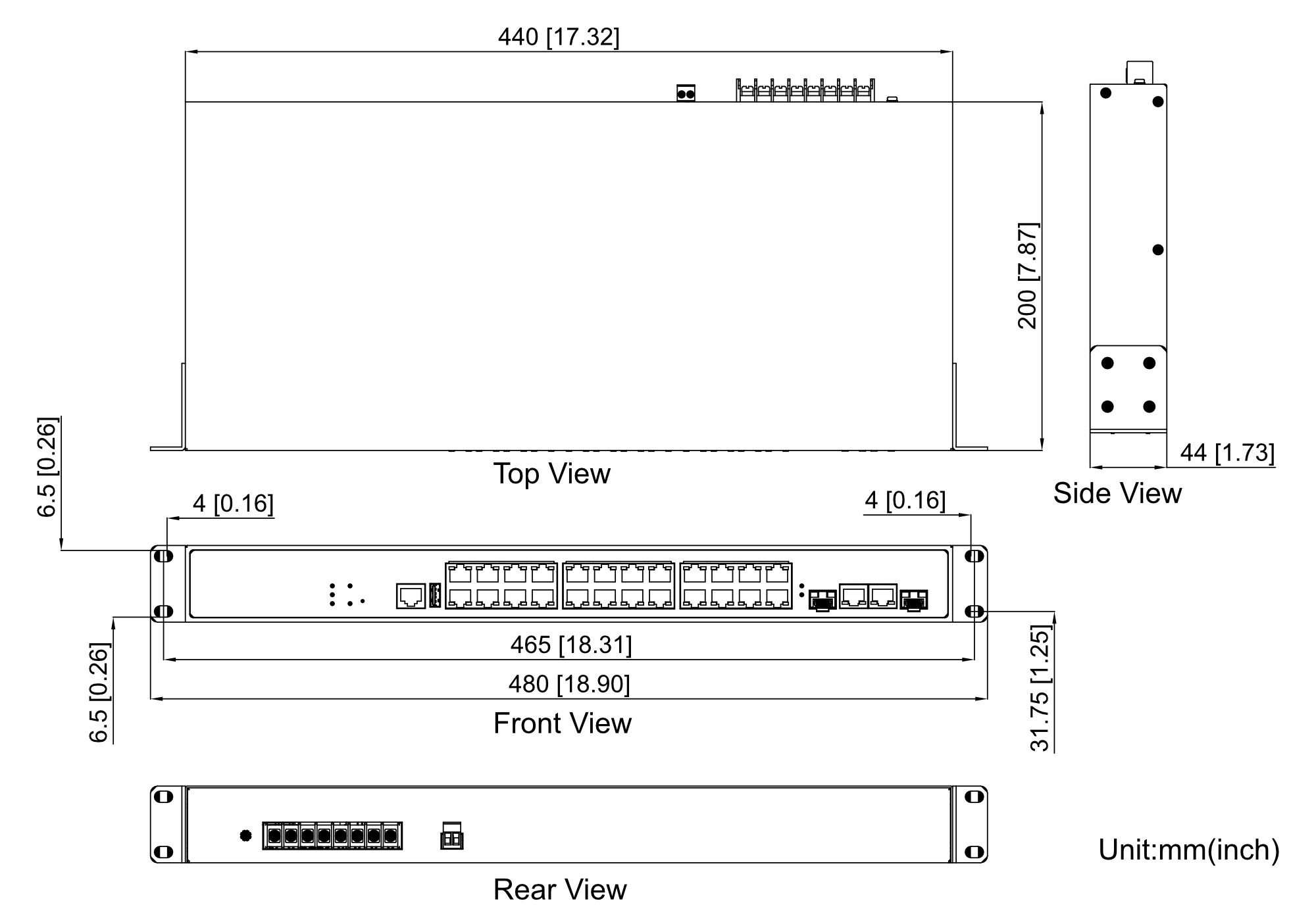

Dimensions:
17.3” (W) x 7.9” (D) x 1.73” (H), (440mm x 200mm x 44mm)
EIA 19” Rack Mountable, 1RU rack height
Power:
Dual 48-55VDC power input
Power Consumption:
Full-load: 21W (system only)
Max PoE Budget:
720 Watts max (30 Watts max per port)
Temperature:
-40°F to 167°F (-40°C to 75°C)
Humidity:
5%~95% non-condensing
Safety:
CE, FCC Class A
Compliance:
NDAA, TAA, RoHS and REACH compliant, UL Listed
Warranty:
Limited 5 years
Product Information
CAD Files
ETH-R2402GP-DC-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
24+2 Unmanaged 10/100/1G PoE+ Rack Mount Ethernet Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 24+2 Unmanaged PoE+ 10/100/1G Industrial Ethernet Switch, Rack Mount, SFP(100/1G) ports, 48-55VDC Power | ETH-R2402GP-DC-1 | $1,535.00 |
