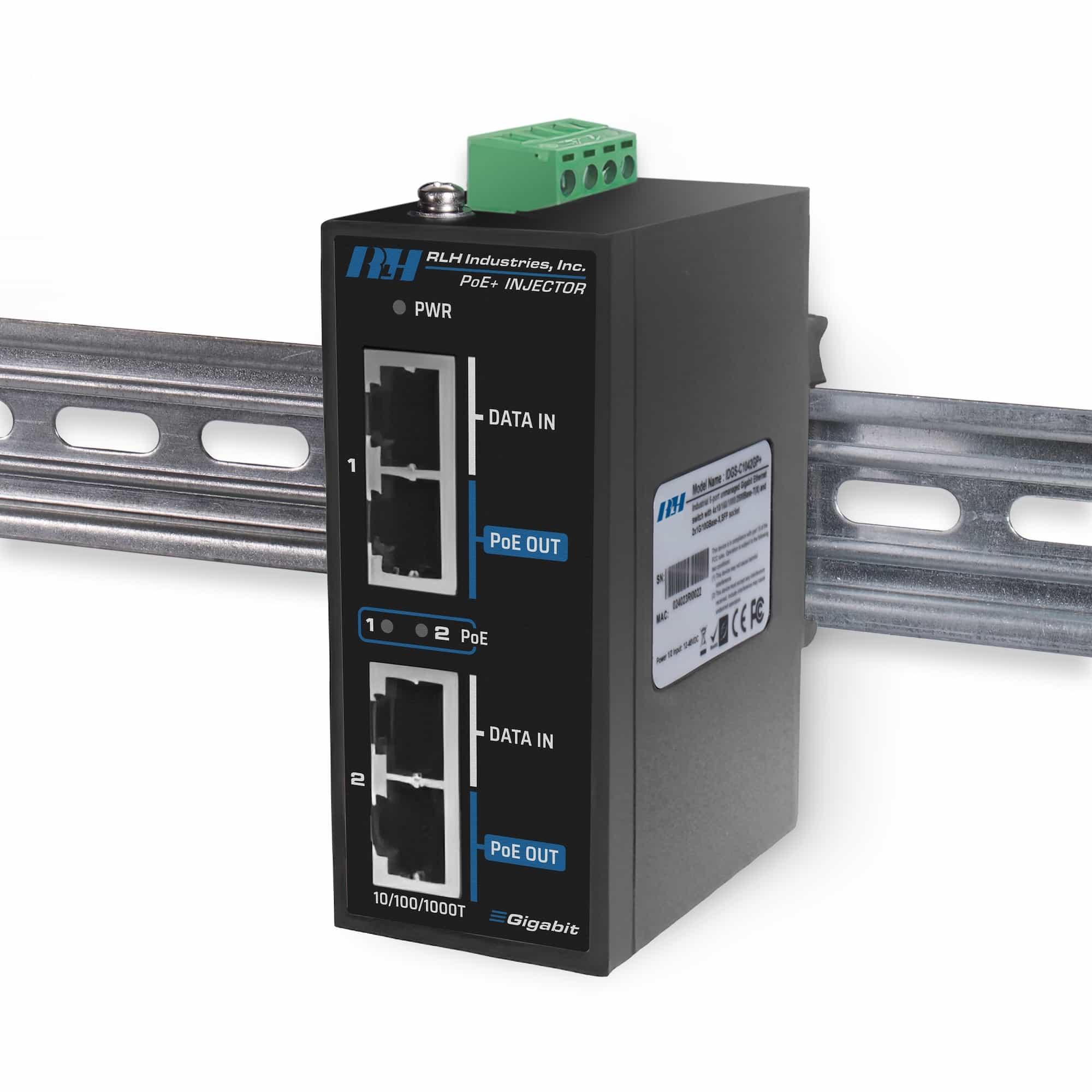

The ETH-INJ-2AT-1 Flex PoE Injector integrates two completely independent IEEE 802.3af/at–compliant PoE injectors within a single enclosure. Each injector operates autonomously and includes one Ethernet data input port and one corresponding PoE output port, forming two separate and isolated PoE channels.

Each PoE injector independently performs IEEE 802.3af/at signature detection and will only apply power after a valid powered device (PD) is detected on its associated PoE output port. This design ensures that the operation, power delivery, and fault conditions of one injector have no impact on the other, allowing two PoE devices to be powered independently from the single unit.

Intelligent PoE detection protects non-PoE equipment from accidental damage and ensures compatibility with IEEE 802.3af/at–compliant devices. Power is supplied on Ethernet pins 1/2 (V+) and 3/6 (V−) in accordance with the IEEE end span standard. With a wide 12–57 VDC input range using Flex Power technology, the ETH-INJ-2AT-1 is ideal for many applications where 24VDC is readily available, boosting the voltage up to the IEEE 802.3af/at standard of 48-52VDC.

Note: Only IEEE 802.3af/at–compliant powered devices can be used, as each injector must detect a valid PoE signature before enabling power output.
