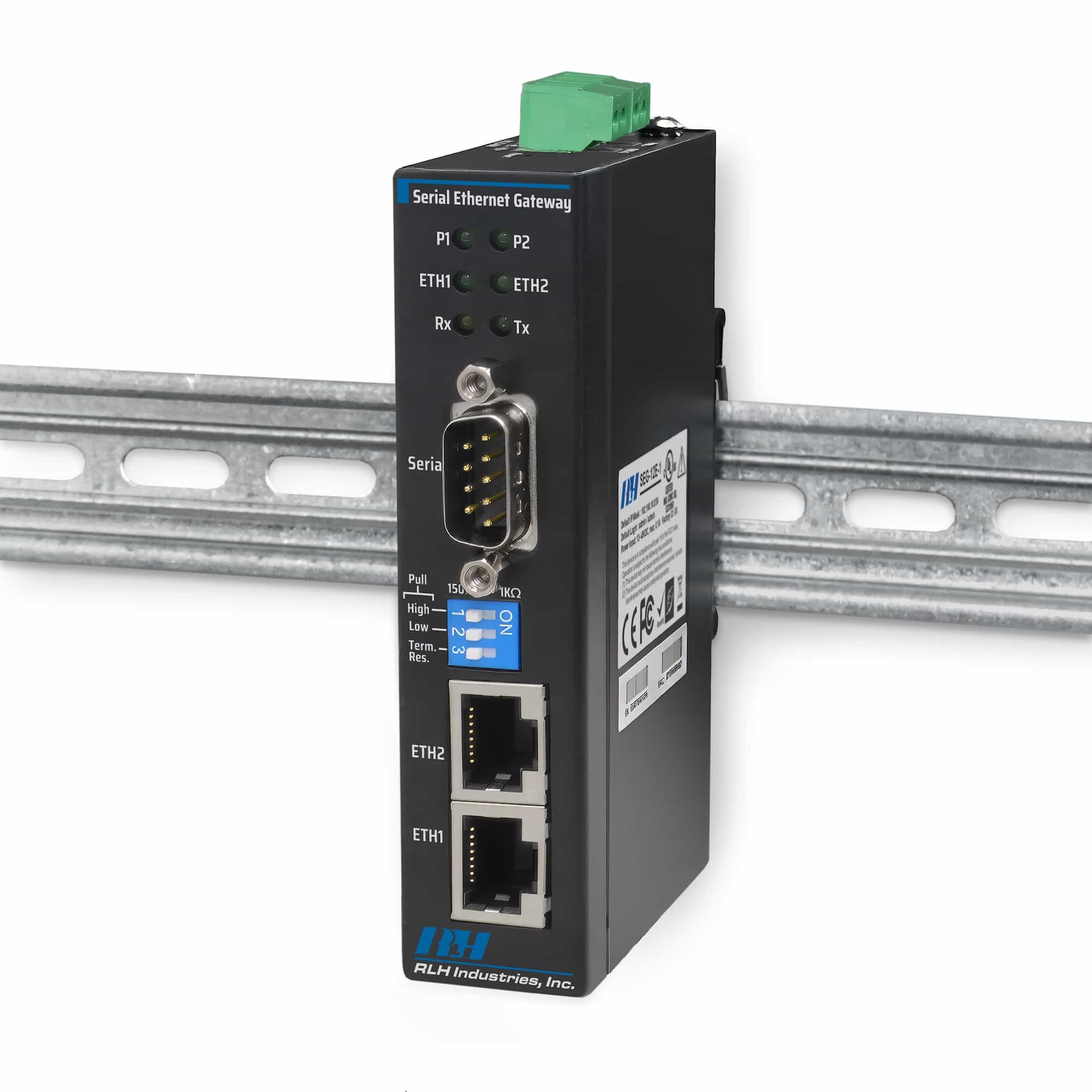

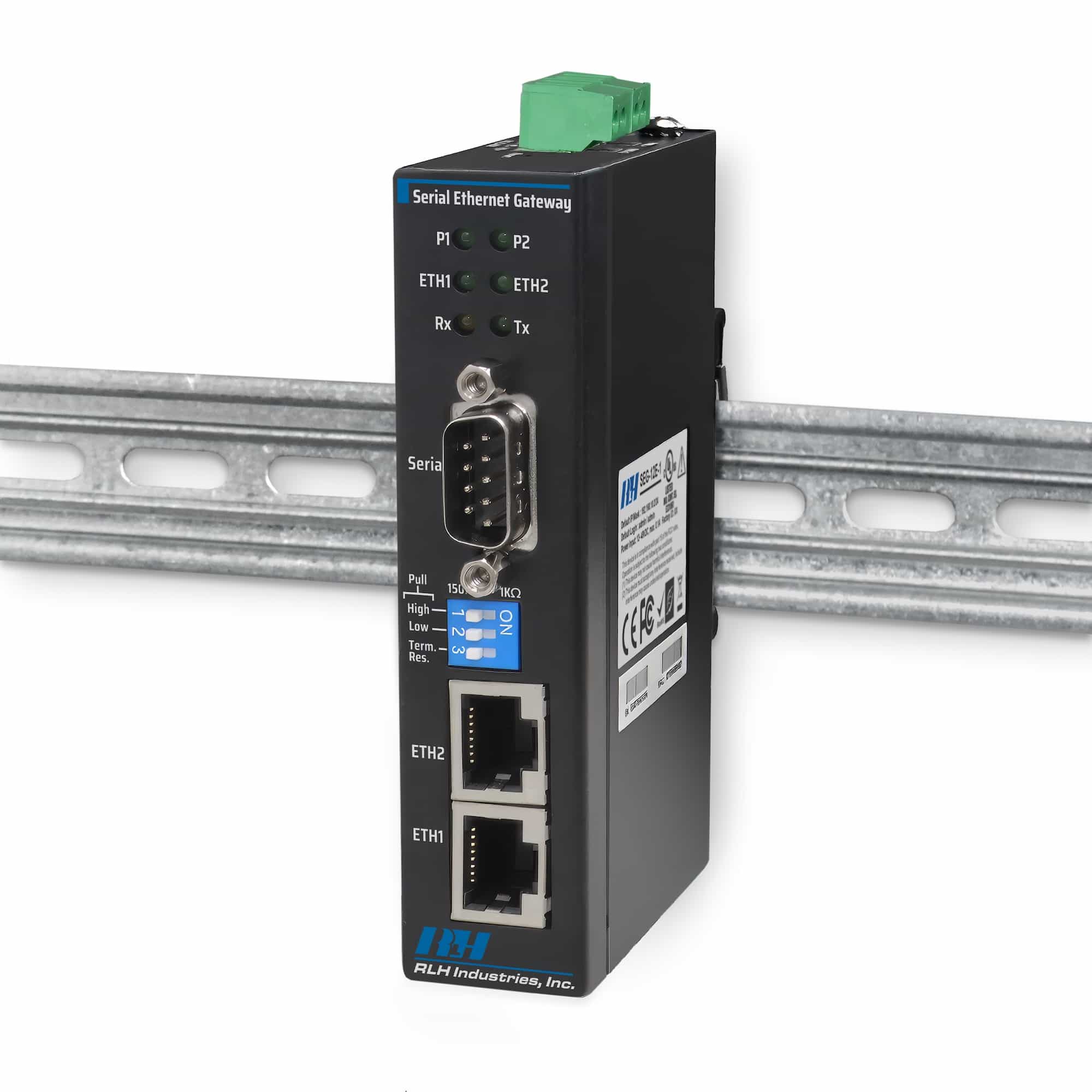

Industrial Secure Serial Port to Dual Ethernet Gateway
The SEG-12E is a secure, single port RS-232/422/485 to two ports LAN device server with standard features that include TCP/IP interface and versatile operation modes including Virtual Com, Serial Tunnel, TCP Server, TCP Client, and UDP. Configure multiple devices and set the mappings of Virtual Com using the SEG-Tool Windows utility available for download online at fiberopticlink.com.
The RLH serial to Ethernet gateway is capable of simultaneous data transfer up to 5 redundant host PCs, avoiding Ethernet connection breakdowns or host PC failures. HTTPS, SSH, and SSL encryption features provide security for critical data transmission.
The device supports RS-232/422/485 and provides 12~48 VDC dual redundant power inputs to ensure non-stop operation. It is designed to operate in harsh industrial environments with a wide -40~70˚C operating temperature range, and rugged IP-30 housing construction. These features make the SEG-12E Series the best solution for secure serial-to-Ethernet critical data communication.
Features
- Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
- Network Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP
- 2×10/100Base-T(X) RJ45 ports 1xRS-232/422/485 in DB9 connector
- Event Warning by Syslog, Email, SNMP trap
- 12~48VDC dual redundant power inputs
- Hardened to operate in -40°C ~ 70°C (-40°F ~ 158°F)
- Din rail or wall mountable (wall mount ears included)
- 5 Year Warranty
Please see the product documentation for the complete list of specifications
RJ45 Ports:
2x 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDI-X
Serial Port:
Connector: DB9
Operation Mode: RS-232/422/485
Serial Baud Rate: 110 bps to 921.6 Kbps
Data Bits: 7, 8
Parity: odd, even, none, mark, space
Stop Bits: 1, 1.5, 2
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx-, Tx+, Rx+, Rx-
RS-485: 4 wire: Tx-, Tx+, Rx+, Rx-, 2 wire: Data-, Data+
Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
Network:
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP
LED Indicators:
Power Indicator: 2 x LEDs, PWR 1(2) / Ready, Green On: Power is on
10/100TX RJ45 port indicator: Green for port Link/Act at 100Mbps
Serial TX / RX LEDs: Amber: Serial port is receiving data, Green: Serial port is transmitting data
Power:
Redundant Input Power: Dual DC inputs. 12-48VDC on 4-pin terminal block
Power consumption: 4.8w Max. (0.05A-0.1A)
Protections: Overload current Protection present, Reverse polarity protection present
Physical:
Enclosure: IP-30

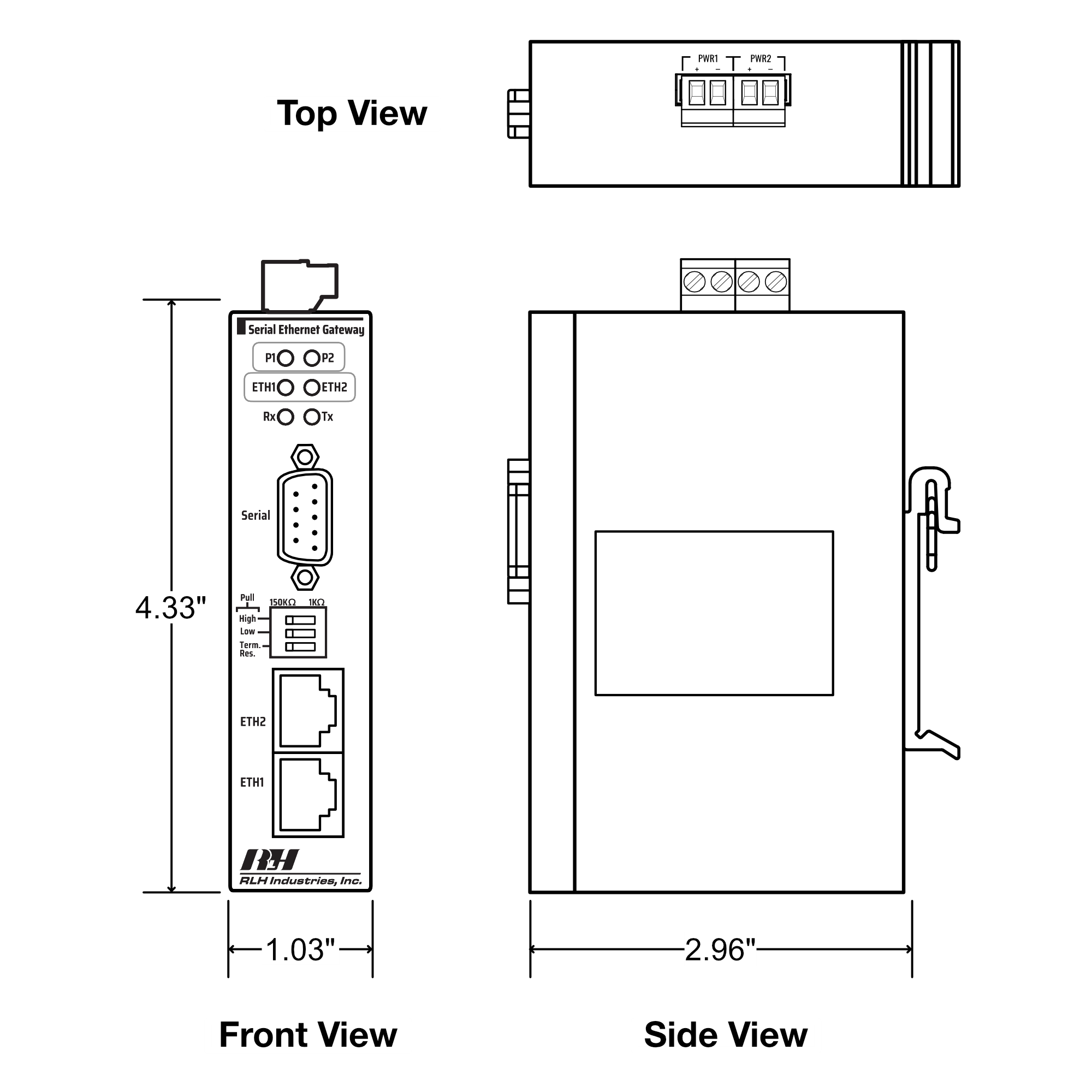

Dimensions: 26 (W) x 75 (D) x 110 (H) mm (1.02 x 2.95 x 4.33 inch)
Weight: 227g (8oz)
Temperature:
Operating: -40°C ~ 70°C (-40°F ~ 158°F)
Humidity:
5% to 95% Non-condensing
Standards:
EMC: CE EMC (EN 55024, EN 55032), FCC Part 15B
EMI: EN 55032 CISPR 32, EN 61000-3-2, EN 61000-3-3 FCC Part 15B Class A
EMS: EN 55024 (IEC/EN61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP)
Stability:
IEC60068-2-27 (Shock), IEC60068-2-31 (Free Fall), IEC60068-2-6 (Vibration)
Safety:
FCC Class A, EN 60950-1 (LVD), UL61010-1, UL61010-2-201, File Number: E480850
MTBF:
1,478,078 hours
Warranty:
5 Years
Product Information
CAD Files
Guide
SEG-12E-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial Serial Ethernet Gateway RS-232/422/485 2×10/100Base-T(X)
| Short description | Part number | Price | |
|---|---|---|---|
| Serial-to-Ethernet Gateway, RS232/422/485 Serial to (2) 10/100 Ethernet, 12-48VDC | SEG-12E-1 | $315.00 |
