Ethernet Standards:
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3at/af Power over Ethernet (PoE)

Processing Type:
Store-and-Forward

Forward Filter Rate:
14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

Packet Buffer Memory:
1MB

Max Packet Length:
9KB

Address Table Size:
2K MAC Addresses

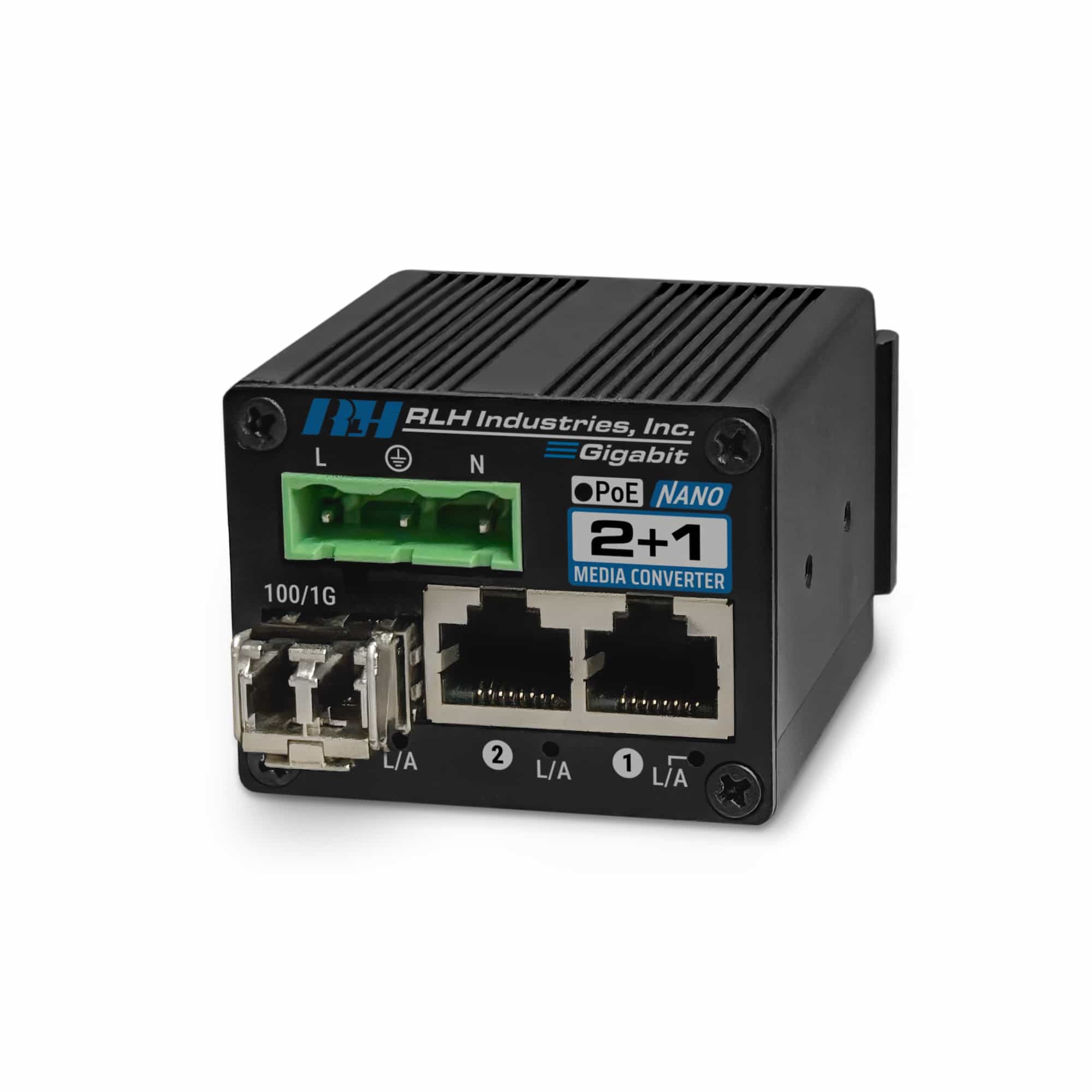

Interface:
2x RJ45 10/100/1000Base-T, 1 x SFP 100/1000Base-X

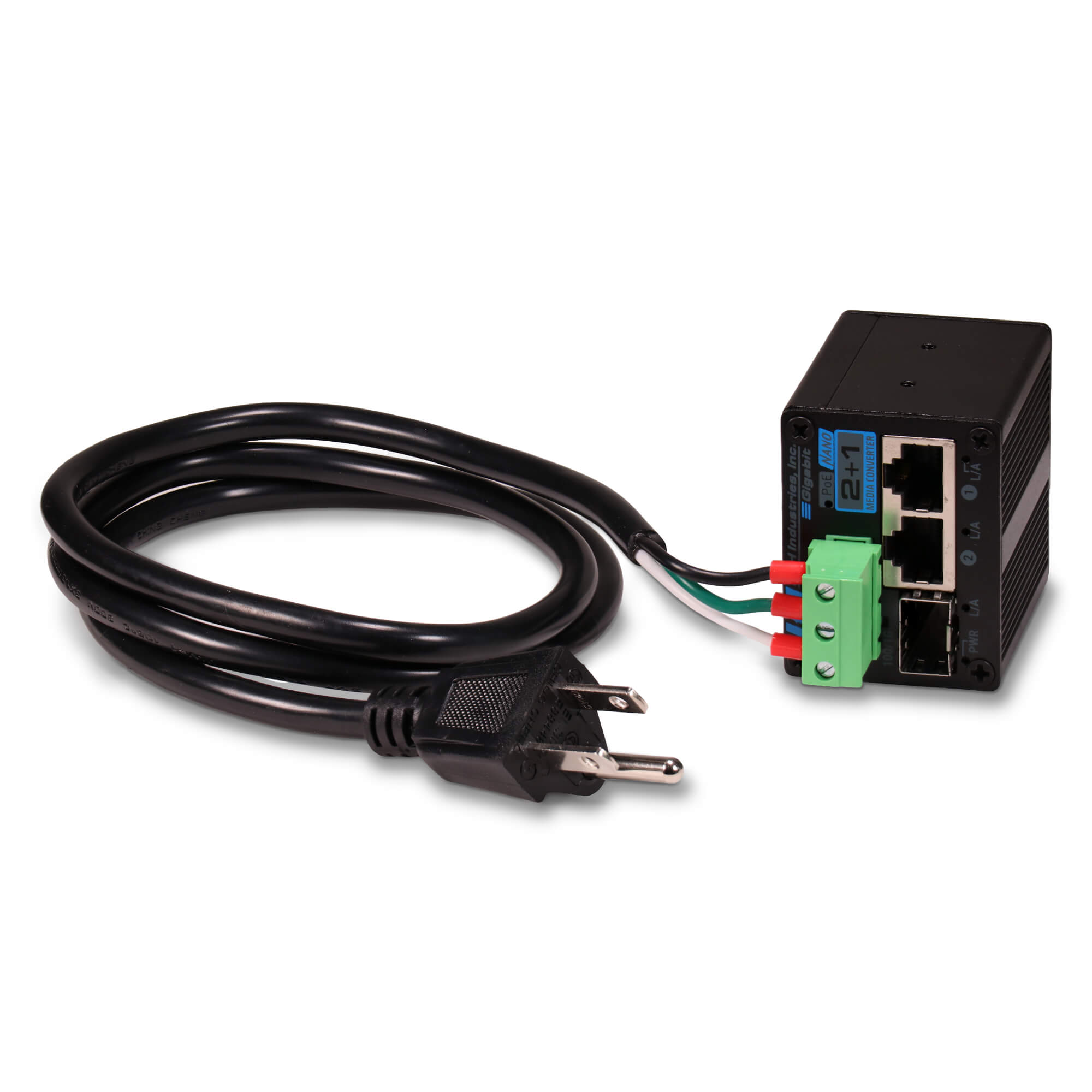

Input Power:
85~250VAC or 125VDC 3-pin terminal block

Power Consumption:
5W maximum, excluding PoE load

PoE Standard:
IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type:
Mid-span

Power Pin Assignment:
4/5 (+), 7/8 (-)

PoE Power Output:
Per port 54V DC, Max. 30 watts

PoE Power Budget:
30W Max per PoE port, 40W PoE Max Budget

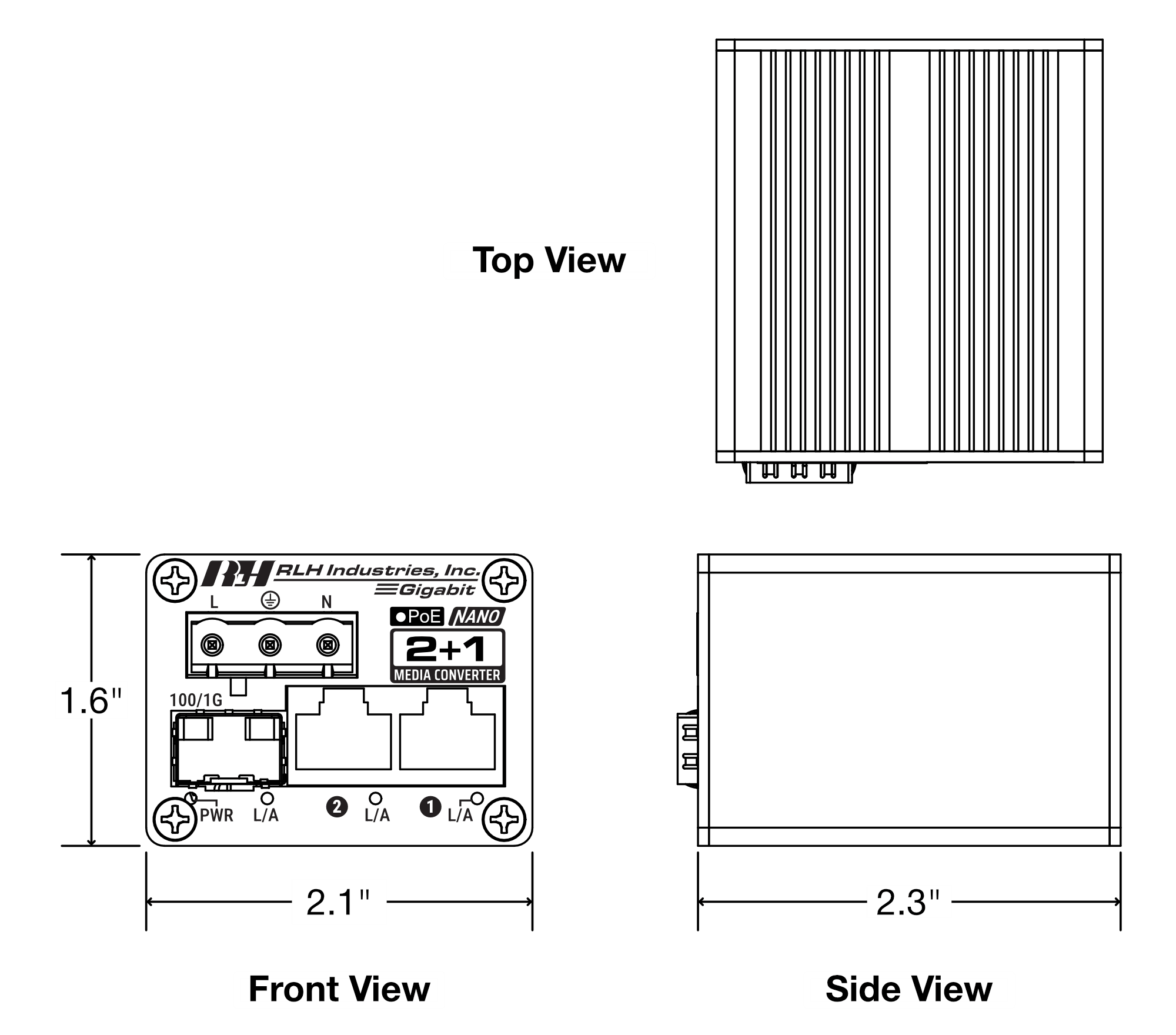

Dimensions (WxDxH):
53mm (W) x 40mm (D) x 58mm (H) (2.09″ (W) x 1.57″ (D) x 2.28″ (H))

Weight:
0.15Kg (5.29oz)

Housing:
Aluminum Alloy

Mounting Options:
DIN-Rail Mount

LED Indicators:
PW On: Power Supply Normal; Off: Power not connected
L/A (RJ45) On: A network device is connected; Off: No network device connected
Blinking: Data transmission

L/A (SFP):
On: Fiber connected; Off: Fiber not connected
Blinking: Data transmission

Operating Temperature:
-40°C to 80°C (-40°F to 176°F)

EMC/EMI/EMS:
EN61000-4-2 (ESD): LEVEL 4, IEC 6100-4-2 (EFT): LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS): LEVEL 3, IEC 61000-4-2(PFMP): LEVEL 5, EN61000-4-3 (RS): LEVEL 4

Stability Testing:
IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)

Compliance:
CE, FCC Class A, and RoHS Compliant

MTBF:
>200,000 hrs
