Temperature Controlled for Sensitive Equipment
The RLH CORE series of outdoor cabinets offer full protection of critical equipment located in harsh environments. The CORE line of enclosures may be configured with factory options to meet the demands of almost any installation environment.
These lightweight, easy to install CORE enclosures are made from high-grade powder-coated aluminum alloy and feature a fixed 19 inch equipment rack. Standard thermal control options include air conditioner or vented exhaust fan.
Each enclosure also features a vented solar shield, gasketed weatherproof door, aluminum back panel, ground bus bar, and pole mount bracket.
CORE enclosures are designed and made in USA, and are BABA and BEAD compliant.
Features
- Weatherproof design for outdoor use
- Heavy duty, precision welded, powder coated aluminum construction
- Dimensions: 24”H x 24”W x 16”D (internal)
- Aluminum back panel
- Quarter turn latches with padlock ring
- Hinged door with alarm switch, limit stop and document pocket
- Removable 12RU 19 inch equipment rack
- Neoprene weather-tight door seal

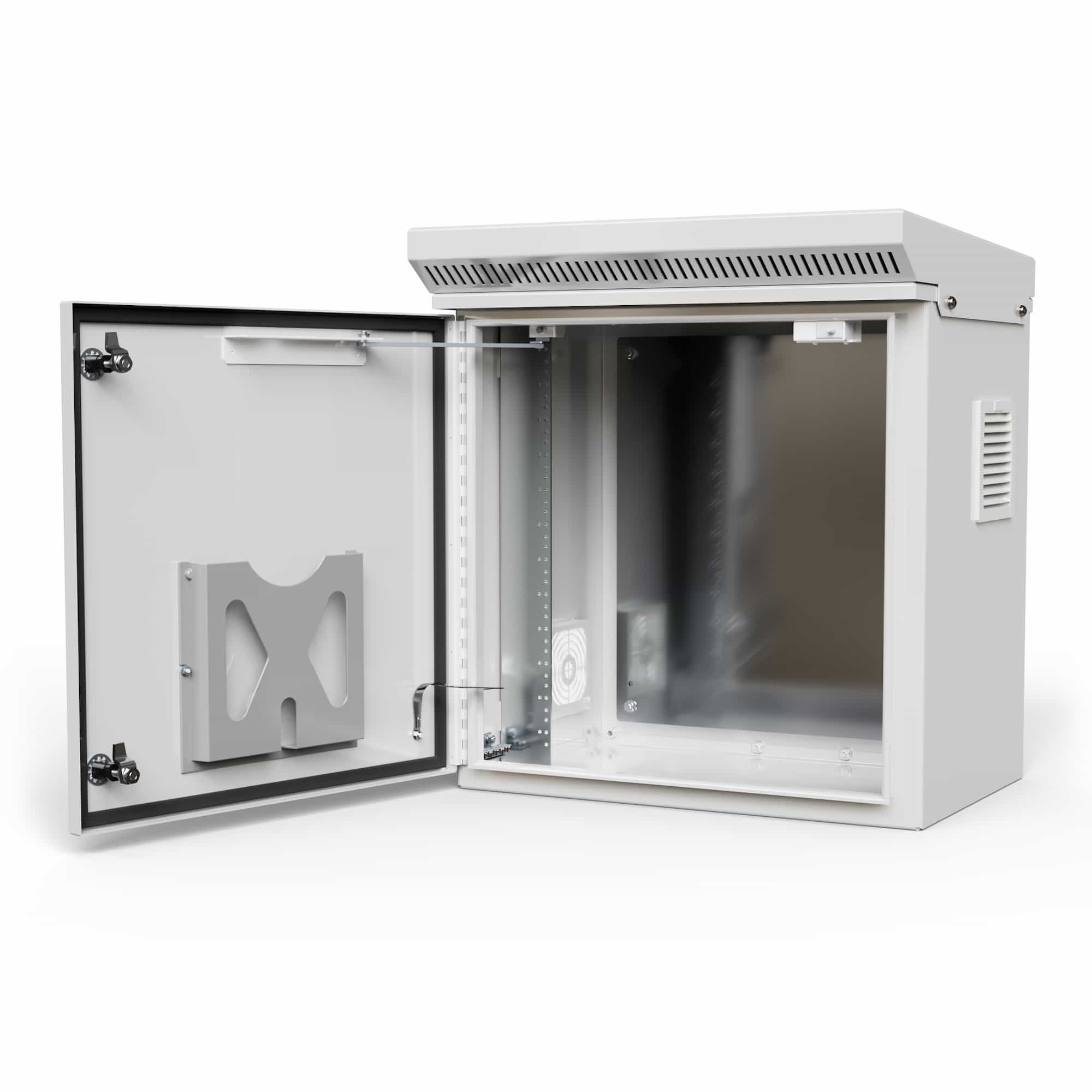

- Standard NEMA 3R vent fan and thermostat

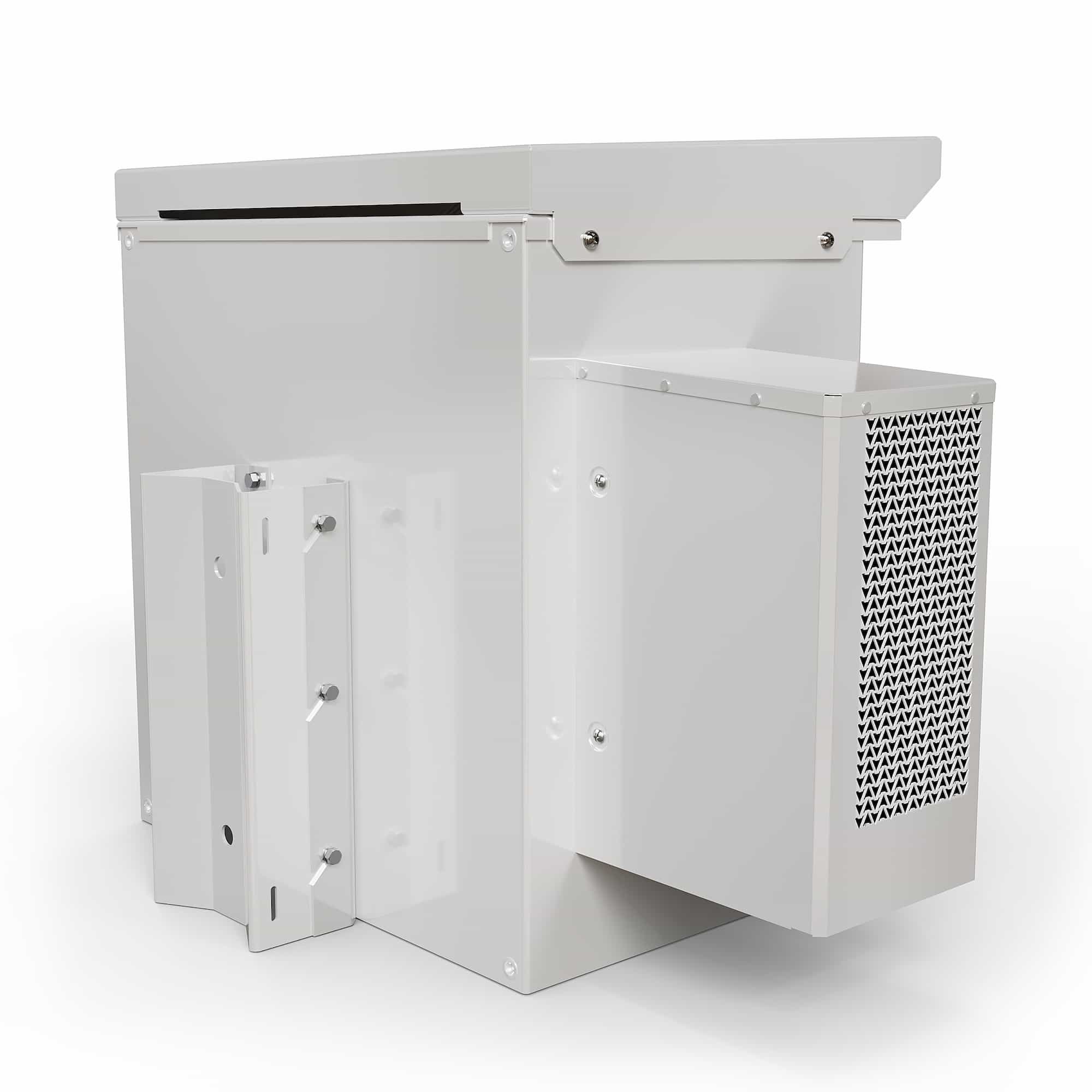

- Optional 1000 Btu air conditioner
- Pole, wall or strut mountable
- Top solar shield
- Factory configurable options available
- Made in USA
Please see the product documentation for the complete list of specifications
Construction:
Powder Coated Aluminum Alloy

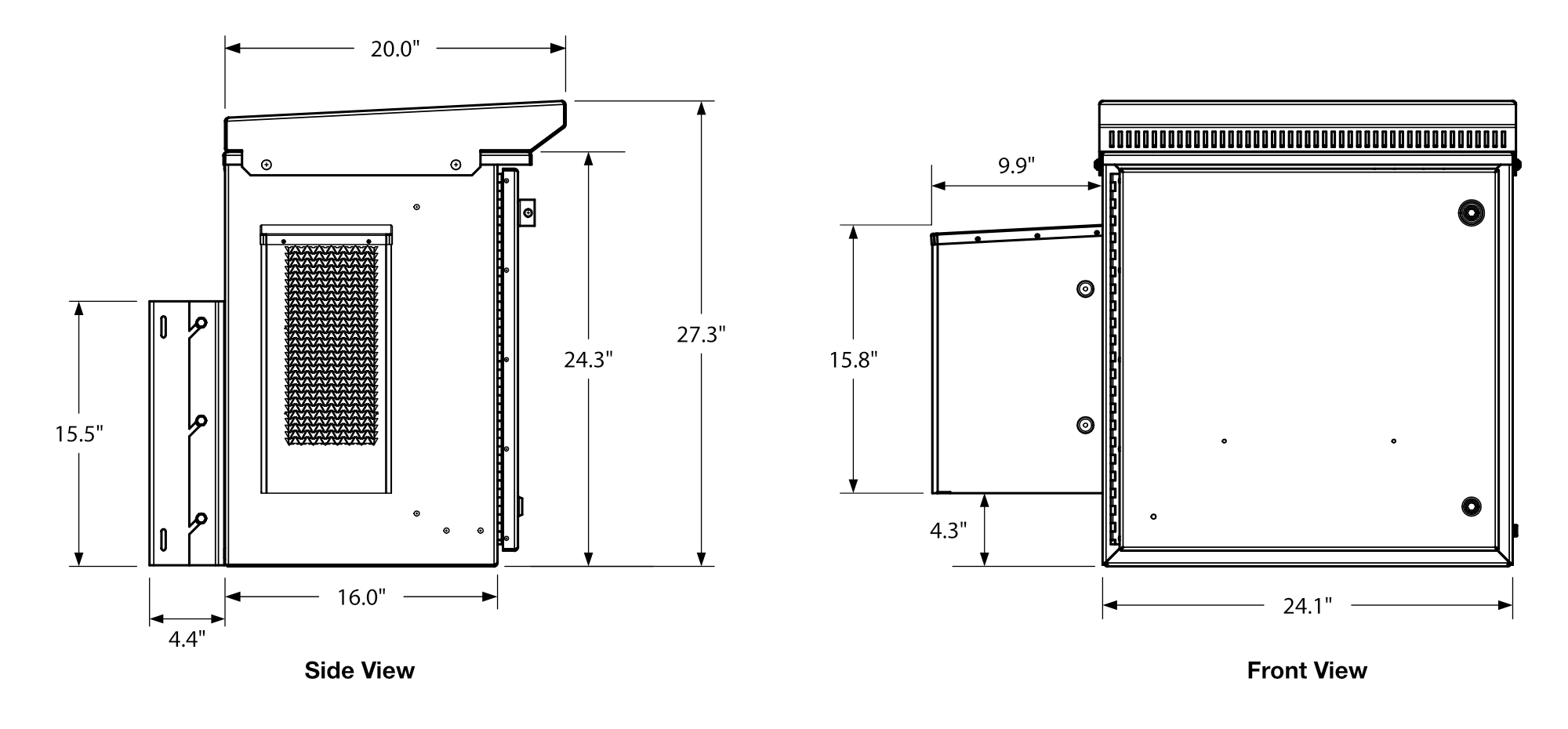

Dimensions:
24.3″ (H) x 24.1″ (W) x 16″ (D) (618.2mm H x 611.6mm W x 406.4mm D)
Product Information
CORE-242416A-FAA-ASX-1
CORE-242416A-FVA-ASX-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

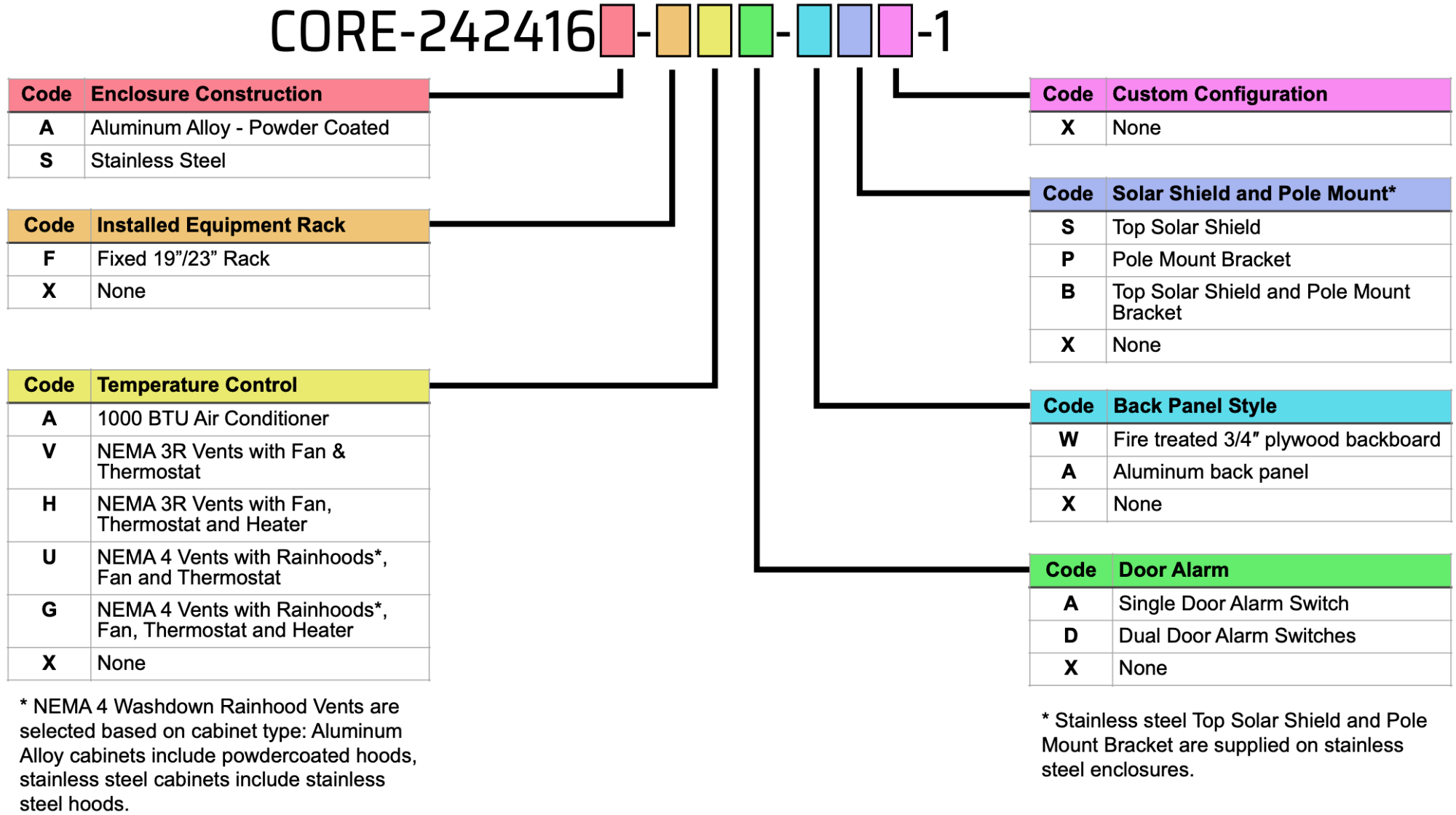

Ordering
CORE 24” x 24” x 16” Cabinet with 19” Equipment Rack
| Short description | Part number | Price | |
|---|---|---|---|
| Powder Coated Aluminum Alloy, 12RU Fixed 19" Equipment Rack, 1000 Btu AC System, Single Door Alarm Switch, Aluminum Back Panel, Solar Shield | CORE-242416A-FAA-ASX-1 | $3,920.00 | Get a Quote |
| Powder Coated Aluminum Alloy, 12RU Fixed 19" Equipment Rack, NEMA 3R Vents with Fan & Thermostat, Single Door Alarm Switch, Aluminum Back Panel, Solar Shield | CORE-242416A-FVA-ASX-1 | $2,130.00 |
