Managed Industrial Layer 2 Gigabit Switch

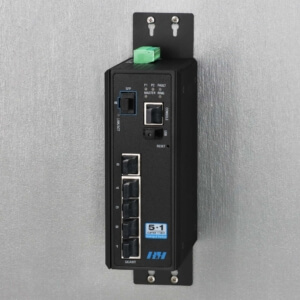

Industrial Ethernet Switches - 5+1 Managed Gigabit SFP Switch
DIN Mount


RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 5+1 Managed Gigabit SFP switch provides both copper and fiber Gigabit Ethernet access. This environmentally hardened layer 3 switch is manageable and offers a wide array of configuration and monitoring options.

Our feature rich industrial switch meets the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.

ETH-51GM-2

  • Hardened design has a wide operating temperature range: -40º to +167º F (-40º to + 75º C)
  • Dual Rate SFP ports – 100Mbps & 1Gbps
  • 5 Ports of Gigabit Ethernet
  • 9.6K Bytes Jumbo Frame Support
  • Auto MDI/MDI-X
  • Store-and-forward switching architecture
  • Rugged case rated to IP-30
  • Redundant power inputs with built-in alarm
  • 2kV surge protection
  • DIN rail & wall mountable
  • Managed Features:
    • Configuration via Web, Serial, Telnet, & SSH
    • Network redundancy: G.8032 ERPS v2/ STP/RSTP/ MSTP
    • Supports IEEE 802.1q Vlans
    • Port Mirroring, Control, & Monitoring

Construction:
Powder coated IP30 steel housing

Ethernet Ports:
(5) 10/100/1000 Mbps

SFP Sides:
(1) Dual Rate SFP
Supports both 100 &1000 Mbps speed modules

Ethernet Interface:
Supports Jumbo Frames, Auto MDI/MDI-X, Auto Negotiation

Management:
Layer 2 – See User Guide for complete management details

Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wall mount brackets included

Dimensions:
1.81” (W) x 3.90” (D) x 5.59” (H), (46mm x 99mm x 142mm)
Not including connectors or DIN bracket

Operating Temperature:
-40°F to 167°F (-40°C to 75°C)

Fault Output:
1 Relay output rated for 24VDC @ 1 Amp

Power Protection:
Over Current, Power Reversal, Polarity Protection

Powering Requirement:
12~55VDC redundant power inputs

Safety:
UL61010-1, UL61010-2-201, FCC Class A, CE

General Information

Specialized Drawings

Miscellaneous

5+1 Managed Gbit SFP Switch Dimensions
5+1 Managed Gbit SFP Switch Dimensions

$595.00

Lead Time: 1 to 5 Days*

For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

Ordering

5+1 Managed Gigabit SFP Switch

Short descriptionPart numberPrice
Managed Switch, 5 Gigabit RJ-45 Ports, 1 Dual Rate SFP Port, Powering Voltage 12-48 DCETH-51GM-2$595.00

*Lead times are estimates and may vary. You will be contacted within 1 business day to go over the details of your order. If you require a specific date, let us know!
*Days = Business Days
